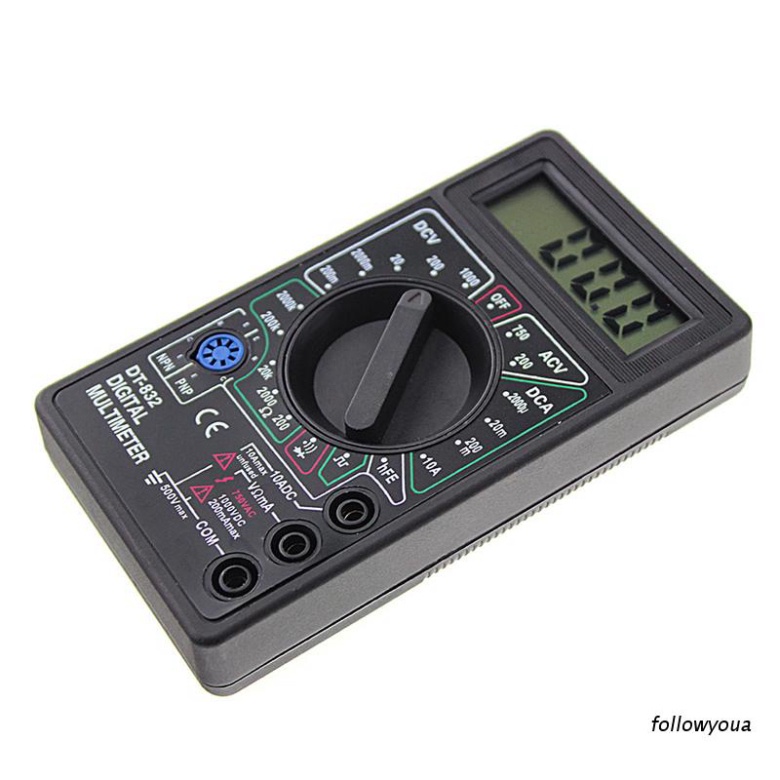

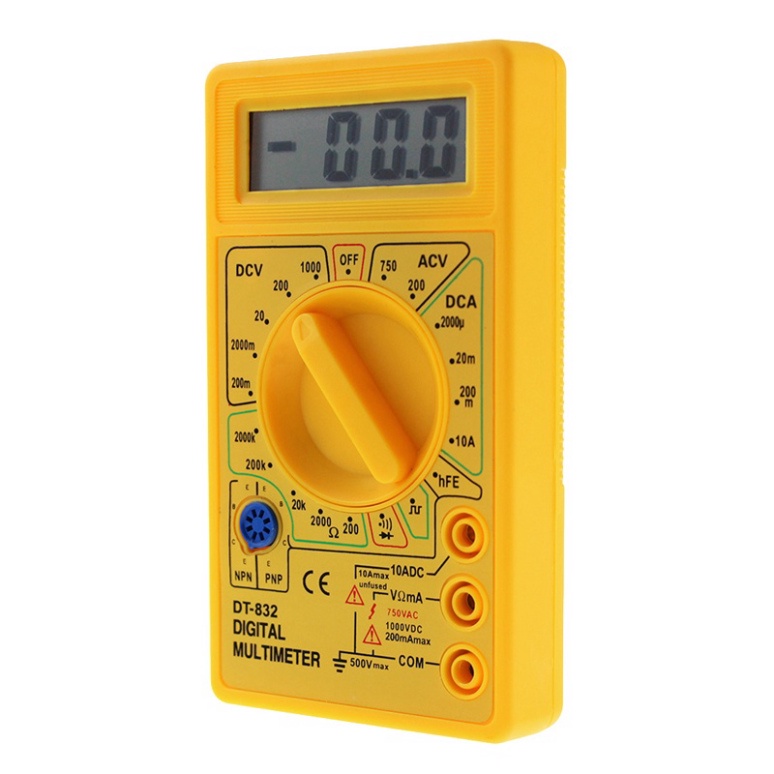

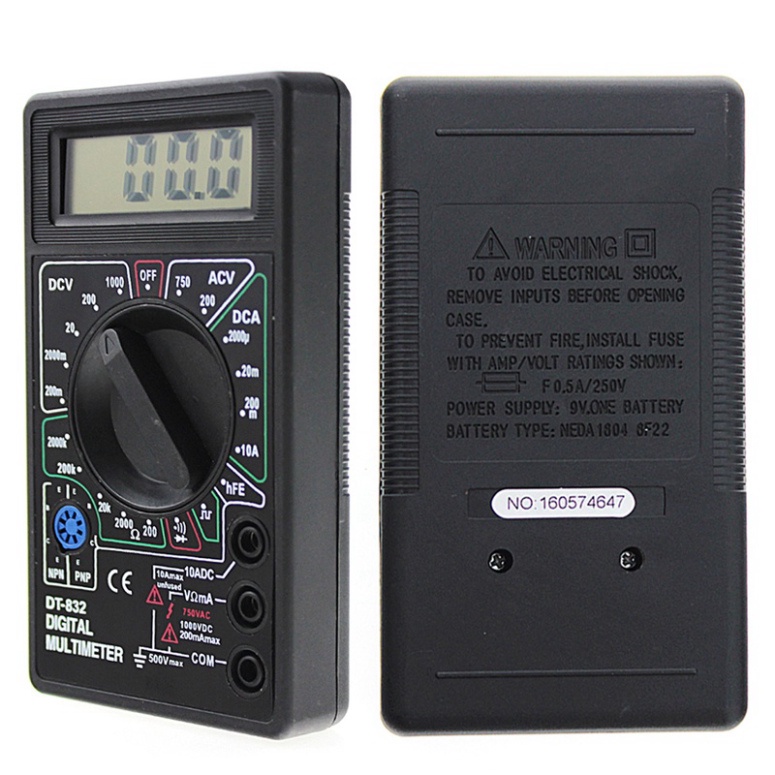

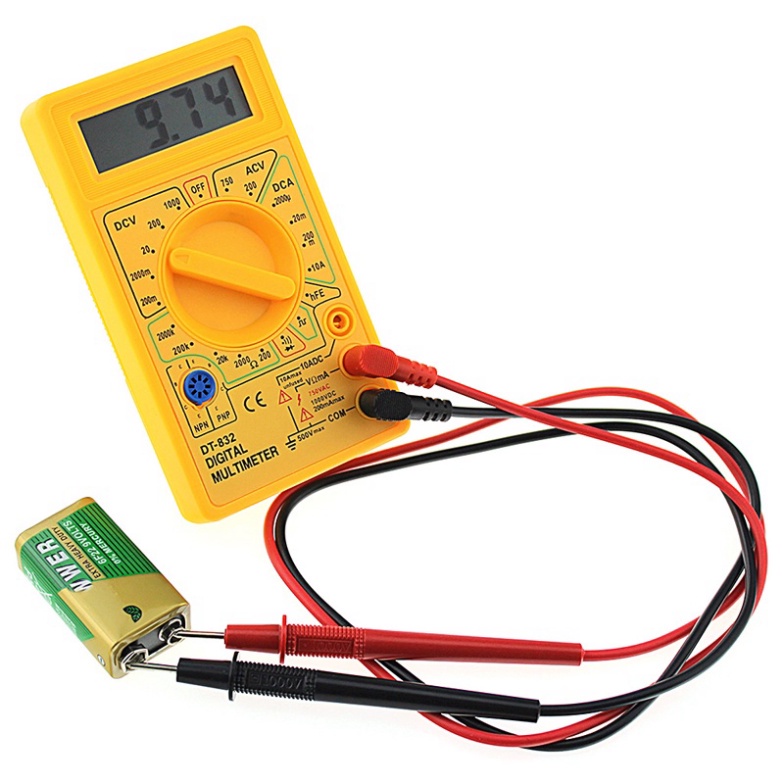

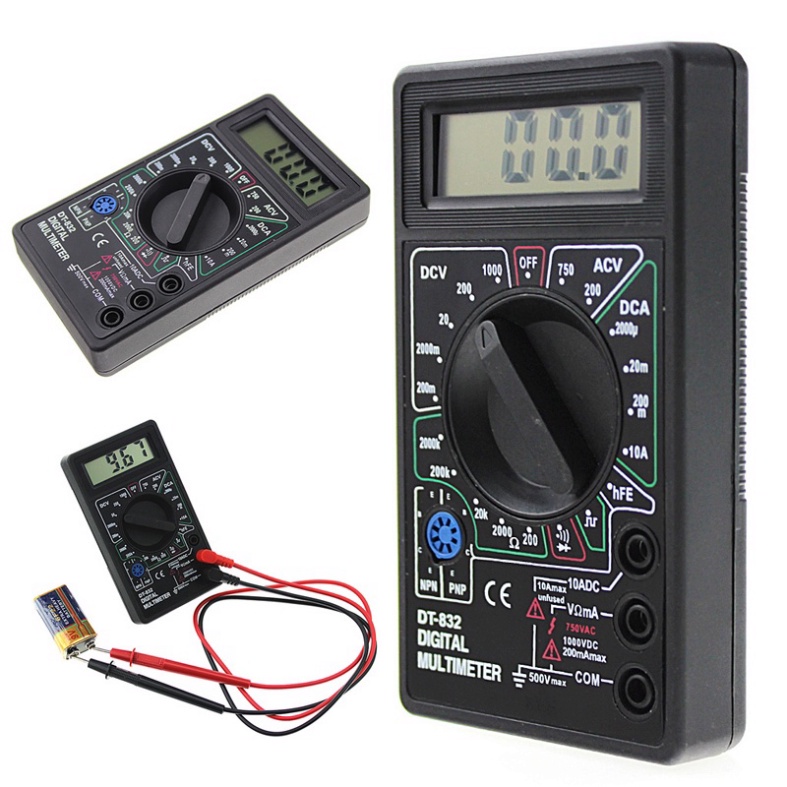

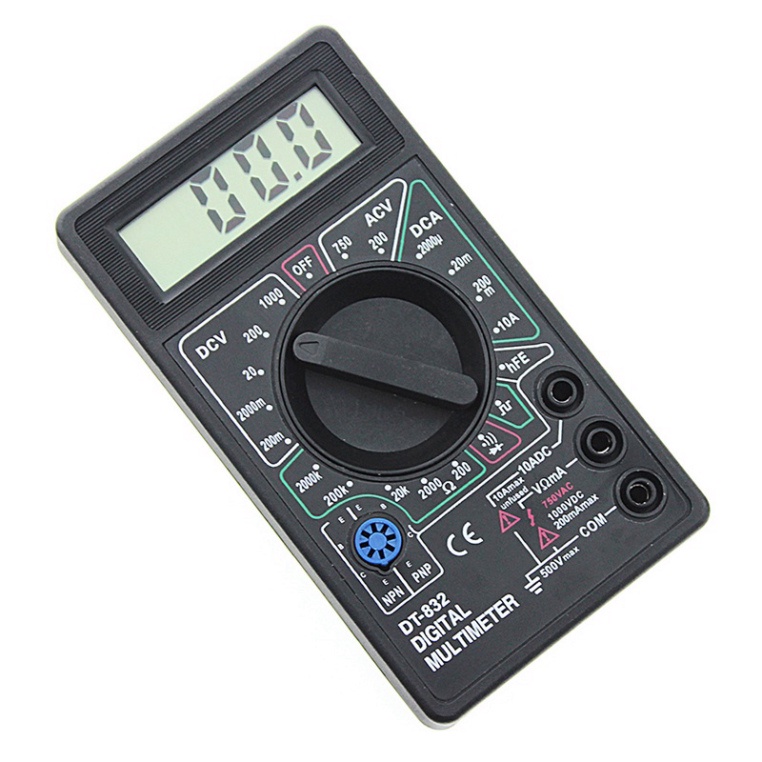

Professional DT832 Digital Multimeter LCD for DC AC Voltmeter Ammeter Ohm Tester

Description:
A practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.

Features:
3 digits, 7segment, 0.5"high LCD Display
Max display: 1999, Auto polarity display
Small and compact design
Overload protection on all ranges
Sampling 2~3 times readings per second
Diode assembly test / Transistor P-N junction test / Transistor hFE test
Low battery voltage indication

Specifications:
Model: DT832
Measuring range:
Max AC Current: 10A
Max AC Voltage range: 1000V
Max DC Voltage range: 750V
Resistance Measurement: 200 Ohm-2000K Ohm range
Buzzer: Yes

FunctionRangeResolution Accuracy
200mV100uV
2000mV1mV
DC Voltage20V10mV±(0.5%+2)
200V100mV
1000V1V±(0.8%+2)
200V100mV
AC Voltage750V1V±(1.2%+10)
200uA0.1mA
2000uA1uA±(1%+2)
DC Current20mA10uA
200mA100uA±(1.2%+2)
10A10mA±(2%+2)
200Ω0.1Ω
2000Ω1Ω
Resistance20KΩ10Ω±(0.8%+2)
200KΩ100Ω
2000KΩ1000Ω±(1%+2)

Color: Yellow
Size: Approx. 123mm x 67mm x 20mm (LxWxH)
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

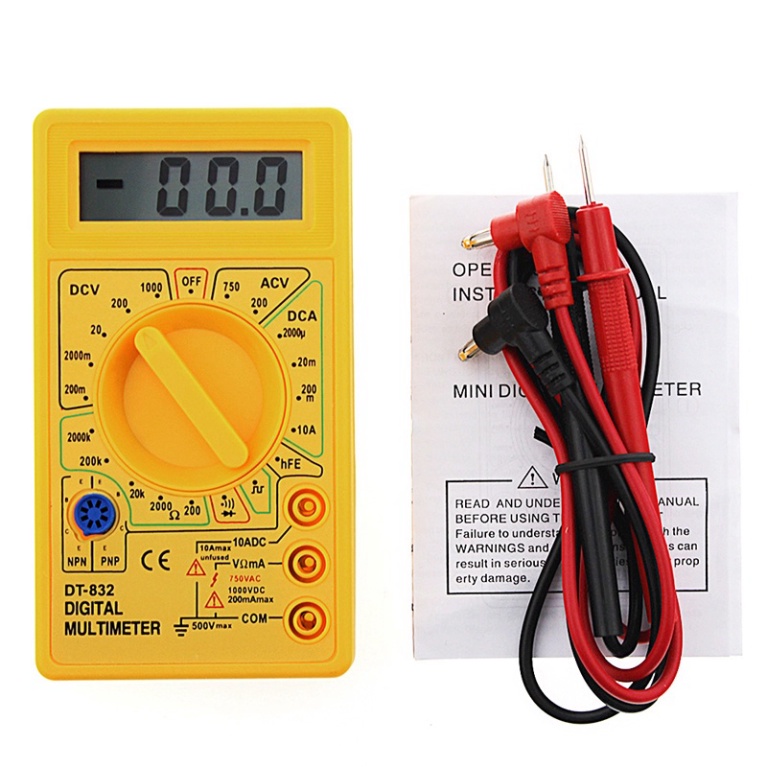

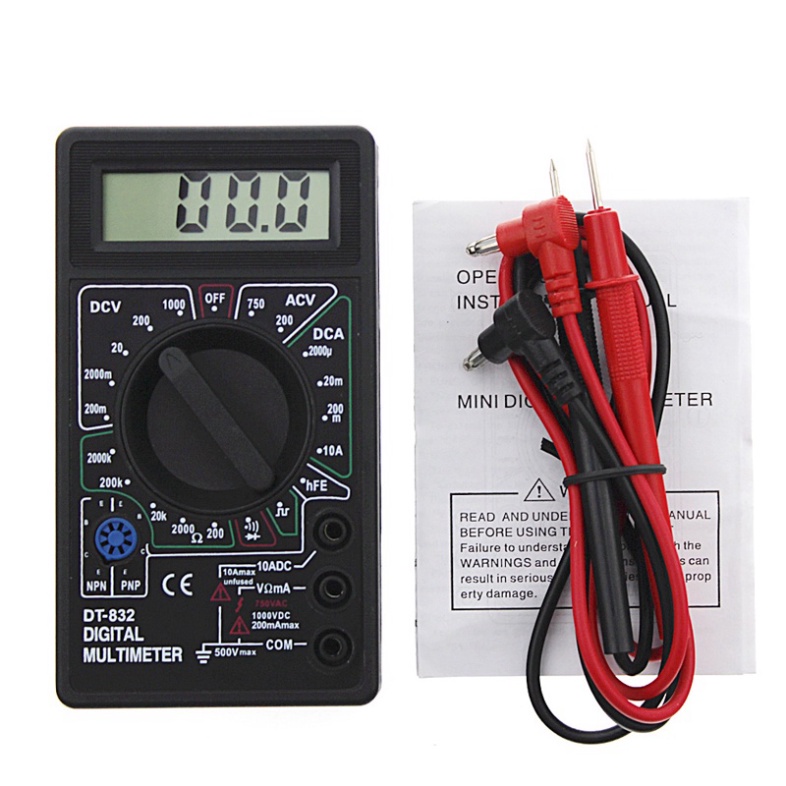

Package Contents:
1 x Digital Multimeter (Not Included Battery)
1 x Test Lead Set
1 x User Manual
