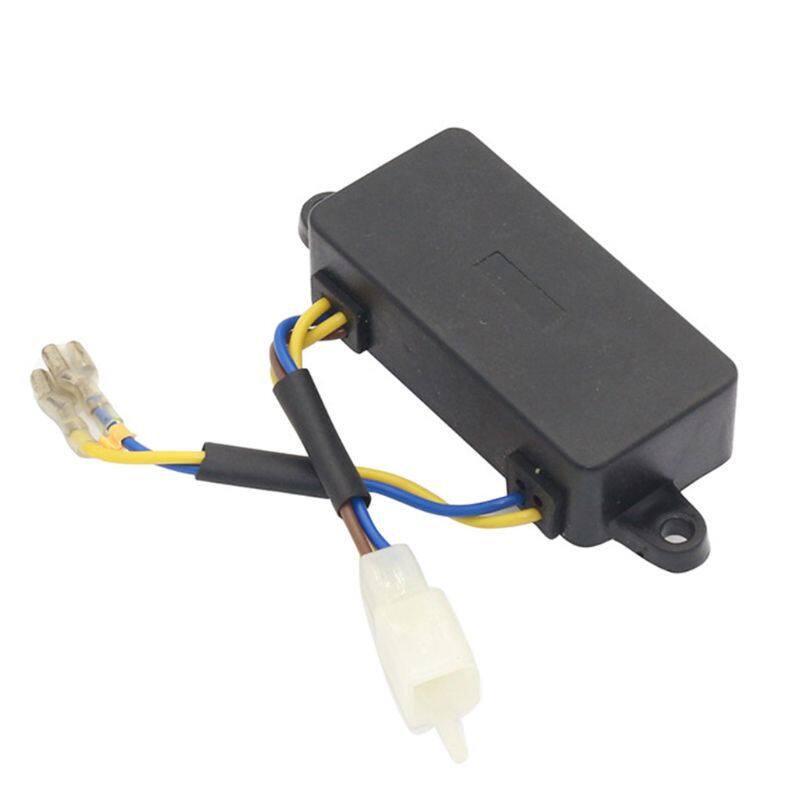

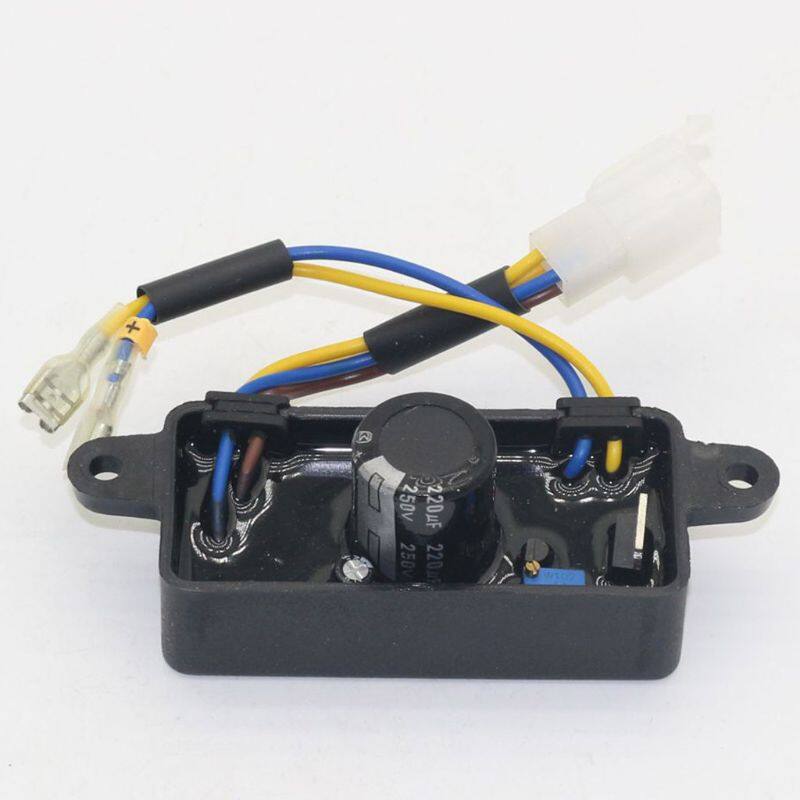

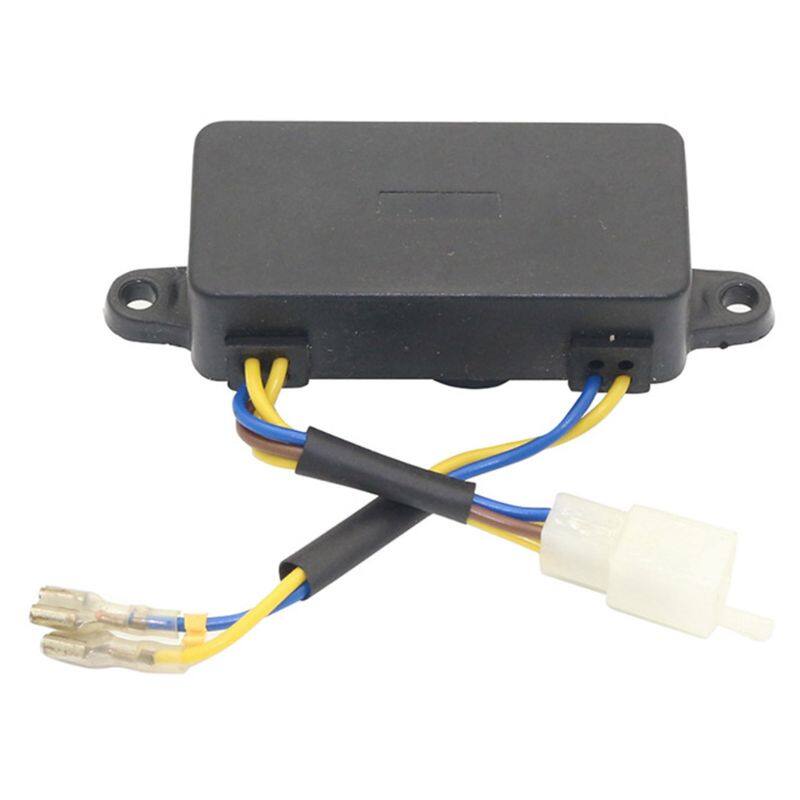

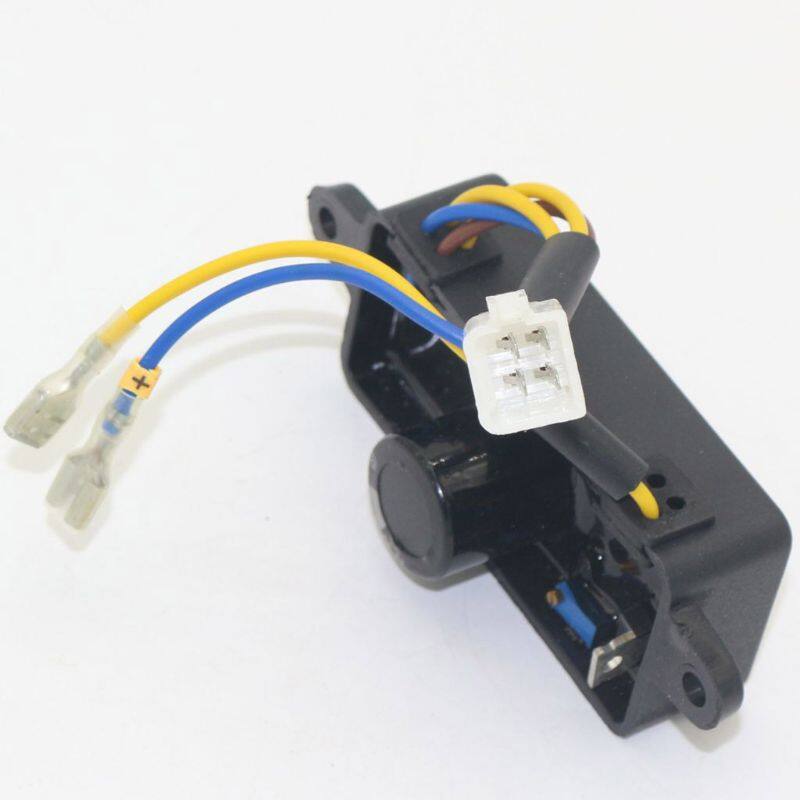

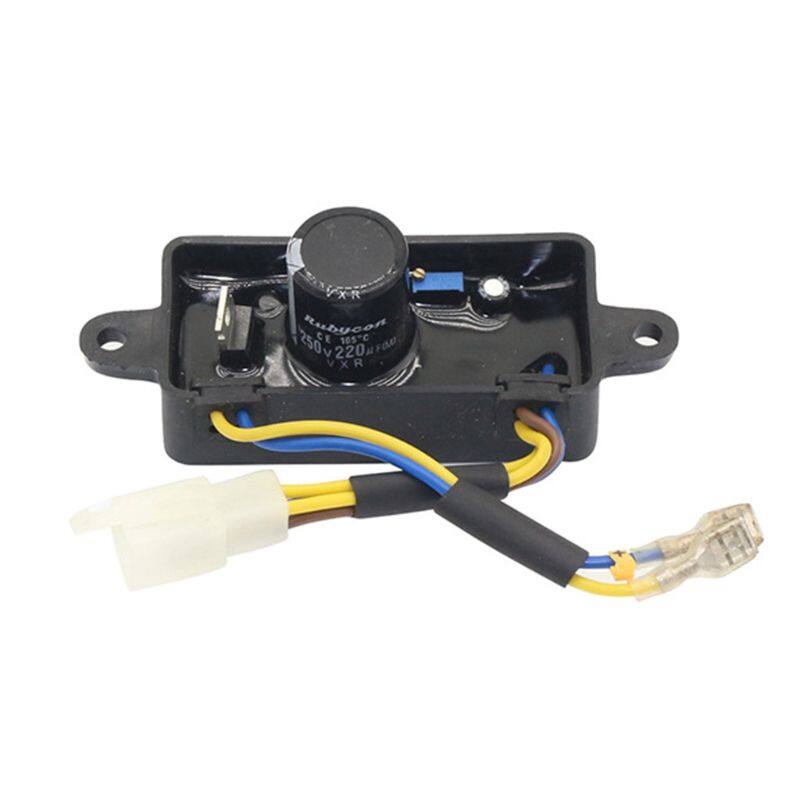

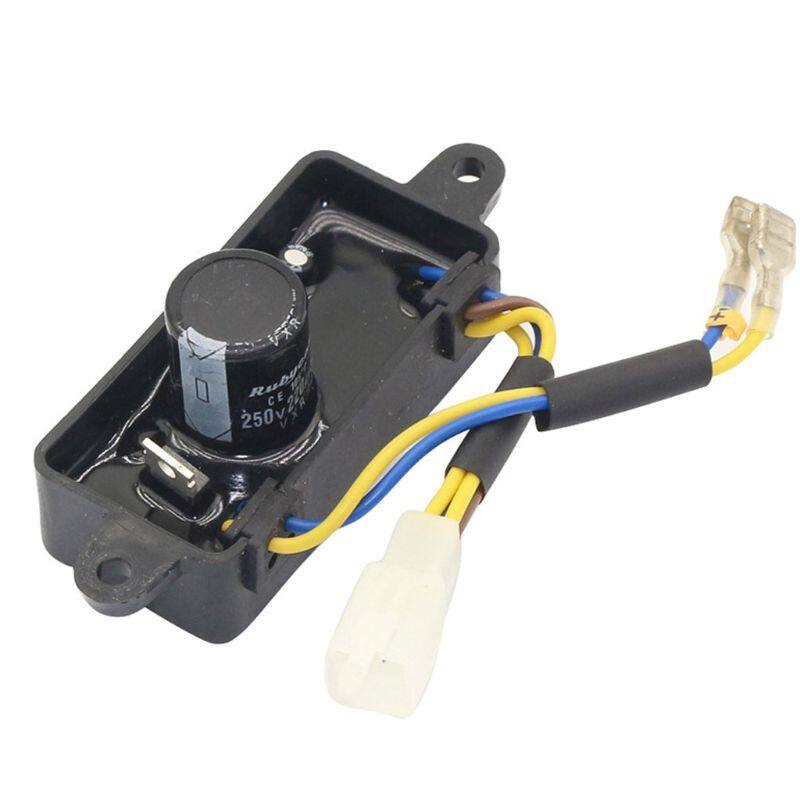

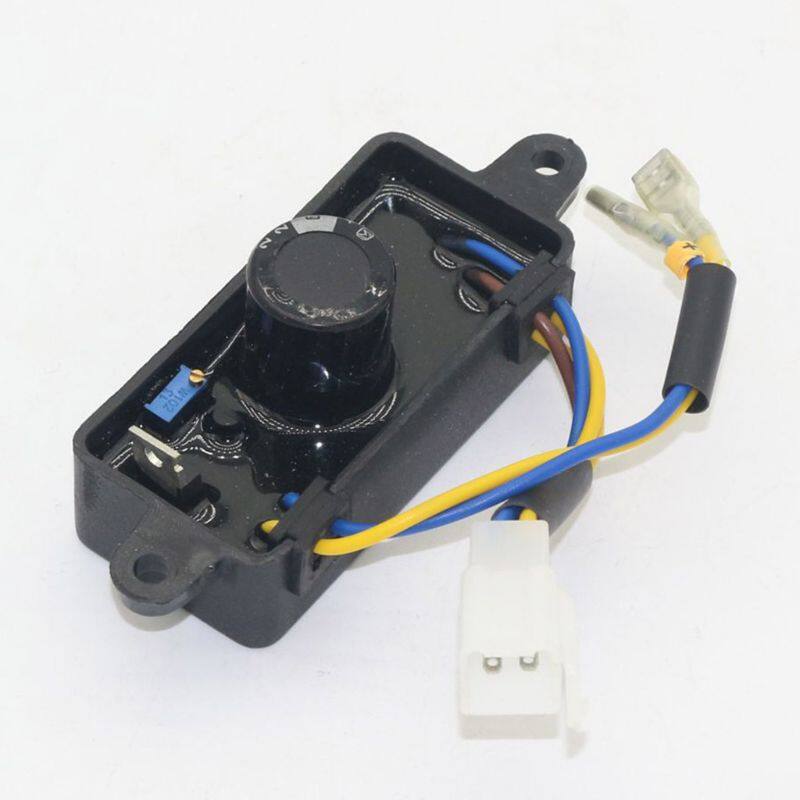

Professional Automatic Voltage Regulator AVR Universal Generator Voltage Stabilizer 2KW-3KW Gasoline Electric Generator

Description:
100% brand new and high quality
Feature:
Fit for Single-phase 2KW-3KW gasoline generator.
It is suitable for single-phase gasoline generator with excitation auxiliary winding.
1.Voltage adjustment rate <±1%
2.Full-wave rectification
3.Single-phase voltage detection
4.Adjustable output voltage
5.Resin sealing against moisture and shock

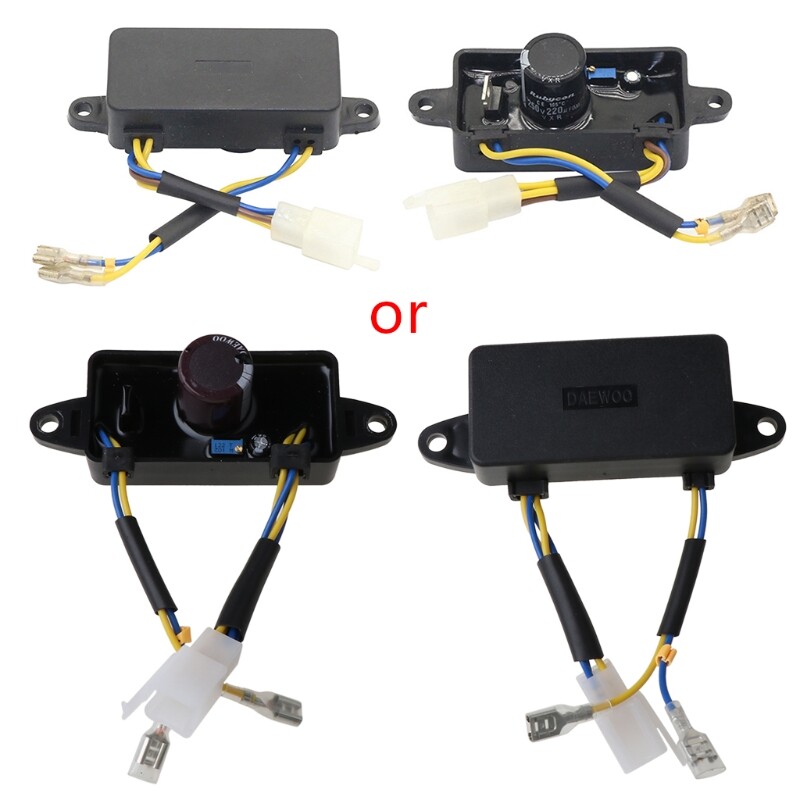

Voltage Regulator only, other accessories demo in the picture is not included!

Specifications:
Item Type: Voltage Regulator
Material: plastic+rubber
Size: 110x38x35mm/4.3x1.4x1.3in
Color: Black
Detection input: 16-25VAC 50HZ
Power input: 60-100VAC 50HZ
Output voltage: maximum 100VDC (input at 85V)
Output current: continuous 2A
Voltage adjustment rate: less than ±1% (variation of engine speed within 4%)
Voltage establishment: the residual magnetic voltage of 2VAC or more is required at the power input terminal
Output voltage adjustment range: 115/230±15%
Stability of temperature difference: 0.05% of voltage drift per ℃ change
Quantity: 1 PC

Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Voltage Regulator
