Preamp 3 Band Equalizer EQ Harness Guitar Bass Tone Control System for Active Pickup

Preamp 3 Band Equalizer EQ Harness Guitar Bass Tone Control System for Active Pickup

Details

100% Brand new,never used

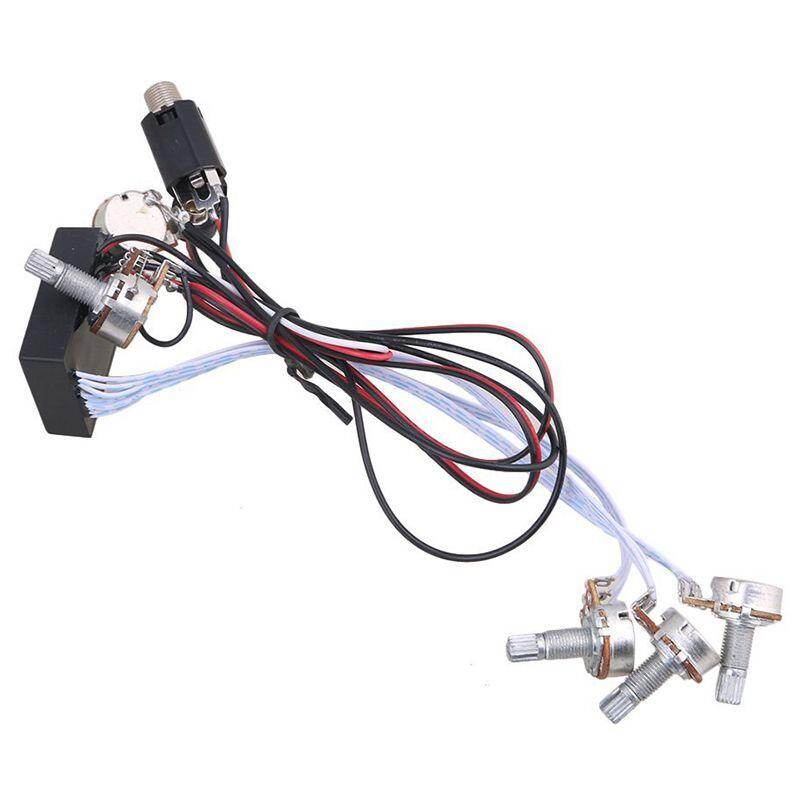

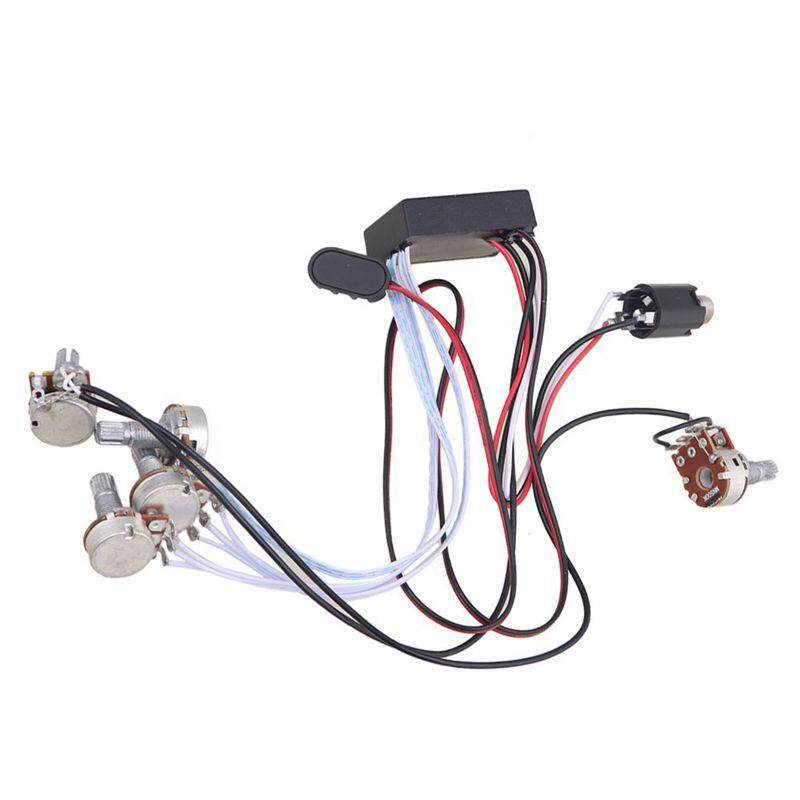

Active Preamp 3 Band Equalizer EQ Harness Guitar Bass Tone Control System-III

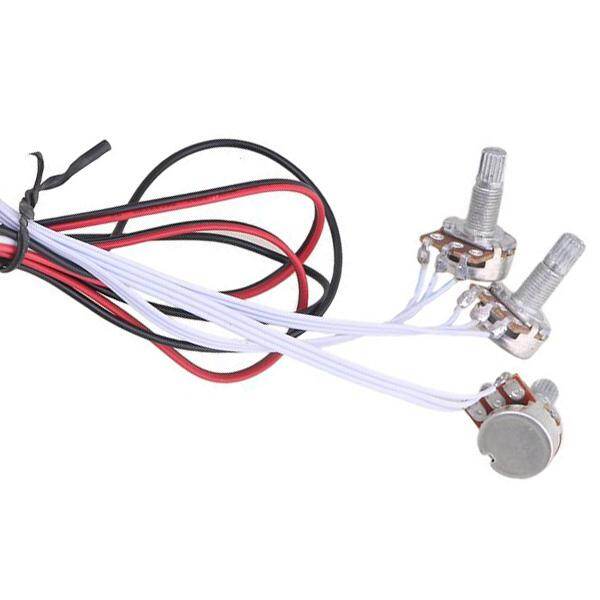

five individual potentiometers
Four of them: Middle,Treble,Volume & Bass
Bass guitar tone controls for active pickups
Bass/midrange/treble,master volume
Material: ABS
color: As shown
Input Impedance: 20MOhm
Frequency Response: 20Hz~20KHz
Bass: +/-12dB at 85Hz
Middle: +/-12dB at 800Hz
Treble: +/-12dB at 7KHz
Output jack

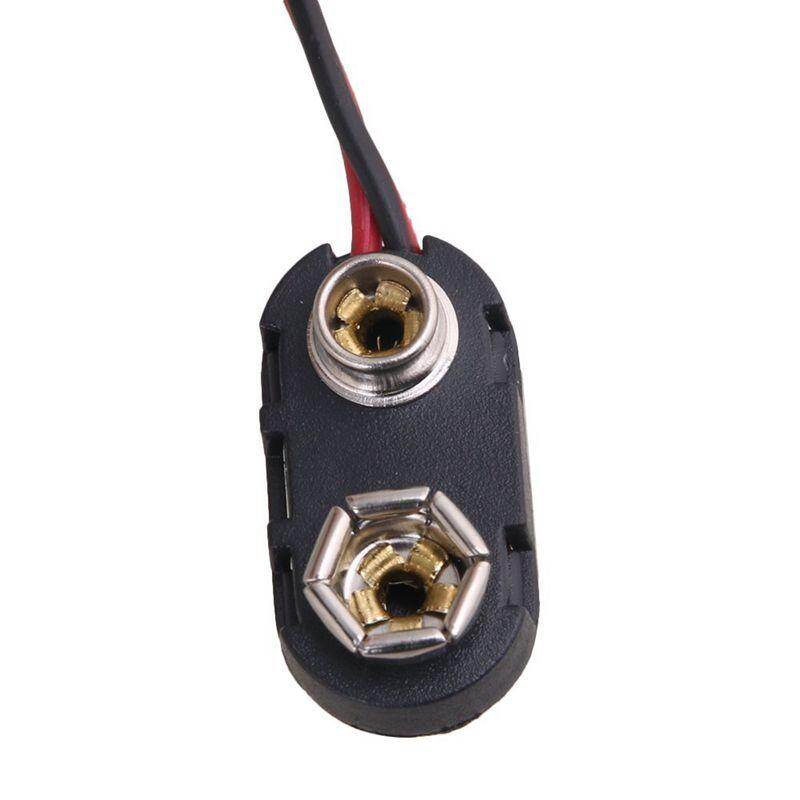

Power 9V battery not included
Applications: Electric guitar,bass and piezo equipped instruments
wiring diagram is included

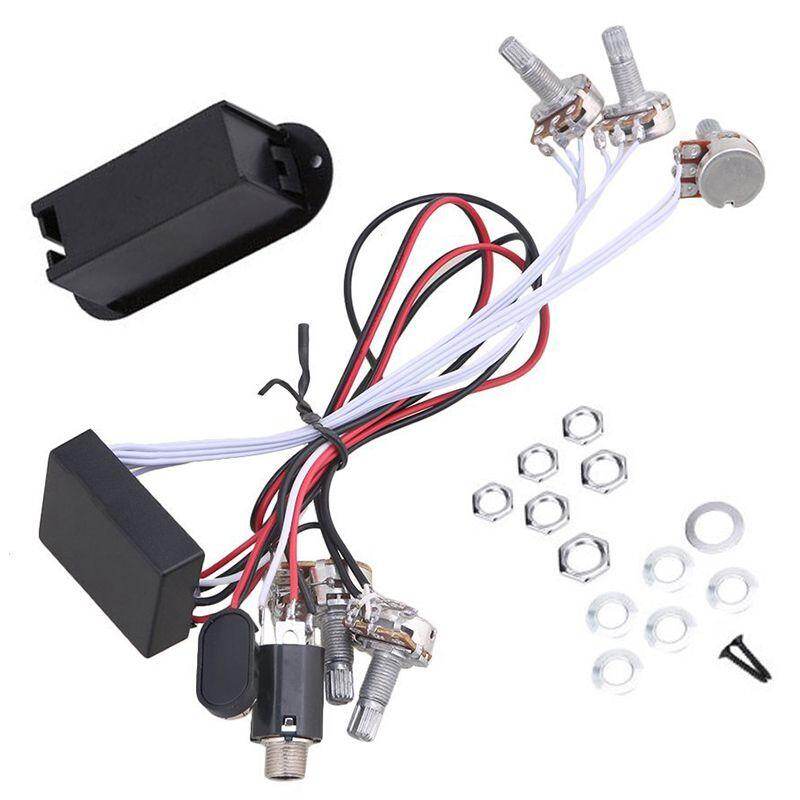

Package includes:
1* pickup main part
5* potentiometer gasket
5* potentiometer nut
1* socket gasket
1* socket nut

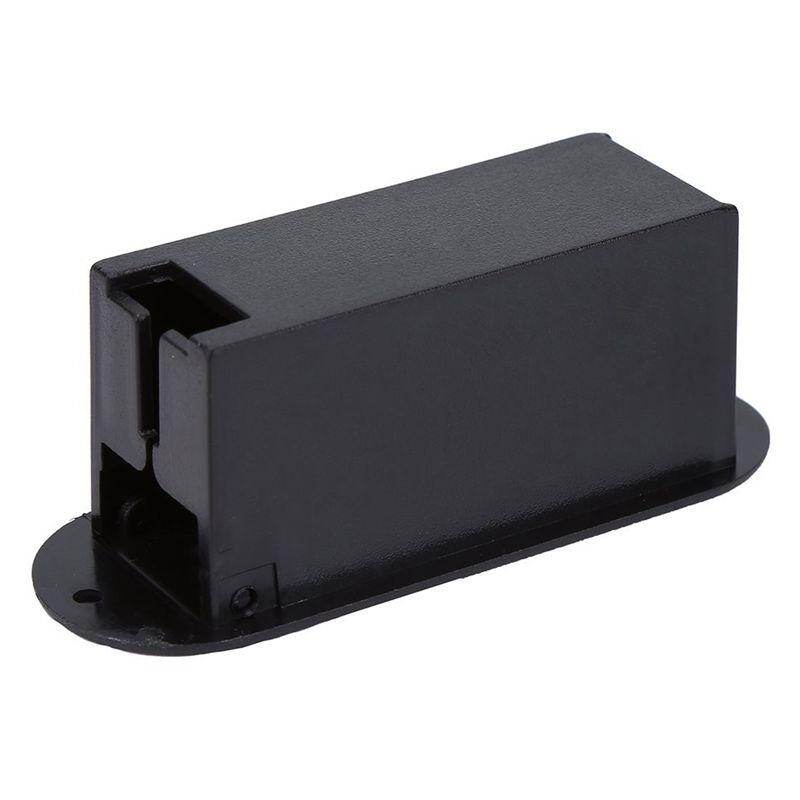

1* battery box
2* screws
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
