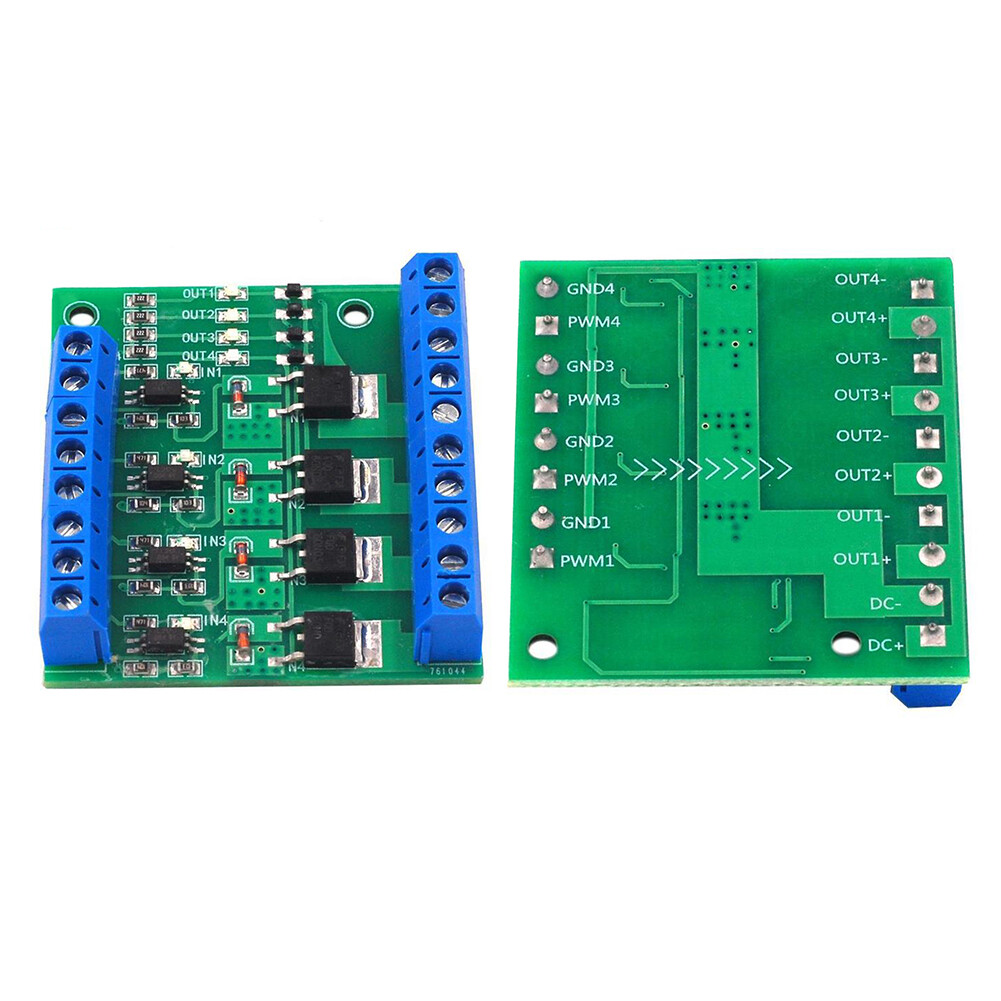

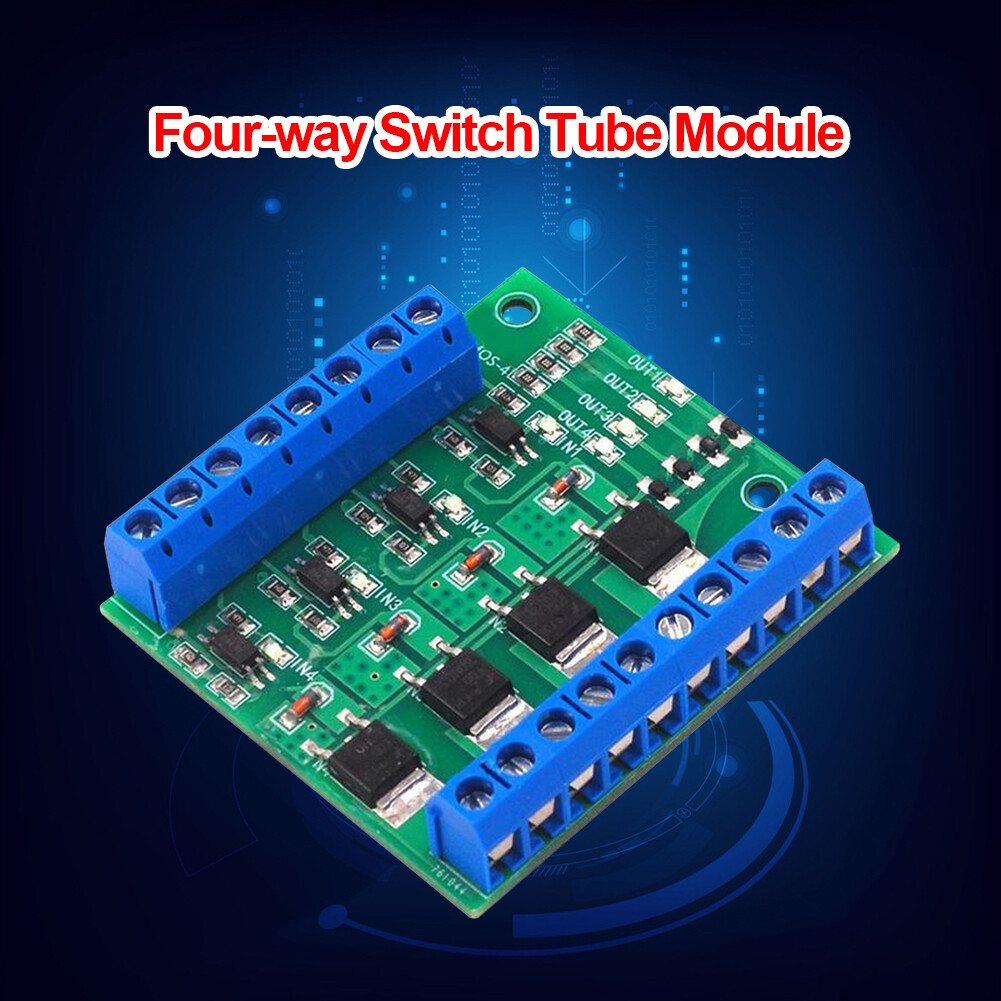

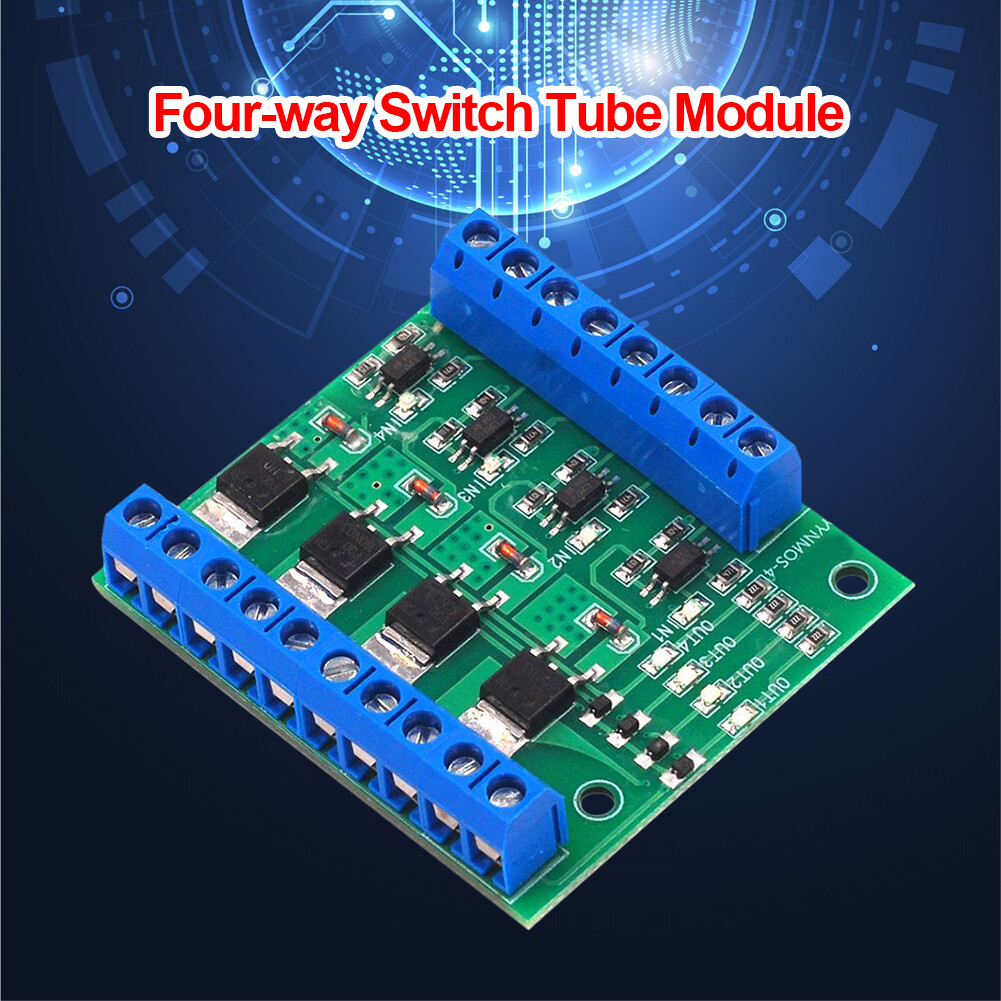

PLC Amplifier Board Driver Optocoupler 4-Channel MOS FET PLC Amplifier Board Driver Module

4-Channel MOS FET PLC Amplifier Board Driver Module PWM 3-20V to 3.7-27V DC 10A Optocoupler Isolation
Feature:
1. Strong anti-interference ability, stable performance, input signal and output isolation.
2. Input signal: PWM signal between 3~20V
3. Output capacity: DC 3.7V~27V, current within 10A per channel
4. PWM frequency: 0~200Hz
5. Indicator light: with input signal and output indicator light
6. Application description: The output terminal can control high-power equipment, motors, bulbs, LED strips, DC motors, miniature water pumps, solenoid valves, etc., and can input PWM to control motor speed, lamp brightness, etc.

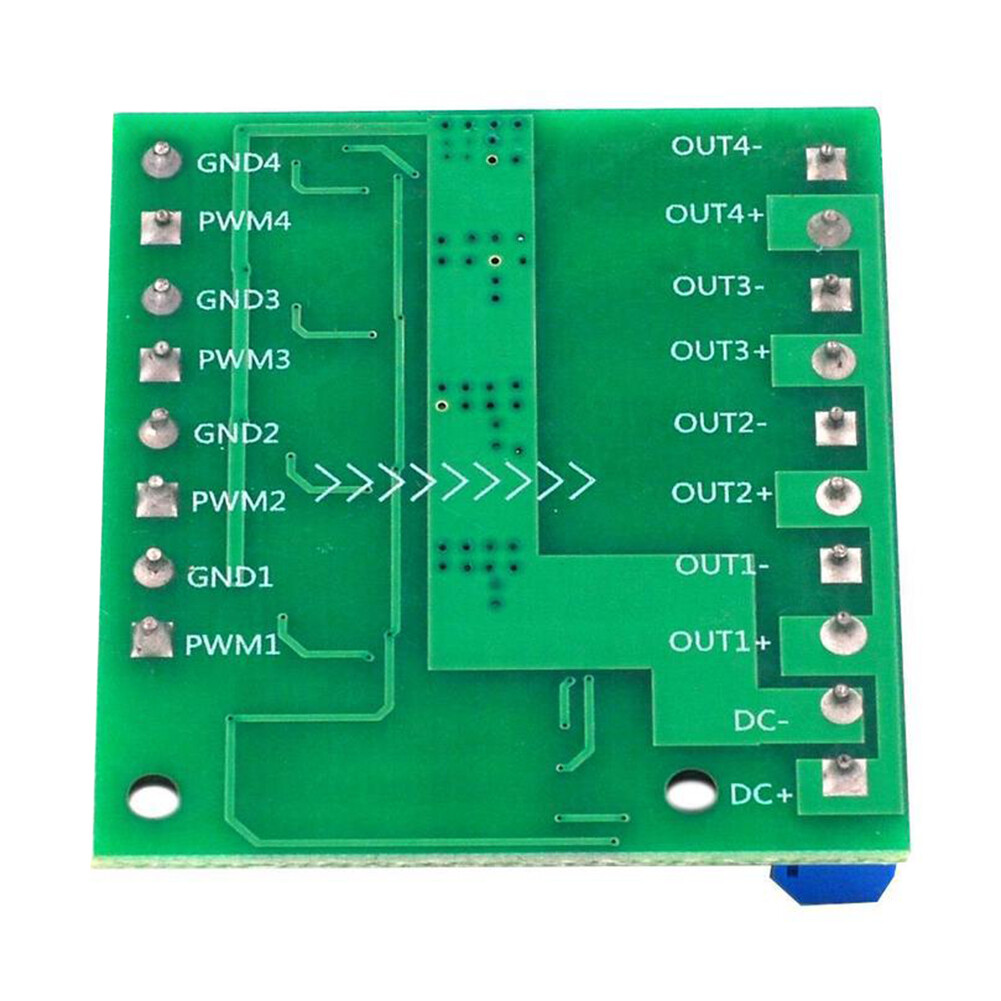

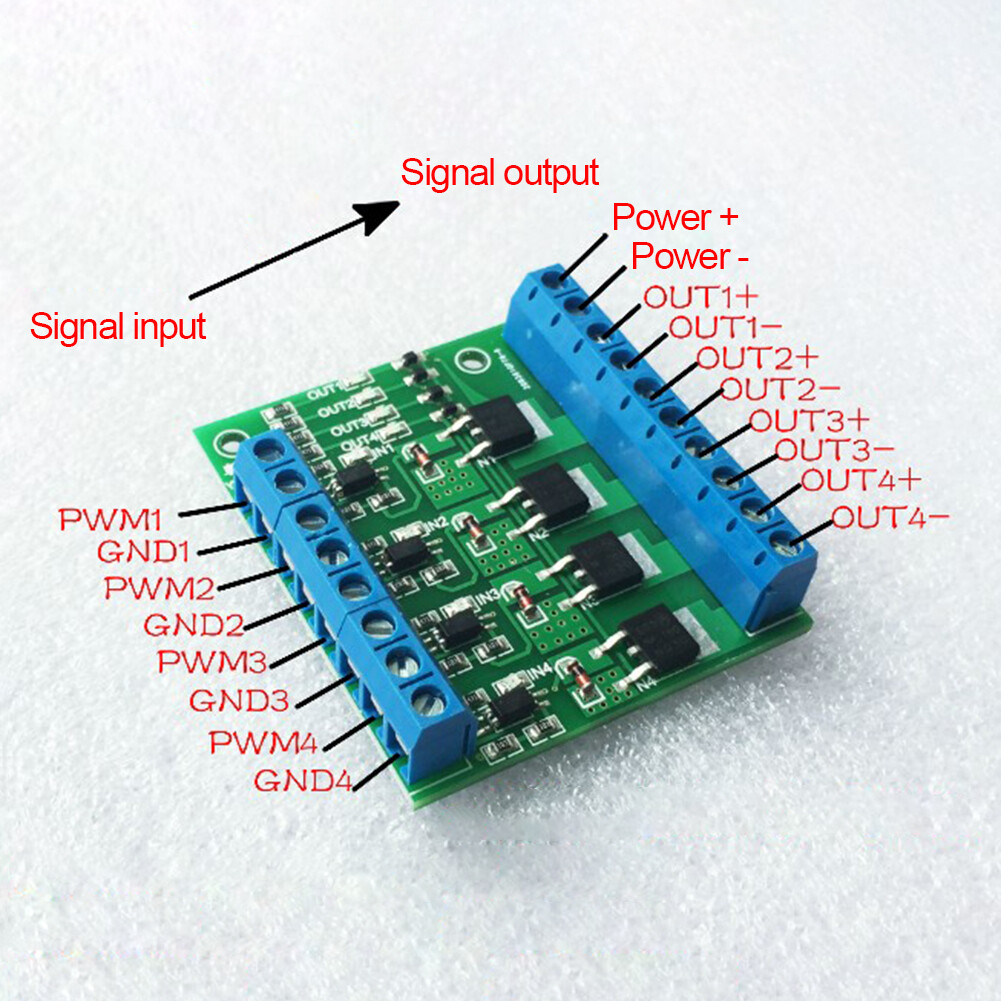

7. Module interface description:
DC+: The positive pole of the device's DC power supply
DC-: the negative pole of the device's DC power supply
PWM: signal input terminal (connected to MCU IO port, PLC interface, DC power supply, etc.)
GND: signal negative terminal
OUT+: Positive output terminal (connected to the positive pole of the device)
OUT-: The negative pole of the output terminal (connect to the negative pole of the device)

Specification:
Product model: YYNMOS-4
Product weight: 27g

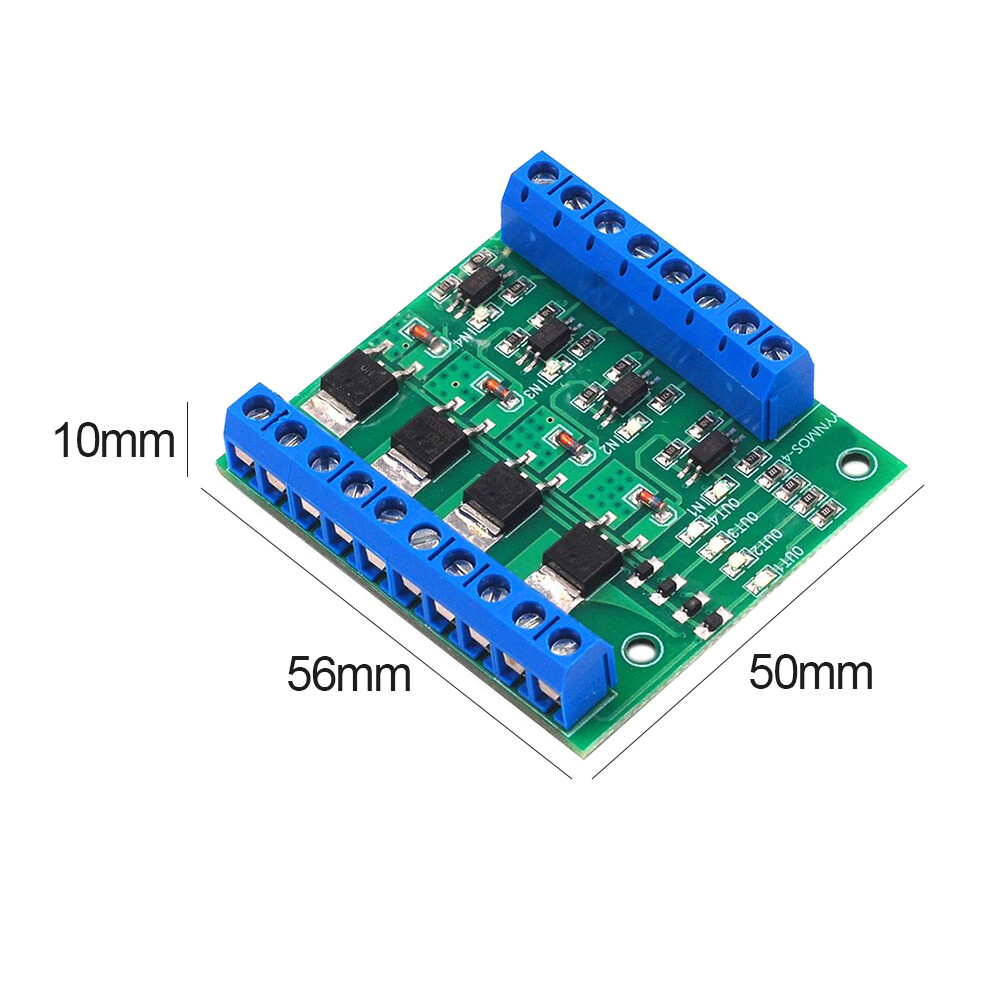

Product size: 56*50*10mm

Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
