Photocell Infrared Sensor Detector for Automatic Gate Obstacle Detector Anti-Theft Alarm System

Good waterproof design, can effectively cope with all kinds of bad weather, so that the internal components are not eroded by rain!
The use of hemispherical optical lens concentrates the light beam precisely without scattering, and the automatic strong light adjustment system can effectively avoid the interference of strong light and car headlights Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

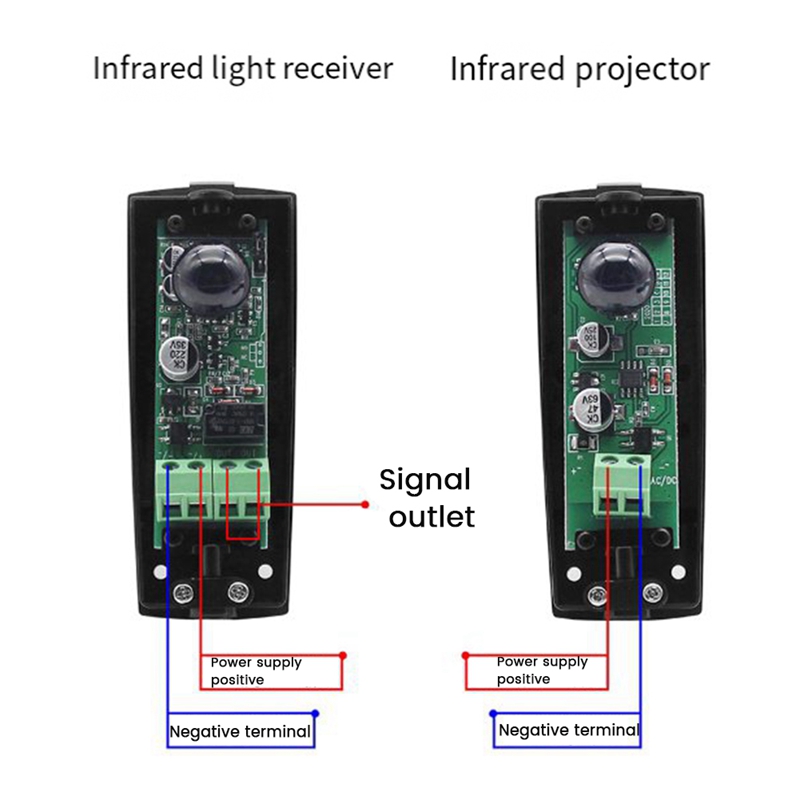

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam. Narrow infrared beam (I or II) can avoid interruption by external light
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
The beam produced by provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

Technology: Infrared
Receiver Range: Less than 15m
(Range can be reduced to 30% in bad weatherconditions: for, rain, dust, etc)
Infra-red Frequency: 1.92Khz
POWER SUPPLY: 12 to 24V DC/AC
WAVE LENGTH: 940nm
INPUT: RX 15MA-TX 30MA
OPERATING TEMPERATURE : -10℃ to 70℃
RELAY OUTPUT: 1A max 36V

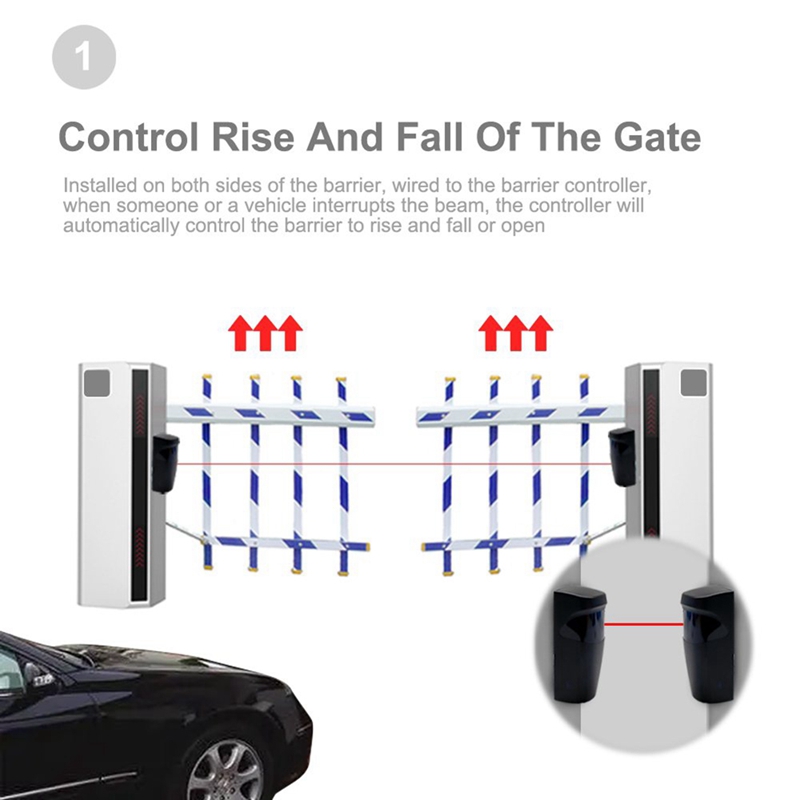

Install infrared cross-radiation on the left and right sides of the entrance of the barrier gate, connect the gate, when a vehicle enters and cut off the infrared radiation barrier, the gate will lift up after receiving the signal
Color: Black
Material: plastic

Package Contents:
1 pair x Single Beam Sensor

Only the above package content, other products are not included.
