Features:

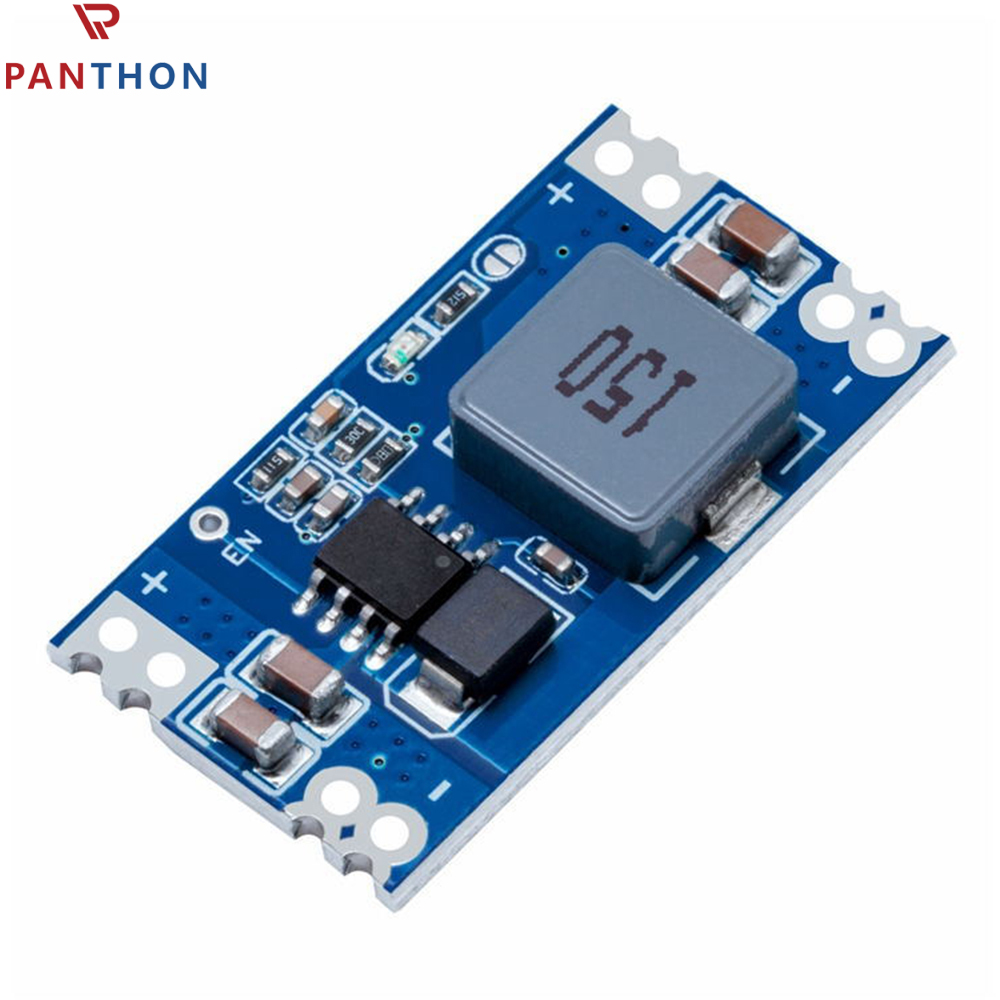

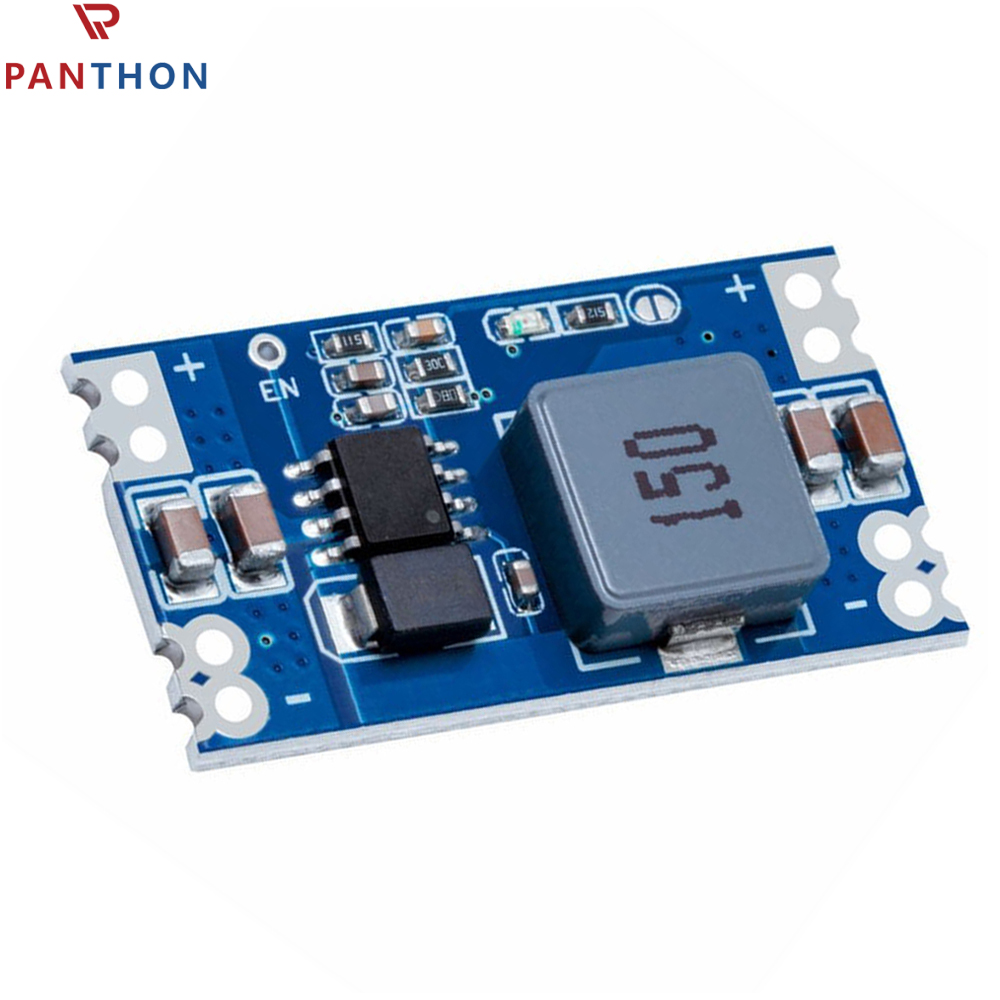

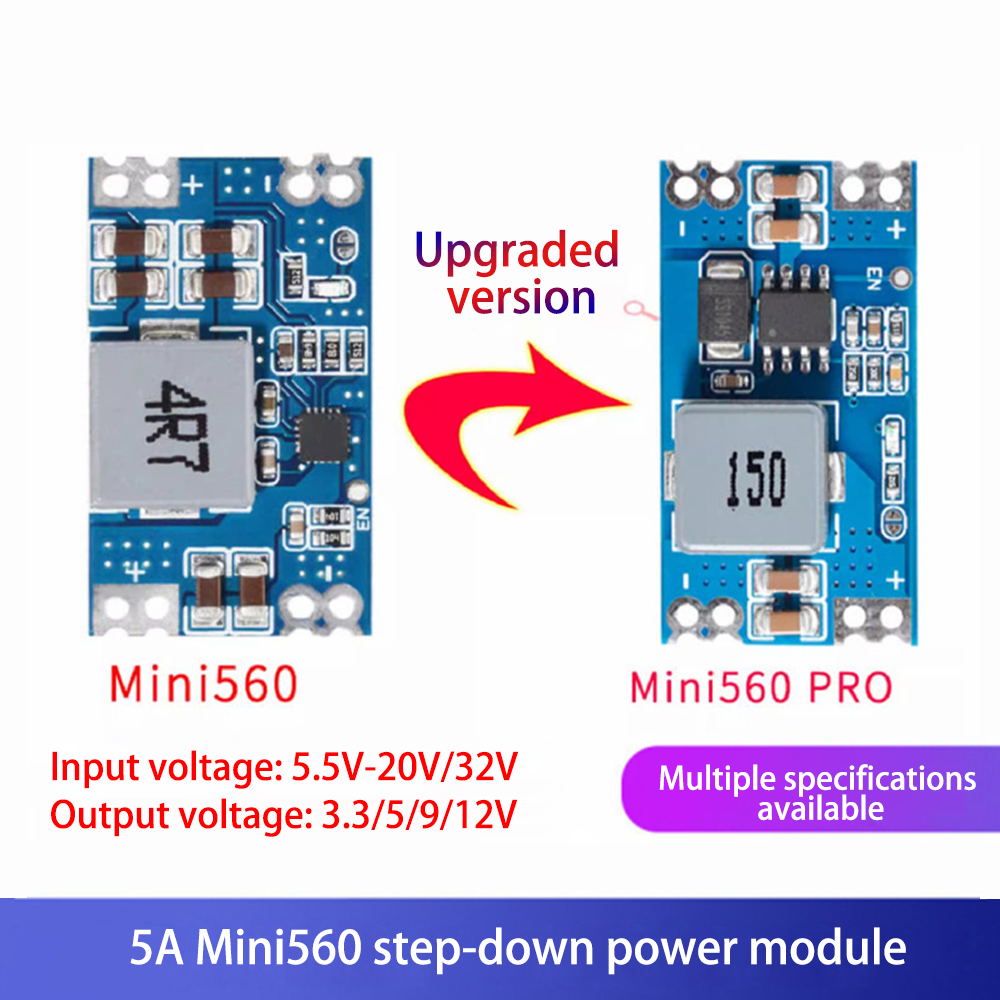

1.This is an upgraded version of the MINI560 voltage reducing and stabilizing power module, with an output of 3.3V/5V/9V/12V
2.The product is made of high-quality materials with guaranteed quality
3.Stable product performance and long service life

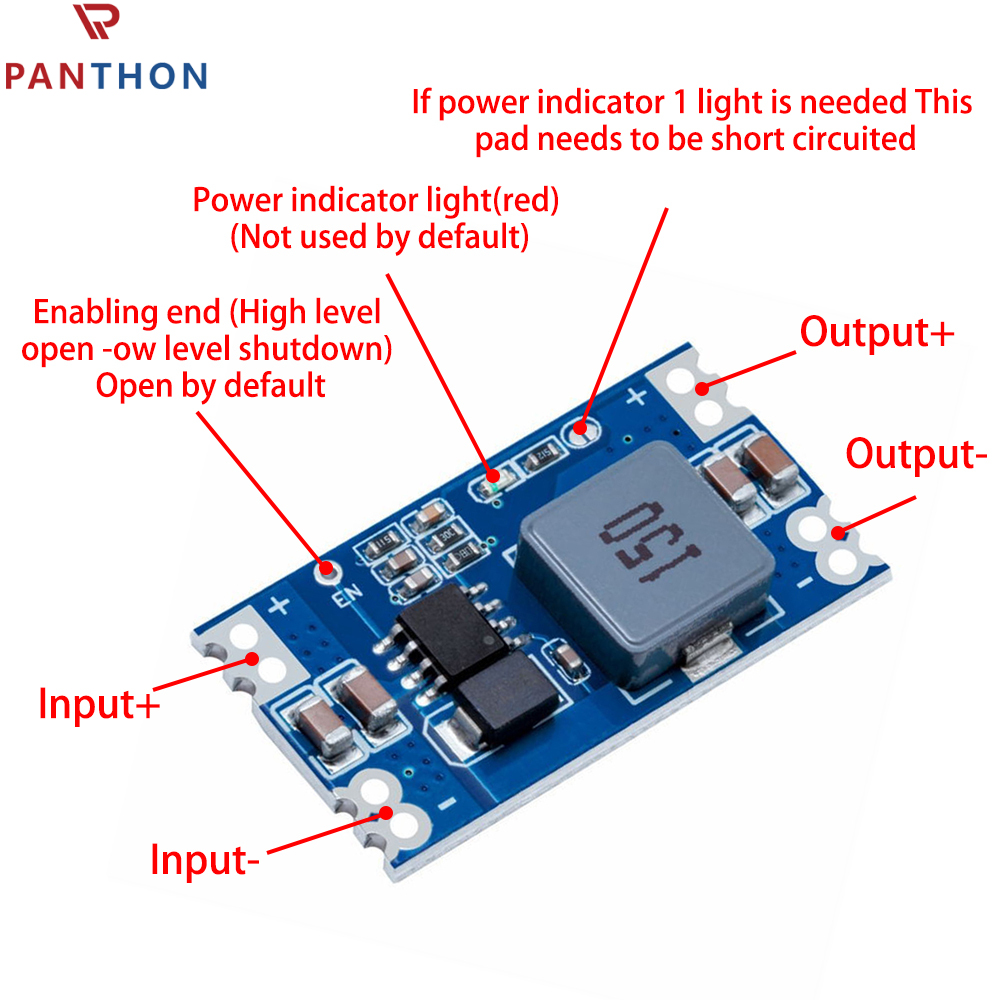

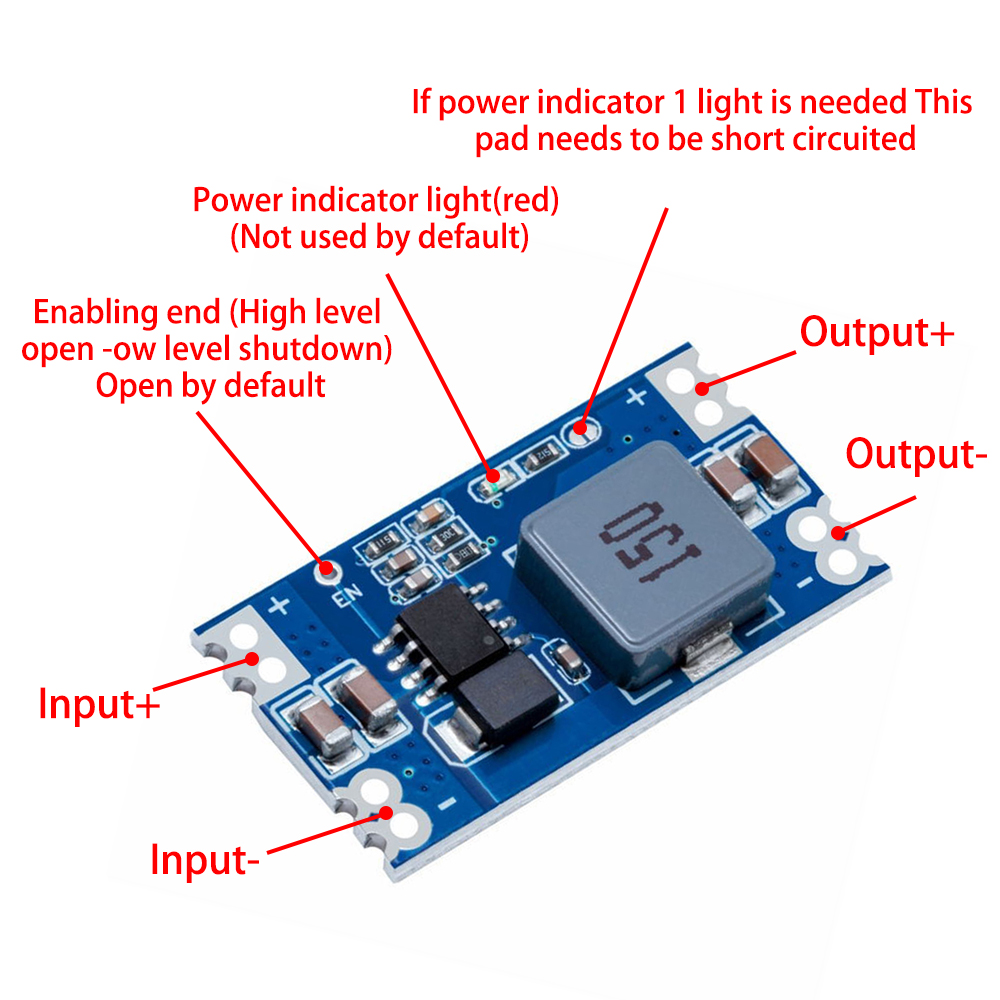

4.The product wiring is simple and clear, making it clear at a glance
5.The input voltage has been upgraded from 5.5V-20V to 5.5V-32V

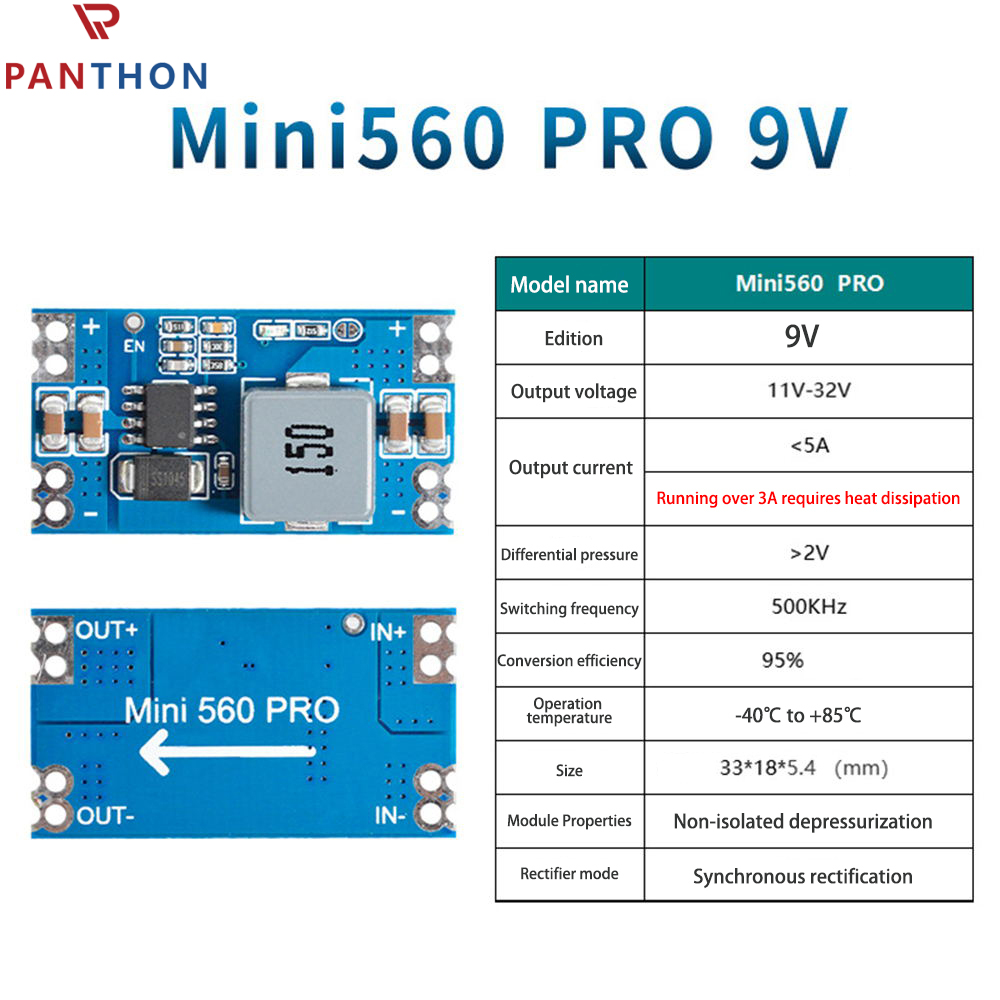

Parameters:
Model name: Mini560 PRO
Version: 3.3V/5V/9V/12V

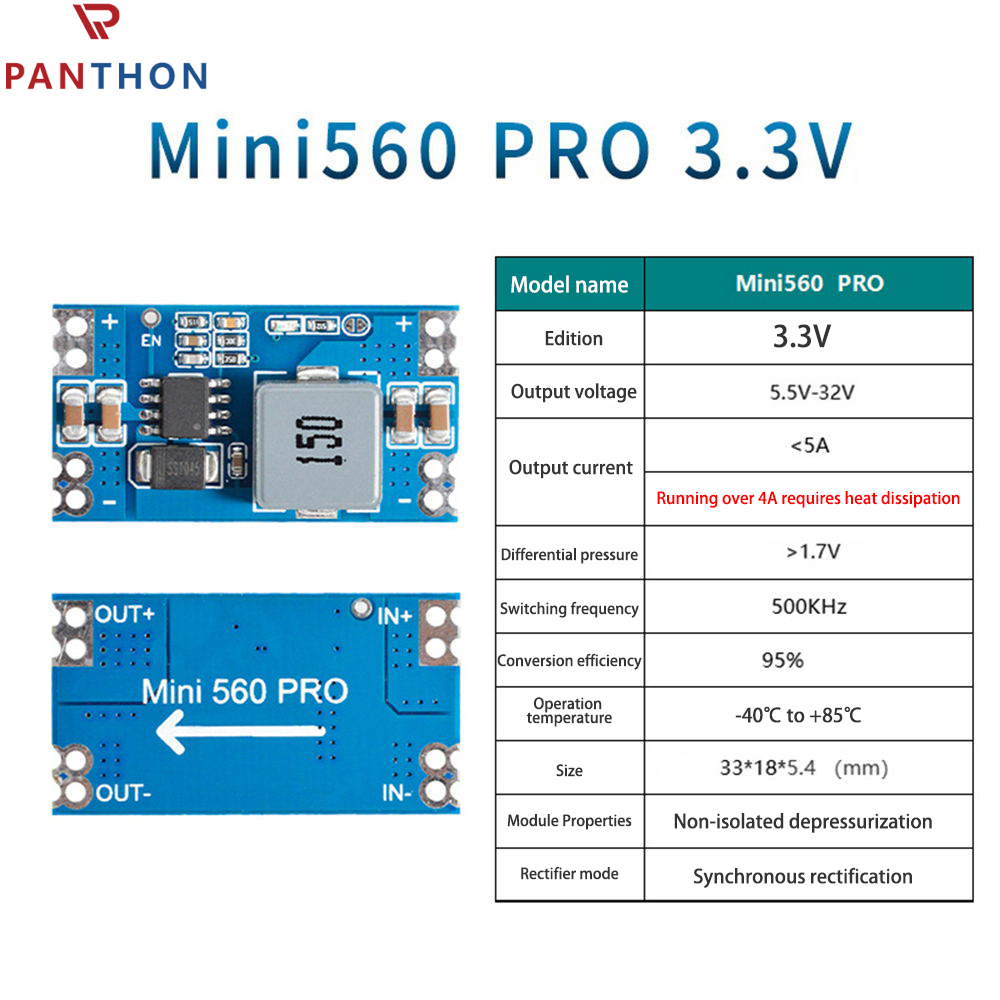

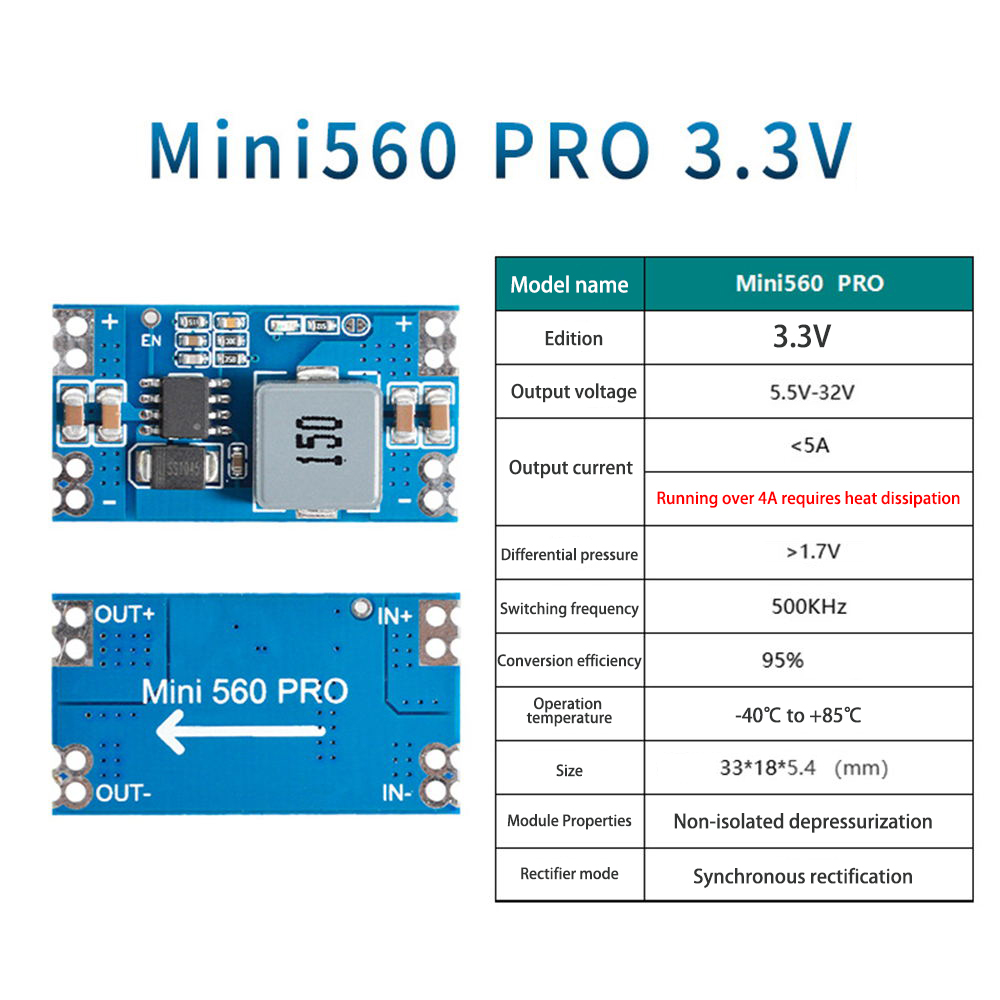

3.3V input voltage: 5.5-32V

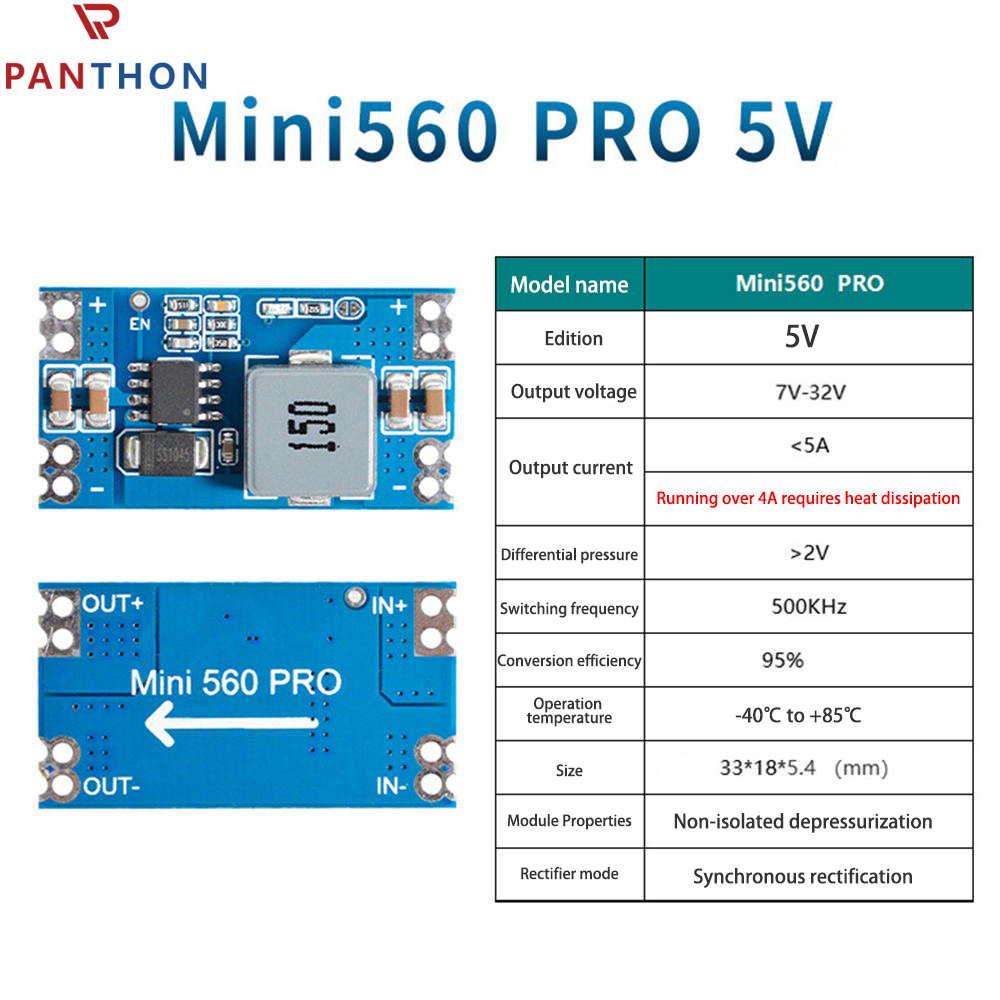

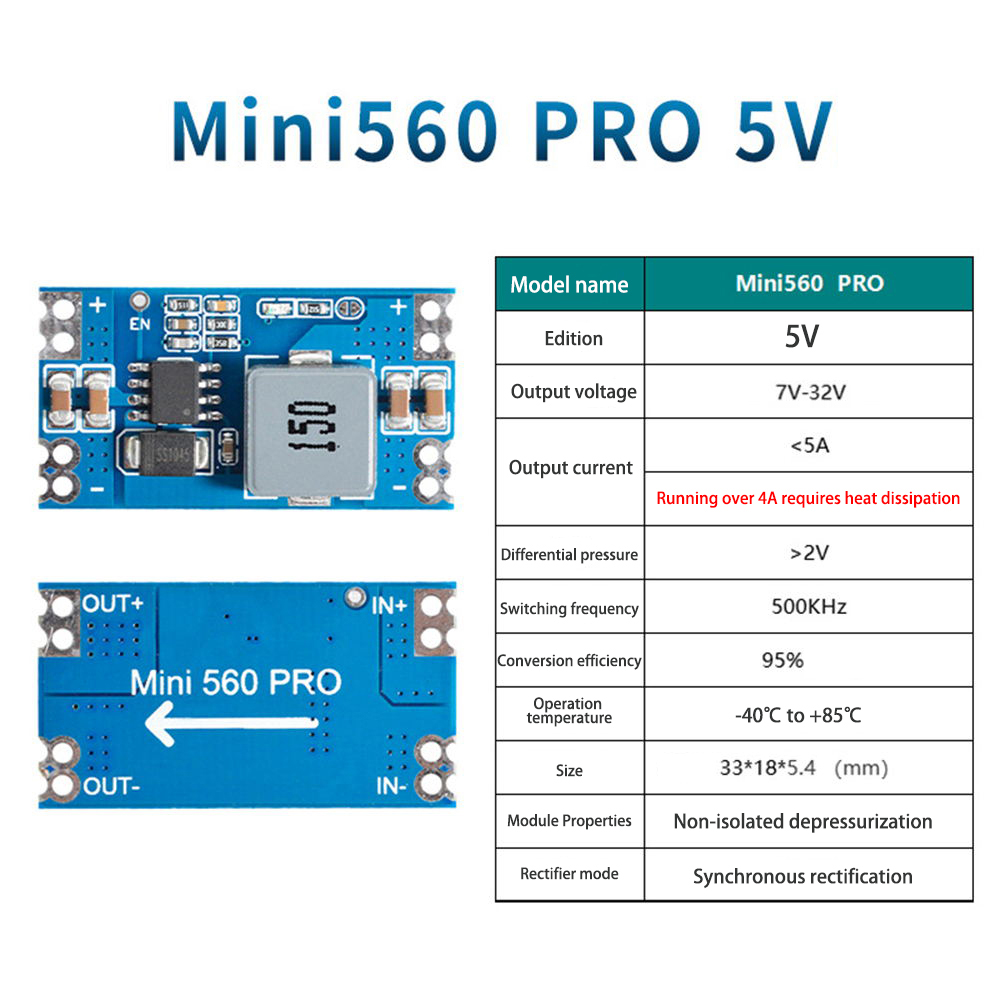

5V input voltage: 7-32V

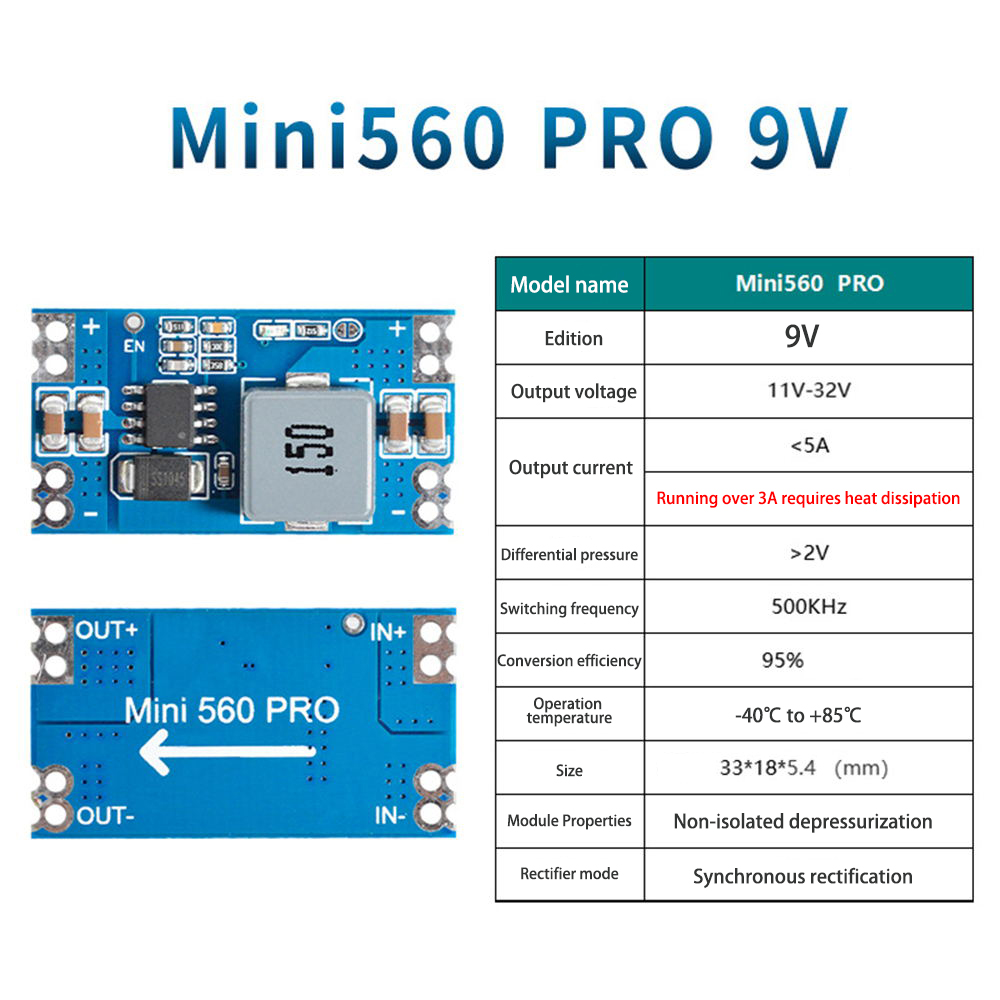

9V input voltage: 11-32V

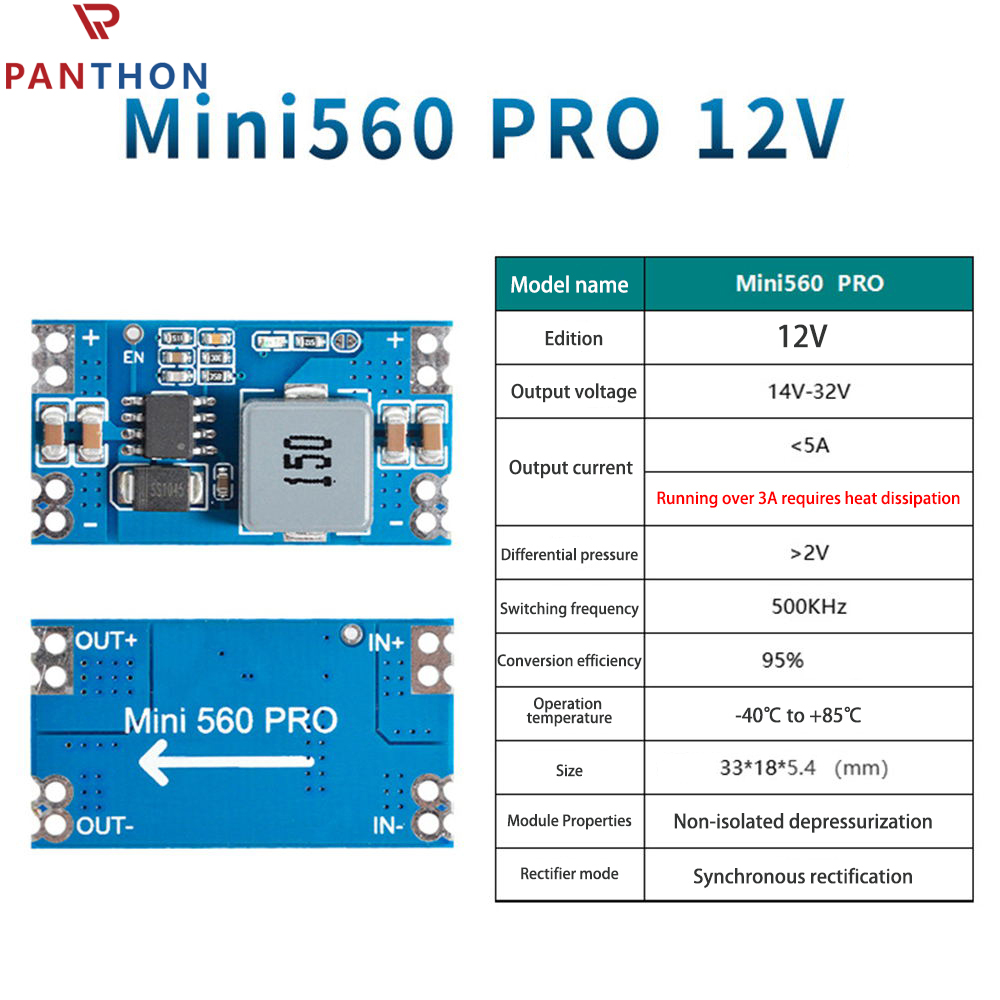

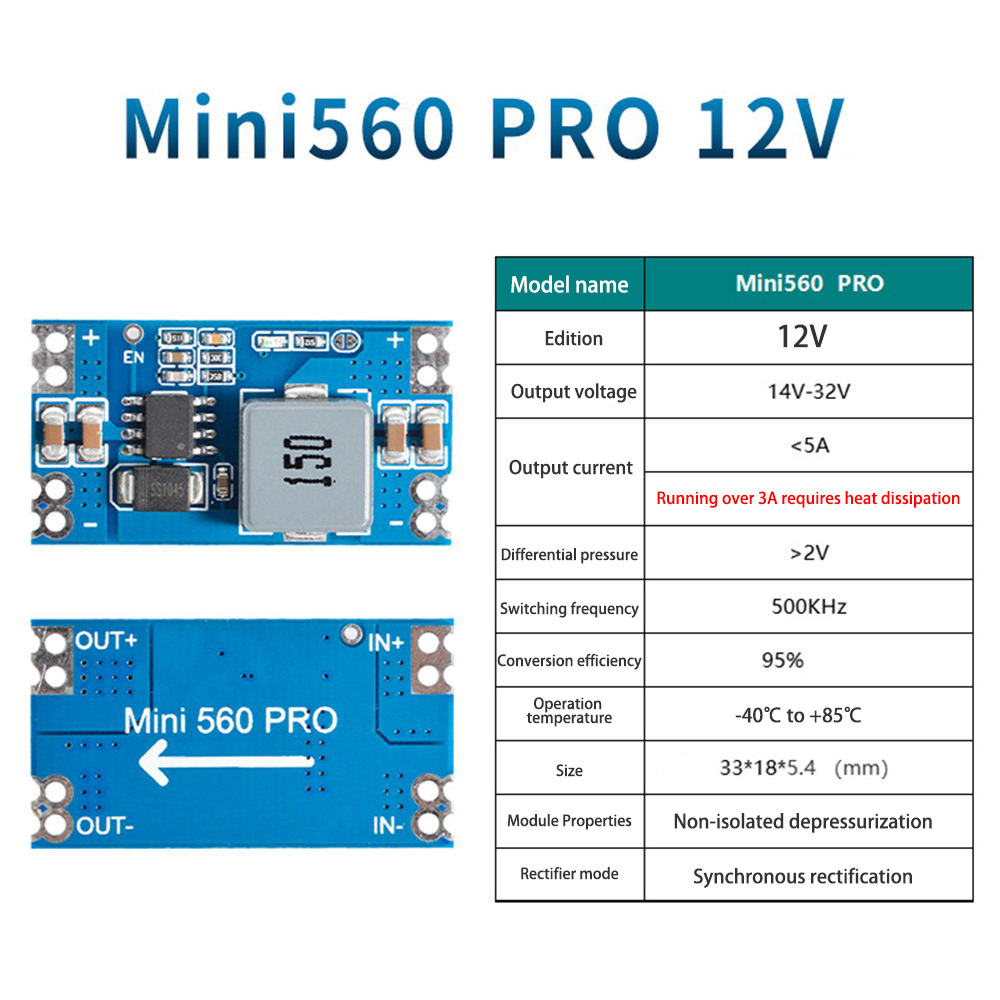

12V input voltage: 14-32V
Output current:<5A (heat dissipation is required for long-distance running exceeding 3A)
Pressure difference:>2V
Switching frequency: 500KHz
Conversion efficiency: 95% (highest)
Working temperature: -40 ℃ to+85 ℃

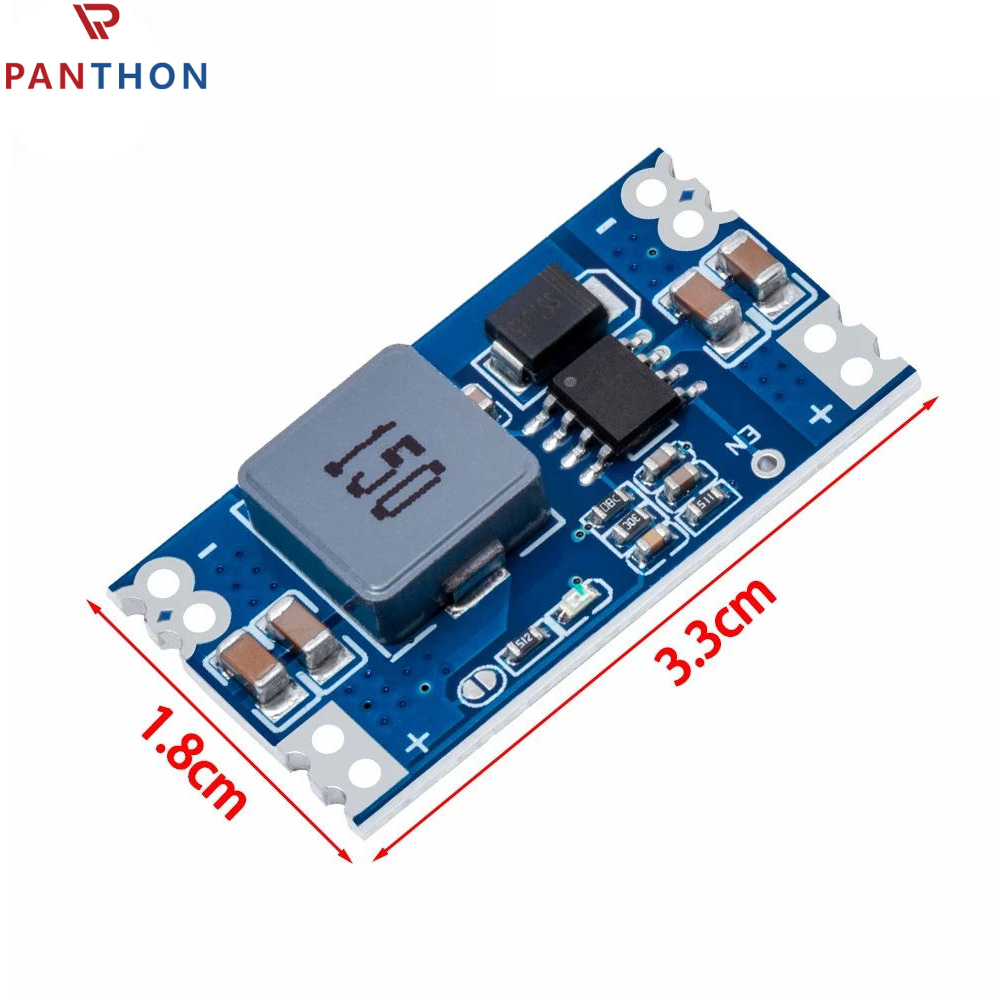

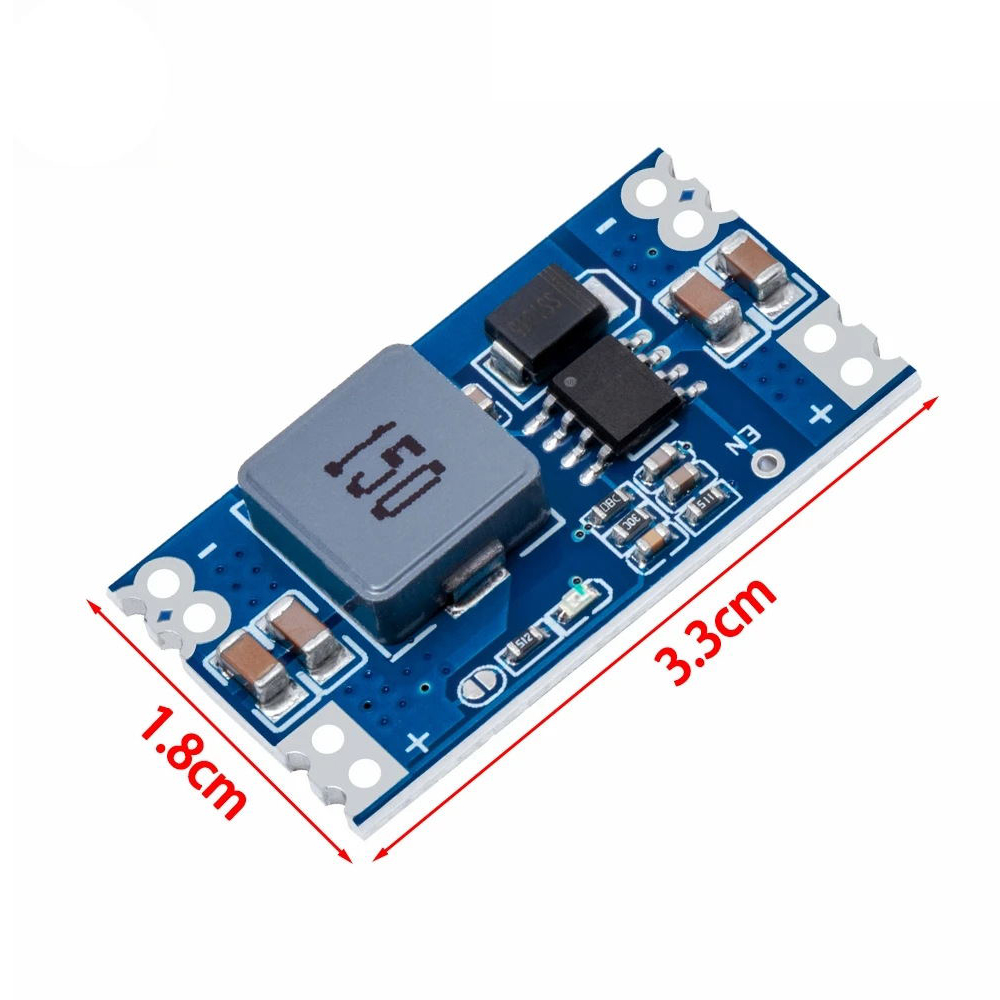

Overall size: 33 * 18 * 5.4 (length * width * height) (mm)
Module nature: non isolated step-down
Rectification method: synchronous rectification
Package include:
Module X1
