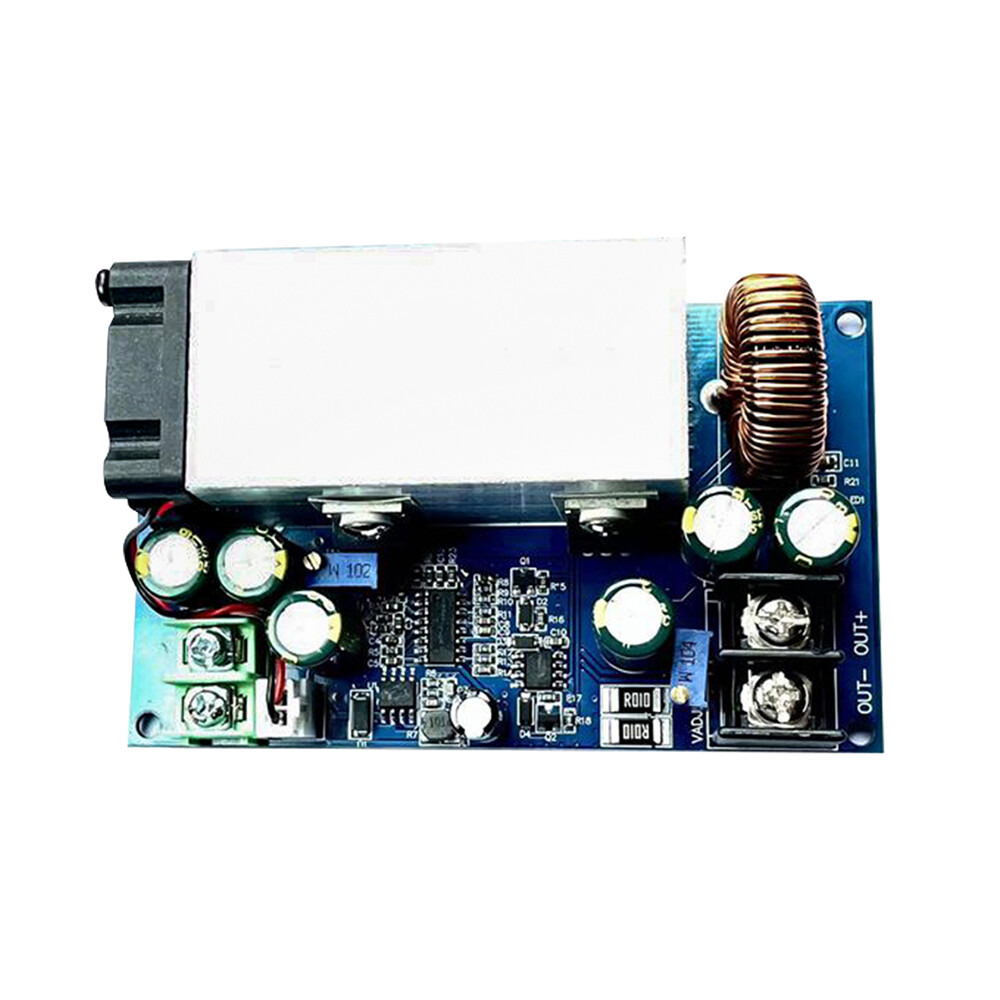

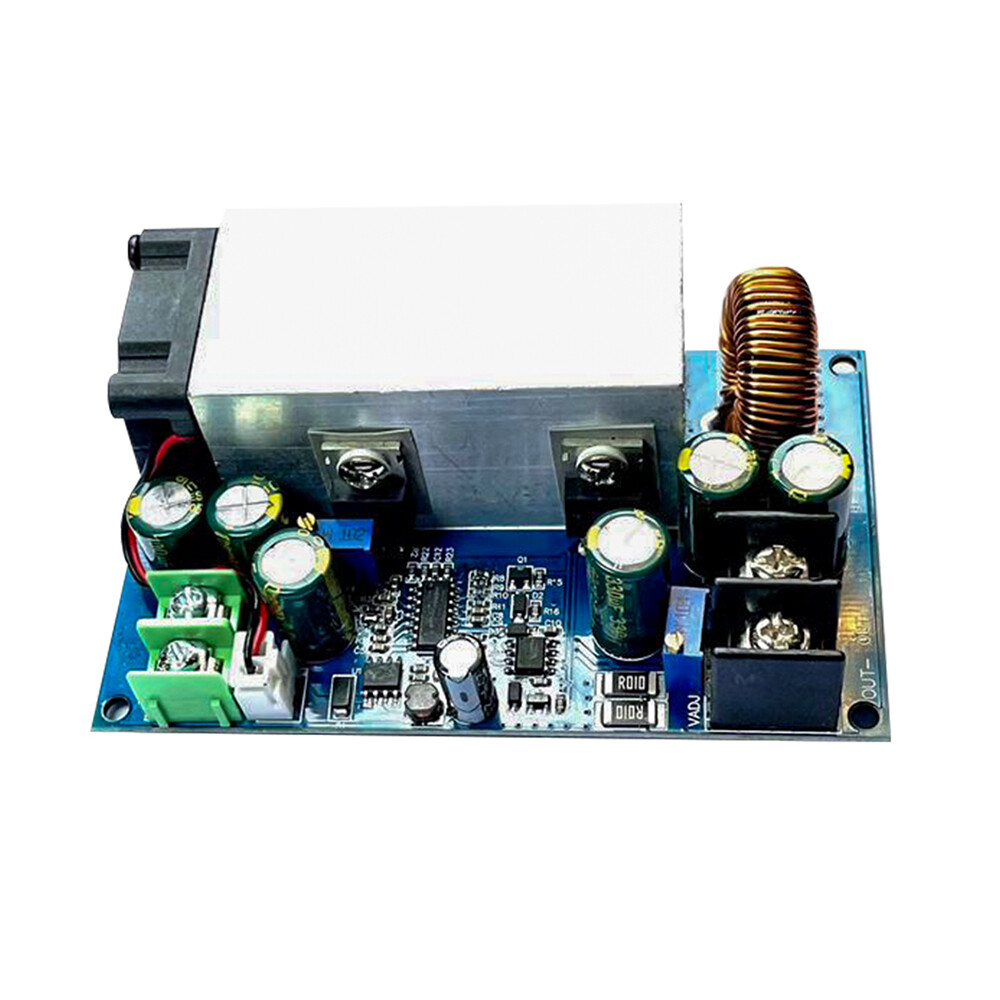

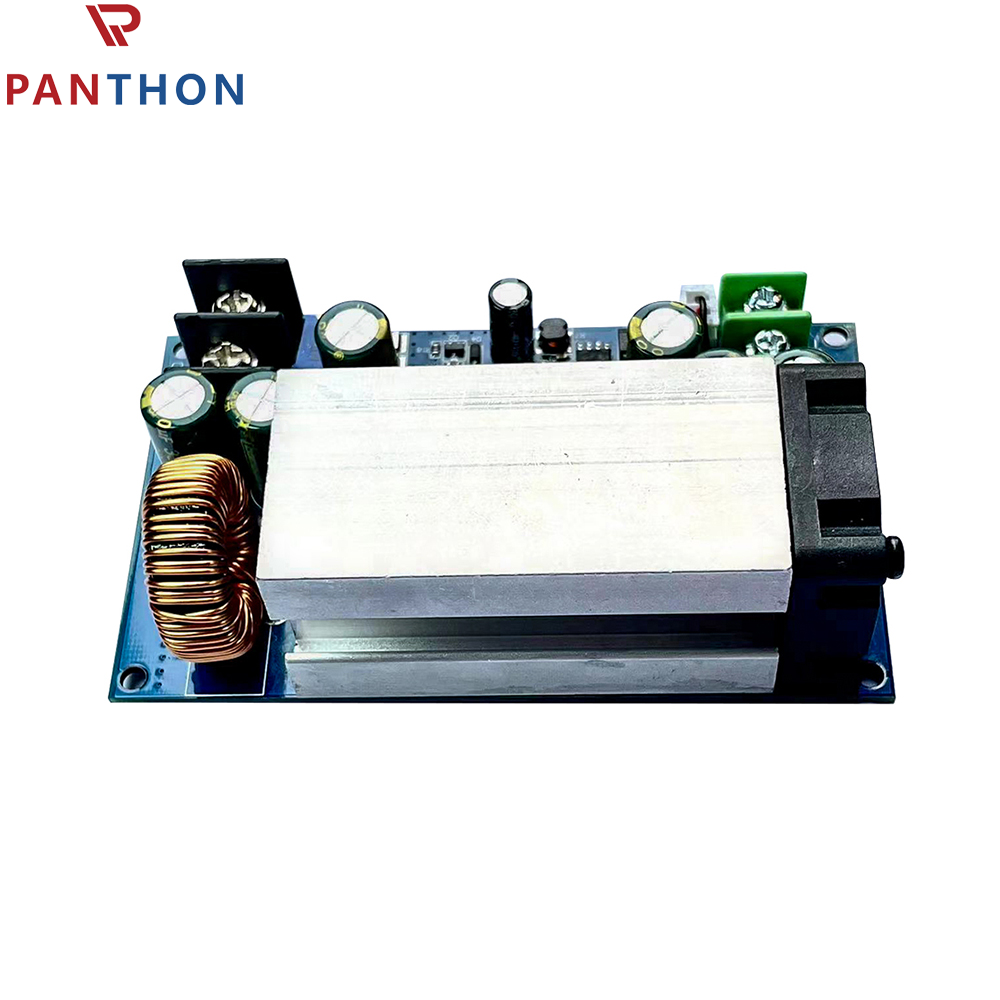

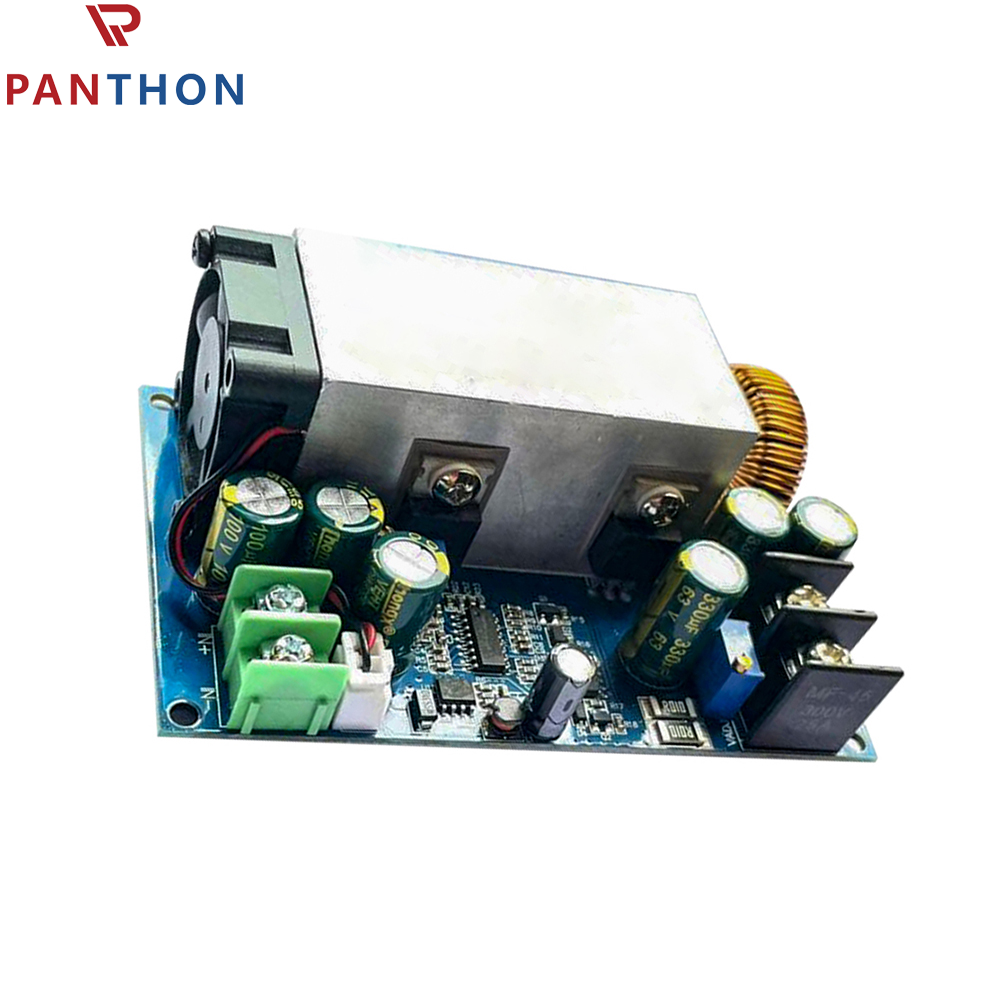

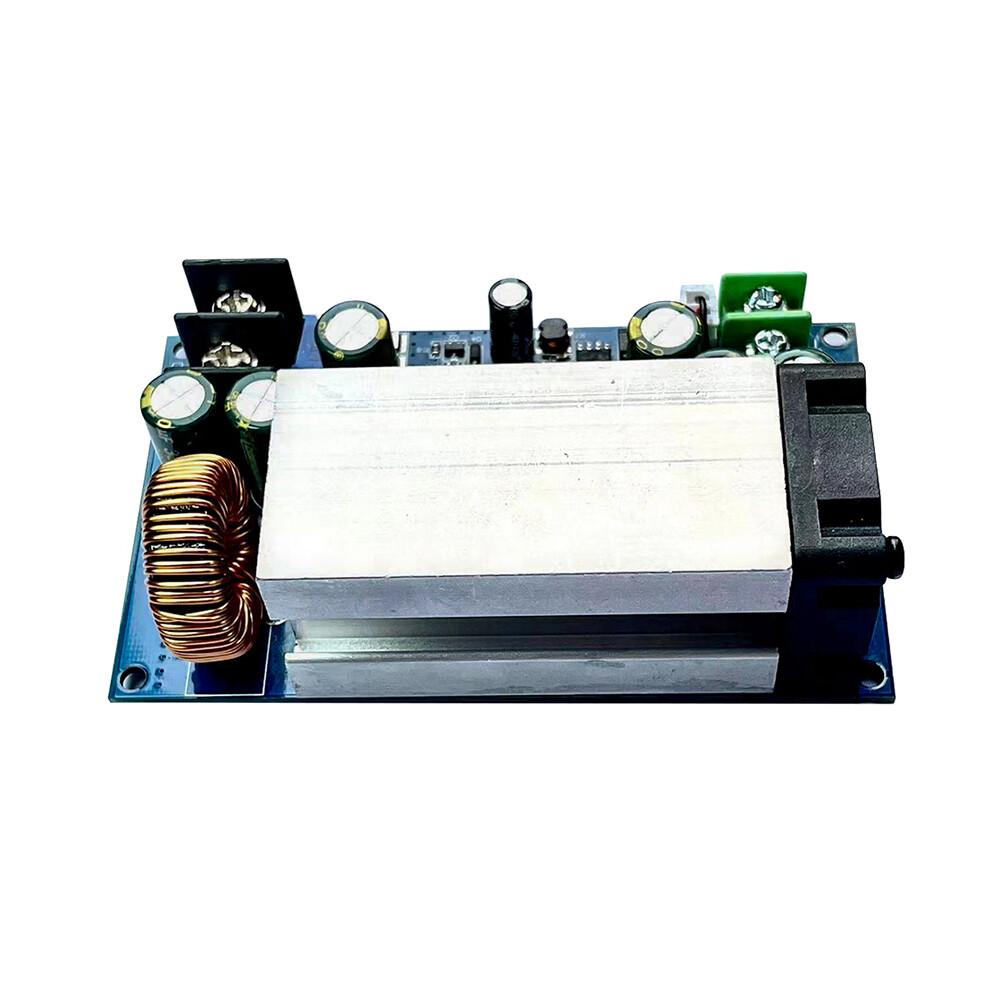

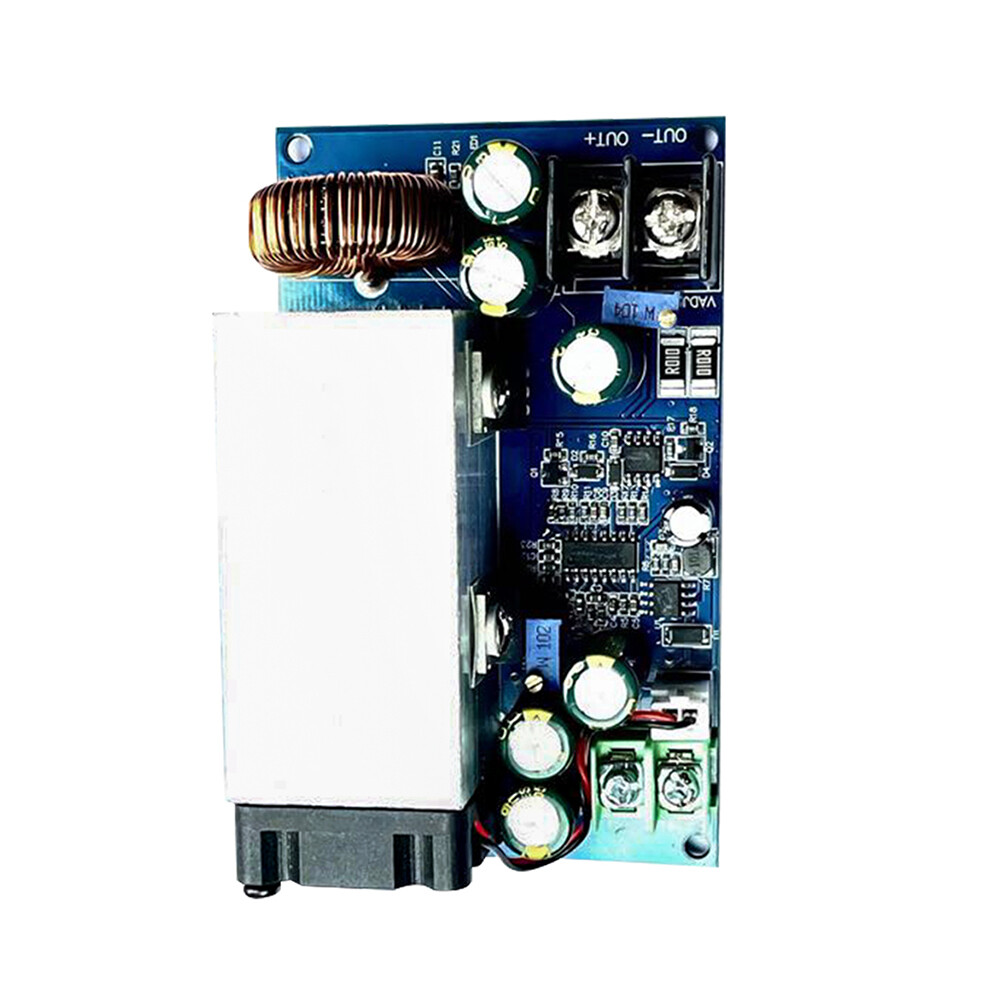

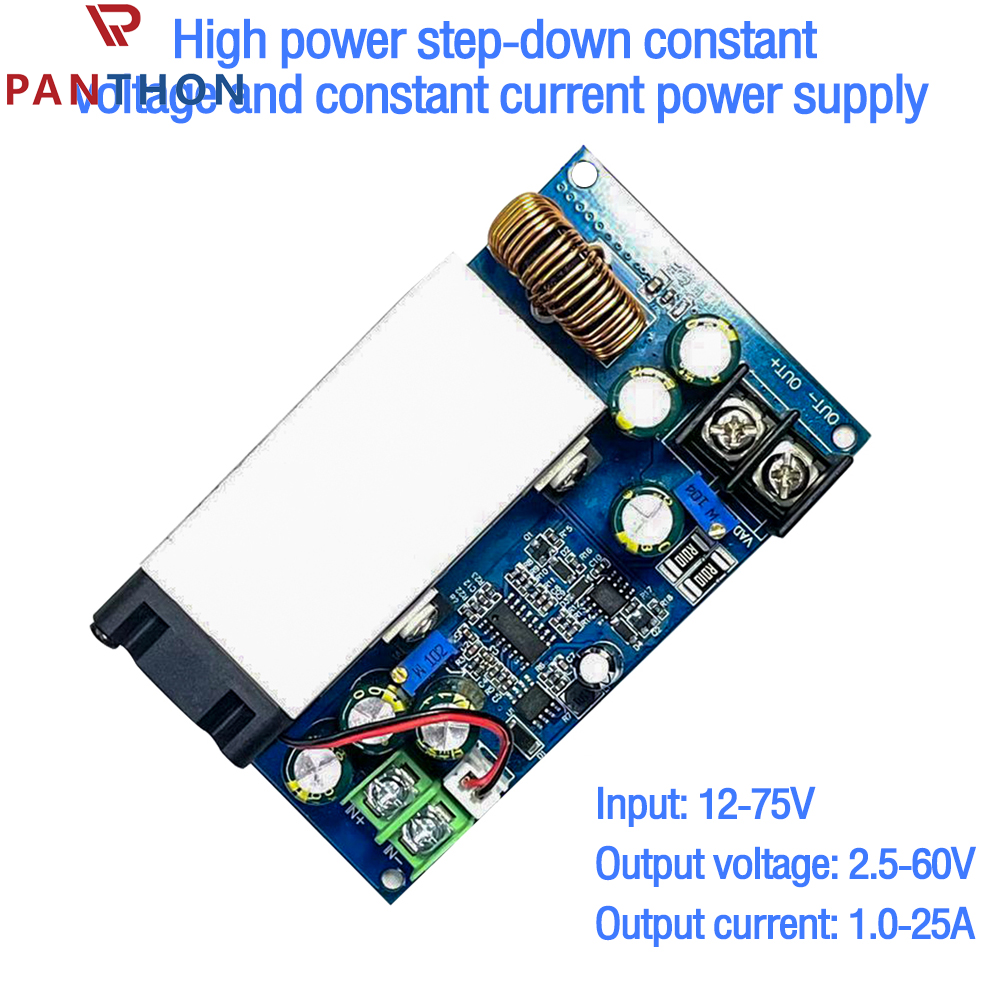

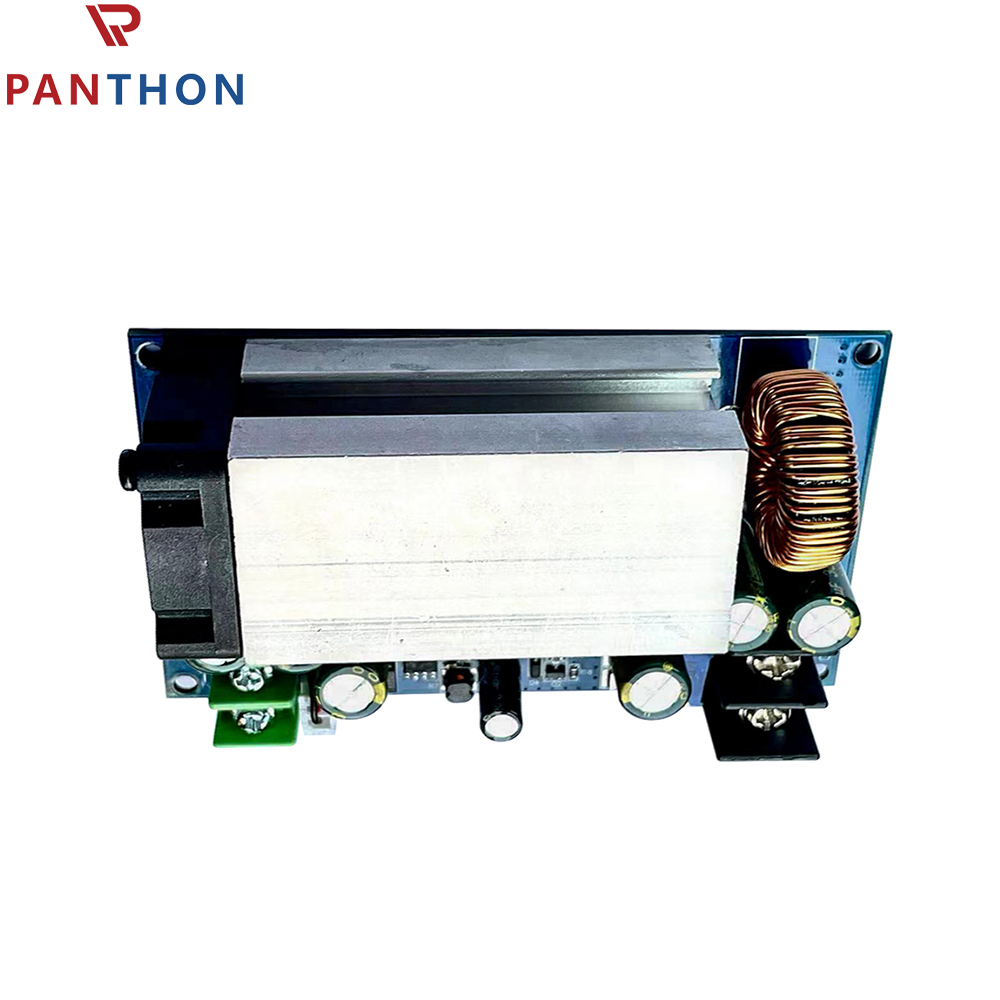

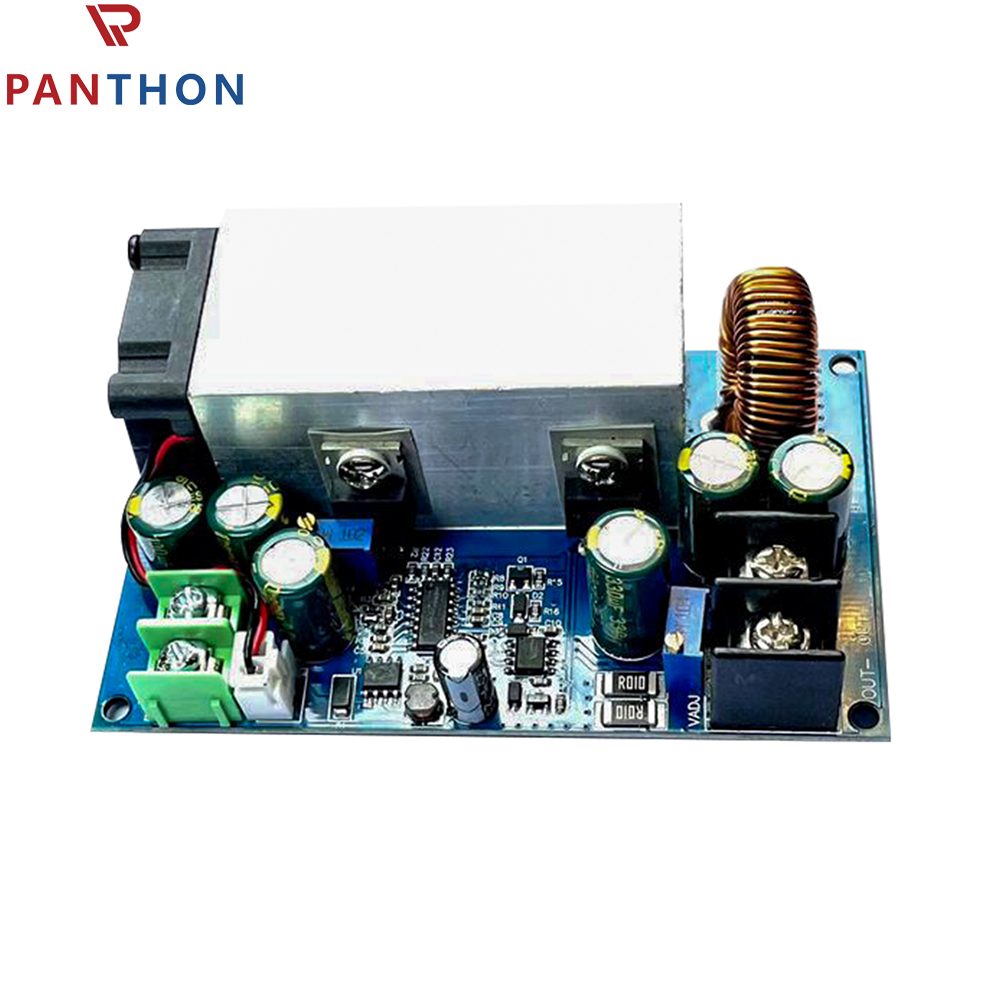

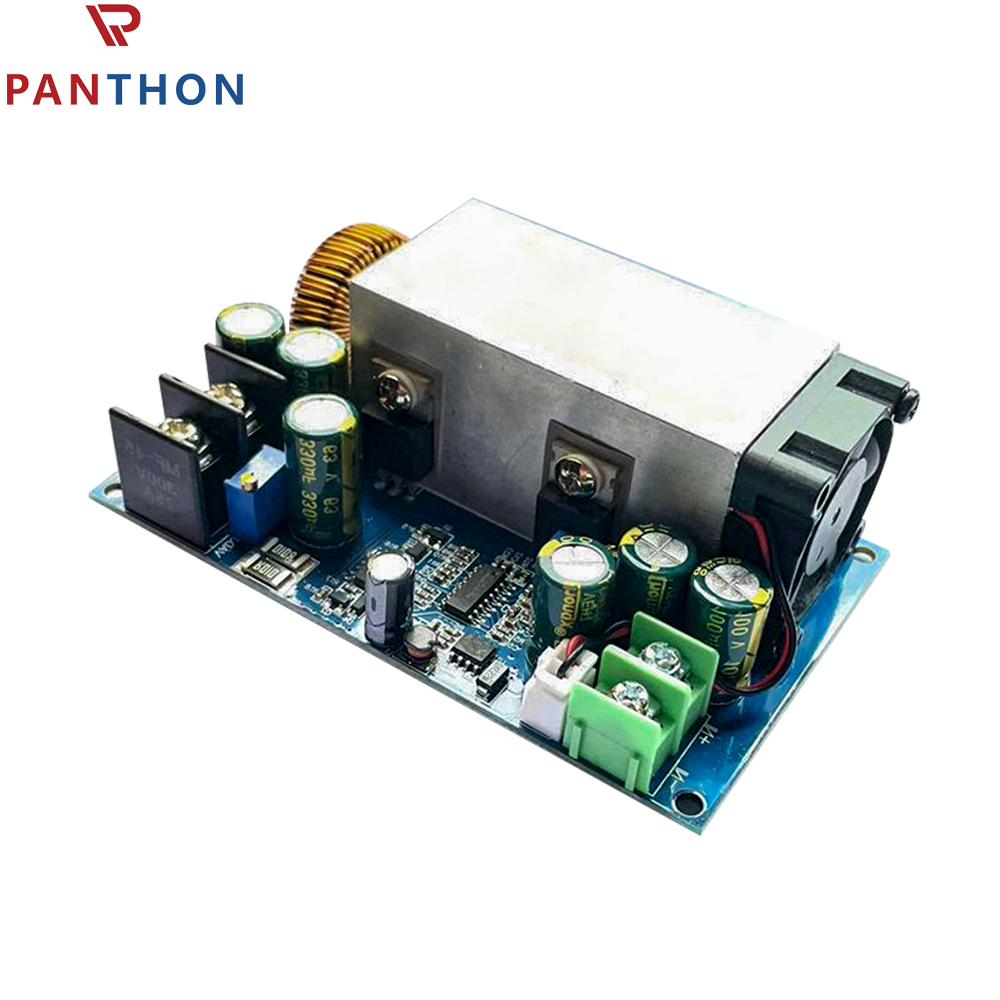

PANTHON DC-DC Buck Boost Converter Module 12-75V to 2.5-60V Step Down Up Voltage Regulator Constant Current Power Supply

Features:

1.Continuous adjustable output voltage and current

2.Easy to use

3.Easy to operate

4.Stable performance, with an input voltage of up to 75 volts

5.Extremely efficient

6.Main features of the power module:

7.*The module adopts a step rectification scheme, with extremely high efficiency, with a maximum efficiency of up to 95%

8.*Continuous adjustable output voltage and current

9.*The input voltage can reach up to 75 volts, and the output voltage can reach up to 60 volts (at 75 volts input) with a maximum current of 25 amperes.

Parameters:

Product model: SZ-8025CCCCV

Module name: 600W step-down constant voltage constant current adjustable power module

Module nature: Non isolated buck module (BUCK)

Input voltage: 12-75V

Output voltage range: 2.5-60V (must meet voltage reduction conditions, IN input multiplied by 0.8)

Minimum output voltage: 2.5V

Maximum output voltage: approximately equal to input voltage * 0.8 (for example, if the input is 40V, 40V * 0.8=32V, the maximum output voltage is 32V)

Output constant current: 1-25A (continuously adjustable)

Maximum output power: 600W (working environment must be well ventilated)

Continuous maximum working power: 500W (in a ventilated environment)

Continuous maximum working current: 25A (in a ventilated environment)

Heat dissipation method: air-cooled heat dissipation

Input undervoltage protection: None

Input overvoltage protection: None (overpressure prohibited)

Working temperature: -10~+65 degrees Celsius

Working frequency: 80KHz

Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and voltage difference)

Short circuit protection: Yes (constant current protection)

Input reverse protection: None

Output anti backflow: None (charging the battery, connecting the output to an inductive load, such as adding anti backflow diodes when connecting to the motor)

Work indicator light: Yes (output voltage blue LED light)

Wiring method: Equipped with solderless terminal blocks

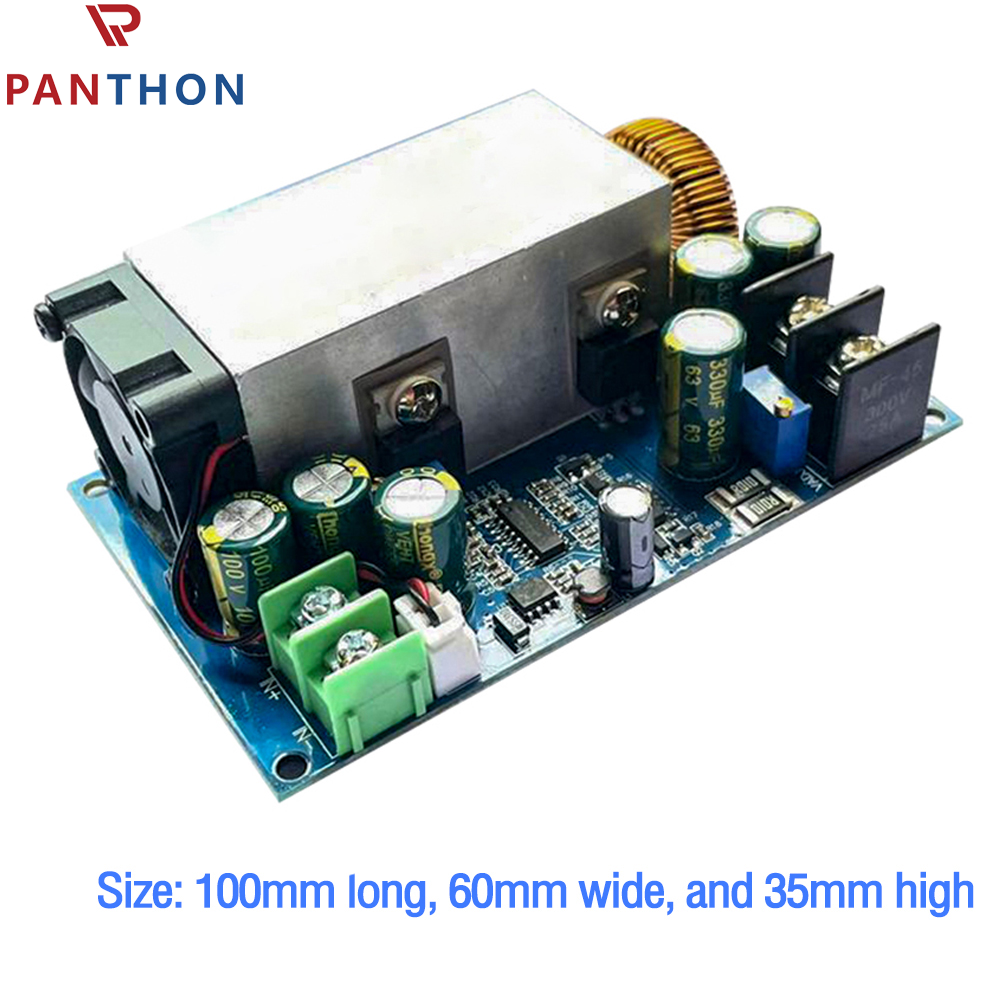

Module size approximately: 100mm long, 60mm wide, and 35mm high

Net weight: approximately 140 grams

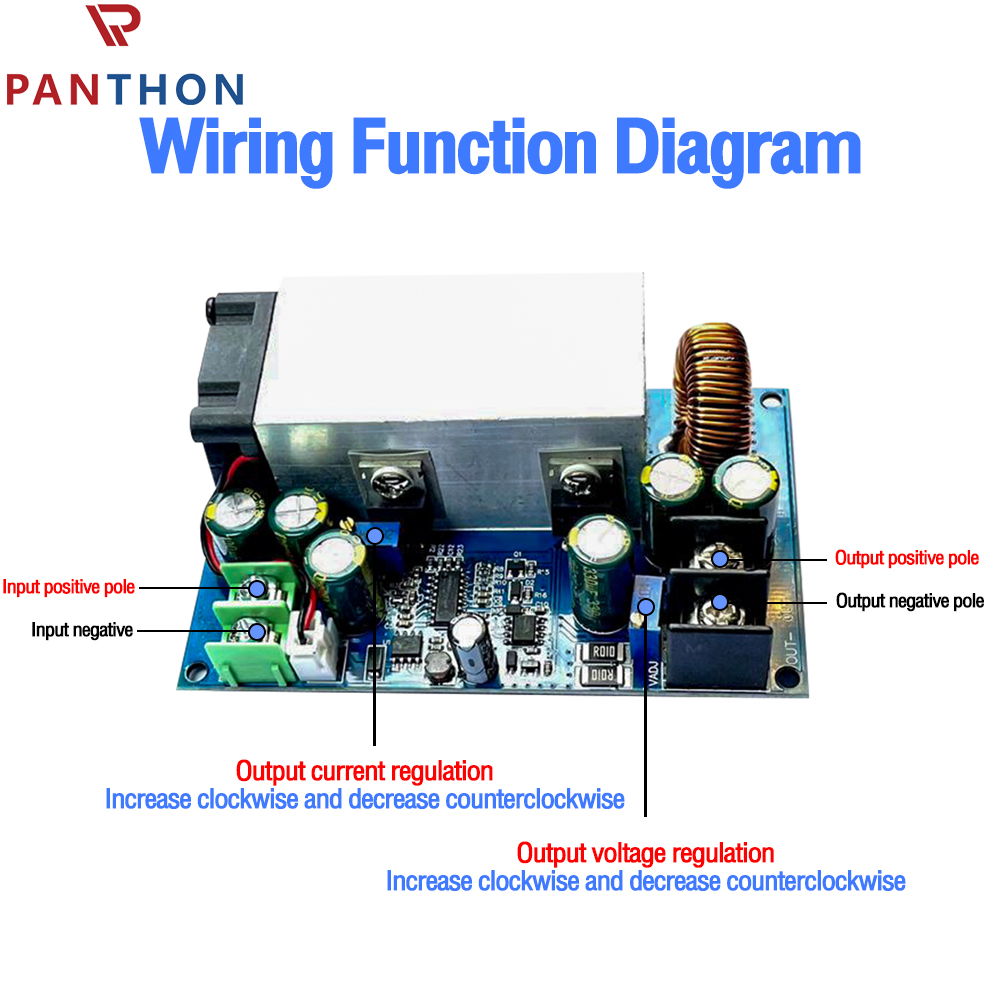

Wiring: “IN“ is the input.

'OUT' is the output

Package include:

1X power module
