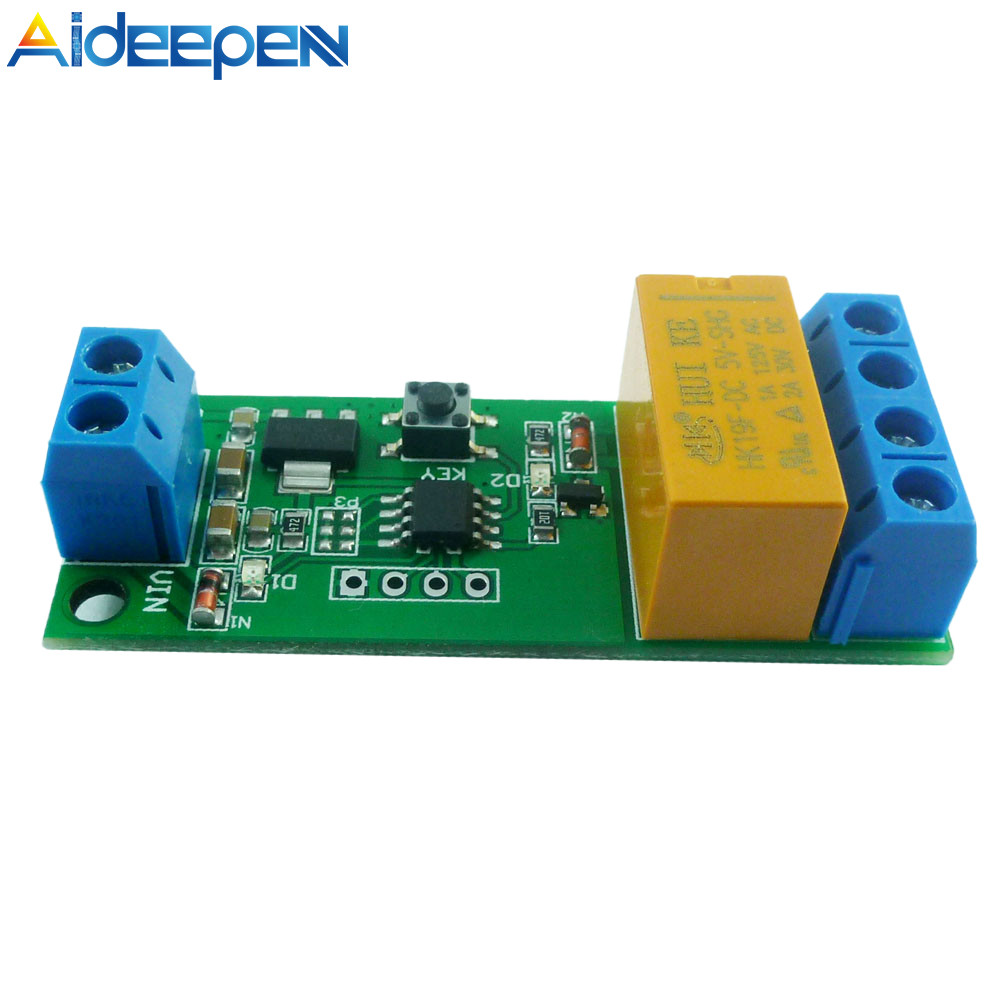

Original Aideepen DC 5-12V DC Motor Reversible Controller

Specification:
1 Working voltage: DC 5-12V (5V 6V 9V 12V)
2 Working current: 5V, forward 4ma, reverse: 36ma;
12V, forward 6ma, reverse: 44ma;
3 Load voltage: DC 1-48V or AC 85-265V
4 Load current: maximum 2A
5 Maximum forward time: 5000 seconds, 0.1 second step
Reverse max time: 5000 seconds, 0.1 second step
Through the "time multi-selection" setting, the maximum delay can reach 40000 seconds
6 Dimensions: 54mm X 22mm X 15mm
7 Weight: 12.7 grams


How to use:

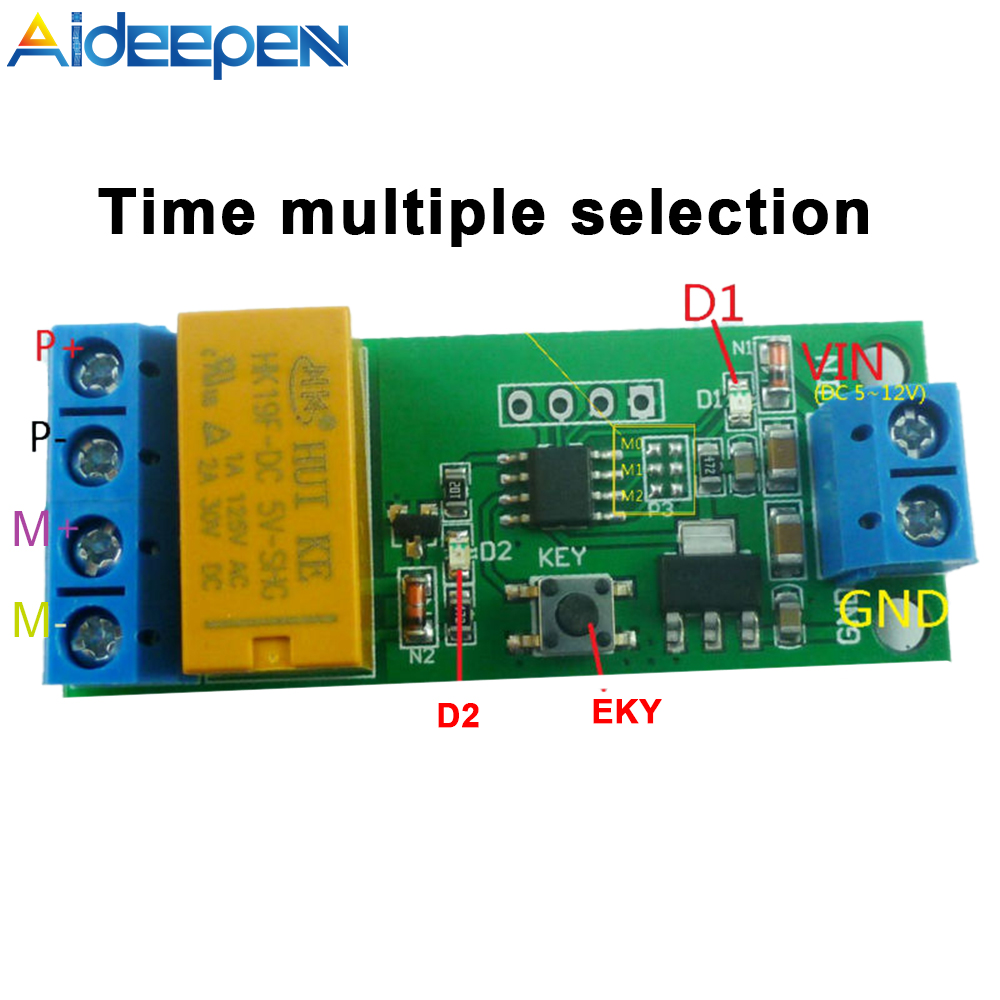

VIN is connected to the positive pole of the power supply, and GND is connected to the negative pole of the power supply;
P+ is connected to the positive pole of the motor power supply, P- is connected to the negative pole of the motor power supply;
M+M- connect both ends of the motor
After power-on, D1 flashes 3 times, D2 is off, M+ outputs positive pole, M- outputs negative pole, and the motor rotates forward; after delay T1, D2 turns on, M+ outputs negative, M- outputs positive, and the motor reverses; after delay T2 , D2 is off, M+ outputs the positive pole, M- outputs the negative pole, the motor rotates forward; and so on.
T1: Indicates the motor forward rotation delay time, the default is adjustable from 0.1 to 5000 seconds (step 0.1 seconds)
T2: Indicates the motor reversal delay time, the default is adjustable from 0.1 to 5000 seconds (step 0.1 seconds)
Through the "time multi-selection" setting, the maximum delay can reach 40000 seconds

After power on, D1 3 flashes and enters "working mode"
D2 turns on reverse, D2 turns off forward
Press and hold the button for 2 seconds, D1 lights up, enter the "setting mode"
D2 is off, it is the forward "set mode"
In the forward "setting mode", trigger the KEY twice in a row, D1 is turned off, and enter the "standby timer mode"
In "Standby Timer Mode", trigger the KEY to start timing (enter "Timing Mode")
D1 flashes to indicate timing ("Timekeeping Mode")
Trigger the KEY again to stop the clock (exit "Timekeeping Mode")
The flashing time of D1 is the forward rotation time (T1)

Press and hold the button for 2 seconds, D2 lights up, enter the reverse "setting mode"
In the reverse "setup mode", trigger the key twice in a row, D1 is turned off, and enter the "standby timer mode"
In "Standby Timer Mode", trigger the KEY to start timing (enter "Timing Mode")
D1 flashes to indicate timing ("Timekeeping Mode")
Trigger the KEY again to stop the clock (exit "Timekeeping Mode")
The flashing time of D1 is the reverse time (T2)
So far, the forward time (T1) and reverse time (T2) have been set
Power cycle in "work mode"

Package includes:
1* DC Motor Reversible Controller
