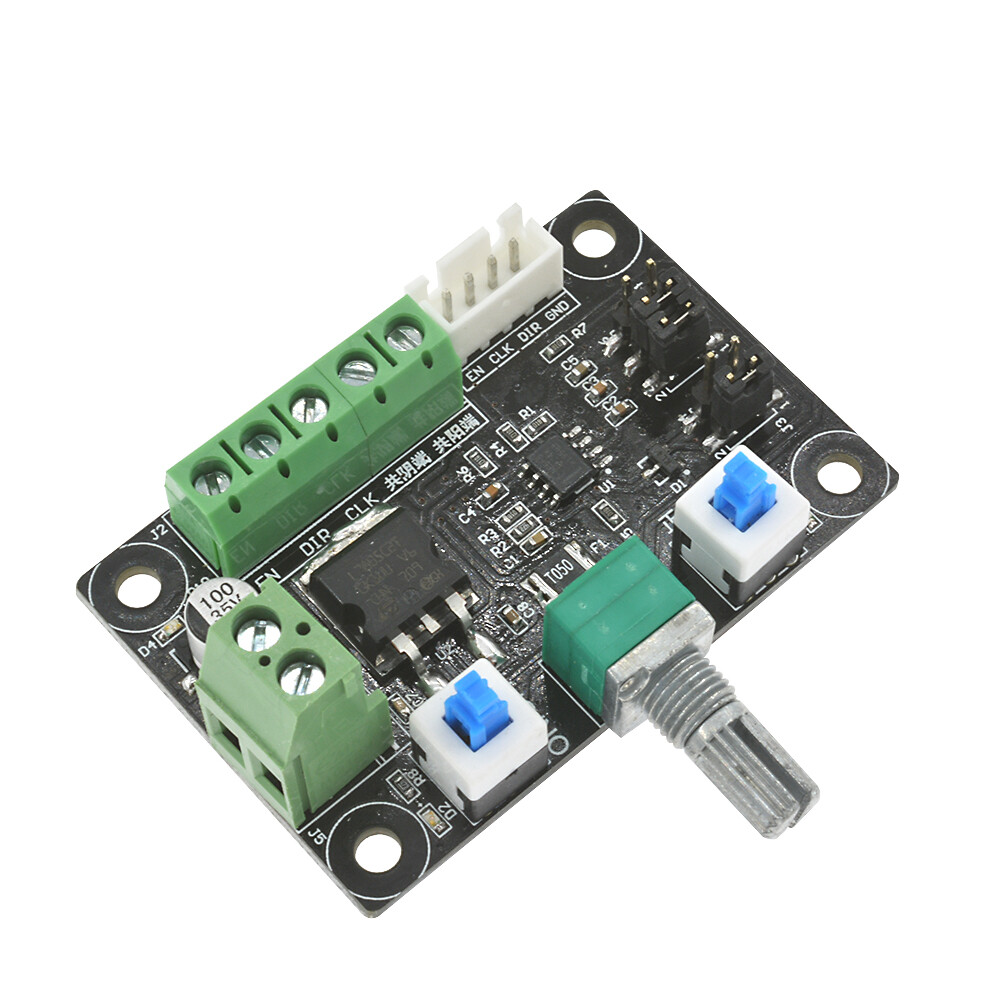

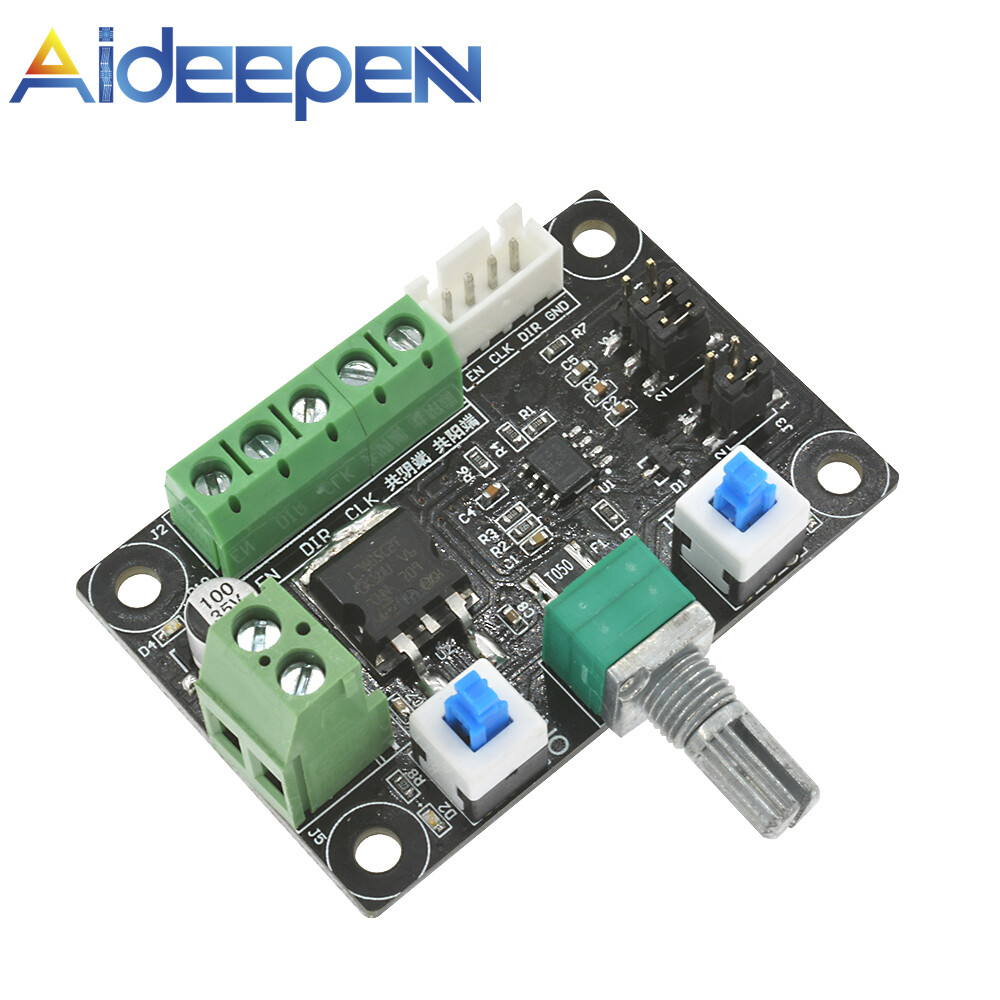

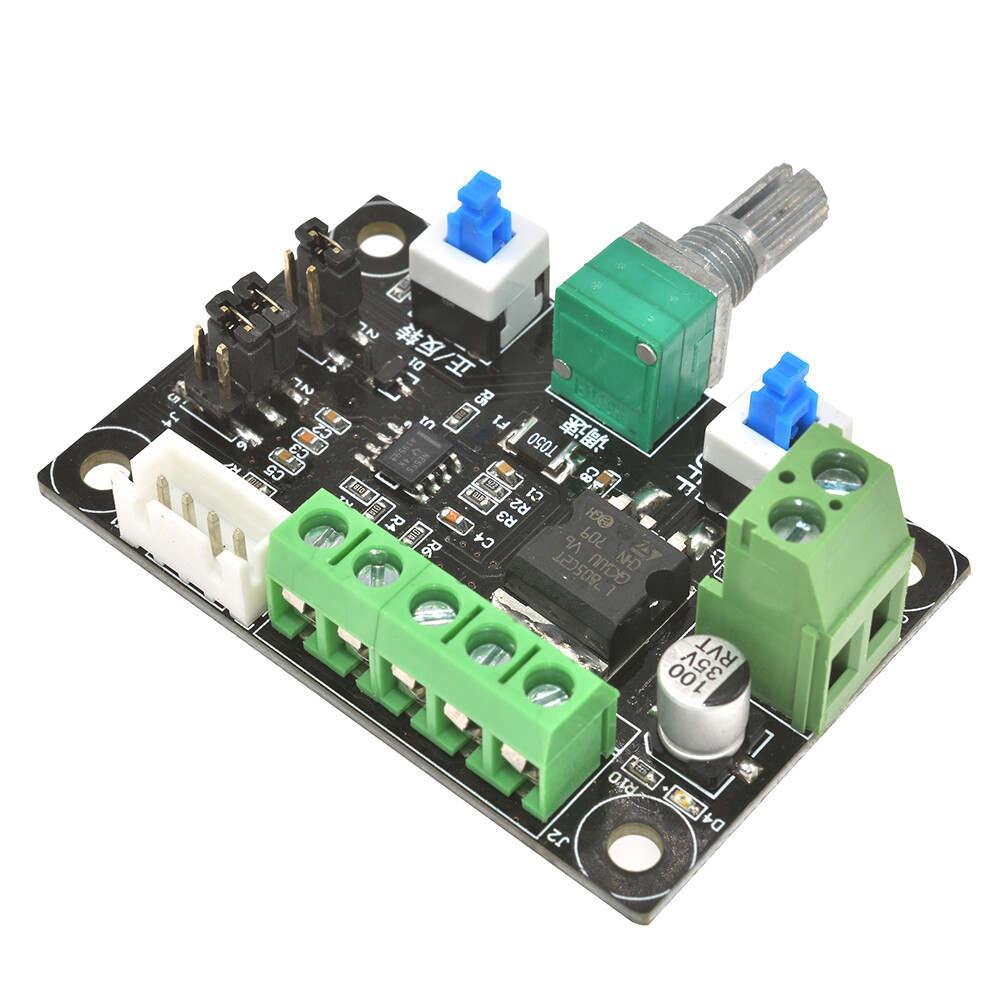

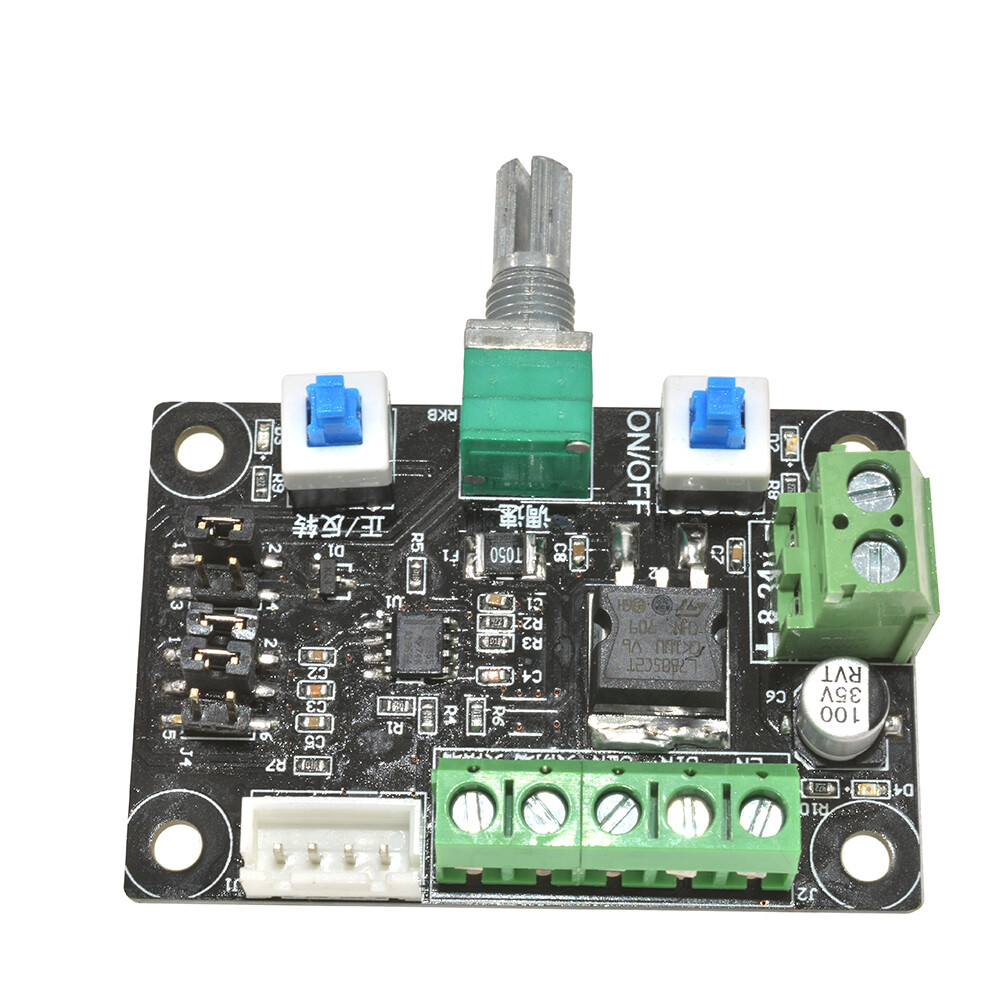

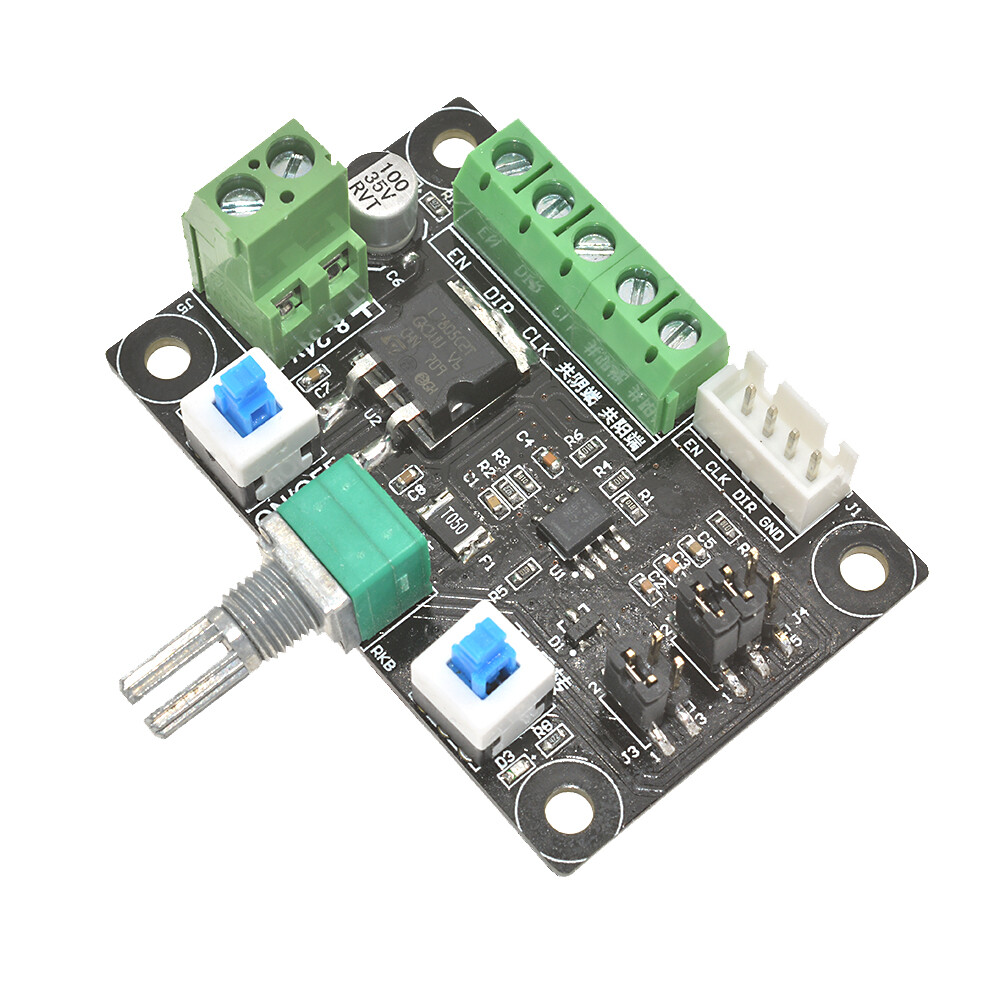

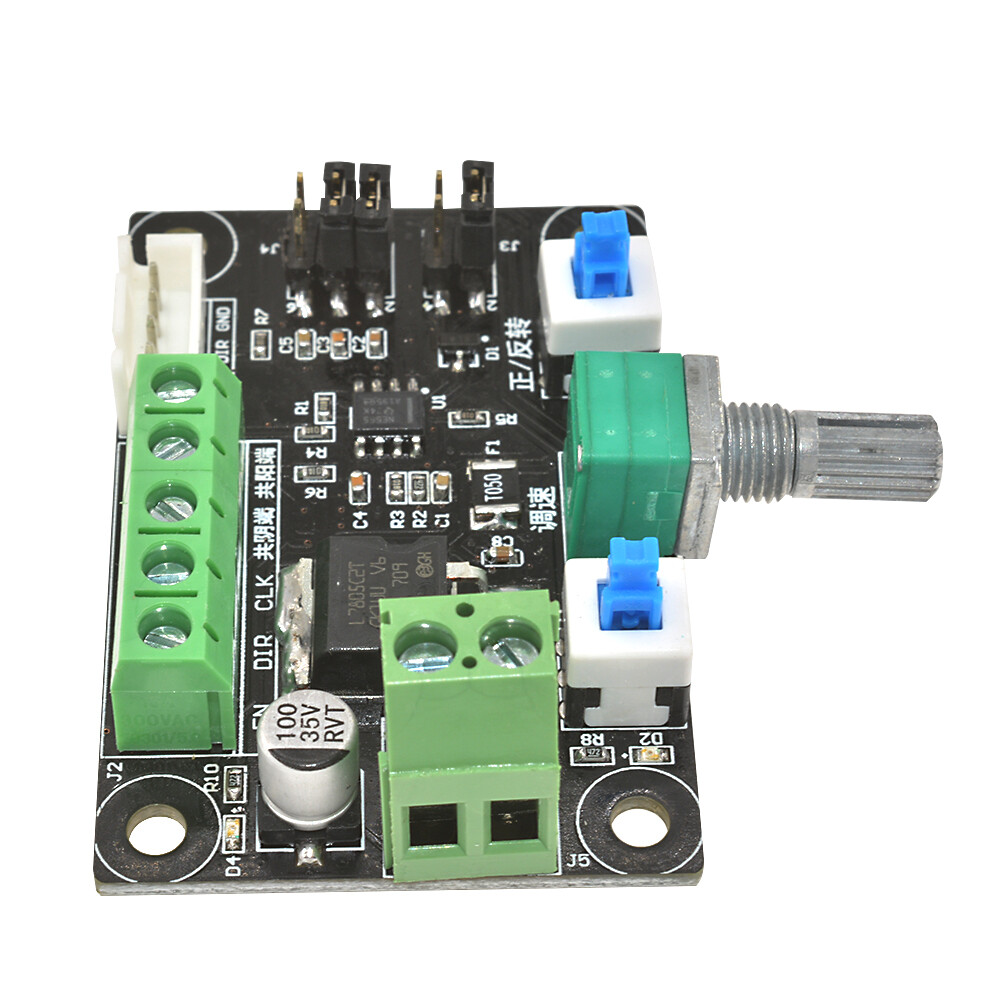

Original Aideepen 12-24V Stepper Motor Driver Controller PWM Pulse Signal Generator Speed Control

Feature：

1, this module is a pulse generation module, supply the control signal to stepper driver.
To control the stepper motor, it must be equipped with a drive.

2, this simple controller + stepper motor + stepper motor + DC power supply can be composed of a simple set of control platform.

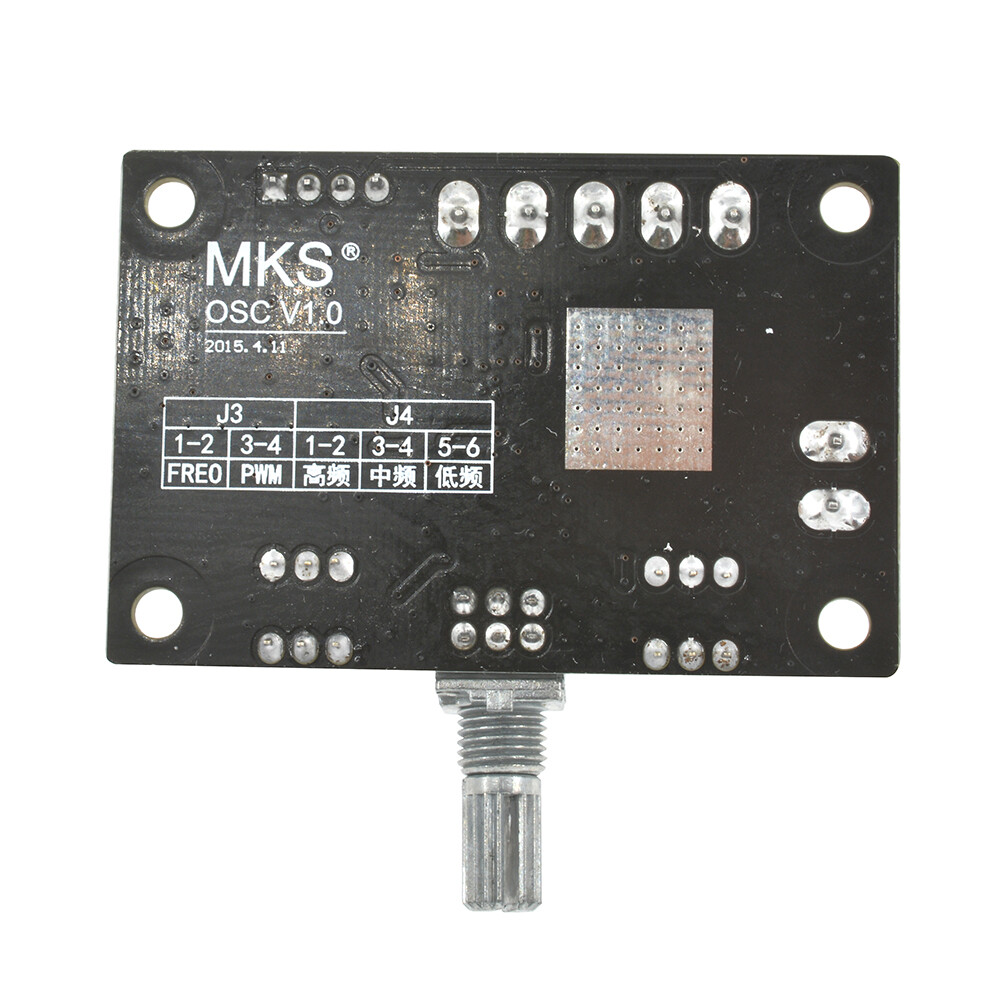

3, the controller has high 5.4k-160khz, middle 540-16.6khz, low 80-2.4khz total of 3 kinds of low frequency signal can be used to select the jumper.

4, can produce pulse signal, can also produce PWM signal, can choose the jumper.

5, the frequency of measurement: PUL and common cathode end.

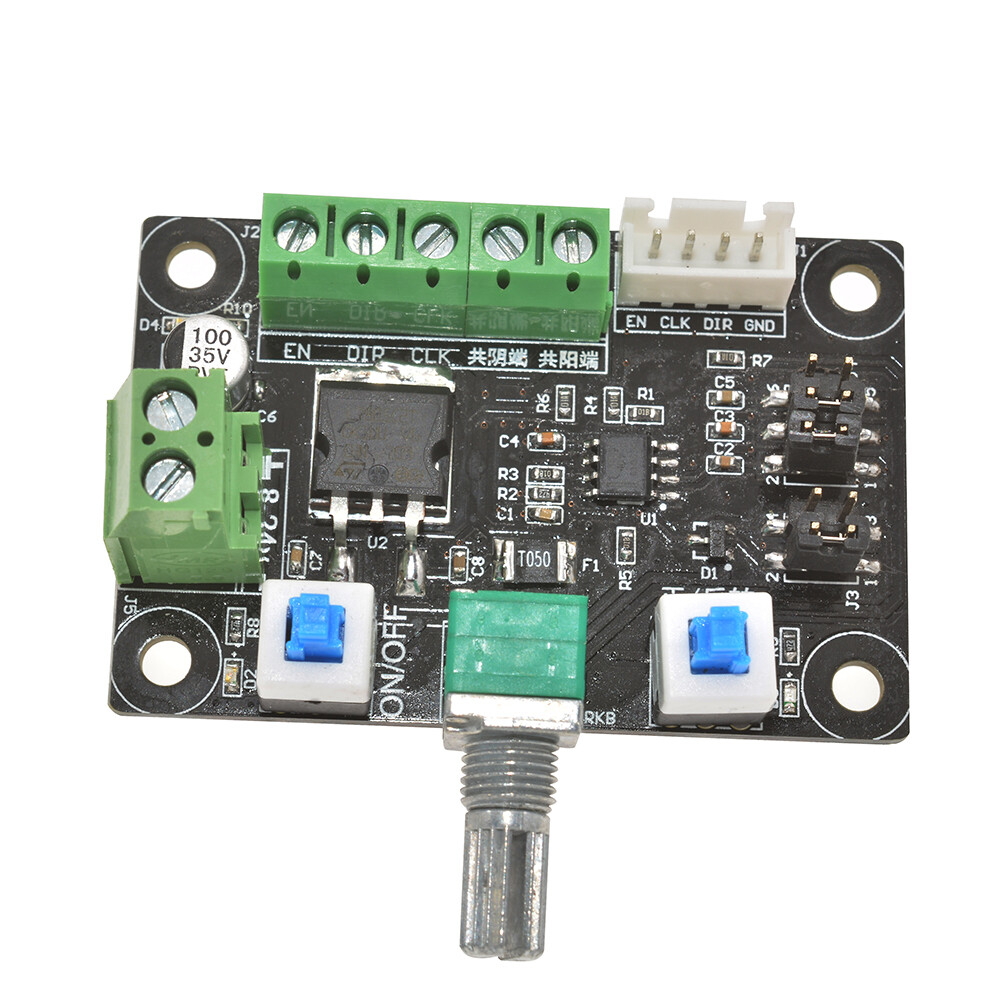

Different stepper driver may mark different name

EN=ENA=FREEEnable
PUL=PULS=CLKPulse
DIR=CW=CWWDirection

Common anode Connection method (B)

EN+PUL+DIR+ connect together to com+。
EN- connectEN
PUL- connectCLK
DIR- connectDIR

Common cathode Connection method (B)
EN-PUL-DIR- connect together to com-。
EN+connectEN
PUL+ connectCLK
DIR+ connectDIR

Package Included:

1x Control Signal Generator Module
