Newest Multi-function Mini Boost Module Step Up Board 5V/8V/9V/12V 1.5A LED Indicator Diy Electronic Voltage Module

Description:

Features:
100% brand new and high quality
Basic parameters:
The output voltage can be set to 5V/8V/9V/12V, the default is 12V.
Input voltage range: 2.5V-5VOUT. The input voltage must be lower than the set output voltage.
Output capability: When inputiing 3.7V lithium battery, it can output 5V1A, 8V0.5A, 9V0.45A, 12V0.3A.
When inputting at 5V, it can output 8V0.7A, 9V0.7A, 12V0.5A.
When the default 12V output, the LED indicator consumes about 1mA.
If the indicator is turned off, the input current is ＜1mA at no load.

Voltage setting description:

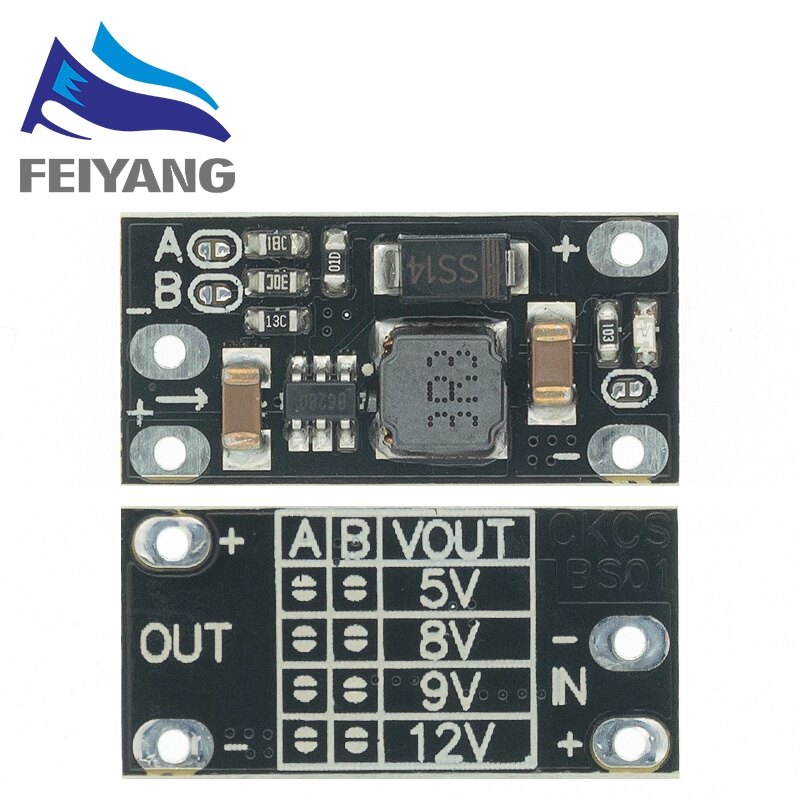

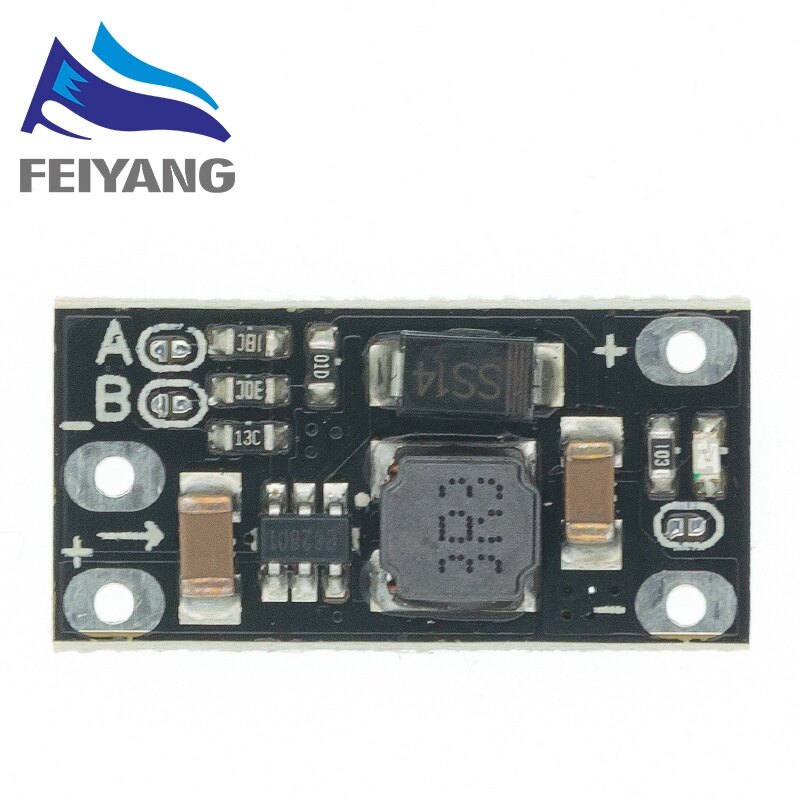

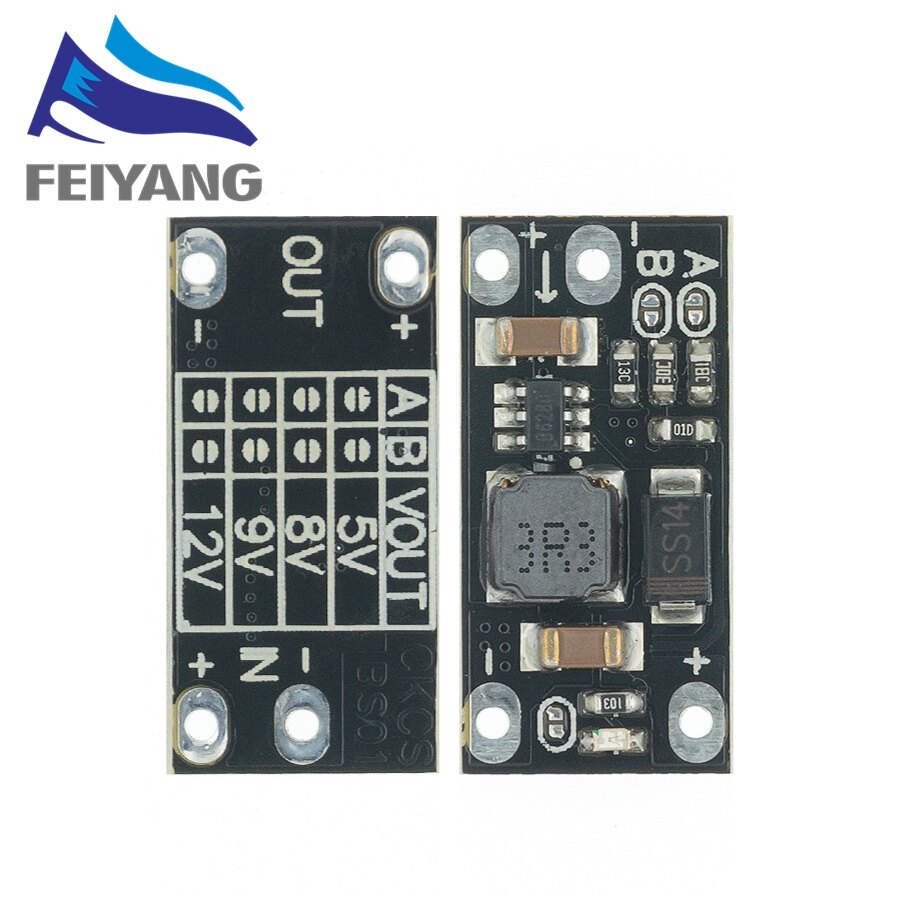

The front side of the PCB can be seen with the words A and B. Use the soldering iron to change the pad pass next to the charater.
The output voltage can be cahnged by breaking. In the following table, 0 indicates that the pad is disconnected, and 1 indicates that the pad is connected.
The pad next to the LED indicator can also be turned off to turn off the indicator.
ABVOUT
005V
018V
109V
1112V

Specification:
Color: As pictures shown.
Size: app. 22x11mm(0.87x0.43in)
Material: Electronic component
Quantity: 1 pc

Note:
Transition: 1cm=10mm=0.39inch
With retail package.
Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflectthe actual color of the item. Thank you!

Package includes:
1 x Boost Module(other accessories demo in the picture is not included.)
