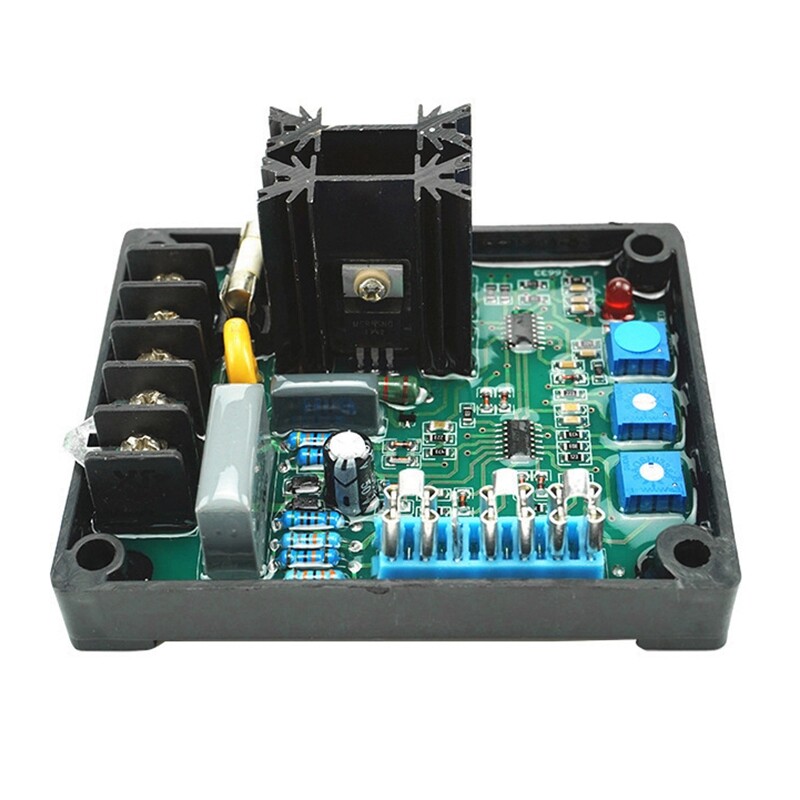

New Universal GAVR-8A AVR Generator Automatic Voltage Regulator Module

New Universal GAVR-8A AVR Generator Automatic Voltage Regulator Module

Details

1. Less than +/-1% Reglation
2.110/220/400 VAC Programmable Input
3.Rugged Compact Design; With Under Frequency Protection
4.Soft Start Voltage Ramping
5.EMI Suppression; Buit-in High Capacity 8Amp Fuse

Input Voltage: 110/220/400VAC, 1 phase 2 Wire
POWER INPUT
Voltage:100-260V, 1 phase 2 Wire
Output Voltage: Max 90V dc @240V ac input
Current: Continuous 3.7A
Intermittent 5A for 10 secs
Resistance: 15 ohms min 100 ohms Max
Regulation
+/-1.0% RMS with 4% engine governing
Voltage Build-up:Residualvolts at AVR teminal Greater than 5VAC
THERMAL DRIFT
0.03% per deg. C change in AVR ambient
SOFT START RAMP TIME
2 seconds
EXTERNAL VOLTAGE ADJUSTMENT
+/-7% with 1 k ohm 1 watt trimmer
UNDER FREQUENCY PROTECTION
Set point: 95% Hz
Slope: 100-300% down to 30 Hz
Max. Dwell:20%volts/S recovery
UNIT POWER DISSIPATION
8 watts maximum
Thermal. Drift:0.03% per °C chage in AVR ambient
Under Frequency:60Hz system presets knee point at 55Hz
50Hz system presets knee point at 45Hz
Operating Temperature:-40°C to + 60°C
Storage Temperature:-40°C to + 85°C
Relative Humidity: Less than 95%
Material:plastic
colour:Black

Package Contents:
1 * GAVR-8A Automatic Voltage Regulator
