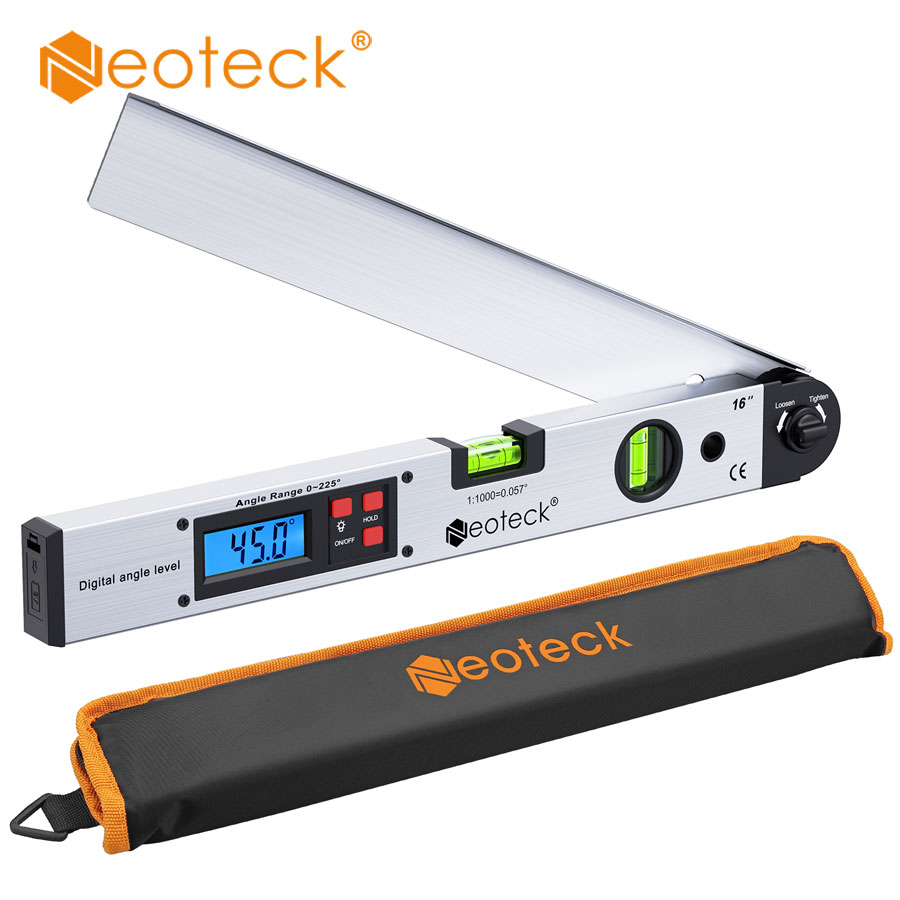

Neoteck 0~225° LCD Digital Protractor Spirit Level Angle Finder Gauge Meter

Description:

It is a digital angle measuring device whose read is easier and exact than other scale indicated angle level. It is mainly intended for applications which involve lineation for woodworkers, measure and definition of the exact angles such as trays, sloping roofs and handrails. It also can be used as spirit level to quickly measure the horizontal and vertical angle（NOTE: It is not a digital level）.

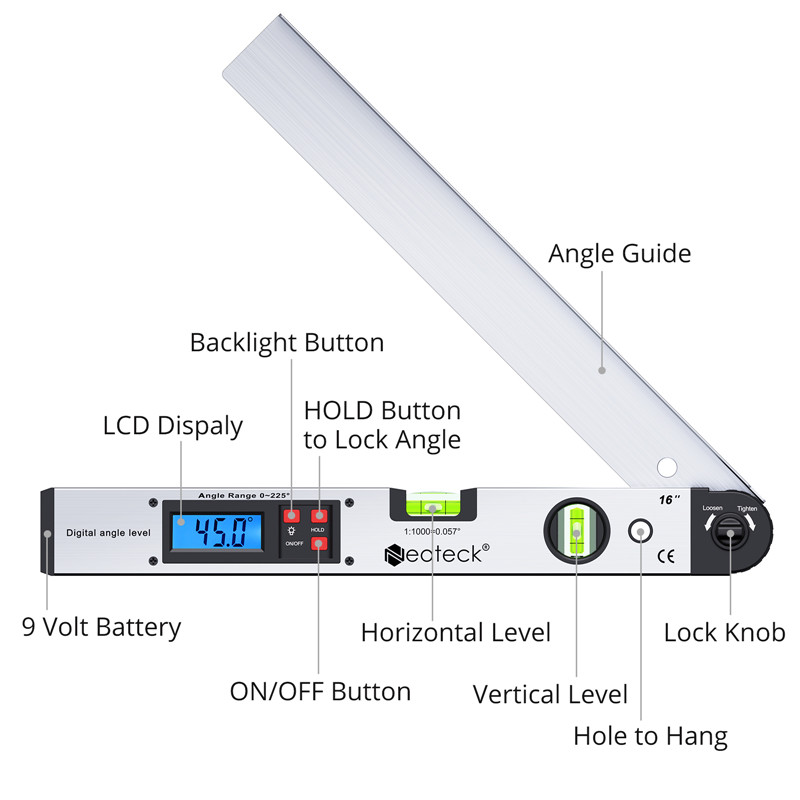

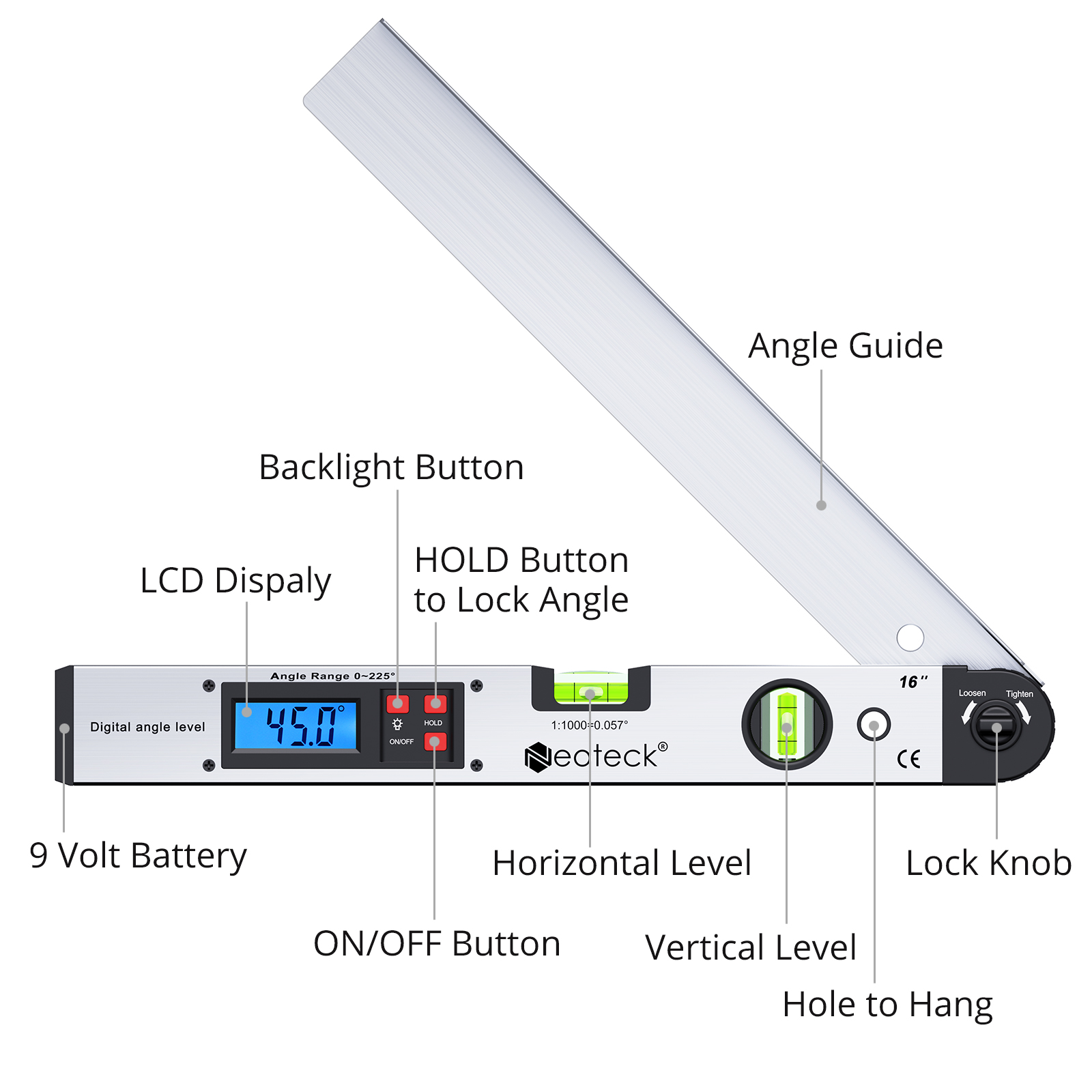

Features:

Easily readable LCD Display shows the exact angle at once.

Automatically shut off after five minutes to prolong the batteries’ life.

Backlight design: keep its normal use on dark light.

Data holding function: Help the use on dark light.

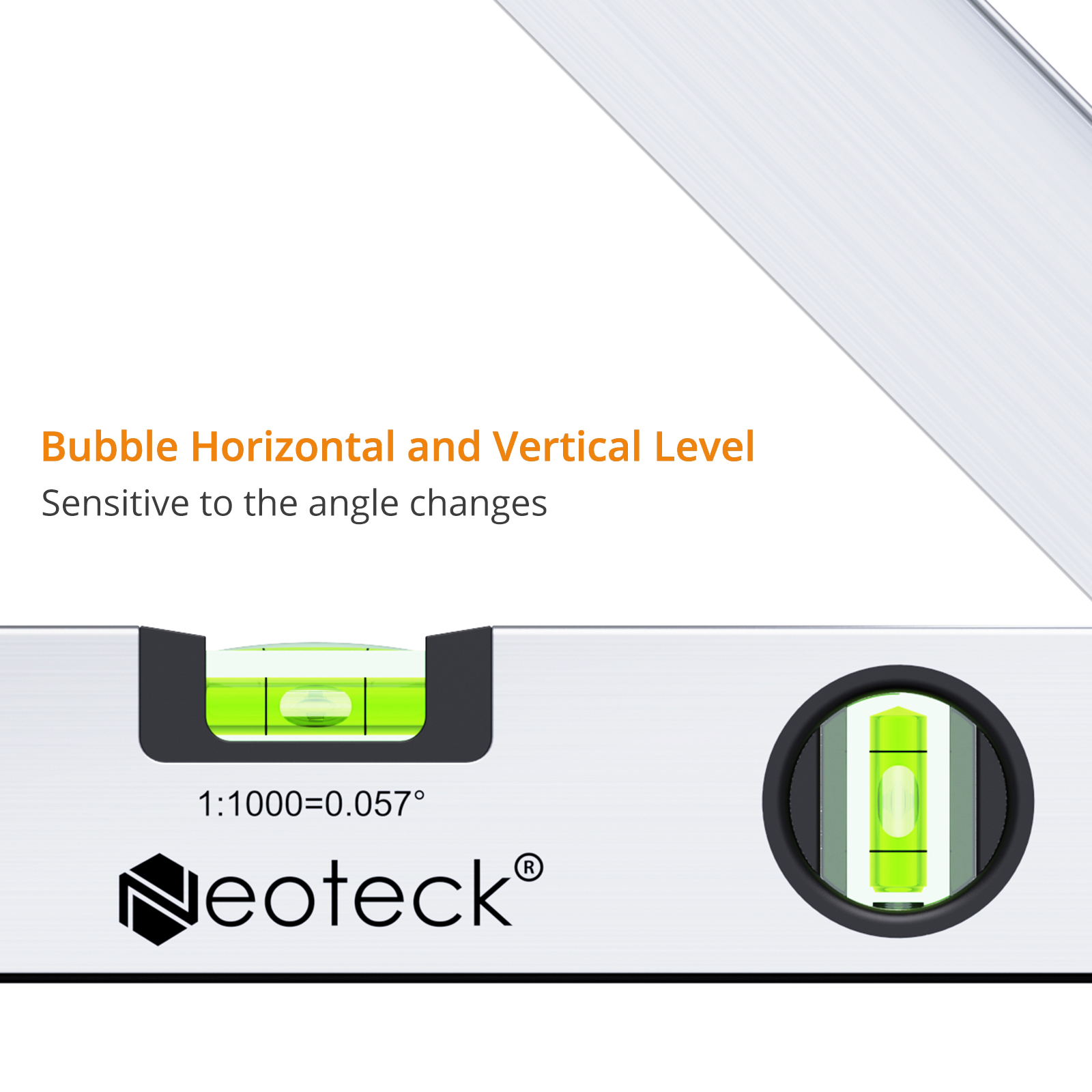

Horizontal level

Vertical level

Mechanical lock(Lock knob): Keep the angle invariable in the process of line or measure the angle.

HOLD button to lock angle

Angle guide

Low power Alarm.

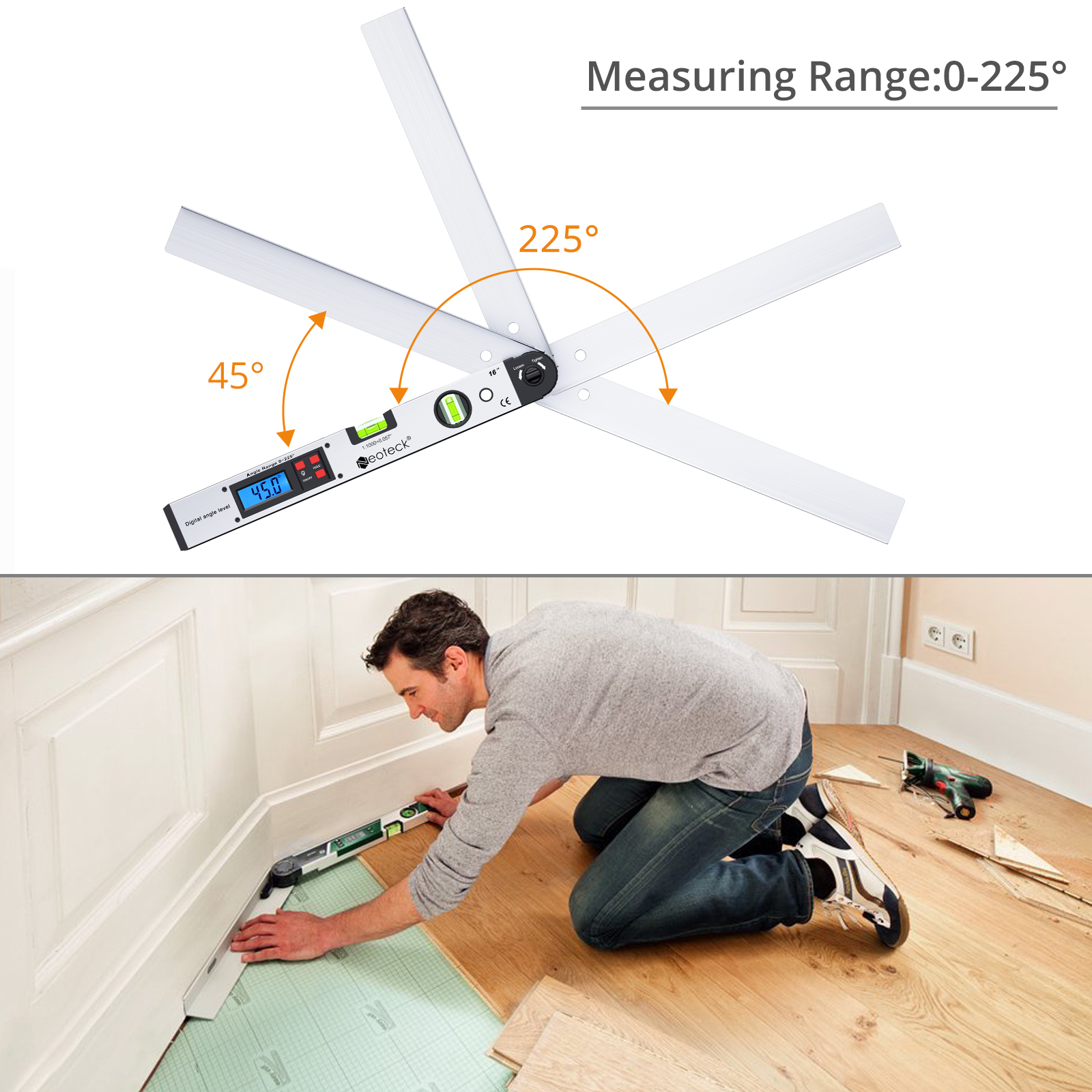

Measuring range: 0~225°.

The value of the angle increases or decreases in the step of 0.1° as you open or close the angle.

ON/OFF LED Lighted display

ON/OFF Button

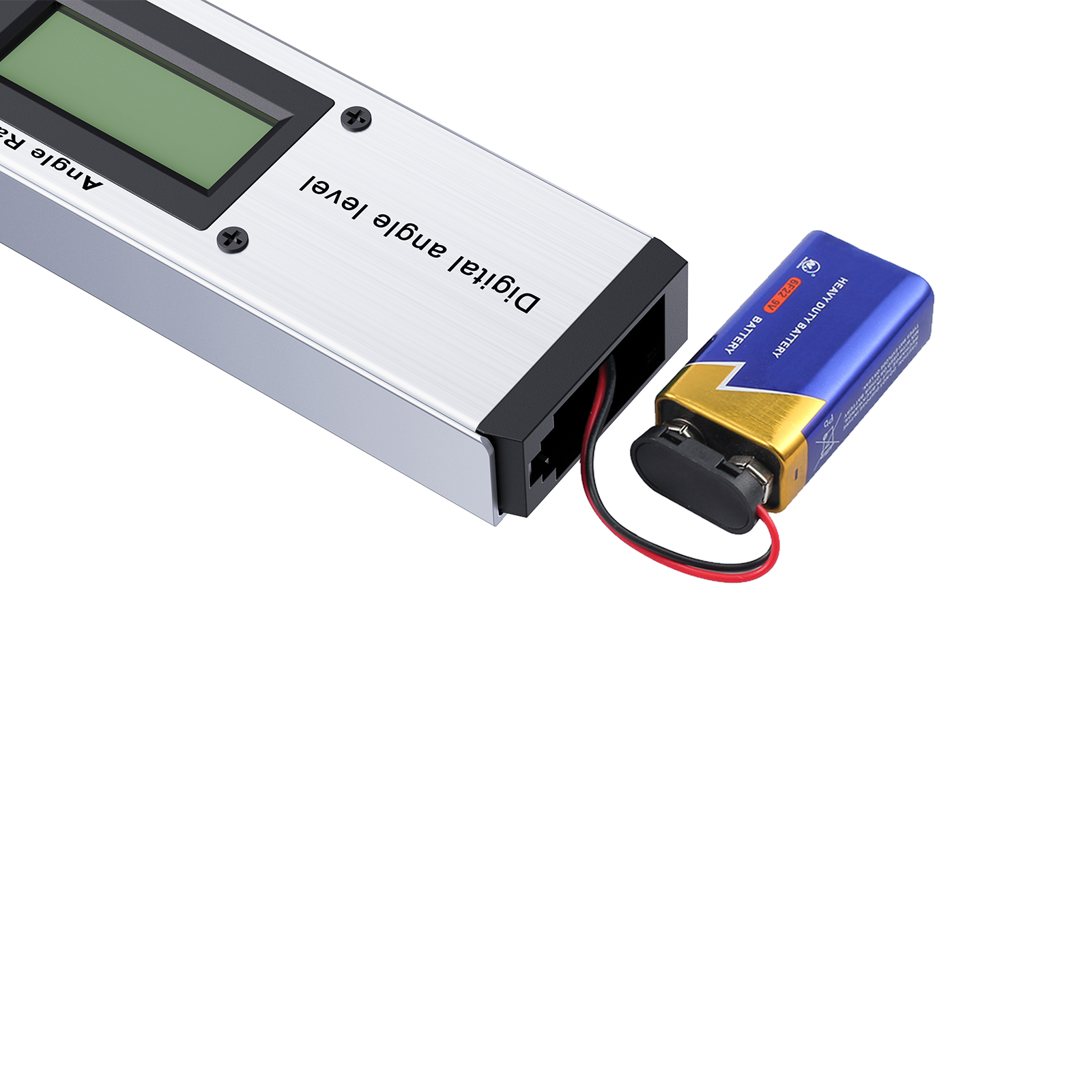

9 Volt battery (Included)

Hole to hang the digital angle level

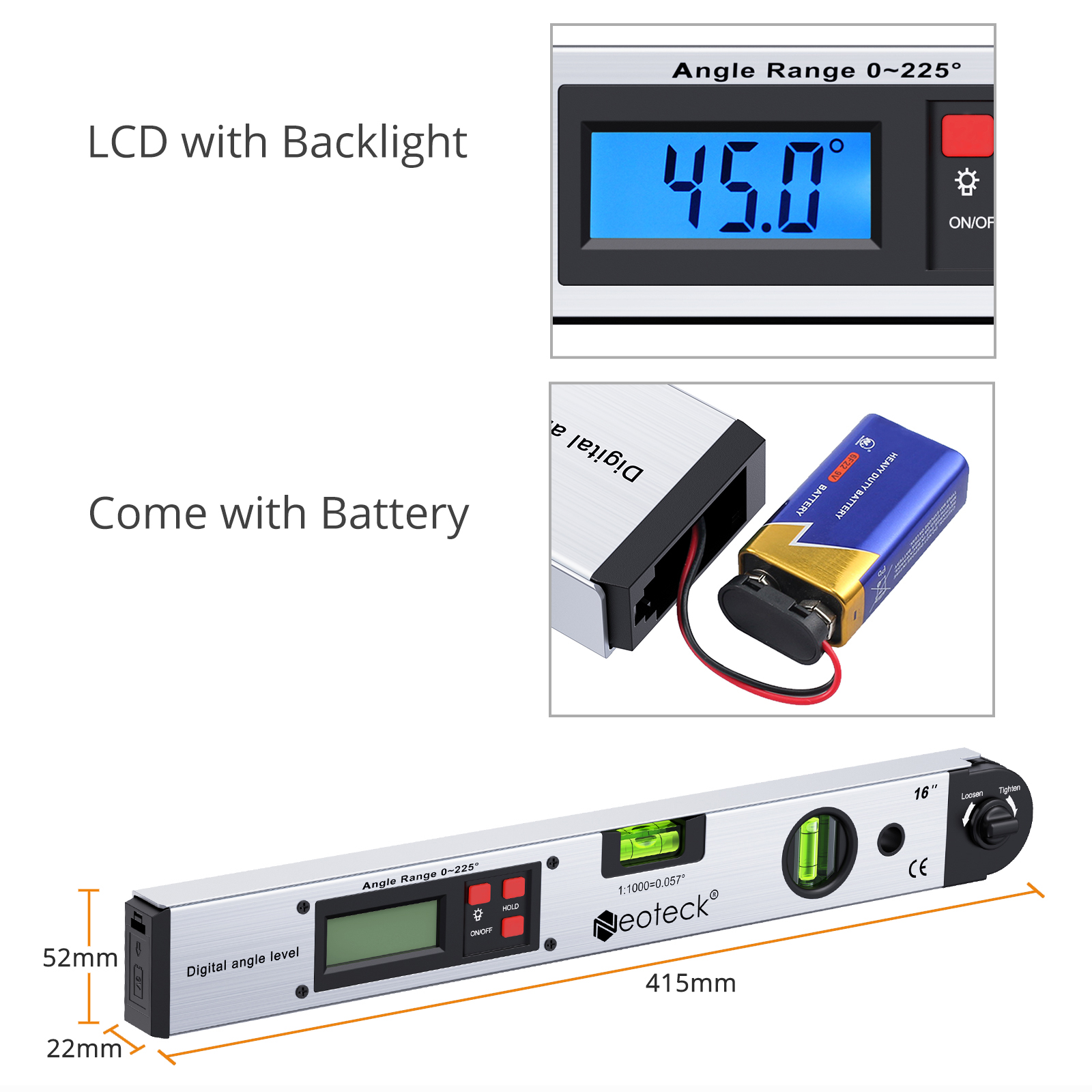

Specification:

Length: 400mm

Increase/decrease angle: 0.1°

Measuring range: 0~225°

Measuring precision: ±0.5°

Working temperature: –10°C~+50°C

Battery: 9V 6F22(Inclueded)

Operatingprocedure:

1. MEASURE ANGLES FUNCTION

1) Switch on SK99G.

2) Unfold the arm of ST99G, the opening angle increases or decreases on LCD display

3) Adopt the comparative method to measure the angle or set the lineation angle.

4) You can fasten the Lock Button to keep the angle invariable when drawing the angle line.

5) Open the backlight when the beam is dark.

2. Spirit level Function: Quickly measure the horizontal and vertical degree.

CAUTION:

1. Do not move the screws and components at random.

2. Please handle your angle meter with care, use even strength to rotate the Rotate Arm, and do not use too much strength.

3. Don’t keep the backlight open for a long time.

4. When the low power Alarm icon appears on the display, please change the batteries

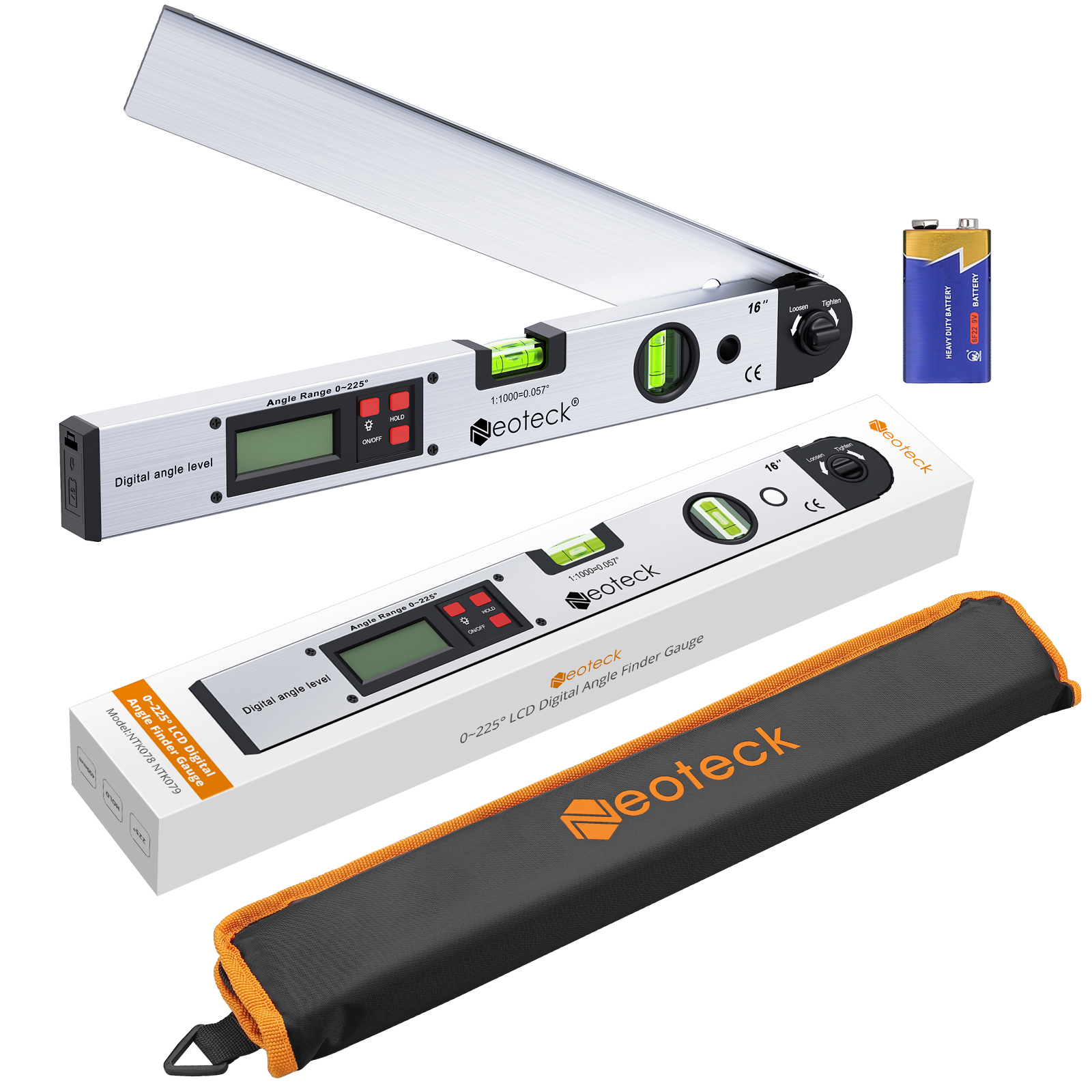

Package inclueded:

1*Digital Angle Finder

1*Portable bag

1*user manual
