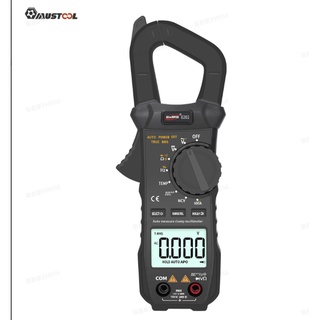

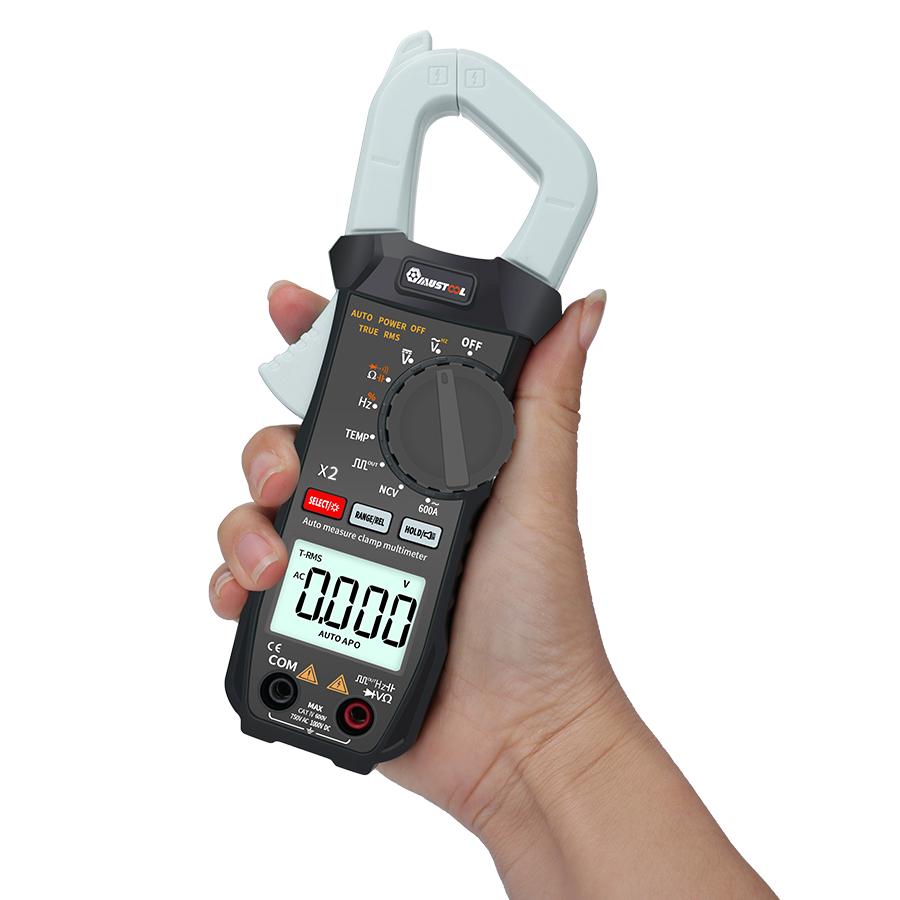

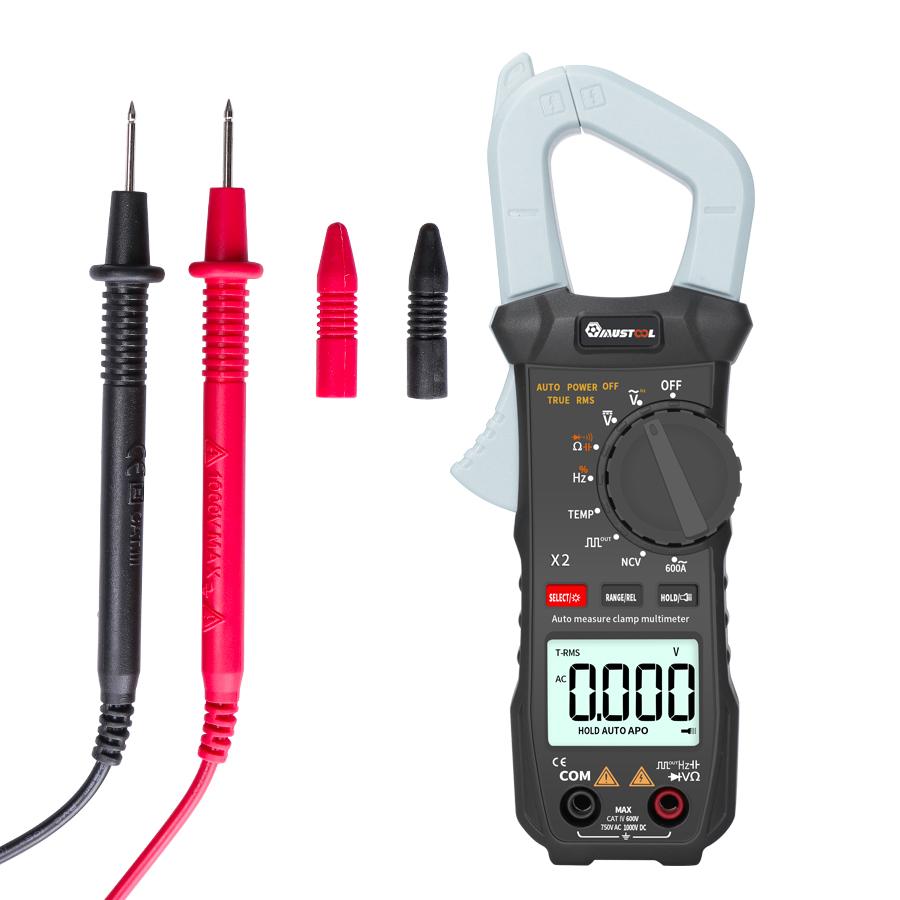

MUSTOOL X2 Pocket 6000 Counts True RMS Clamp Meter AC Voltage&Current Digital Multimeter Automatic

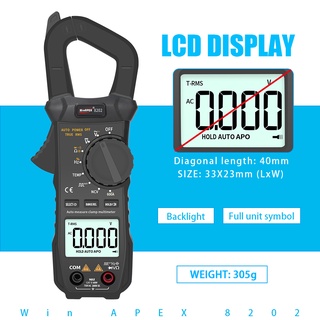

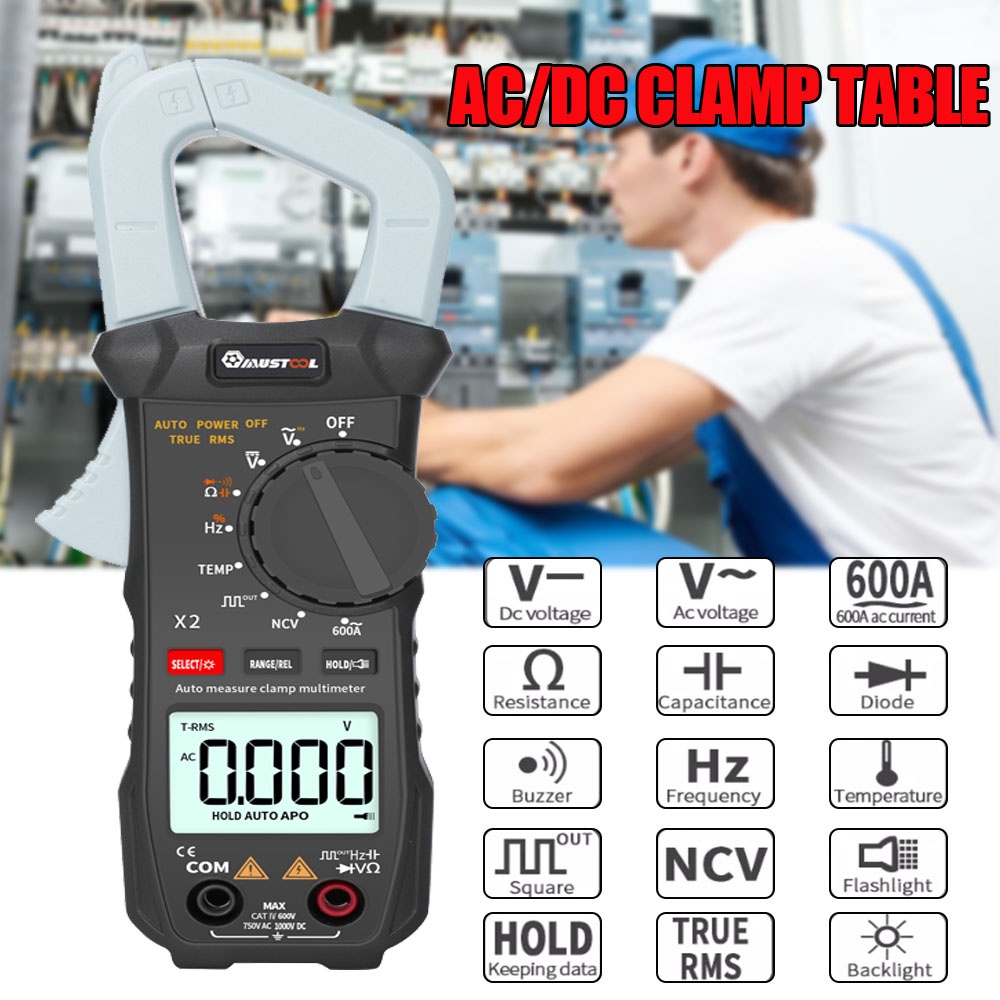

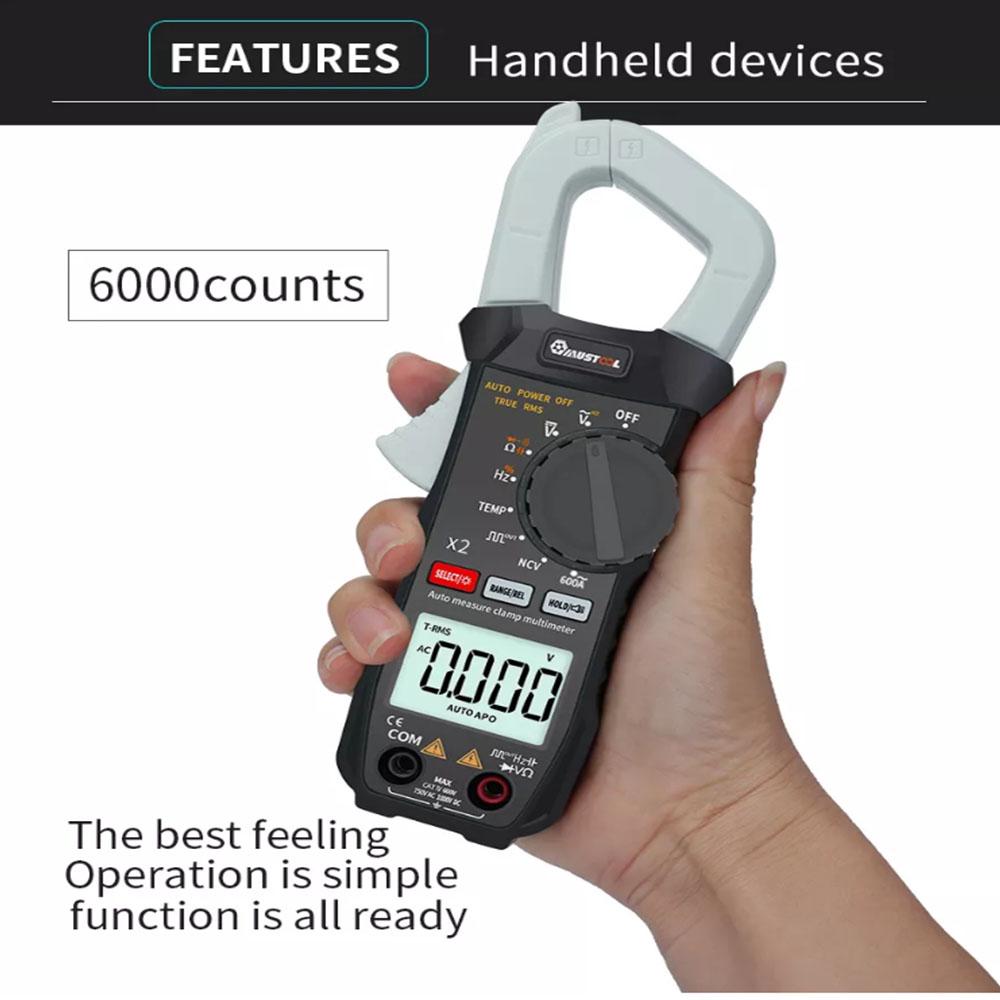

Overview: This is a pocket-sized 3 5/6-digit automatic digital meter. It has stable performance, high precision, high reliability, clear reading and overload protection. Driven by AAA 1.5V battery, the instrument adopts large screen LCD display and adopts boost power supply. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight. The difference between MUSTOOL X1 and X2 MUSTOOL X1 can measure DC Voltage and DC Current MUSTOOL X2 can measure DC Voltage but can not measure DC Current. Features: Function DC voltageDCV √ AC voltageACV √ AC currentACA √ Resistor / Diode / On-Off Test / Capacitor √ Frequency F √ Square wave output √ NCV √ Full unit symbol √ Backlight manual/Auto off √ True RMS measurement √ Temperature(℃/℉) √ Flashlight lighting √ Specifications: 1.DC voltage (DCV) Accuracy Range 6000counts Resolution 6V ±(0.5%+3) 0.001V 60V 0.01V 600V 0.1V 1000V ±(0.8%+10) 1V 2.AC voltage(ACV) Accuracy Range 6000counts Resolution 6V ±(0.8%+3) 0.001V 60V 0.01V 600V 0.1V 750V ±(1.2%+10) 1V 3.AC current(AC A) Accuracy Range 6000counts Resolution 60A 0.01A 600A 0.1A 4.Resistance (Ω) Accuracy Range 6000counts Resolution 600Ω ±(0.8%+5) 0.1Ω 6kΩ ±(0.8%+3) 1Ω 60kΩ 10Ω 600kΩ 100Ω 6MΩ 1kΩ 40MΩ ±(2.5%+3) 10kΩ 5.Diode and continuity test Range display value test condition MUSTOOL X1 Pocket 6000 Counts True RMS Clamp Meter AC/DC Voltage&Current Digital Multimeter Automatic Digital Meter With Square Wave Output Ω/V/A/Diode/Frequency/Continuity TestMUSTOOL X1 Pocket 6000 Counts True RMS Clamp Meter AC/DC Voltage&Current Digital Multimeter Automatic Digital Meter With Square Wave Output Ω/V/A/Diode/Frequency/Continuity Test Diode forward voltage drop Forward DC current is about 1mA, open circuit voltage is about 3V The buzzer sounds long and the resistance of the test is less than (50±20) Ω. Open circuit voltage is about 3V, press "SELECT" for two-speed function switching 6.Capacitance(C) Accuracy Range 6000counts Resolution 60nF ±(3.5%+20) 10pF 600nF 100pF 6uF 1nF 60uF 10nF 600uF 100nF 6mF ±(5%+3) 1uF 30mF 10uF 7.Frequency measurement Accuracy Range 6000counts Resolution 10Hz ±(0.1%+3) 0.01Hz 100Hz 0.1Hz 1kHz 1Hz 10kHZ 10Hz 100kHz 100Hz 1MHz 1kHz 10MHz 10kHz 8.Temperature measurement ( °C/°F) Accuracy Range 6000counts Resolution (-20-1000 )℃ ±(1.0%+5)<400℃;±(1.5%+15)≥400℃ 1℃ (0-1832 )℉ ±(0.75%+5)<750℉;±(1.5%+15)≥750℉ 1℉ Package Includes: 1 x MUSTOOL X2 Clamp Meter(battery not included) 1 x Test Leads 1 x Temperature Probe 1 x English User Manual
