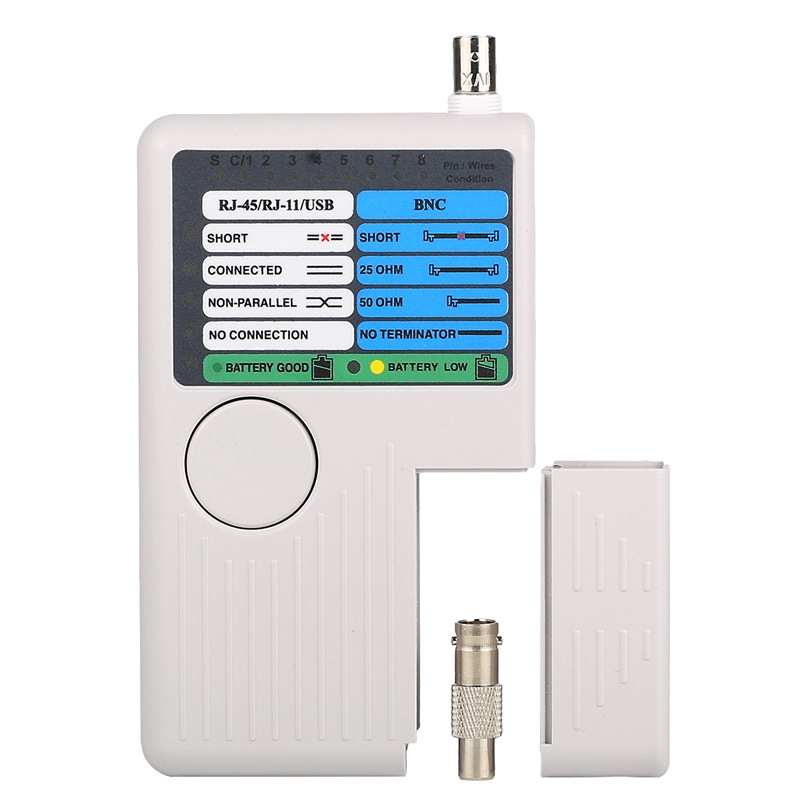

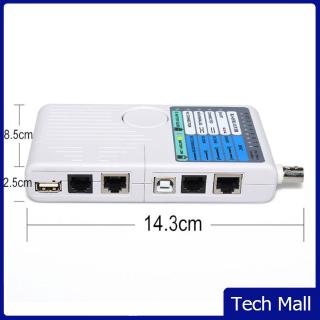

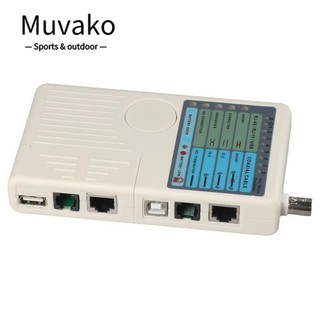

Multifunctional Remote Network Cable Tester Rj11/ Rj45 /USB/BNC LAN Cable Cat5 Cat6 Wire Tester

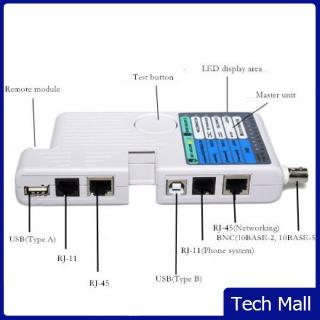

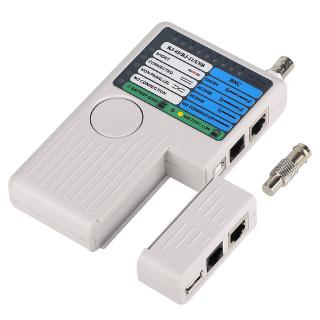

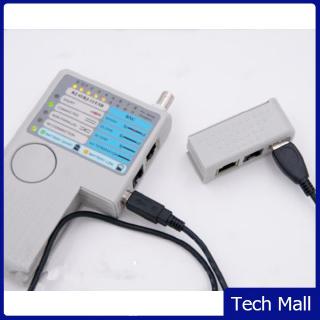

Description: Item type:Network Cable Tester BNC terminator 25/50 Ohm indications. Straight or crossover indications. LEDs indicate connections and faults of wire and pins. RJ-11/RJ-45 are equipped with 50u gold plating. Detachable module for testing two remote points (Max. cable length: 1000ft). Ergonomic portable handheld design. Powered by a 9V Alkaline battery. (Not included) Convenient battery access. Palm size with a soft leather carrying bag. Simple one button test, fast speed testing straight or crossover indications, battery good or battery low indication and automatic deactivation. 1. Faults Indicated: No Connections, Shorts, Opens and Crossover 2. Low Battery Indicator: LED lights to indicate low battery 3. Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included) Operation Instructions: 1. Connect one side of the plug to the Main Tester Unit and the other side of plug to Remote Unit (Remote Unit is separatable from the Main Unit for remote testing) 2. Press the Push Button on tester 3. Read the status shown on LED displays Package Include: 1 x mutifunctional Network Cable Tester 1 x Far End Remote Jack (USB RJ45 RJ11) (Attached to the main unit) 1 x English user Manual 1 x BNC Remote Jack 1 x Carrying bag Note: The colors deviation might differ due to different monitor settings.
