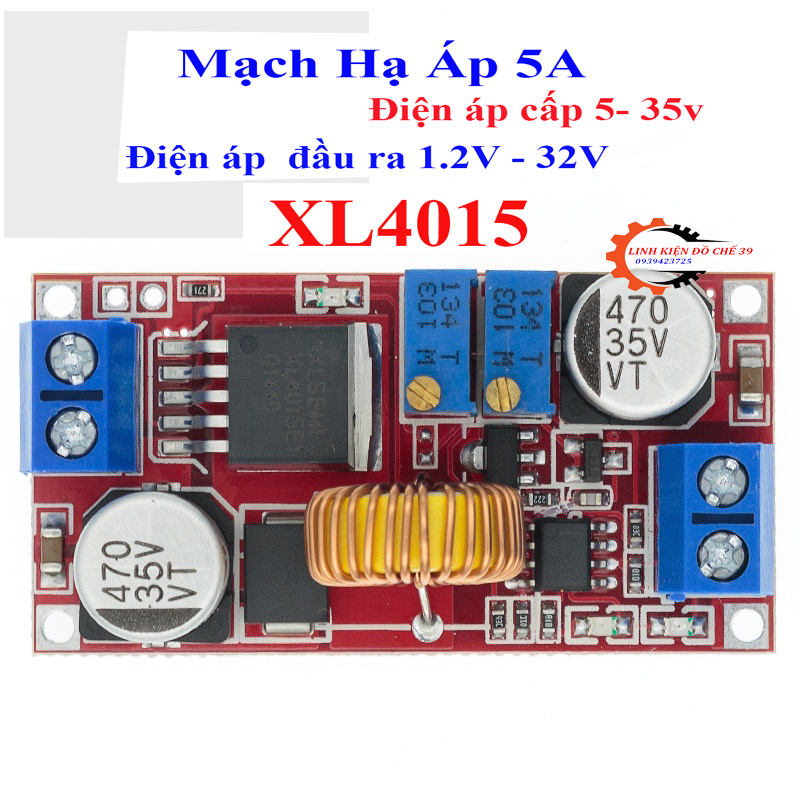

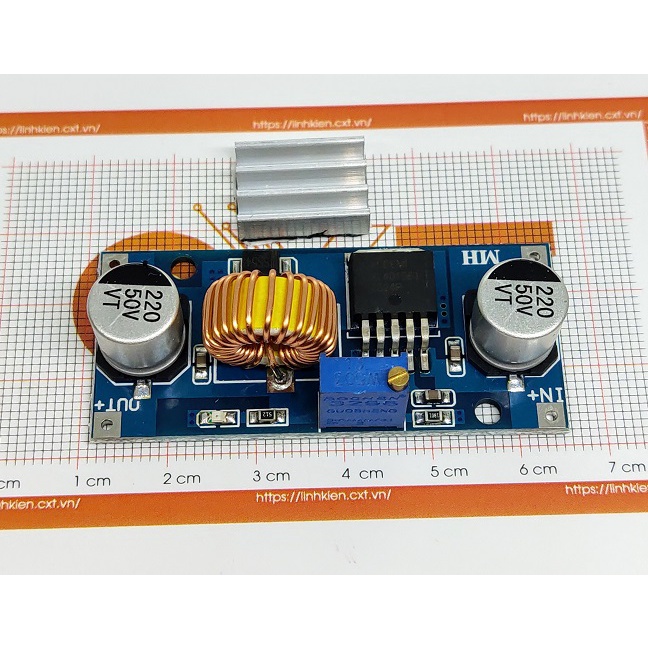

Module hạ áp DC-DC XL4015 5A

Module hạ áp DC_DC XL4015 5A Module highlights: 5A high_power, high_efficiency and low_efficiency indicator lights are presented with heat sinks!!! Module performance and characteristics: Module nature: non_isolated step_down module (BUCK) Input voltage: 4_38V input Output voltage: 1.25_36V continuously adjustable Output current: 0_5A, it is recommended to use within 4.5A. Output power: It is recommended to use within 75W, please add a heat sink if it exceeds 50W. Working temperature: _40 ~ +85 degrees Working frequency: 180KHz Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and pressure difference) Load regulation rate: S(I) ≤0.8. Voltage adjustment rate: S(u) ≤0.8° Power indicator: Yes Short circuit protection: Yes (limited current 8A) Over_temperature protection: Yes (automatically shut down the output after over_temperature) Input reverse connection protection: None (if necessary, please insert a high_current diode in series in the input) Installation method: 2 3mm screws Block wiring method: welding, V_IN is input, V_OUT is output. Module size: length 54mm width 23mm height 18mm Linhkien.CXT.VN – Linh kiện điện tử CXT _ Chuyên cung cấp linh kiện điện tử, thiết bị và vật tư ngành điện _ Thông tin minh bạch, giá cả cạnh tranh _ Hỗ trợ tư vấn kỹ thuật triển khai dự án _ Hotline &
