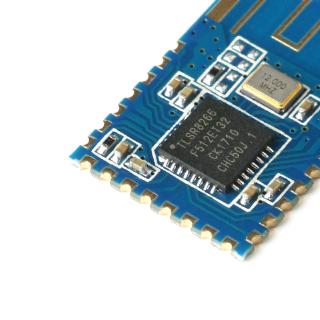

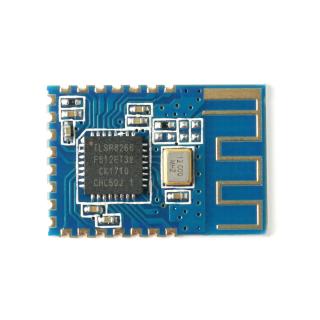

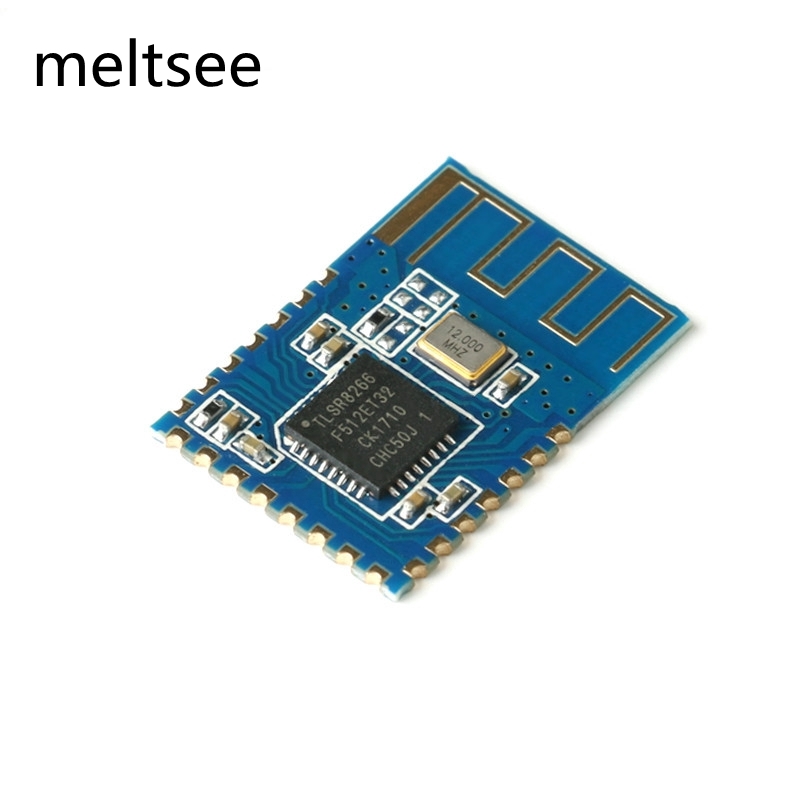

Module bluetooth CC2541 JDY-10 BLE 4.0

Description JDY-10 transparent transmission module is based on Bluetooth 4.0 protocol standard, working frequency range is 2.4GHZ range, modulation mode is GFSK, maximum transmission power is 8db, maximum transmission distance is 80 meters, low power consumption, small size, strong signal, data transmission Stable and other characteristics. Product Features Support for Android, IOS mobile phone data penetration Support low power consumption (standby current can reach several uA) Support GPIO and UART peripheral interface Support AT command operation Can be certified by FCC/CE and other standards WeChat transparent transmission function Product parameters Operating voltage: 1.9 – 3.6V Working temperature: -40 - 85 °C Maximum transmission power: +8dbm Antenna: PCB onboard antenna Receive sensitivity: -92dbm Wake mode: 9MA Suspen mode: 30-800 uA Deep Sleep mode: 5 uA Product application range Bluetooth LED lighting Motor adjustment and other products Anti-lost alarm and other products Sports Health Care Small appliances Automotive Electronics #1 pc JDY-10 BLE Bluetooth 4.0 Uart Transparent Transmission Attachment Compatible with CC2541 Bluetooth Module
