Mô Đun Tăng Áp 3v-6v Bis 400kv

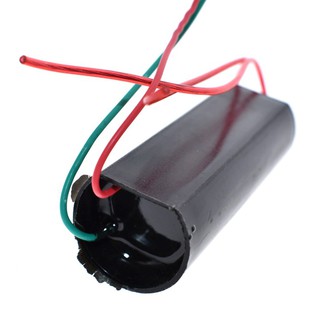

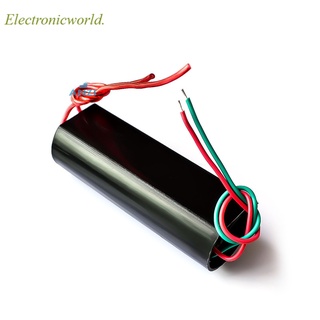

This high-voltage module is made using the principle of the Tesla coil. It outputs high-voltage pulse high-voltage current, small in size, high in efficiency, and simple in the peripheral circuit (just connect the switch and the battery). Input voltage: DC 3V-6V Input current: 2A-5A High voltage type: pulse current type Output voltage: about 200,000 volts (please pay attention to safety when using) High voltage two-pole discharge distance: 10mm-20mm Length of output high voltage line: about 100mm Input power cord length: about 100mm (the red wire is positive) Size: Φ24*64mm Regarding the power supply: you can use a single 3.7V lithium battery or two in series, such as 18650 batteries, idle mobile phone batteries (with the protection board removed, the recommended capacity is more than 2000mAh) or nickel-cadmium/nickel-metal hydride battery packs, 4V or 6V lead-acid Battery, etc. This module is a finished module of high-voltage inverter transformer/booster for scientific small production. After inputting DC3V-7.2V voltage at the input end, a DC high voltage of about 200,000 volts (about 1-2 cm arc) can be obtained at the output end. , Note that there is no ignition function Wiring: The red wire is the positive pole of the power supply. The output is 2 high temperature and high pressure resistant silicone wires
