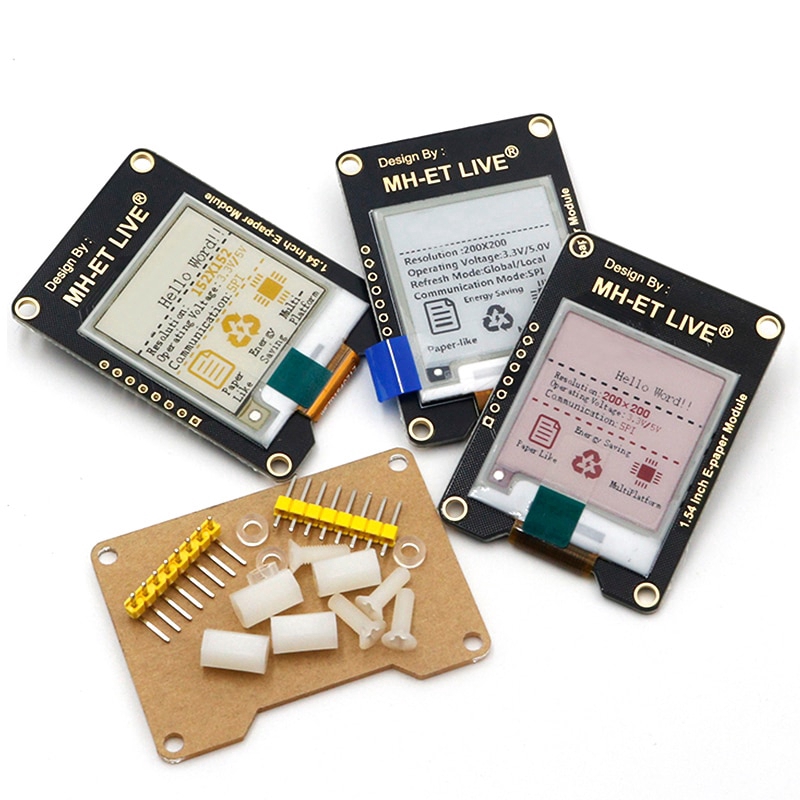

Mô-Đun Mực Điện Tử Eink Spi 1.54

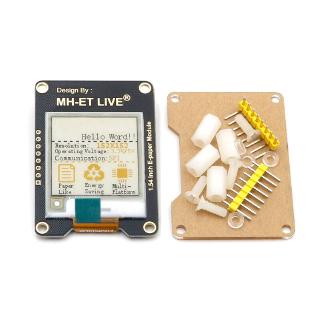

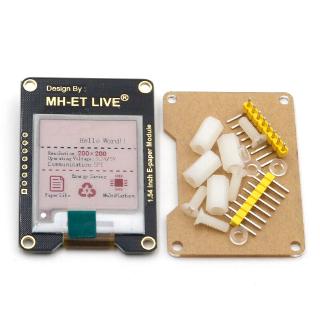

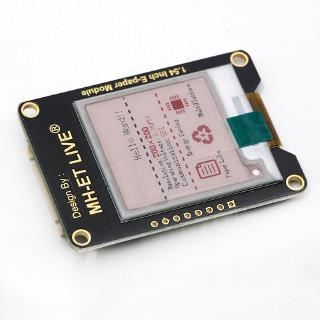

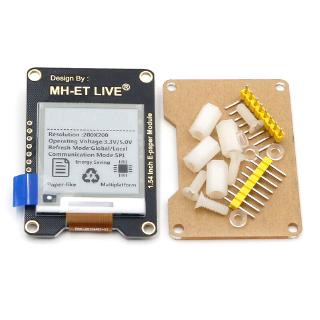

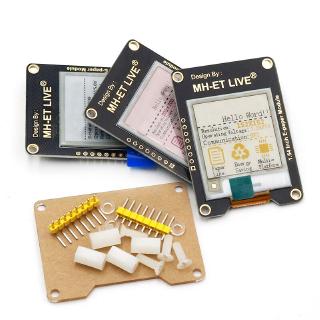

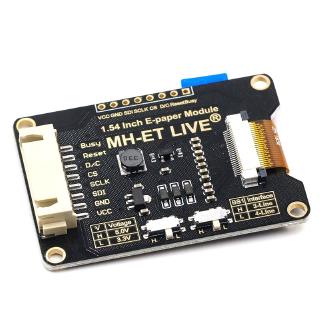

This is an E ink E paper display panel, 1.54 inch, 152x152 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,supports red, black, and white three-color. The connection adapt board will help starters connect epaper display with demo board. It is alsois a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products . Keep displaying the last content when power down. Reflect type, sunlight readable, so no backlight, but frontlight is optional. Ultra low power consumption, basically power is only required for refreshing. SPI interface, for connecting with controller boards Come with helpful development resources and manual (STM32 platform ) 1. Connector board DESPI-C02*1pc 2. 1.54 inch 152x152 Low Temperature epaper display GDEW0154Z17 *1pc 3. Matched FPC Connector*1pc 4.Helpful resources and manual(sent via email or download link) *1pc Part Number：GDEW0154Z17 Type：Dot Matrix Resolution：152x152 Outline Size(mm)：31.8x37.32x0.98 Active Size(mm)：27.51x27.51 Pixel Pitch(mm)：0.181x0.181 Operating Temp：0℃~40℃ Storage Temp：-25℃~60℃ Connector：24 Pin FPC, Pitch:0.5mm Max Grayscale：2 Color：Black,White,Red Current of the refresh(mA)：8 Power consumption of the refresh(mW)：26.4 Standby power consumption Pc(mW)：0.0165 Time of refresh(s)：16 Part Number：DESPI-C02 Platform：STM32 Function：Connection E-paper Display with DESPI-M02 Outside Dimension：41x22mm Interface：SPI Power Input：DC3.3V Feature：Fully and Partial refresh perating Temp：-20~70C
