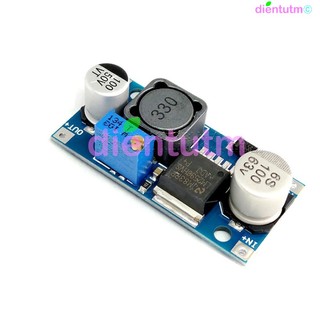

Mô Đun Hạ Áp Dc 4.5v-48v Lm2596Hvs

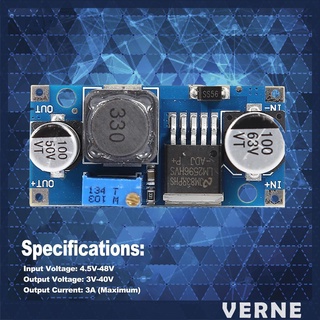

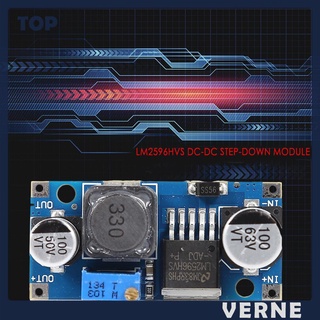

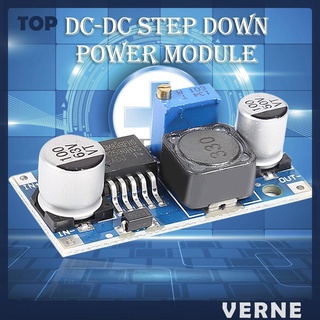

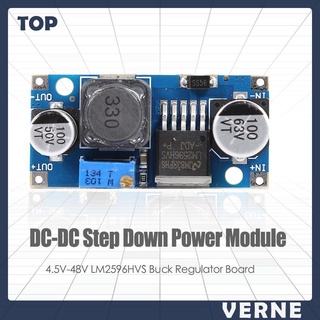

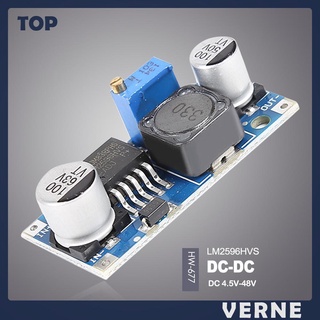

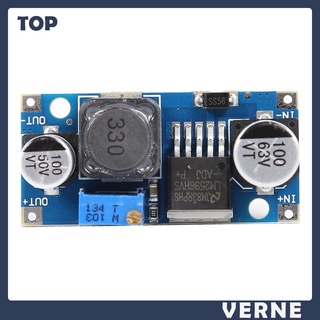

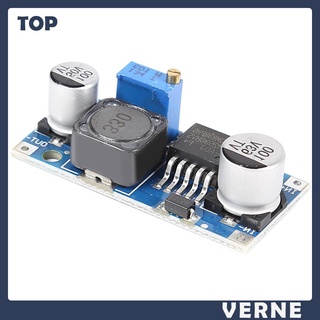

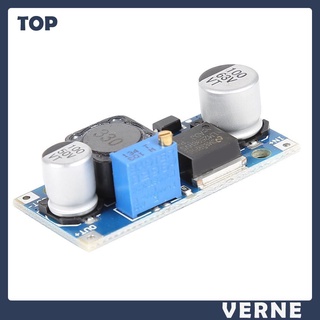

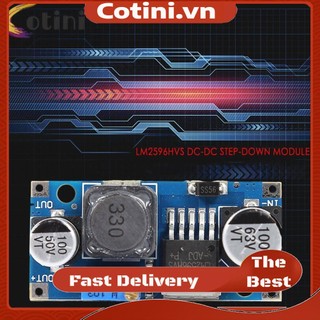

Dear, welcome to vernesss, here is the latest season products, I hope you like it~ LM2596HVS DC-DC Step Down Power Module DC 4.5V-48V Buck Voltage Adjustable Regulator Converter Board Description: 1. Input voltage: 4-48V, pay attention to the limit value of 48V, absolutely must not exceed. 2. As the input voltage increases, the output power of the LM2596HVS IC becomes smaller and the operational stability deteriorates. Stable operation between 36V-40V. 3. Adjustment Method: First correctly connect the input power (between 4-48V) and then monitor the output voltage with a multimeter and adjust the potentiometer. Specifications: Type/Name: LM2596HVS DC-DC Step-Down Module Input Voltage: 4.5V-48V Output Voltage: 3V-40V Output Current: 3A (Maximum) Conversion Efficiency: 92% (The Highest) Output Ripple: <30mV Switching Frequency: 150KHz Operating Temperature:-45°C-85°C IN + Input Positive, IN-Input Negative! OUT + Output Positive, OUT- Output Negative Input Voltage Range: DC4.5V-48V (Input voltage must be greater than the output voltage to 1.5V or higher. Could not boost) Output Voltage Range: DC 3V-40V voltage is continuously adjustable, high efficiency(up to 92%)the maximum outputcurrent of 3A. Size: 43 X 21 X 14mm/1.69 X 0.83 X 0.55" Package Weight: 13g Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3mm measuring deviation due to manual measurement. Included: 1 X DC-DC Step Down Power Module
