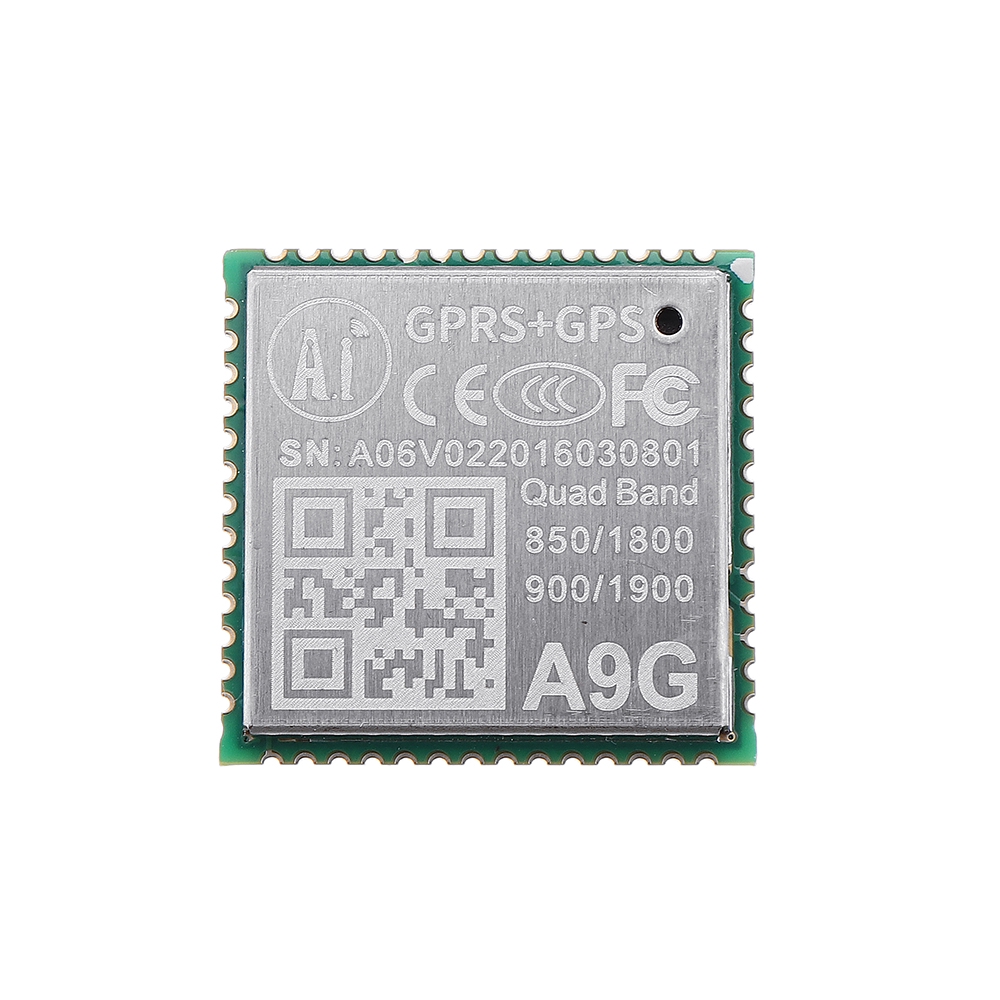

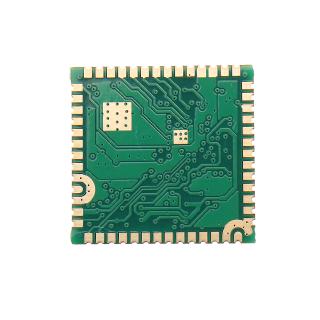

Mô đun A9G GPRS + GSM SMS chất lượng cao

Product introduction: 1. The A9G is a complete quad-band GSM/GPRS module that supports GPRS and GPS/AGPS technologies and is integrated into a compact SMD package, saving customers time and money in developing GNSS applications. 2. A9G can be widely used in various IoT applications, suitable for home automation, industrial wireless control, wearable electronics, wireless location-aware devices, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications. . 3. A9G adopts SMD package, which can realize rapid production of products through standard SMT equipment. It is especially suitable for modern, large-scale, low-cost production methods, and is convenient for various IoT hardware terminal applications. 4. Compared with the previous generation A6/A7, the integration of A9/A9G is higher, and the cost reduction of the core chip also makes the whole solution more cost-effective. In terms of software, A9G has both Inheritance and lnnovation: 1. A9G AT firmware is fully compatible with the new A6 firmware. It has experience in A6 and A7 development, and the software part can be seamlessly ported to A9G. 2. The new A9G adds a wit cloud interface and provides fast and seamless access to any cloud service provider on the market. 3. A9G positioning solution has been connected to the WeChat public account, and has a Demo App, which can view the device status, location and historical track online, and facilitate customer verification and customization. 4. Newly added base station positioning function, using multi-base station positioning algorithm, can accelerate GPS positioning, or indoor/tunnel positioning without GPS signal. (The A9 module without GPS can also be positioned using the base station positioning function!) 5. A9G supports firmware secondary development (first C SDK, scripted environment will be released later)! A9G has 25 IO, UART, SPI, I2C, LCD, SDIO, ADC and other peripherals, in most cases can directly save the external MCU! Feature: * A9/A9G size: 19.2*18.8*2.7mm (±0.2mm) * Working temperature -30 ° C +80 ° C; * Working voltage 3.5V-4.2V, recommended 4V power supply * Boot voltage > 3.5V * Low power average current is below 2ma * Support GSM/GPRS four frequency bands, including 850, 900, 1800, 1900MHZ * GPRS Class 10 * Sensitivity <-105 * Support voice calls * Support SMS SMS * GPIO level is 2.8V * Support GPRS data service, maximum data rate, download 85.6Kbps, upload 42.8Kbps * Support standard GSM07.07, 07.05 AT c0mmand and Ai-Thinker extended c0mmand * A9G supports 3 serial ports, one download serial port and one GPS serial port * AT c0mmand supports standard AT and TCP/IP c0mmand ports * Support digital audio and analog audio, support HR, FR, EFR, AMR speech coding Package includes: 1 x A9G board
