MKS OSC Step Driver Pulse Generator with High/Middle/Low Frequency Signal New

Feature:

1. This module is pulse generation module, supply stepper driver as a signal, to control stepping motor, also must match the drive.
2. The simple controller + stepper driver + stepper motor, dc power can be composed of a set of simple control platform.

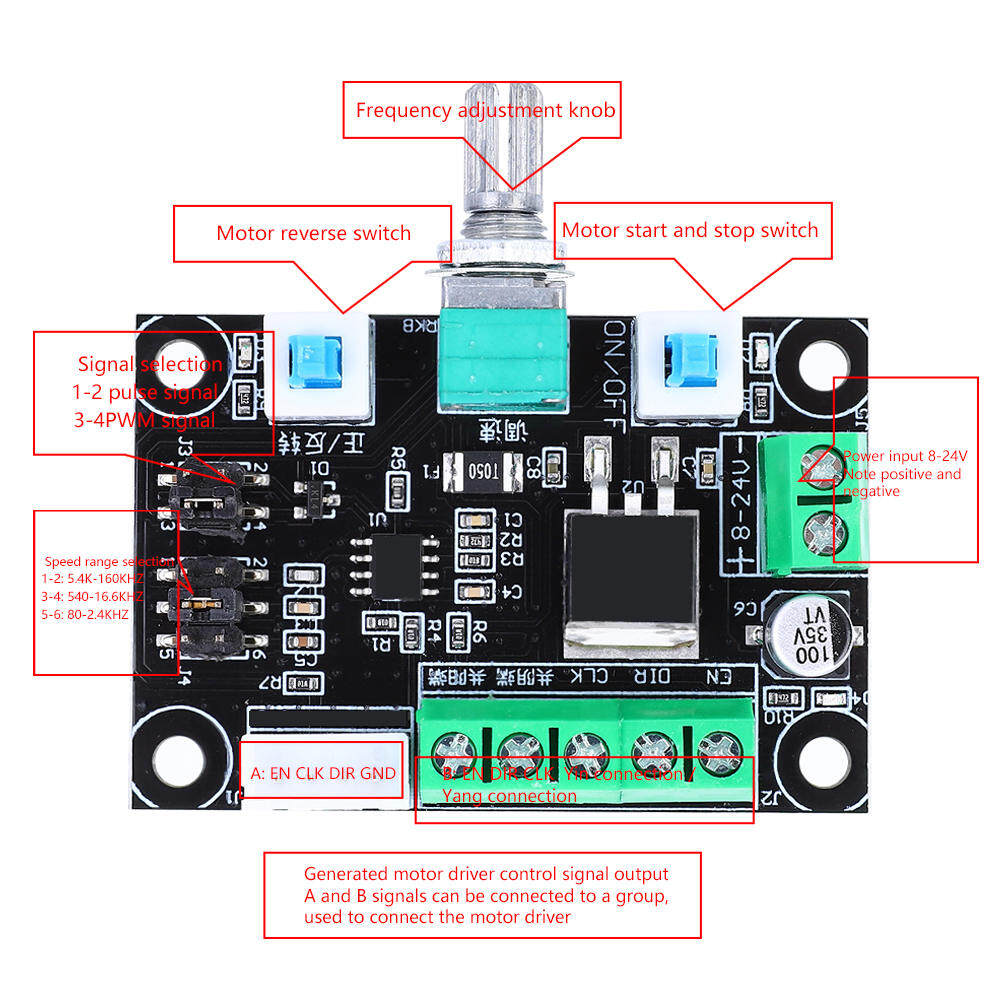

3. The controller has high 5.4 k 540 - in - 160 KHZ, 16.6 KHZ, low on a total of 3 80-2.4 KHZ frequency signal can be used to jump needle selection.
4. Can produce pulse signal as well as PWM signal, cand an choose jumper.
5. Frequency measurement: can measure both PUL and coyin (or coyang) ports.

Specification:

Condition: 100% Brand New

Item Type: Stepper Motor Drive Controller

Material: Metal

Coloe: As Pictures Shown

Out of sync motor driver port tag is different but the same function

EN = ENA = FREE can make

PUL = PULS = CLK pulse

DIR = the CW = CWW direction

Yang connection (B)

EN + PUL + DIR + together received a total of anode side.

Meet EN EN -

PUL - answer the CLK

DIR - meet DIR

A total of Yin connection (B)

EN - PUL - DIR - together received a total of cathode .

EN + meet EN

PUL + answer the CLK

DIR + meet DIR

Package List:

1 xStepper Motor Drive Controller

2 x Screw Gasket
