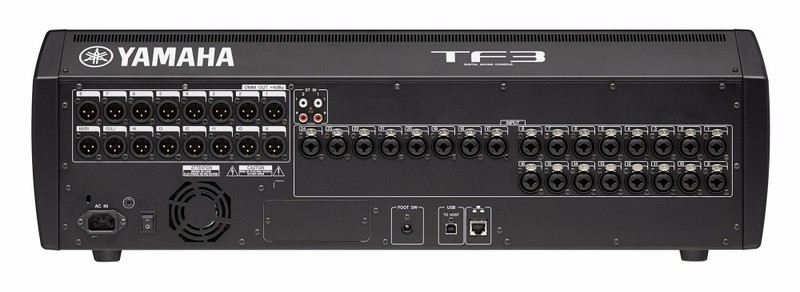

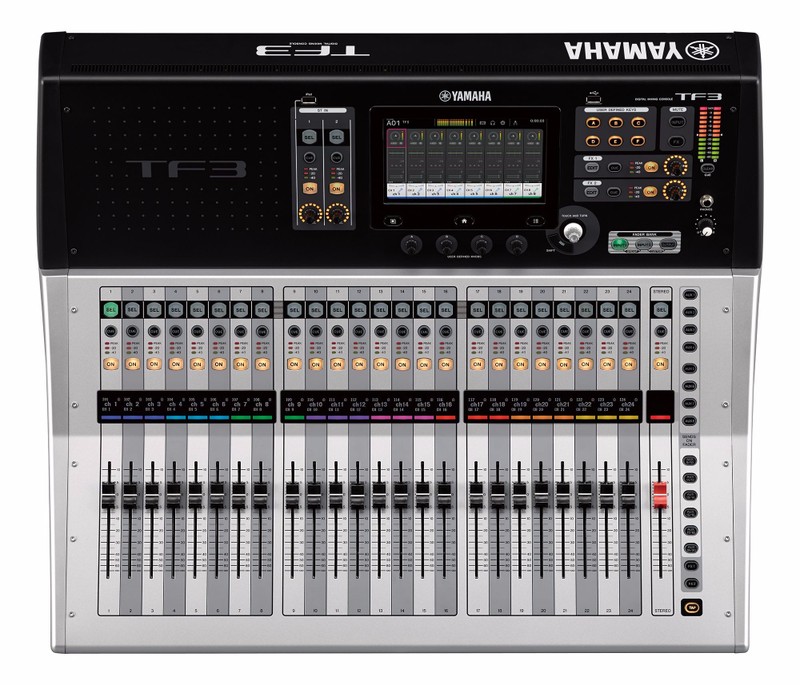

Mixer Yamaha TF3

CHI TIẾT SẢN PHẨM

Liên hệ để được tư vấn và giá tốt

Xuất xứ: Indonesia ( Có CO - CQ )

Số lượng lớn input và hệ thống điều khiển thực tiễn trong một mixer thu gọn, có thể sử dụng cho hàng loạt ứng dụng âm thanh khác nhau.

• 25 fader trang bị motor (24 channe + 1 master)
• 48 channe input (40 mono + 2 stereo + 2 return)
• 20 Aux (8 mono + 6 stereo) + Stereo + Sub bus
• 8 group DCA
• 24 jack combo XLR/TRS analog mic/line input + 2 jack RCA cho những stereo input
• 16 output analog XLR
• 34 x 34 channe digital record/playback qua cổng USB 2.0 + 2 x 2 với bộ nhớ USB
• 8 Effect và 10 GEQ
• 1 khe cắm mở rộng cho card âm thanh NY64-D.









  Thông tin kỹ thuật




  	TF5	TF3	TF1
  Ngoại tuyến
  Fader Configuration	32 + 1 (Master)	24 + 1 (Master)	16 + 1 (Master)
  Outline
  Mixing Capacity	Input Channe	48 (40 mono + 2 stereo + 2 return)	48 (40 mono + 2 stereo + 2 return)	40 (32 mono + 2 stereo + 2 return)
  Aux Buses	20 (8 mono + 6 stereo)	20 (8 mono + 6 stereo)	20 (8 mono + 6 stereo)
  Stereo Buses	1	1	1
  Sub Buses	1	1	1
  Input channe functions	8 DCA Groups	8 DCA Groups	8 DCA Groups
  I/O	Inputs	32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)	24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)	16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
  Outputs	16 (XLR)	16 (XLR)	16 (XLR)
  Expansion slots	1	1	1
  On-board processors	DSP	8 Effects + 10 GEQ	8 Effects + 10 GEQ	8 Effects + 10 GEQ
  General specifications
  Sampling frequency rate	Internal	48 kHz	48 kHz	48 kHz
  Signal delay	Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz	Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz	Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
  General specifications	100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders	100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders	100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
  Total harmonic distortion	Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)	Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)	Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
  Frequency response	+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT	+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT	+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
  Dynamic range	110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.	110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.	110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
  Hum & noise level	Equivalent input noise	–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)	–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)	–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
  Residual output noise	–85 dBu, ST master off (Measured with an A-Weight filter)	–85 dBu, ST master off (Measured with an A-Weight filter)	–85 dBu, ST master off (Measured with an A-Weight filter)
  Crosstalk	–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channe, Input Gain=Min.	–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channe, Input Gain=Min.	–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channe, Input Gain=Min.
  Power requirements	100–240 V 50/60 Hz	100–240 V 50/60 Hz	100–240 V 50/60 Hz
  Dimensions	W	866 mm (34.1in)	716 mm (28.2in)	510 mm (20.1in)
  H	225 mm (8.9in)	225 mm (8.9in)	225 mm (8.9in)
  D	599 mm (23.6in)	599 mm (23.6in)	599 mm (23.6in)
  Net weight	20.0 kg (44.1lb)	17.0 kg (37.5lb)	13.5 kg (29.8lb)
  Accessories	Quick Guide, Power Cord, Nuendo Live	Quick Guide, Power Cord, Nuendo Live	Quick Guide, Power Cord, Nuendo Live
  Options	Expansion Card, Foot Switch (FC5)	Expansion Card, Foot Switch (FC5)	Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
  Others	Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C	Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C	Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C




  Analog input characteristics

  Input Terminals	GAIN	Load  Impedance	For Use With  Nominal	Input Level	Connector	balanced /  Unbalanced
  Sensitivity*1	Nominal	Max. before clip
  INPUT1-32 (TF5)  INPUT1-24 (TF3)  INPUT1-16 (TF1)	+66dB	7.5K Ω	50-600 Mics  or 600 Lines	-82dBu (61.6V)	-62dBu (0.616mV)	-42dBu (6.16mV)	Combo Jack (XLR-3-31 type *2  or TRS phone *3)	Balanced
  -6dB	-10dBu (245mV)	+10dBu (2.45V)	+30dBu (24.5V)
  ST IN 1,2	—	10k	600 Lines	-30dBV (31.6V)	-10dBV (316mV)	+10dBV (3.16V)	RCA Pin Jack	Unbalanced

  *1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
  *2. 1: GND, 2: HOT, 3: COLD
  *3. Tip: HOT, Ring: COLD, Sleeve: GND
  *4 In these specifications, 0dBu = 0.775Vrms.
  *5.+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.


  Analog output characteristics

  Output Terminals	Source  Impedance	For Use With  Nominal	GAIN SW	Output Level	Connector	balanced /  Unbalanced
  Nominal	Max. before clip
  OMNI OUT 1-16	75Ω	600 Lines	“+24dBu” position (default)	+4dBu (1.23 V)	+24dBu (12.3 V)	XLR-3-32 type *1	Balanced
  PHONES *5	100Ω	40 Phones	—	3mW	75mW	Stereo Phone Jack (TRS) *2	Unbalanced

  *1.1: GND,2: HOT, 3: COLD
  *2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
  *3 In these specifications, 0dBu = 0.775Vrms.
  *4 All output DA converters are 24bit, 128times oversampling.
  *5 The position of the level control is lowered by 16dB from the maximum.

  Digital input/output specifications

  Terminals	Format	Data length	Audio	Connector
  USB (TO HOST)	USB	24bit	34ch input / 34ch output, PCM	USB (B type)
  iPad	USB	—	Playback: MP3 or WAV file data / Record: WAV file data	USB (A type)



  Control I/O specifications

  Terminals	Format	Level	Connector
  NETWORK	IEEE802.3	10BASE-T/100Base-TX	RJ-45
  FOOT SW	—	—	TS Phone
