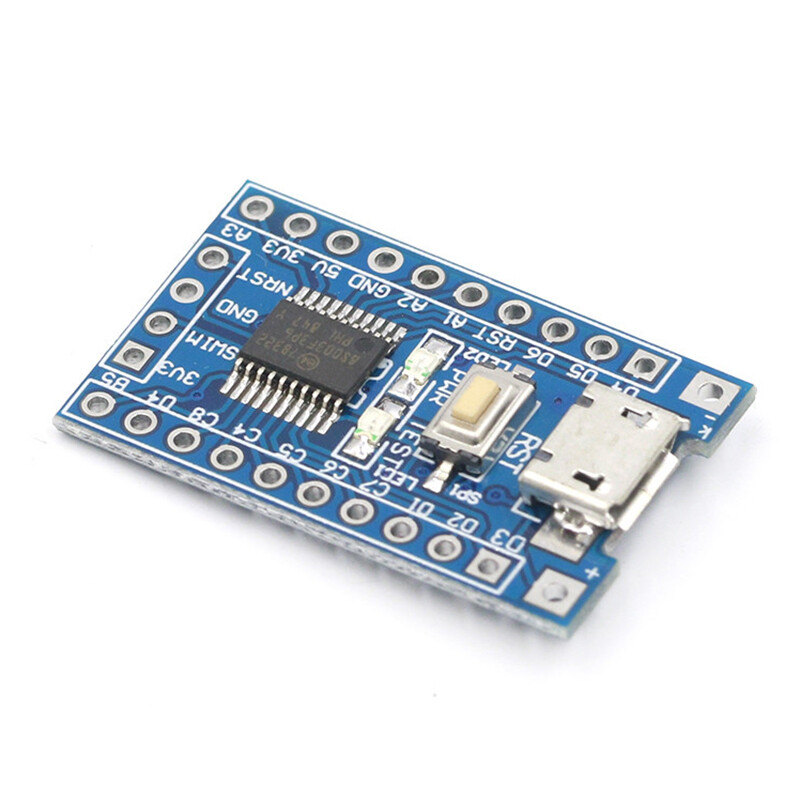

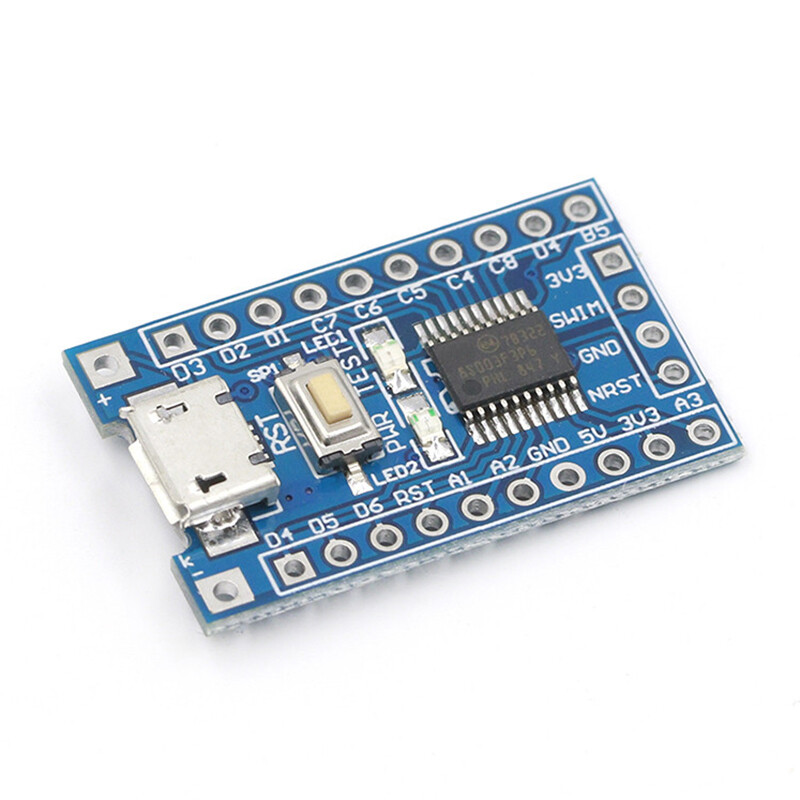

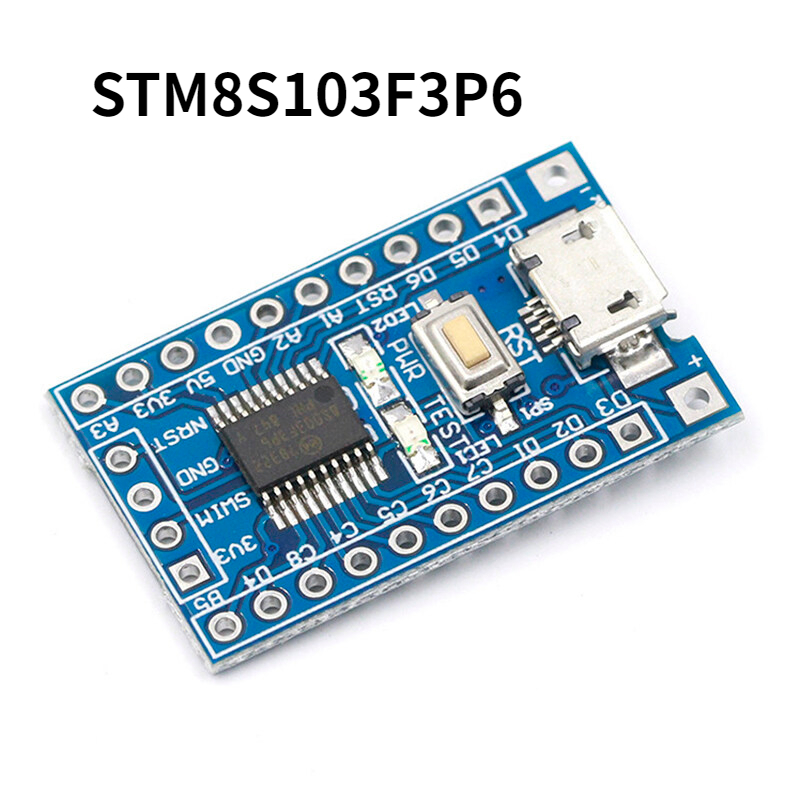

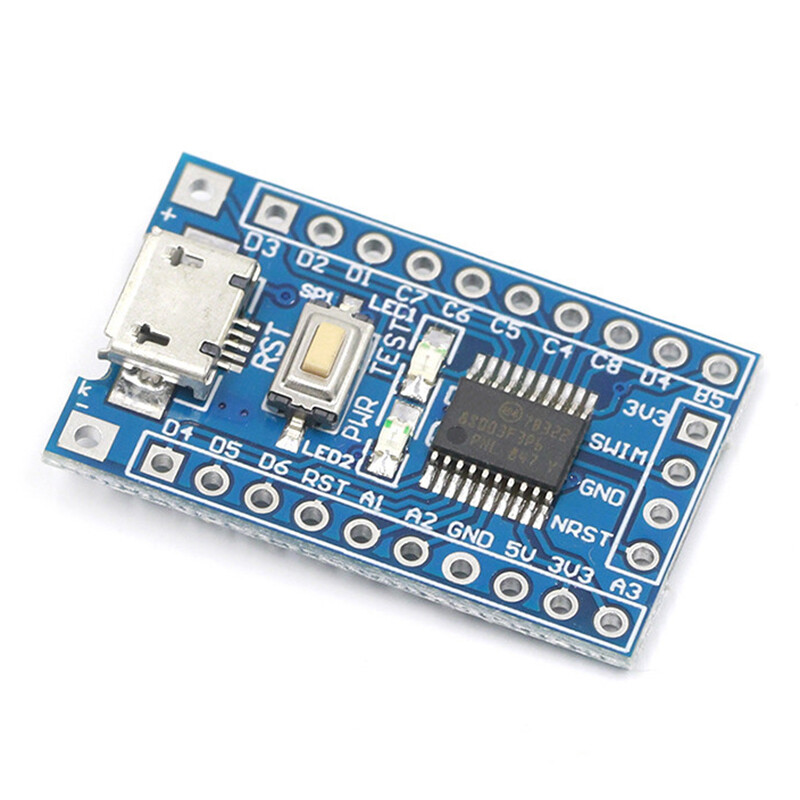

Minimum STM8S STM8 core board 1PCS STM8S103F3P6 system development board

Technical informationDevelopment board using micro USB cable supply, compatible with smartphone line, simple and easily accessible data line, but not USB Mini line-poweredLow price, user-friendly design, a full set of data, allows you to save money, save time, effort, worrySTM8S core board Main features: Use STM8S103F3P6 as master ICYou can use 2.54 pins on the board or power supply pad, pad when using power supply, input voltage range 4.5V-15V, can output out through pin 3.3VNote: voltage 5V pin is the input voltage of the module. Leads to all pins, the pin next to the pin marks the label, with reset button, power LED, and program show LED, small but perfectly formed. Supports swim debug mode. Burned into the test program, flashing LEDs, allows you to detect a well -functioning core boardProvides on IAR and STVD two development environments register operation and routine operation of library functions. Routine timer, UART send routine, UART receive routine, clock change routine, ad routine etc. STM8 applicationSTM8 package libraryIAR development environment, STVP programming software STM8S103F3P6 performance comparison: STM8S003F3 chip only 128 bytes EEPROM, STM8S103F8S only 128 bytes FL3FF3 delete ten thousand timesSTM8S103F2 FLASH chip is only 4K bytes, STM8S103F3 has 8K bytesConclusion: STM8S003F3 is only suitable for mature products, STM8S003F3 core board is not suitable for development. However STM8S103F3 is suitable for use development, our development board is the use of this chip Size: 28mm * 17mm * 5mm/1.1 * 0.66 * 0.19 "
