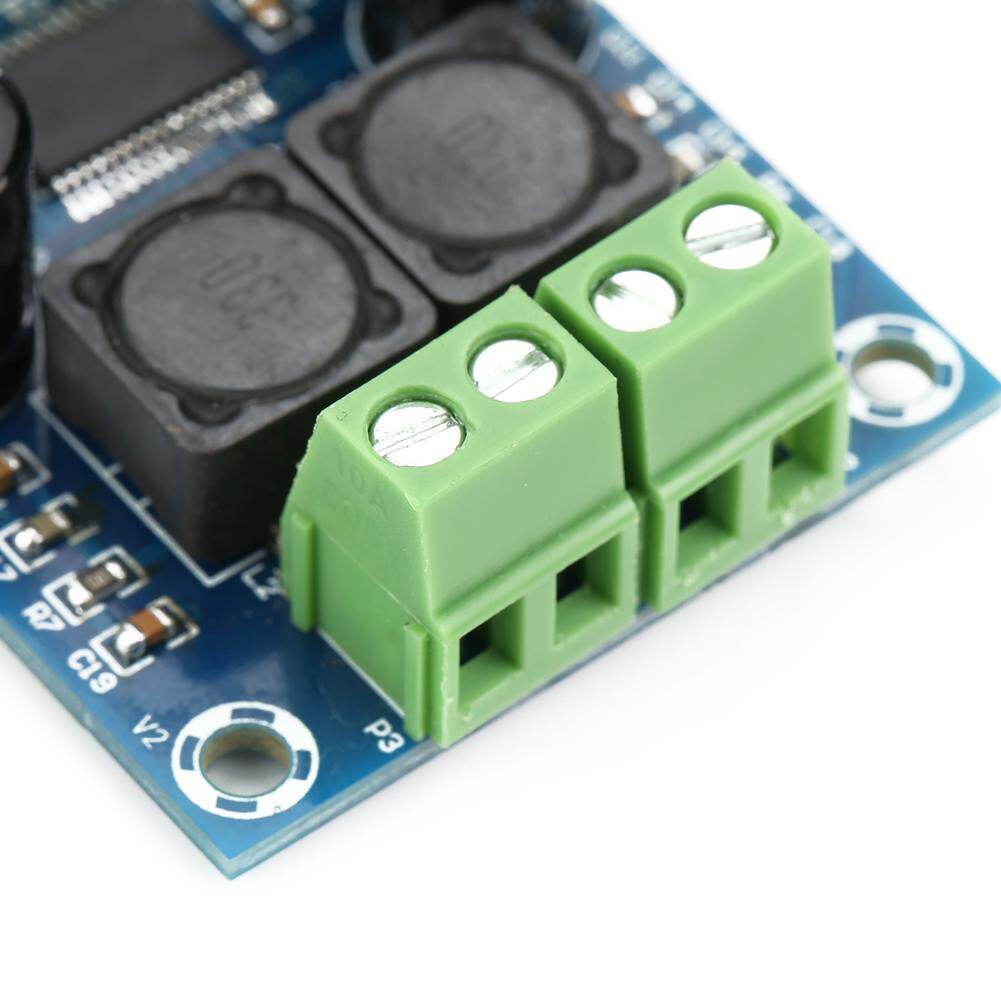

Mini TPA3118 Amplifier Board Digital Audio Power Amplifier Module 60W DC10-24V

Features:

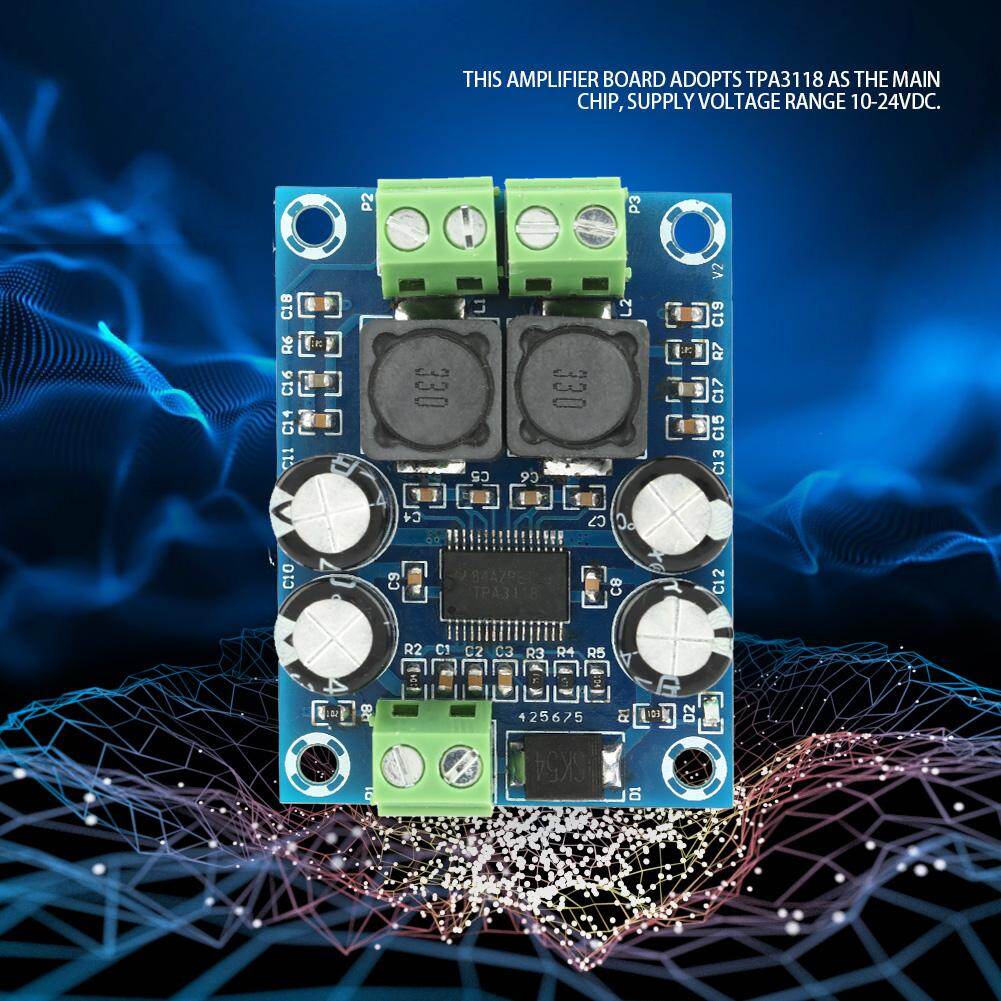

1. This amplifier board adopts TPA3118 as the main chip, supply voltage range 10-24VDC.

2. Using 2 ohm sound equipment can reach 60W output under 24V power supply.

3. The circuit uses PBTL mode to achieve low resistance and high power.

4. You can parallel high internal resistance sound equipment to get high power output.

5. Widely used for TVs, monitors, laptops, portable speakers, DVD players ,etc.

Specification:

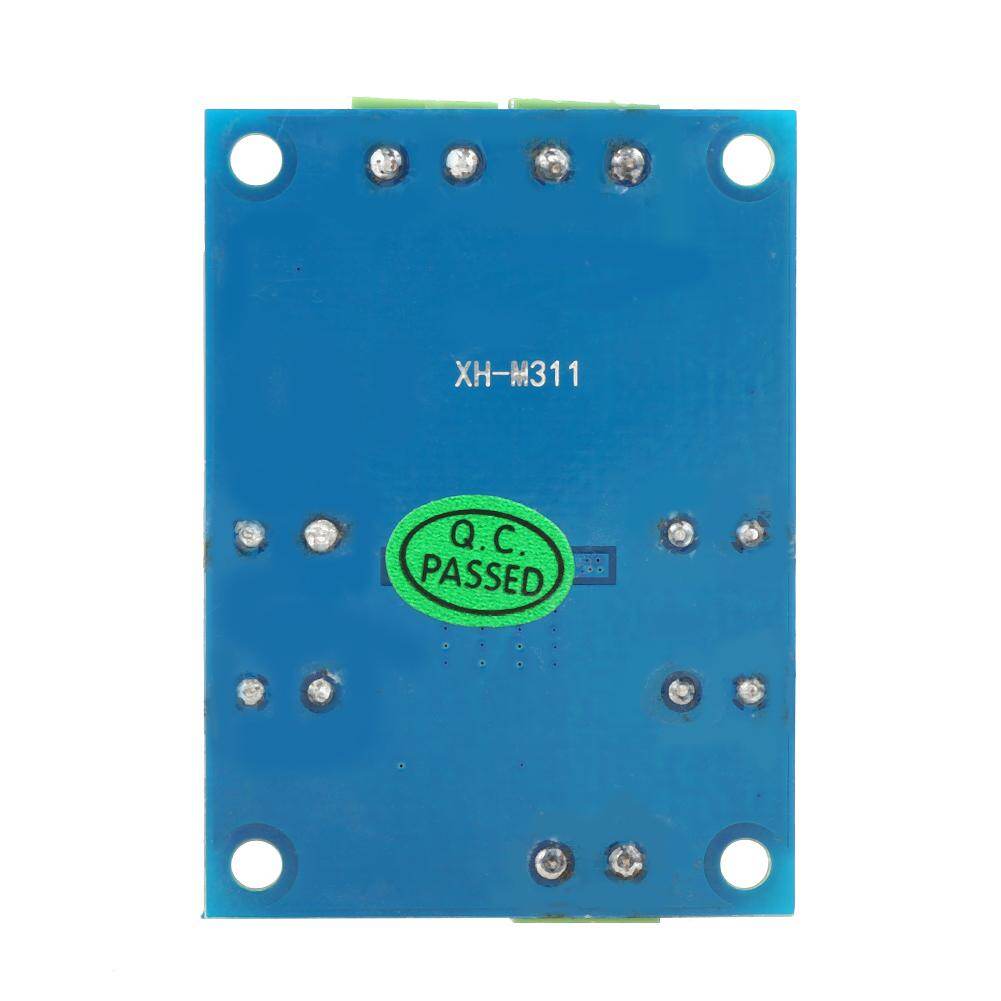

Model: XR-M311

Amplification type: Class D

Work efficiency: 93%

Chip Type: TPA3118

Supply voltage: DC10-24V

Input current: 3A recommended

Output power: 60W*1

Frequency response range: 35Hz-88kHz

Number of channels: Mono

Impedance matching: 2-6 ohm

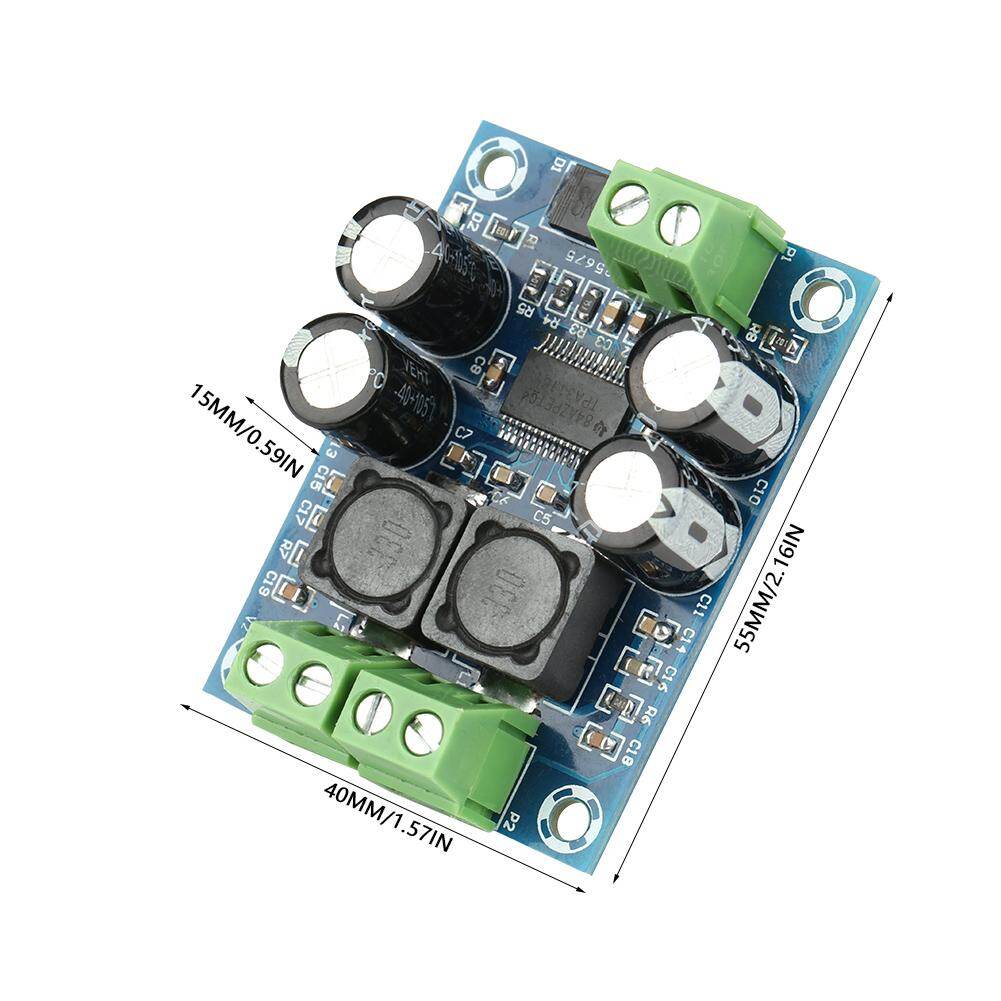

Size: 55*40*15mm / 2.16*1.57*0.59in

Weight: Approx. 30g/1.06oz

Package List:

1 * Digital Amplifier Board

Note:

1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.

2. Please allow slight error due to manual measurement. Thanks for your understanding.
