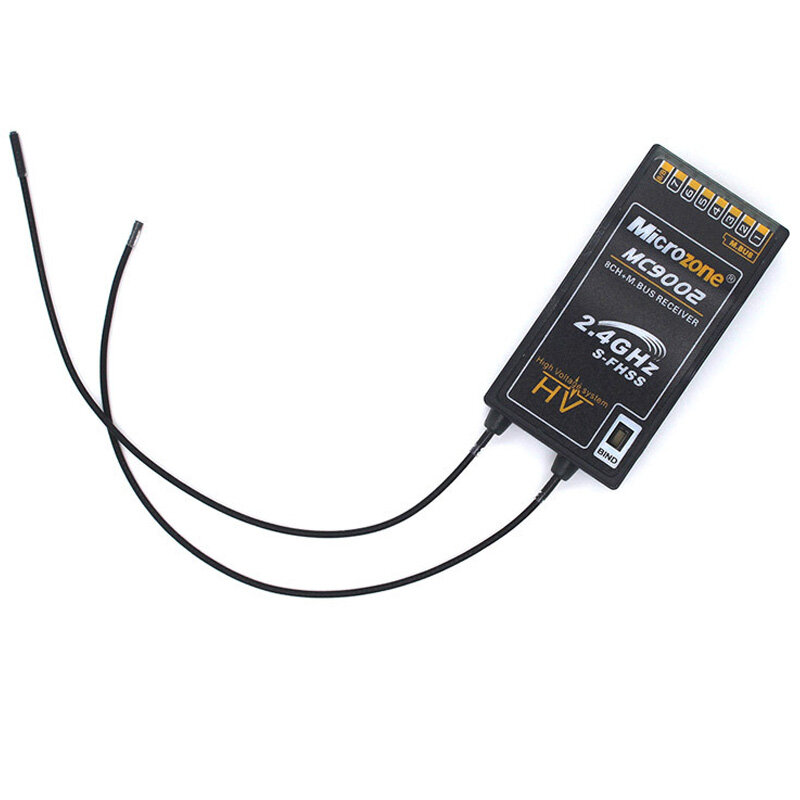

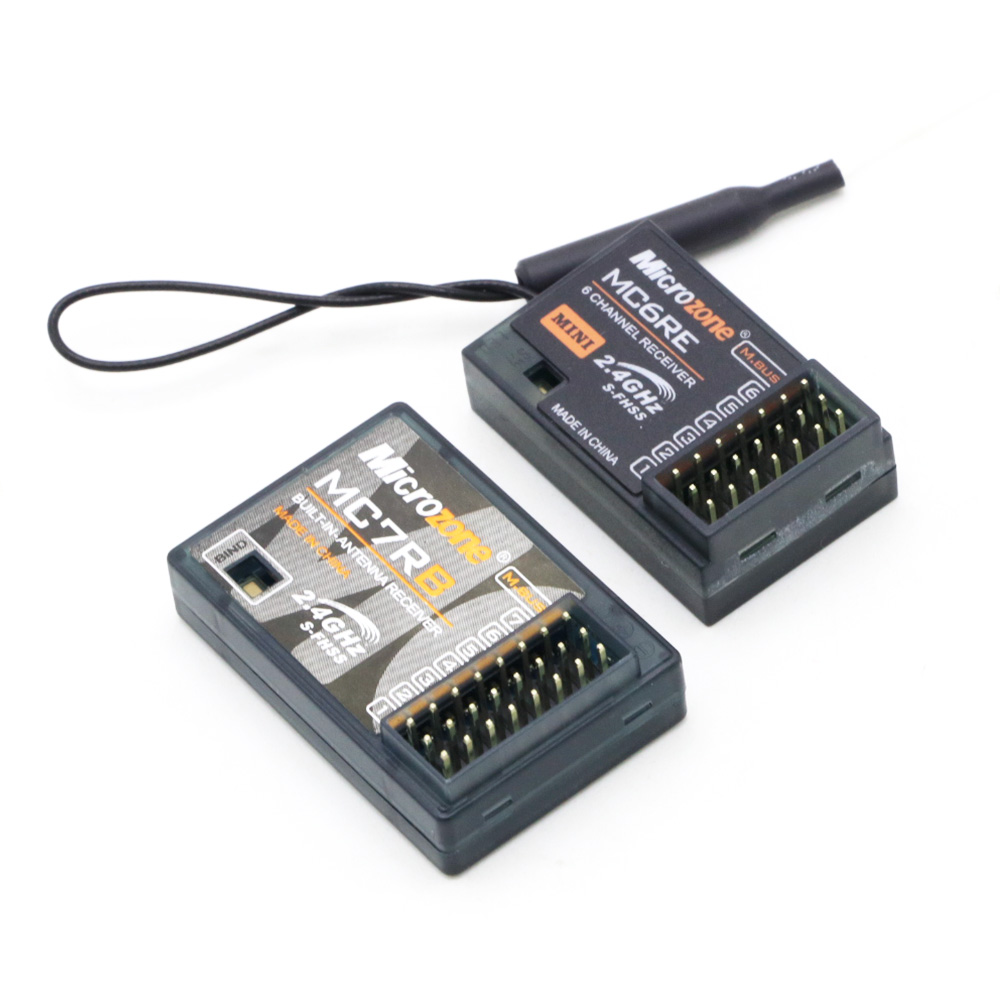

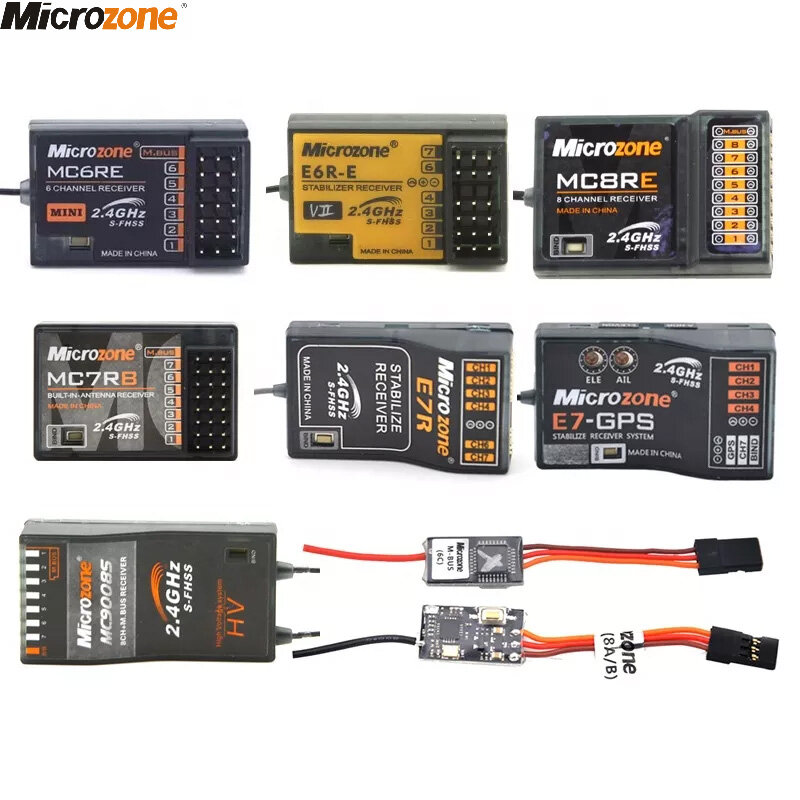

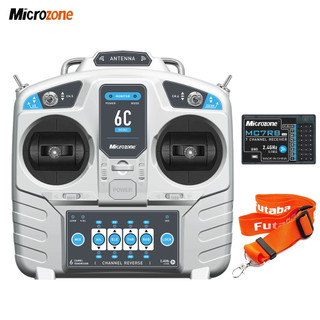

MicroZone MC6RE MC7RB MC9002 MIni M-SBUS Receiver 6CH MC8RE 8CH For MC6C MC8B Controller Transmitter RC Airplane Drones model

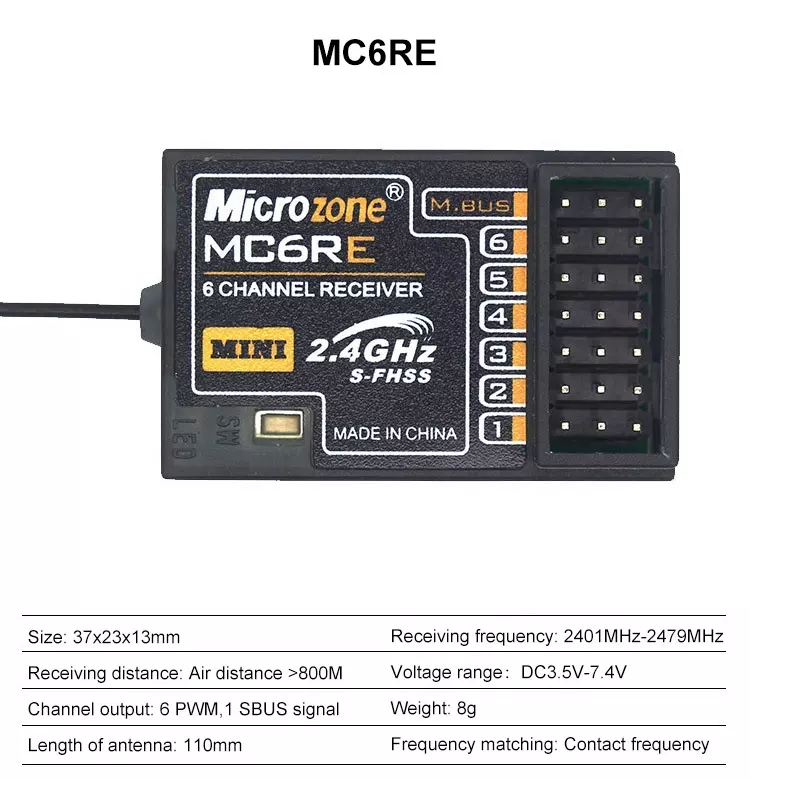

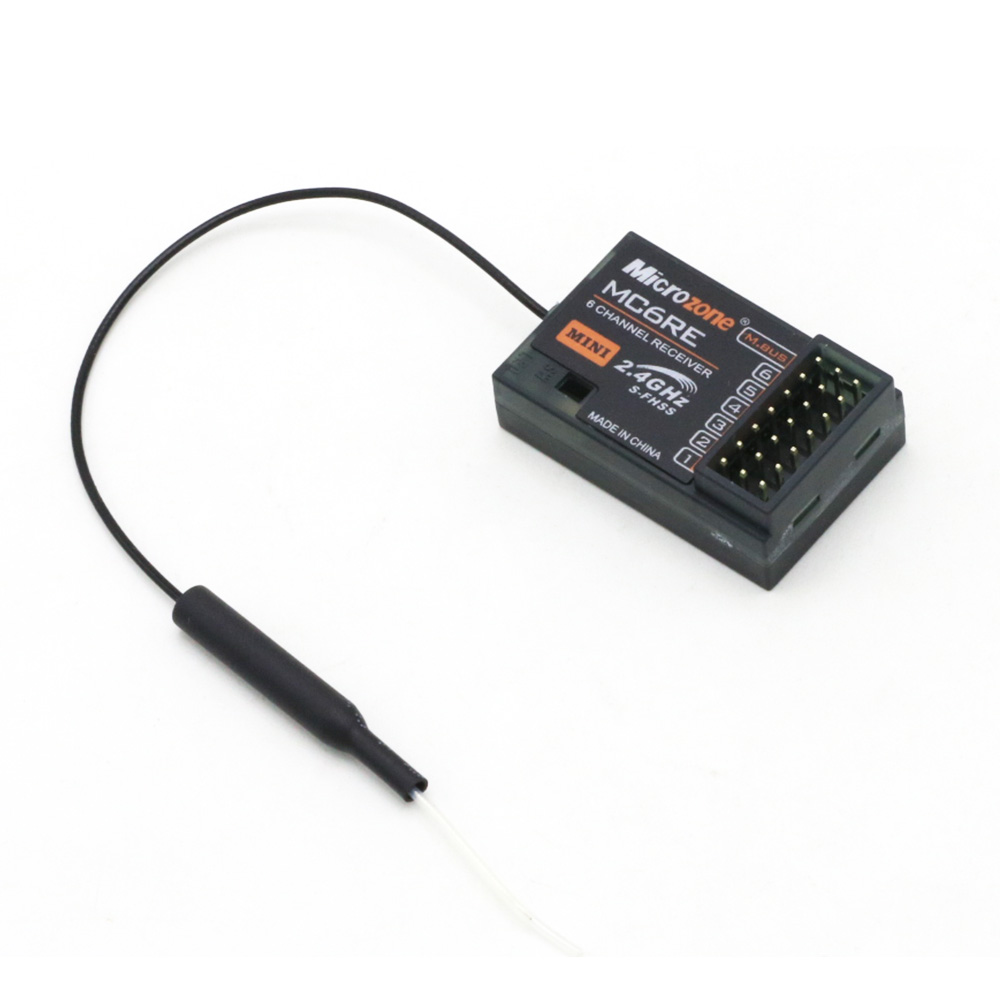

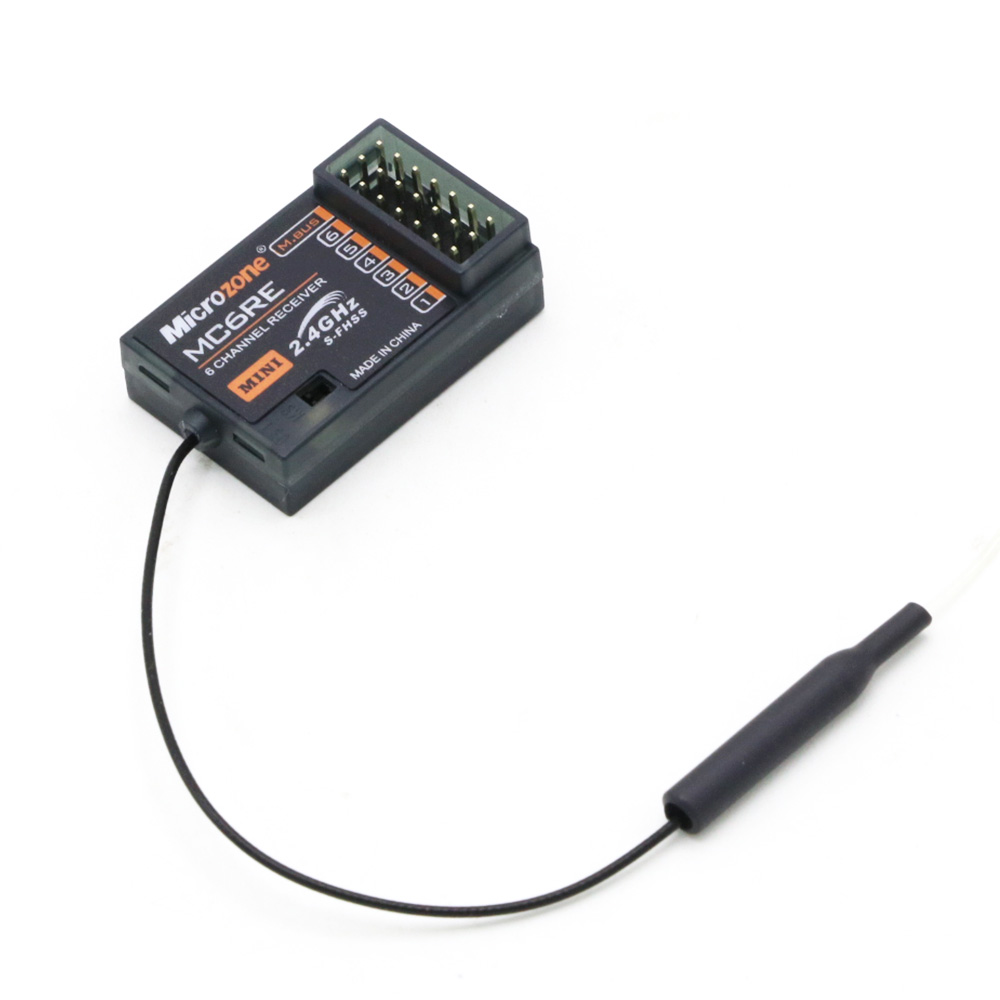

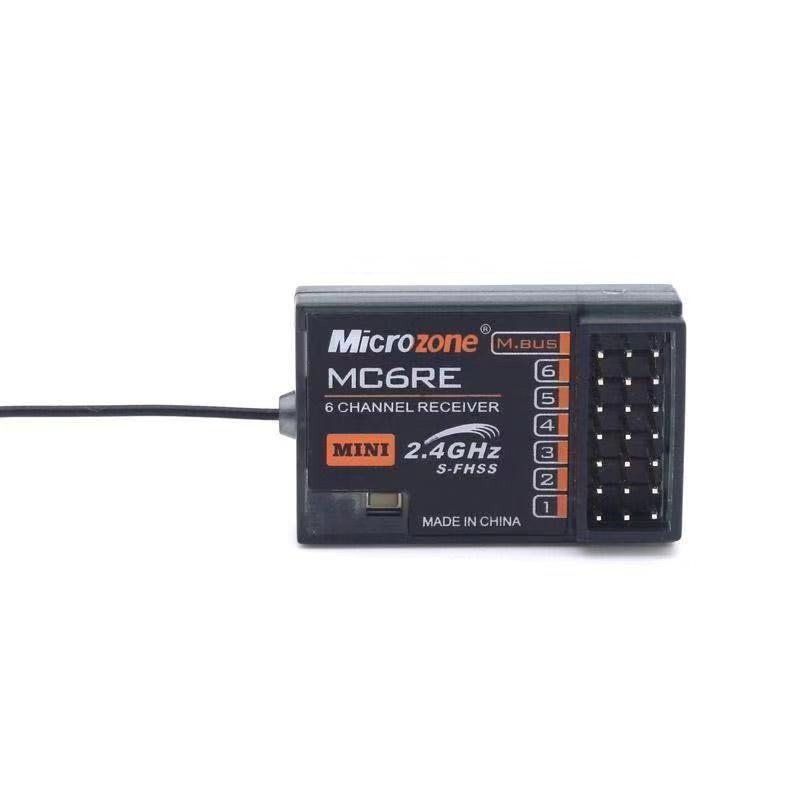

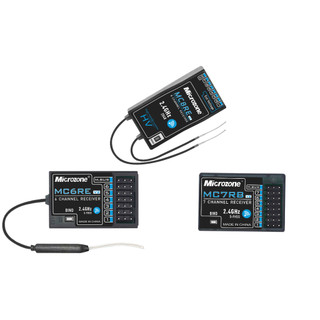

MR6E Mini Reciver:

Size: 42*28*13mm

Weight: 9.5g

Antenna length: 110mm

Output channel: 6 PWM signal channels, 1 SBUS signal channel

Receiving frequency: 2.401MHZ-2.479MHZ

Voltage range: DC3.5V-7.4V

Frequency mode: electric shock frequency

Applicable to MC6C remote control

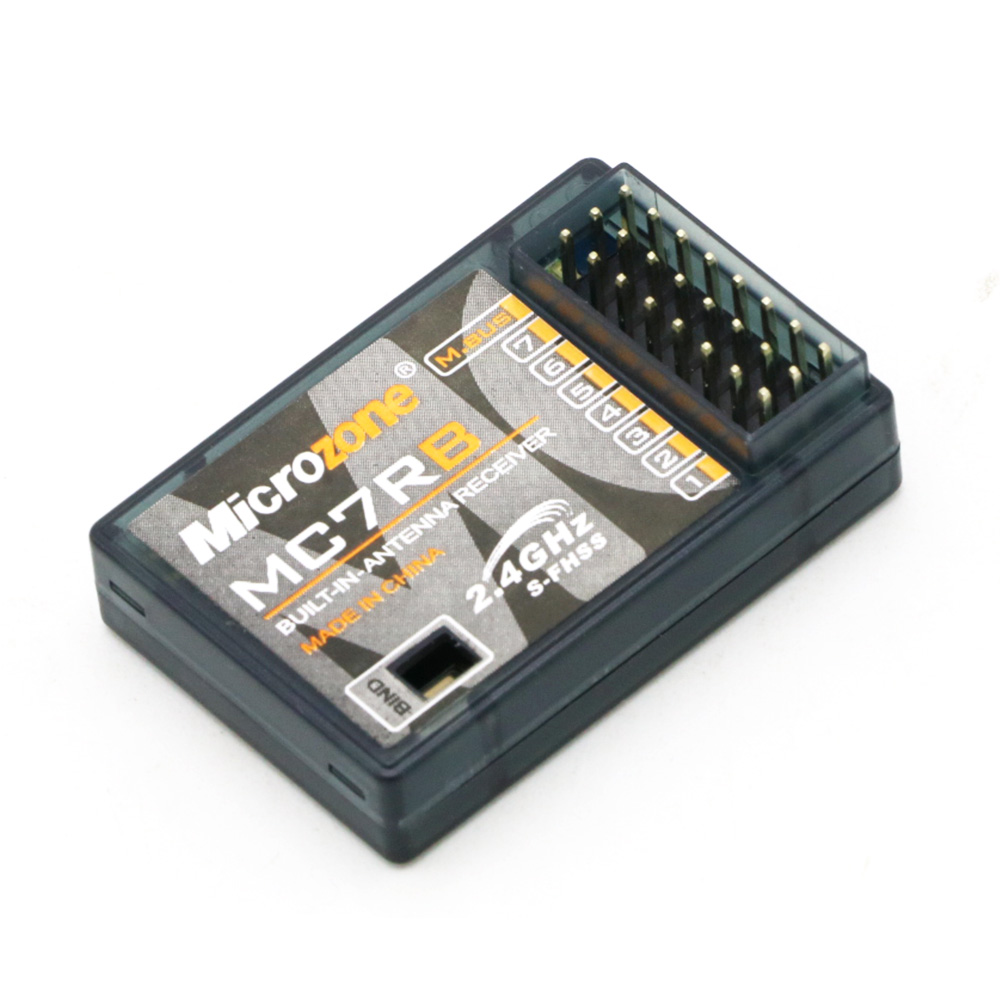

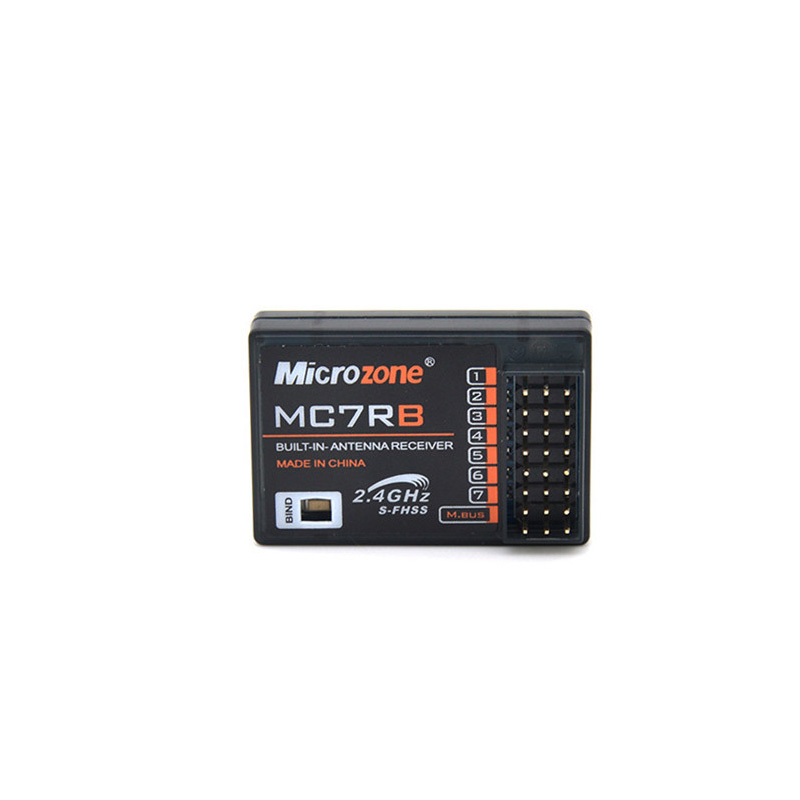

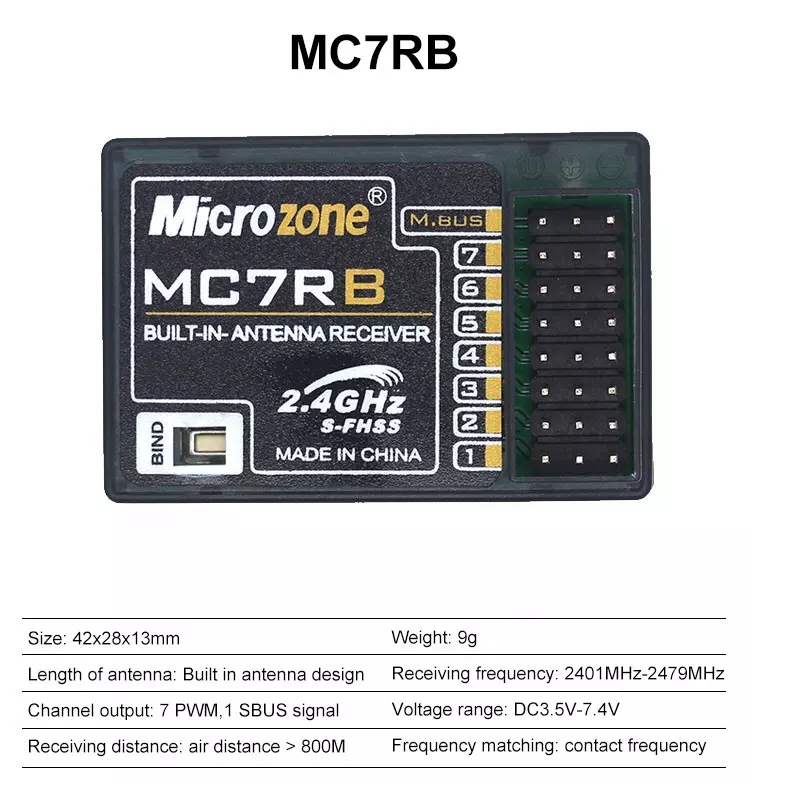

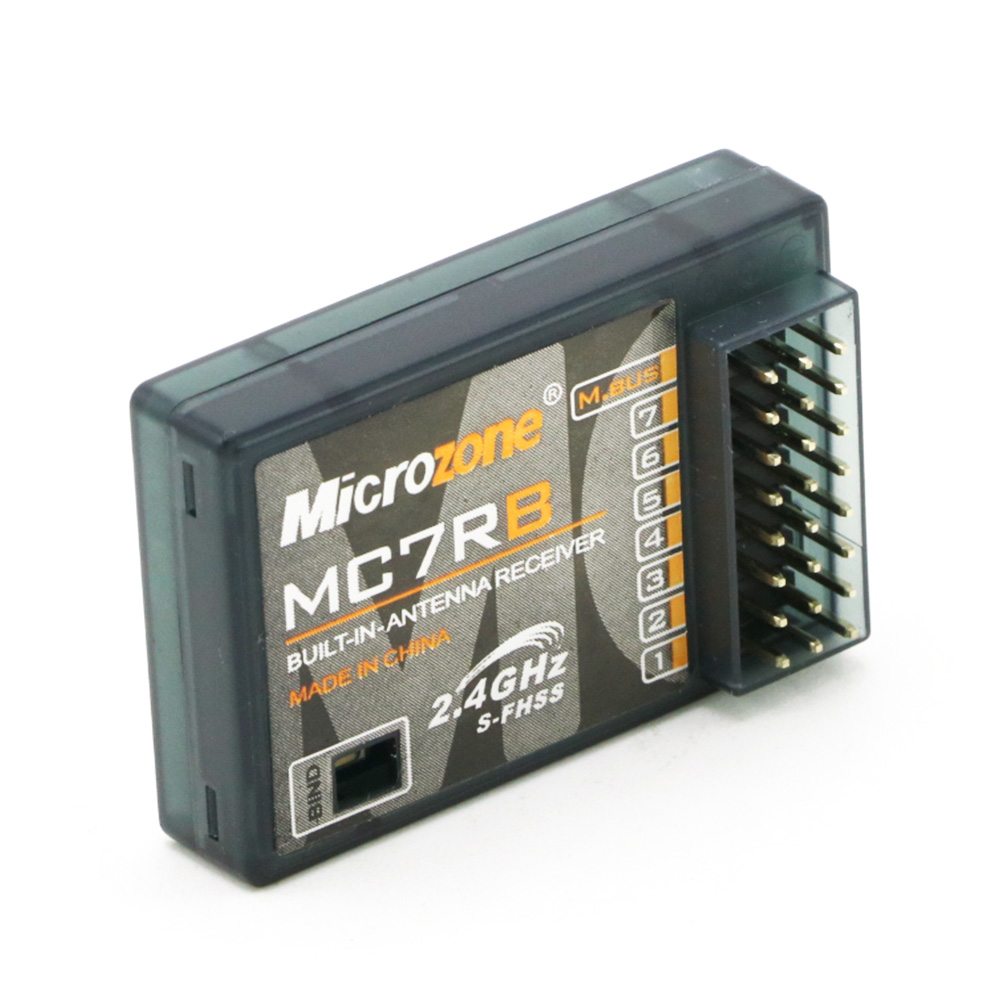

MC7RB Reciver:

Model: mc7rb

Channel: 7channels AND M-BUS

Power supply: 4.8-6V

Decoding way: 1024 PPM/PCMS

System: 2.4G S-FHSS system

use for MICROZONE 2.4G S-FHSS system Transmitter, it is new receiver

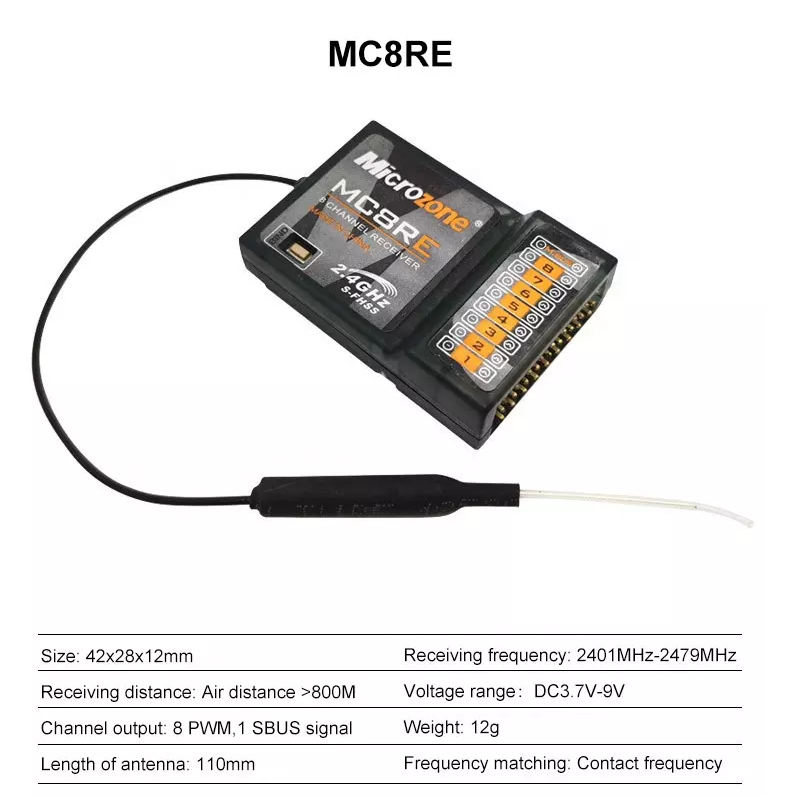

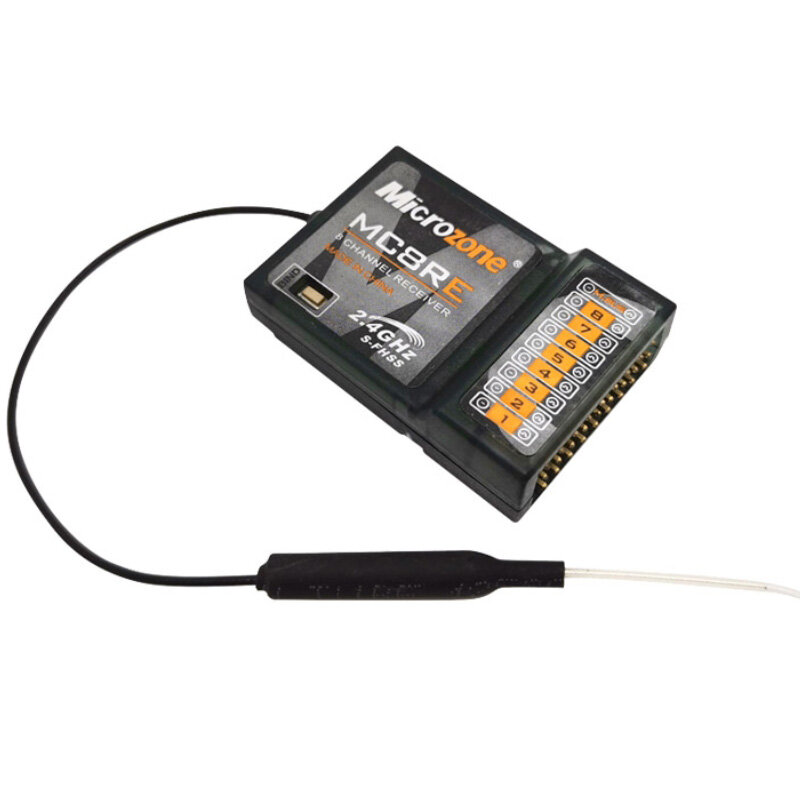

Product Name: MC8RE

Suitable remote control：MC7、MC8B、MC10、E7、E7S

Size: long X wide X high =42MM*28MM*12MM

Weight: 12 grams

Antenna length: 110MM

Output channel: 8 PWM signal channels and 1 SBUS signal channels.

Reception frequency: 2401MHZ-2479MHZ

Voltage range: DC 2V-9V

Opposite frequency mode: contact pair frequency

Application: MC8A, MC8B remote control, can be used in fixed wing models, UAV, helicopter models, trams and tanker models, ship

models.

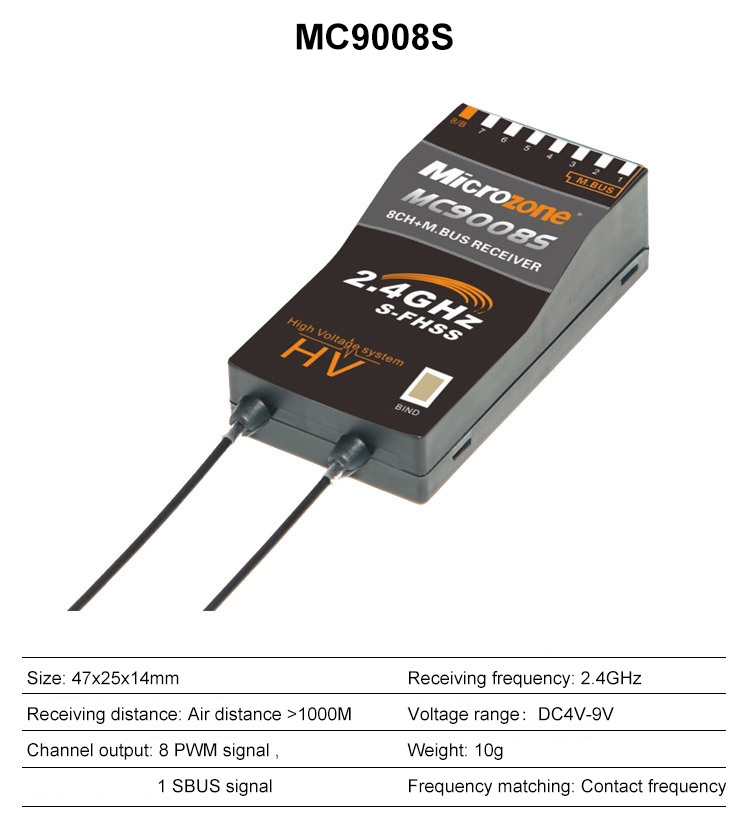

Model: MC9008S

Applicable remote control: MC10

Size: 47*25*14MM

Dual antennas receive signals, the receiver sensitivity is stronger,

Output channel resolution: 2048 resolution

M.US output (compatible with s.bus)

Support out of control protection weight: 10g

Receiving frequency band: 2.4GHz

Working voltage: 4V to 9V

Frequency method: contact frequency

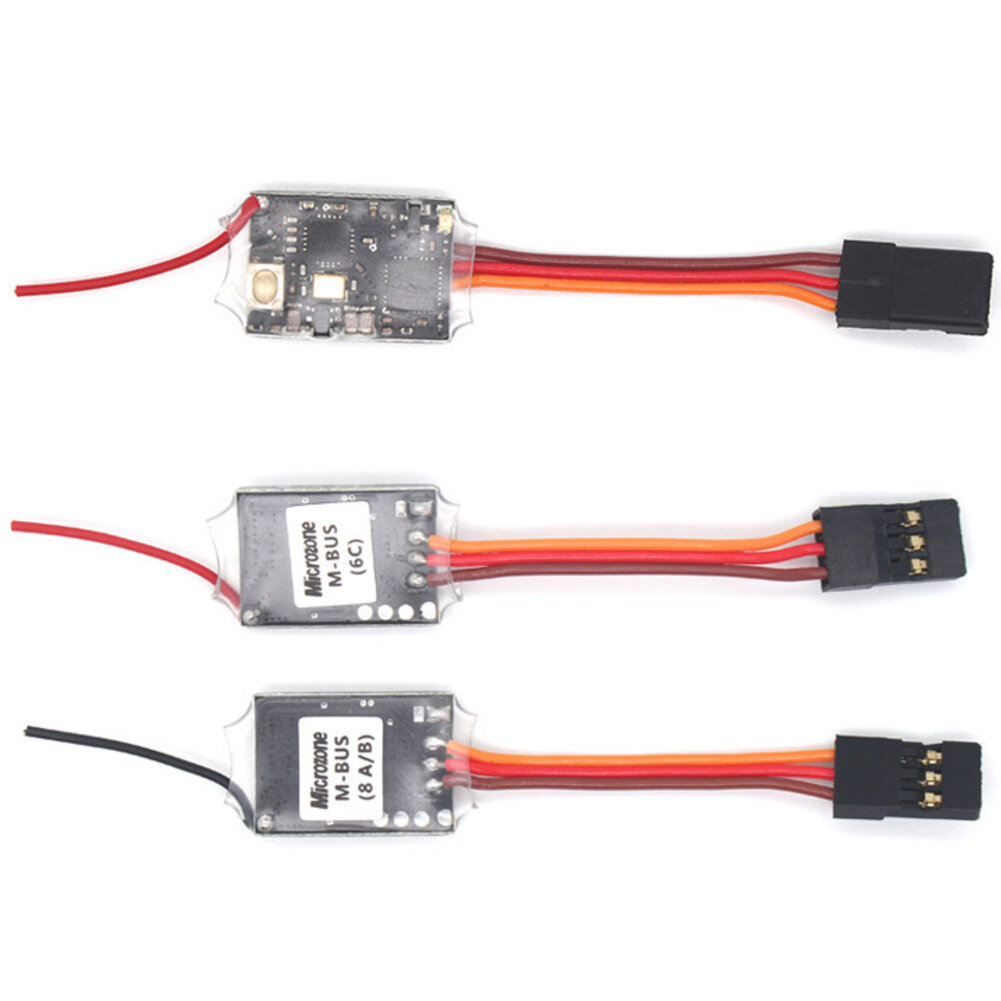

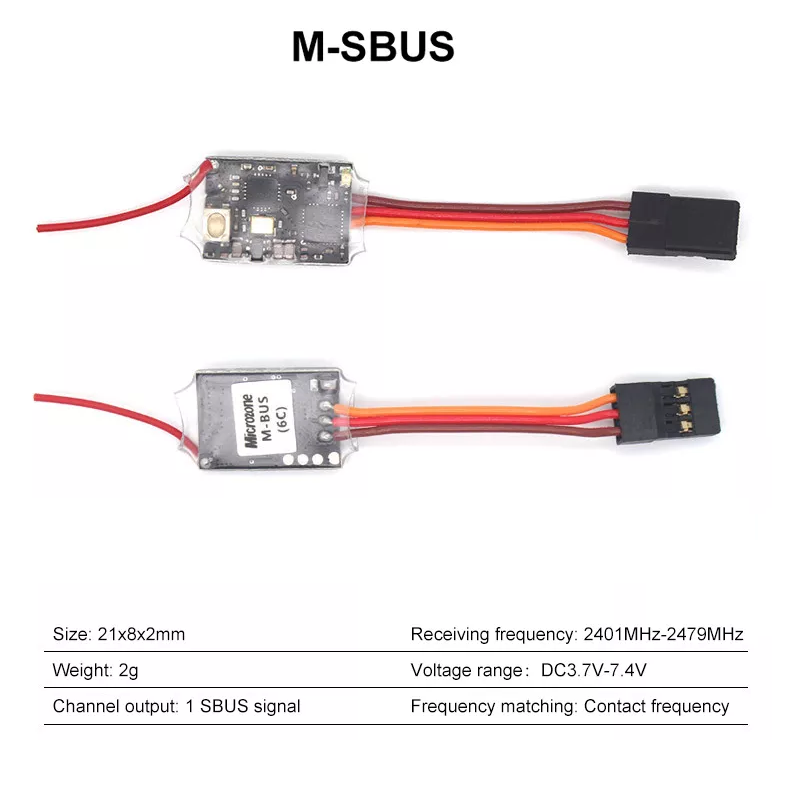

Mini MBUS (MC6C) receiver

Product Name: Mini MSBUS receiver

Size: long X wide X high =21MM*8MM*2MM

Weight: 2 grams

Antenna length: 27MM

Output channel: 1 SBUS signal channels (DuPont connector)

Reception frequency: 2401MHZ-2479MHZ

Voltage range: DC 3.5V-7.4V

Opposite frequency mode: contact pair frequency

Application: MC6C remote control; used in traversing machine, DIY small UAV.
