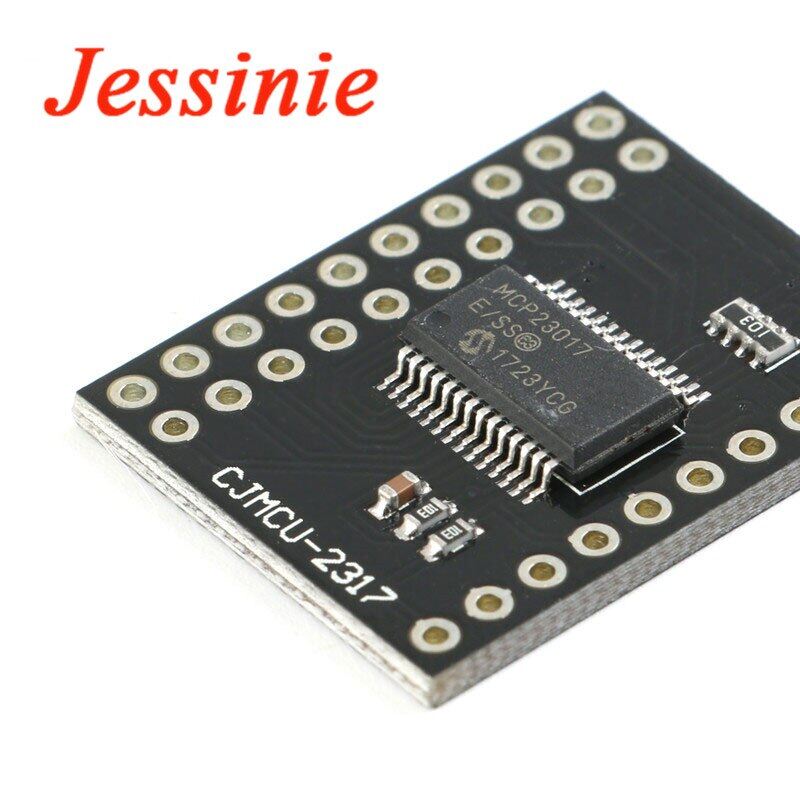

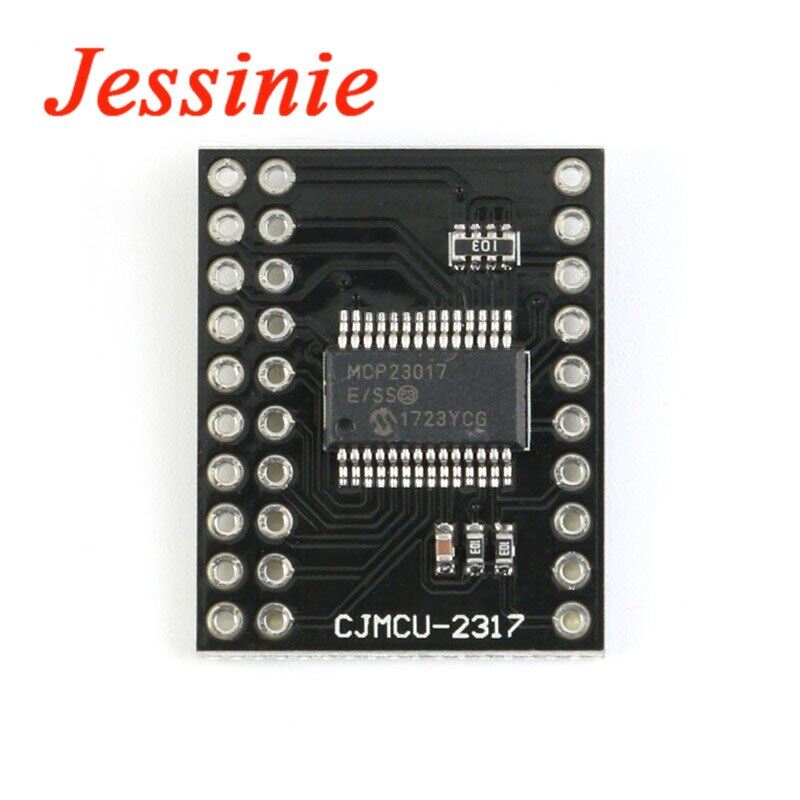

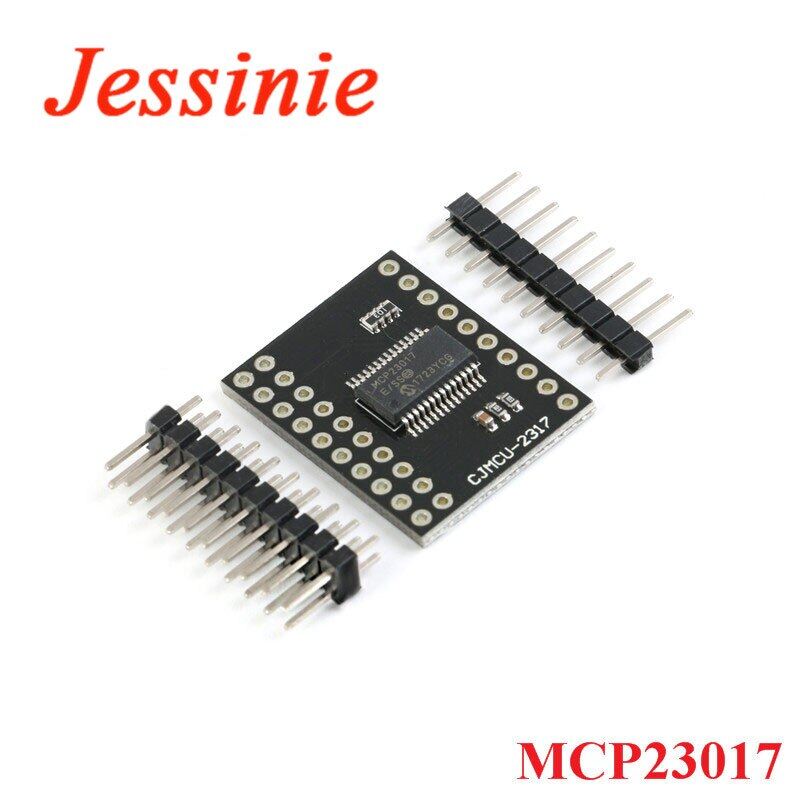

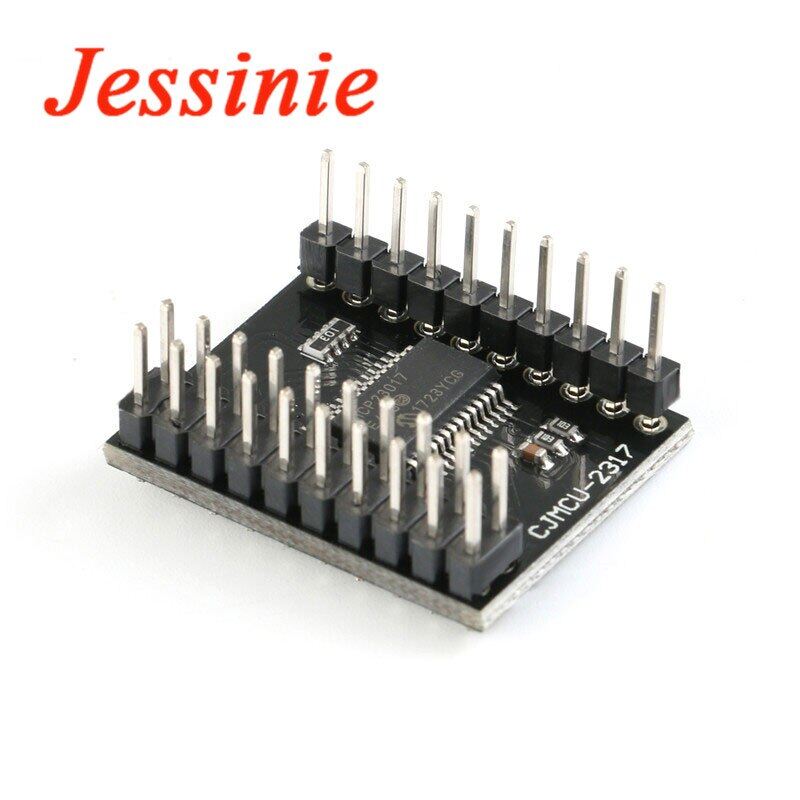

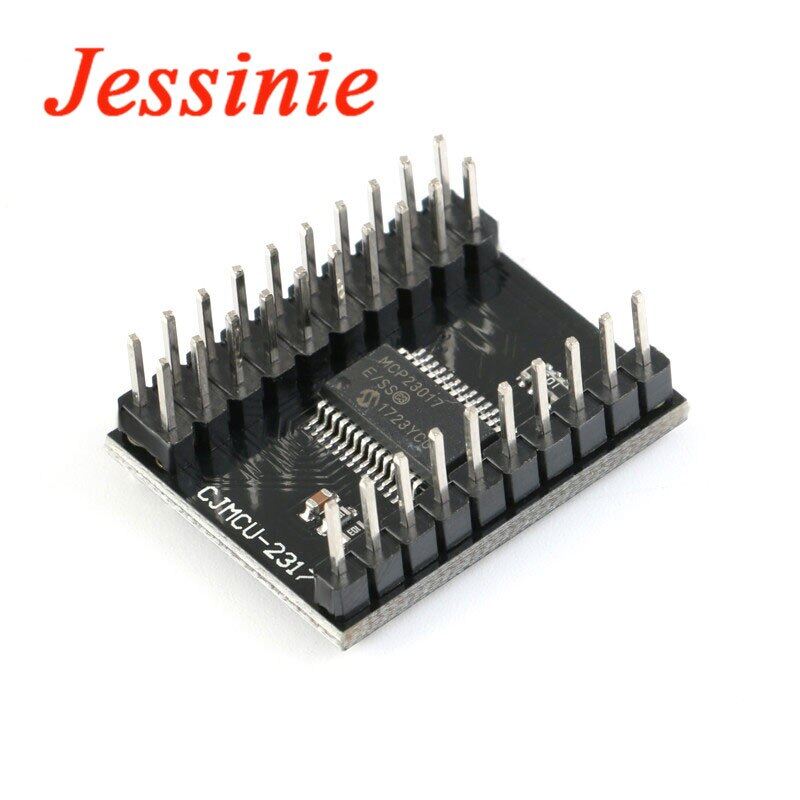

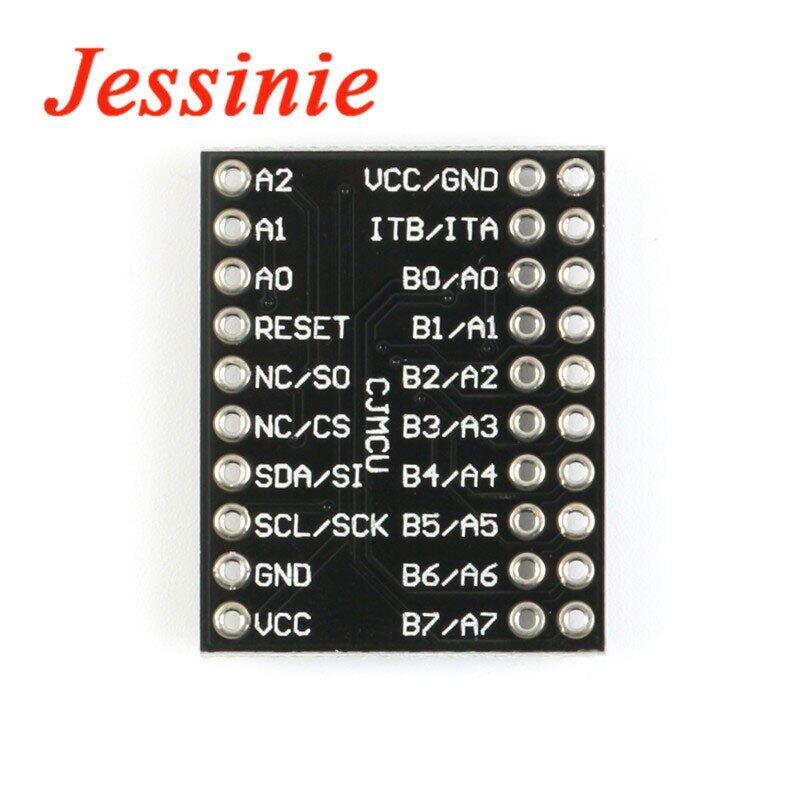

MCP23017 Serial Interface Module IIC I2C SPI MCP23S17 Bidirectional 16 Bit I/O Expander Pins 10Mhz Serial Interface Module

Brand Name:Jessinie
Origin:CN(Origin)
Condition:New
Type:Voltage Regulator
Model Number:MCP23017
Application:-
Operating Temperature:-40~85 Degree
Supply Voltage:1.8~5.5V
Dissipation Power:-
Package:TQFP
is_customized:Yes

     The MCP23017 is capable of converting 16-bit parallel data to serial data of the IIC interface and converting each other. An internal integrated power-on reset (POR) circuit is reset to the device's default state. The two opposites become the interrupt source output. The polarity toggle register configures the GPIO input polarity.

Parameter:

Operating temperature range: -40~85 Degree

Working voltage: 1.8~5.5V

IIC communication frequency: up to 1.7MHz

Working current: 1uA

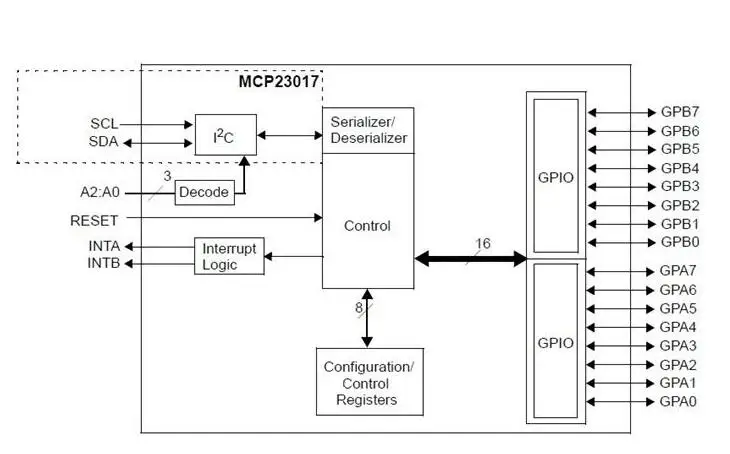

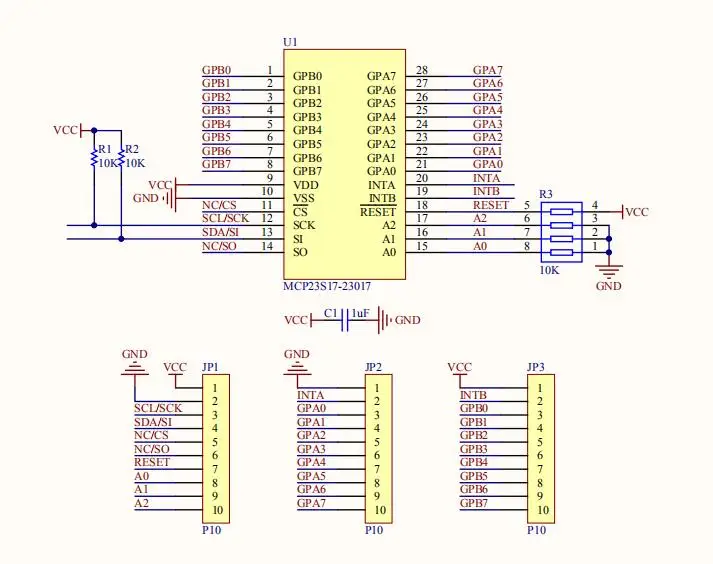

VCC: Power supply pin

INTA: A port interrupt output

INTB: B port terminal output

SCL: IIC clock signal line

SDA: IIC data signal line

RESET: level reset device

A0, A1, A2: IIC device address configuration pins

The default is 0100000x, and the IIC bus can expand 8 identical devices.

GPA0~GPA7: A port 8-bit input and output pin (default input mode)



GPB0~GPB7: B port 8-bit input and output pin (default input mode)
