Advantages:
- Especially the drilling machine uses two sets of anti-drill spring for machining.The machine structure is rigid and high precision.The machine is used to wipe, TARO, DOA and ROUND TUBE by the drill made of tool steel, wind or hard metal to machining parts made of metal such as iron, iron, stainless steel, copper, aluminum ...
Technical information:

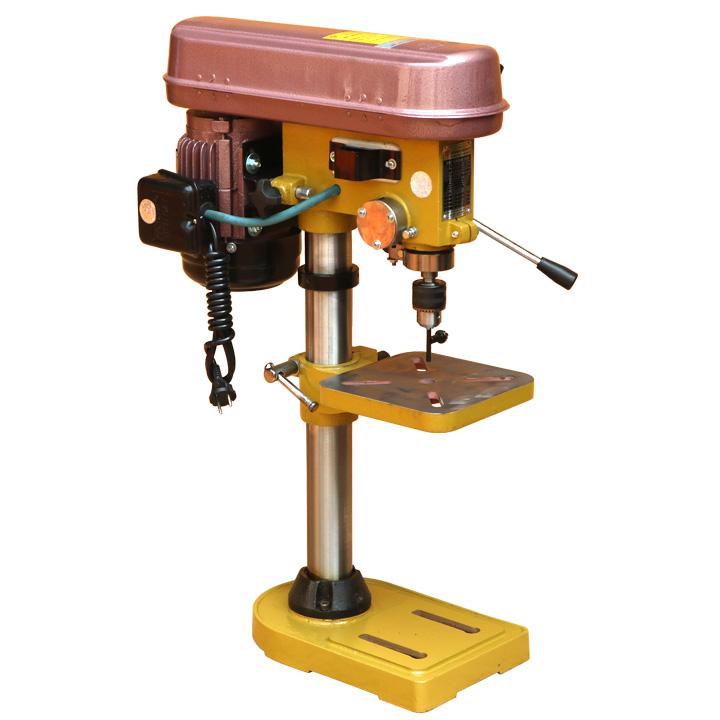

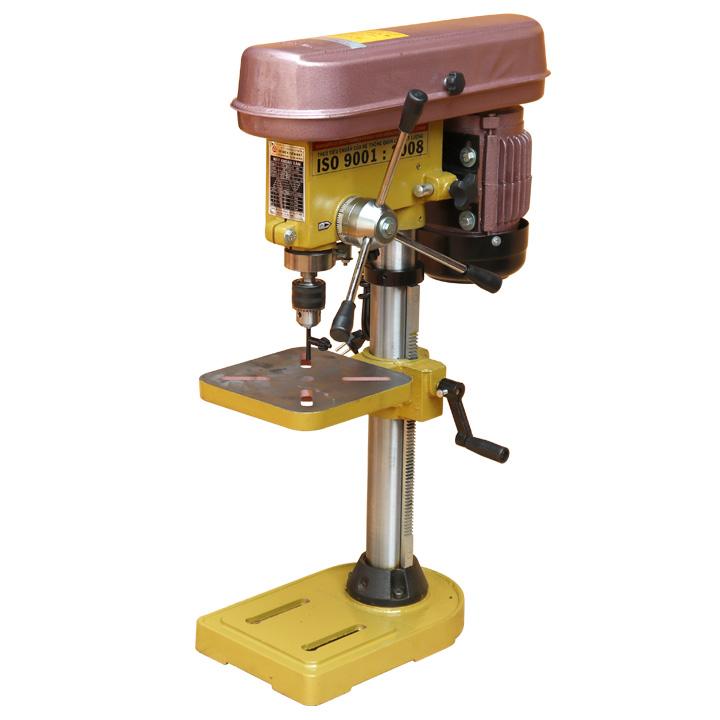

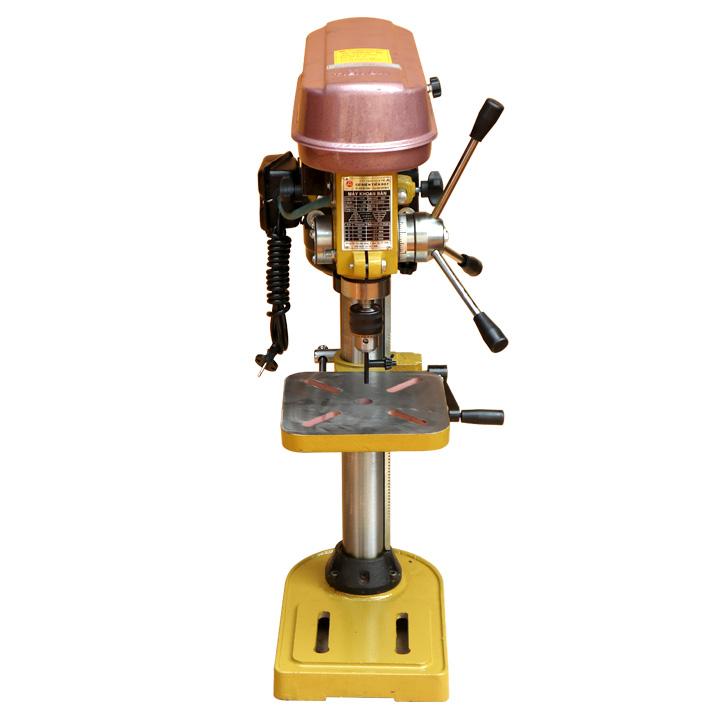

MODEL | K8T |
Maximum drill diameter (mm) | Þ1.5 -> Þ13 |
Spindle travel (mm) | 60 |
Spindle speed (rpm) | 590 - 1000 - 1500 - 2500 |
CUROA puly cord | M35 x 1 |
Drill diameter (mm) | 60 |
Tread diameter (mm) | 205 x 205 |
Journey up and down the table (mm) | 230 |
The distance from the spindle center to the back of the drill post (mm) | 129 |
The maximum distance from the drilling head to the drill (mm) | 265 |
Distance from drill head to drill stand (mm) | 410 |
Electric motor power (Hp) | 1 / 2Hp, 1450Vg / p |
Use voltage | 220v |
Machine height | 810 |
Machine size (length x height) | 520 x 260 x 810 |
Weight machine | 47Kg |
Origin | Vietnam |
Guarantee | 1 year (no BH drilling head) 6 months moteur section |
Announced TCCMHH No. 03-2001 / CBTCCL / TD at the Department of Standard Quality - HCM | |
Quality ManagementISO 9001 - 2008 |
