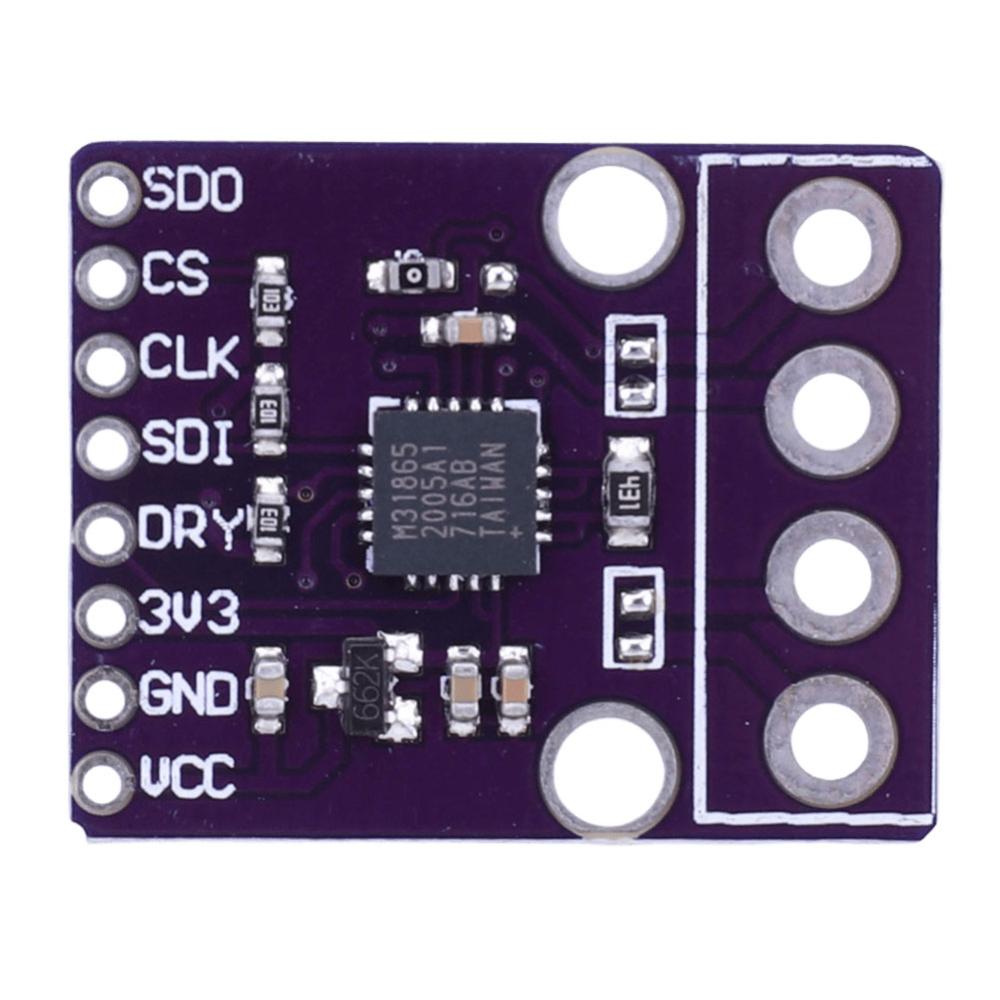

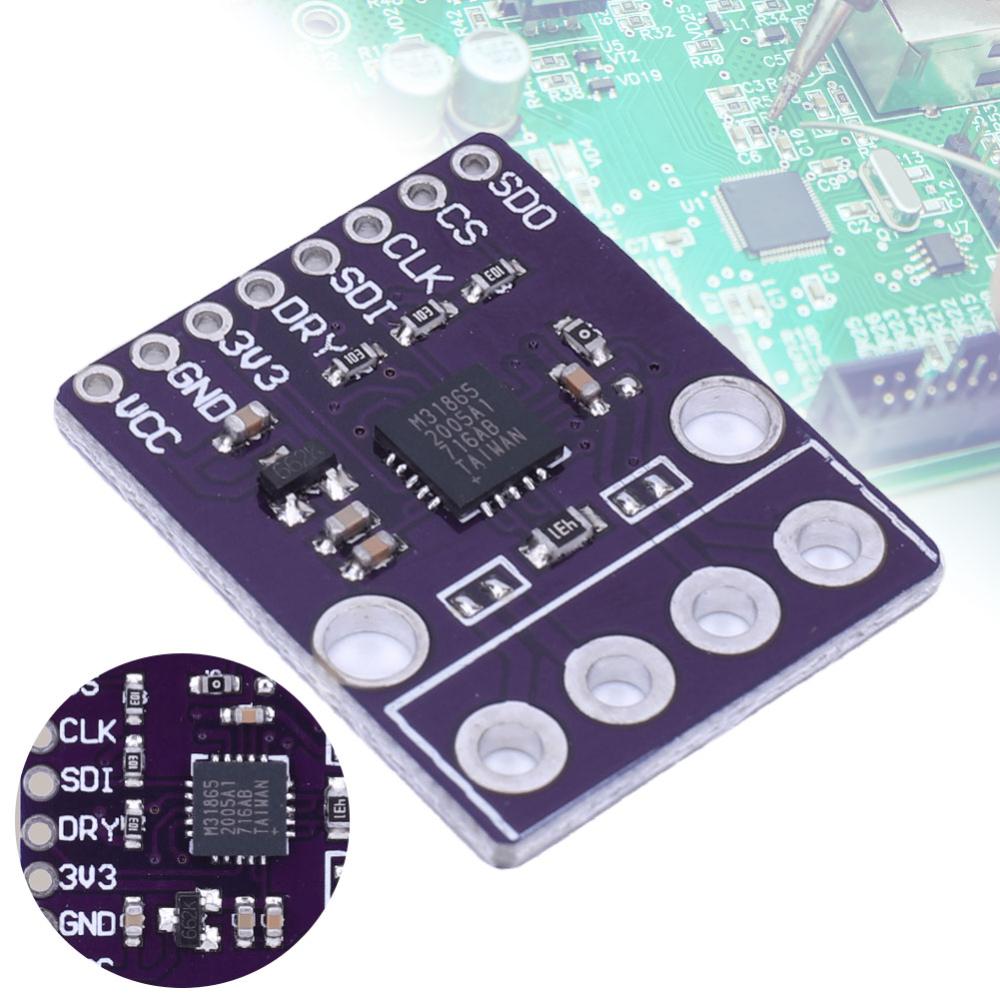

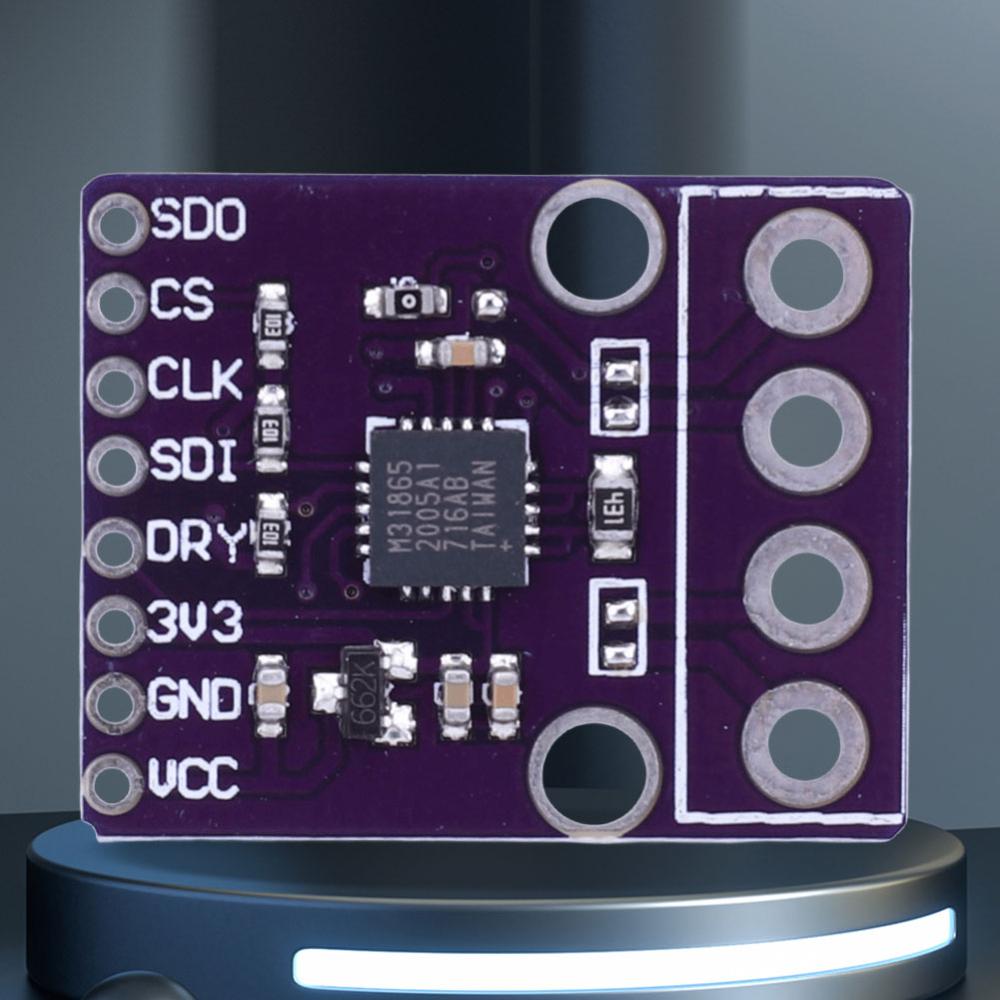

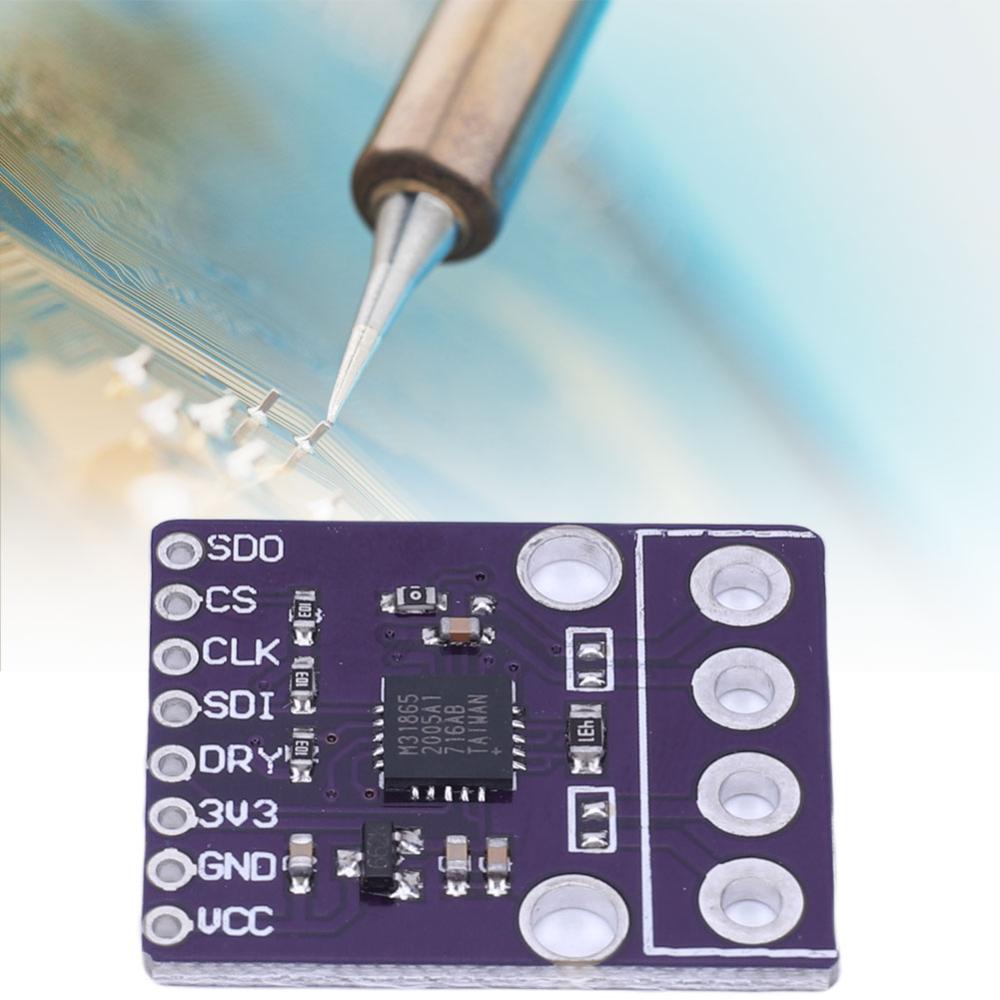

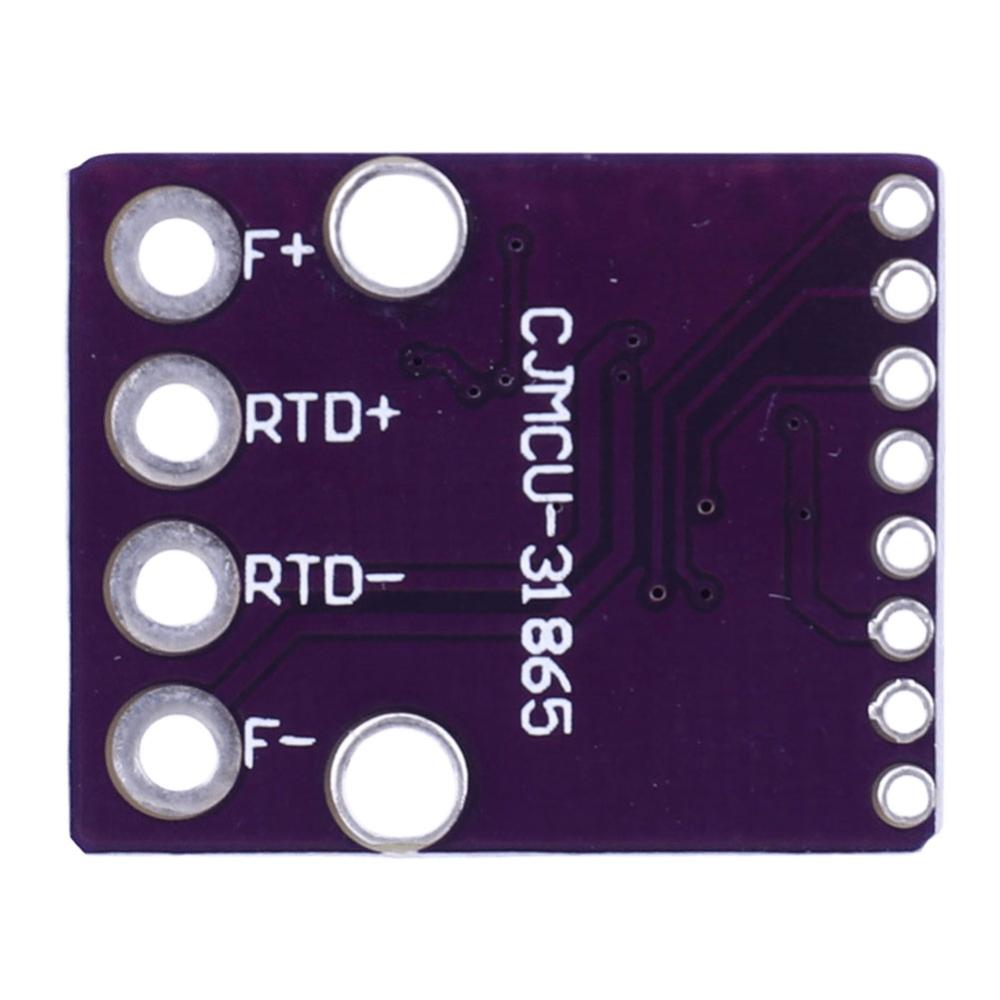

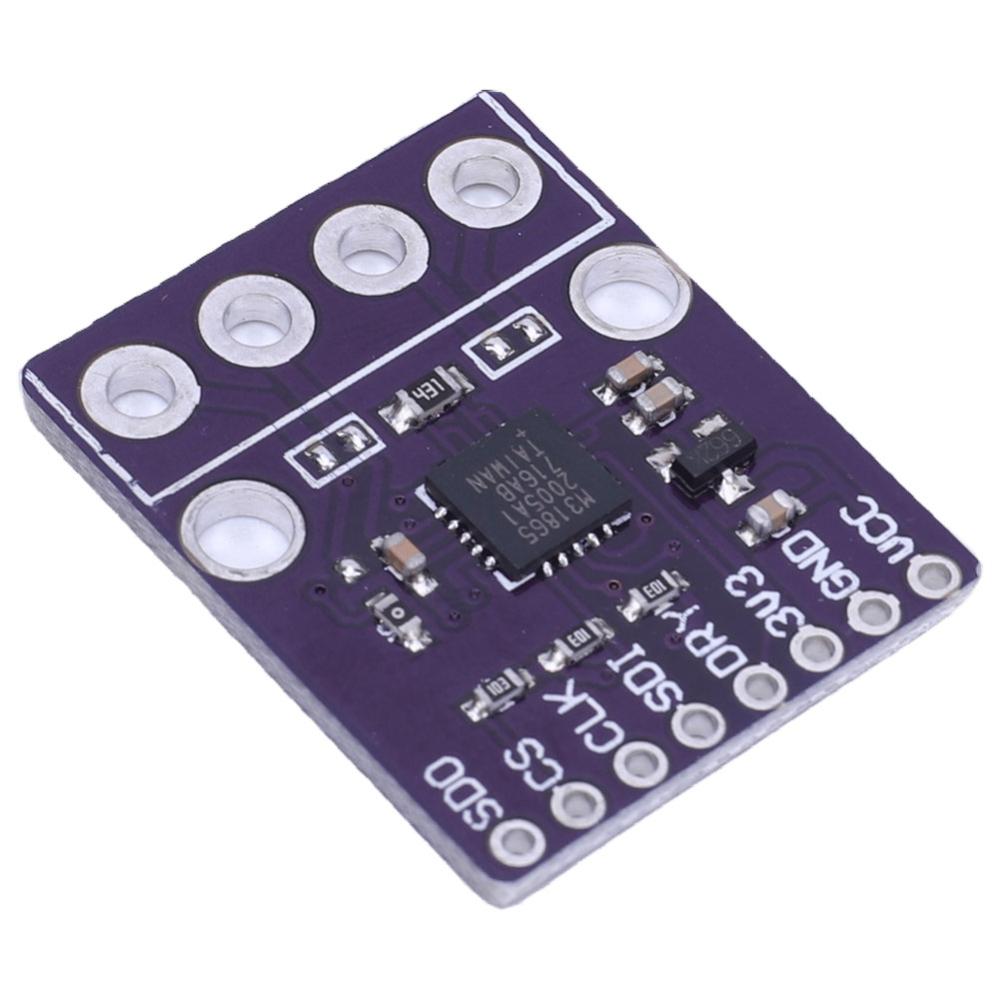

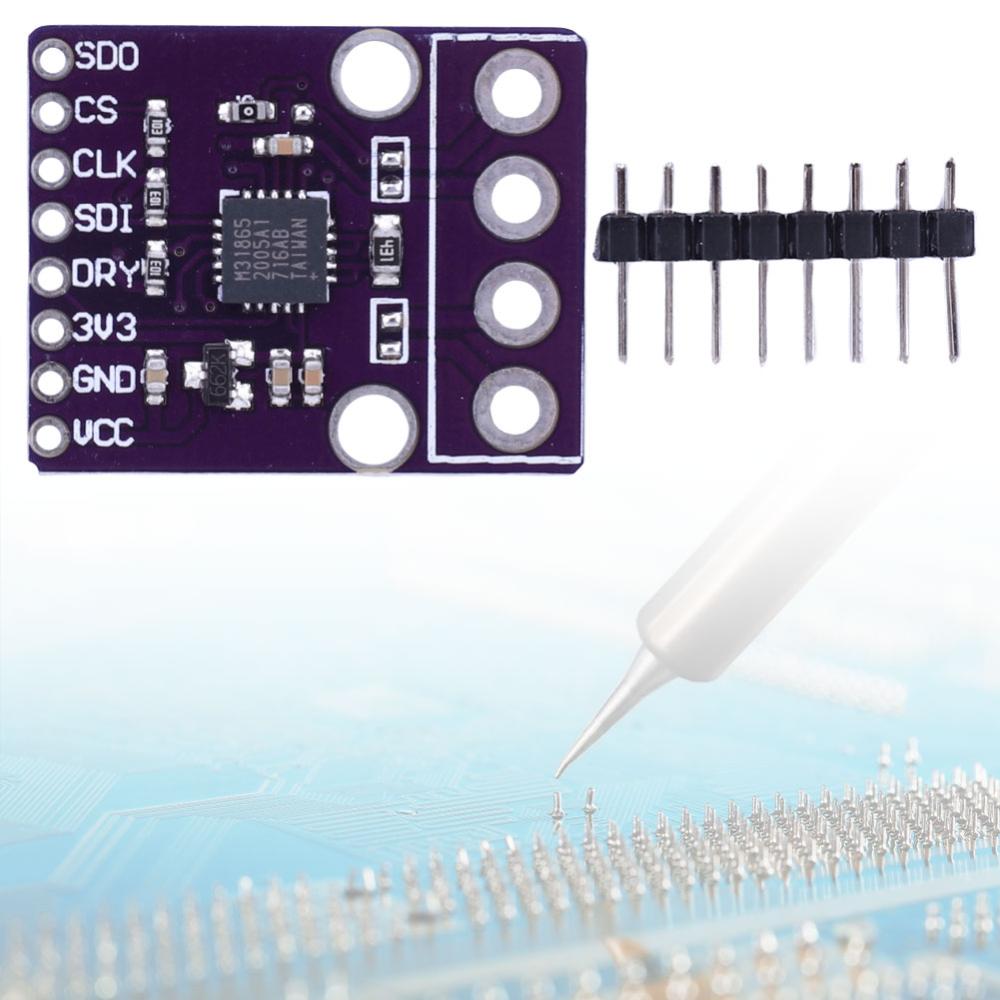

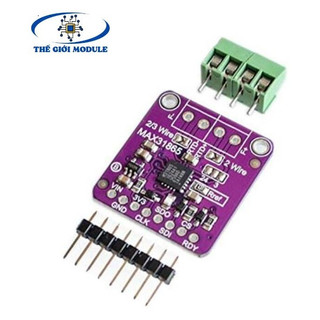

MAX31865 Temperature Thermocouple Digital Sensor PT100 To PT1000 Temperature Detector Module for Arduino

MAX31865 Temperature Thermocouple Sensor Amplifier Module PT100 To PT1000 RTD-to-Digital Converter Board 3.3V/5V Fit for Arduino

Feature:

1.Broad RTD Support: The MAX31865 RTD Amplifier caters to a wide range of platinum resistance RTDs from PT100 to PT1000, accommodating resistances from 1000 ohms to 1k (0°C), making it a versatile choice for various temperature sensing tasks.

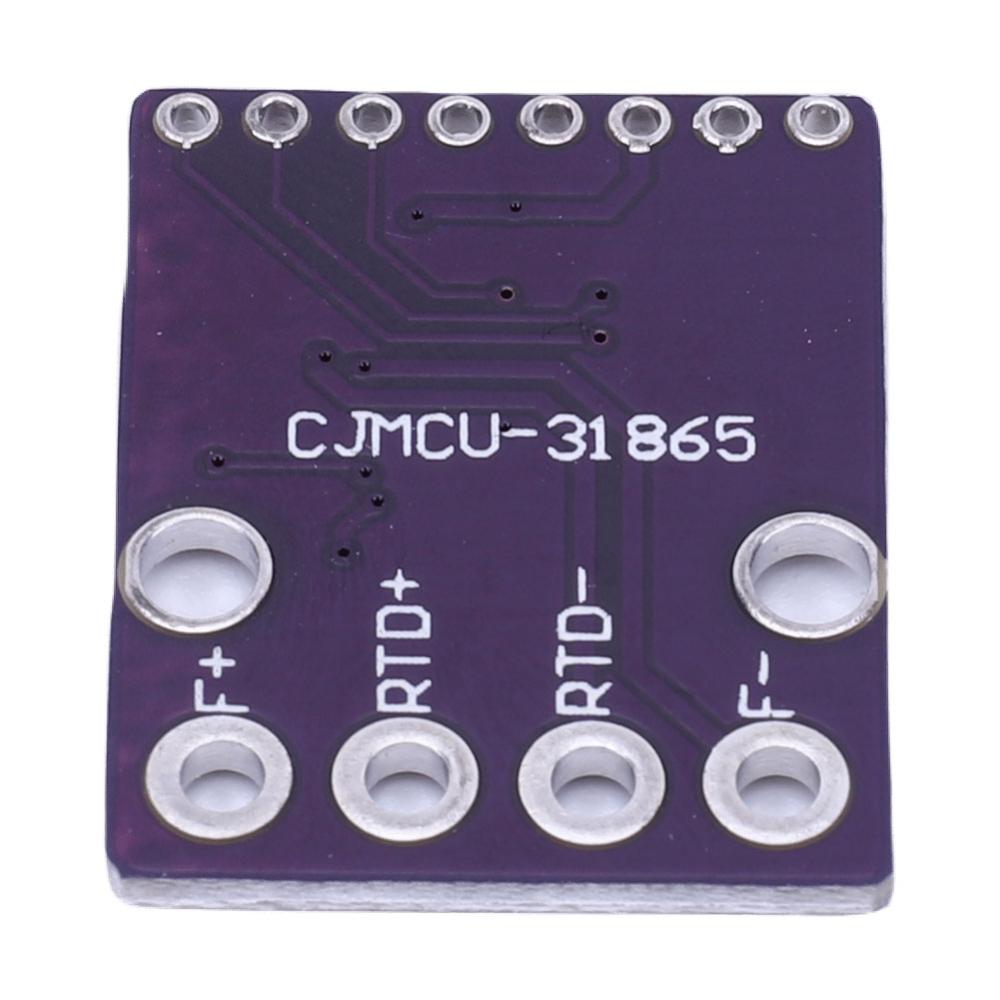

2.Versatile Sensor Compatibility: The temperature thermocouple sensor amplifier module offers excellent flexibility with support for 2-wire, 3-wire, and 4-wire sensor connections, allowing for seamless integration into diverse sensor setups.
3.High-Resolution & Speed: The temperature thermocouple digital sensor boasts a 15-bit ADC for detailed temperature data with a nominal resolution of 0.03125°C that adapts to RTD non-linearity, coupled with a rapid conversion time of up to 21ms for timely and accurate readings.
4.Exceptional Accuracy: With a total accuracy of ±0.5°C throughout its operating range, equivalent to 0.05% of full scale, the RTD-to-Digital converter board ensures precise temperature monitoring. The inclusion of full-differential VREF input further enhances measurement precision.
5.Enhanced Stability with Fault Detection: The temperature detector module's integrated fault detection mechanisms contribute to the stability and reliability of the system by identifying and signaling sensor irregularities or circuit issues, thus improving overall system robustness.

Specification:
Origin: Mainland China

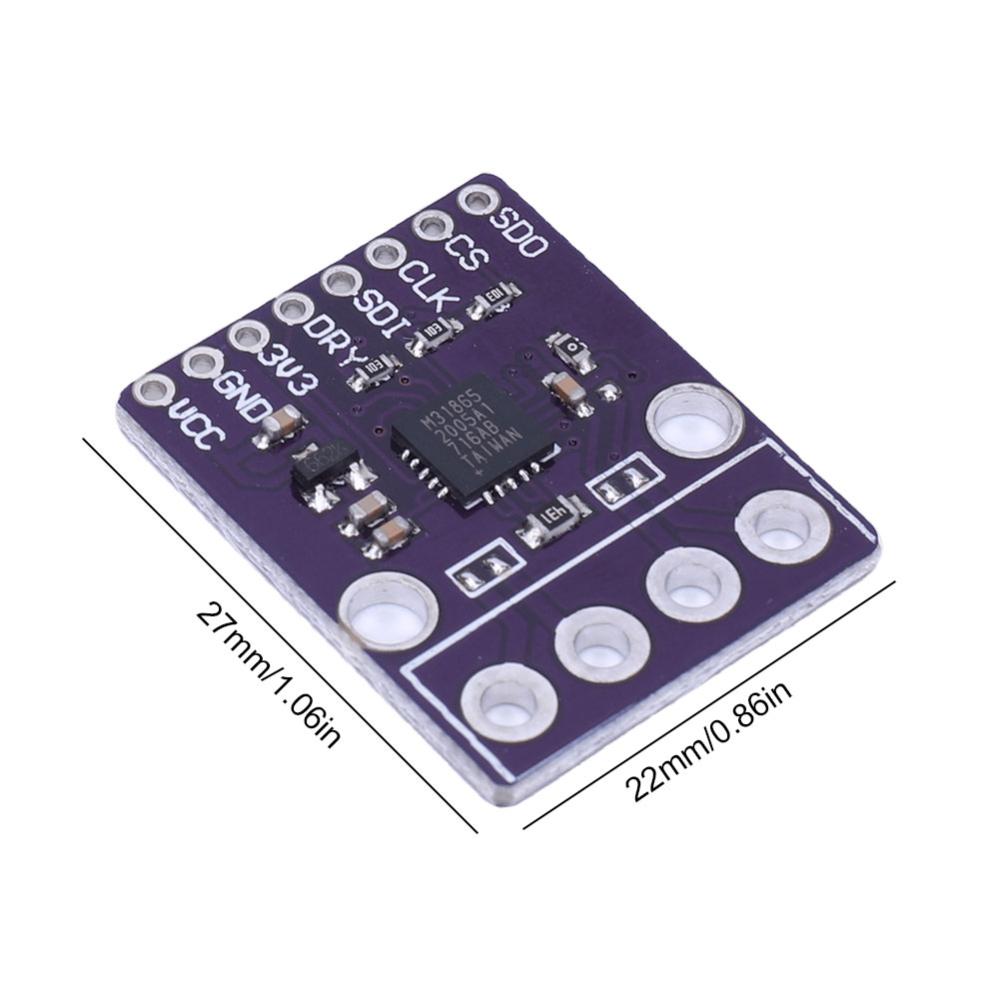

Size: 27x22x3mm/1.06x0.87x0.12inch
The MAX31865 is an easy-to-use thermistor to digital output converter optimized for platinum resistance temperature detectors (RTDs).
An external resistor sets the RTD sensitivity, and a high-precision delta-sigma ADC converts the RTD resistance and reference resistance to a digital output.
The MAX31865 inputs are protected against overvoltage up to ±45V and provide configurable RTD and cable open-circuit and short-circuit condition detection.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
