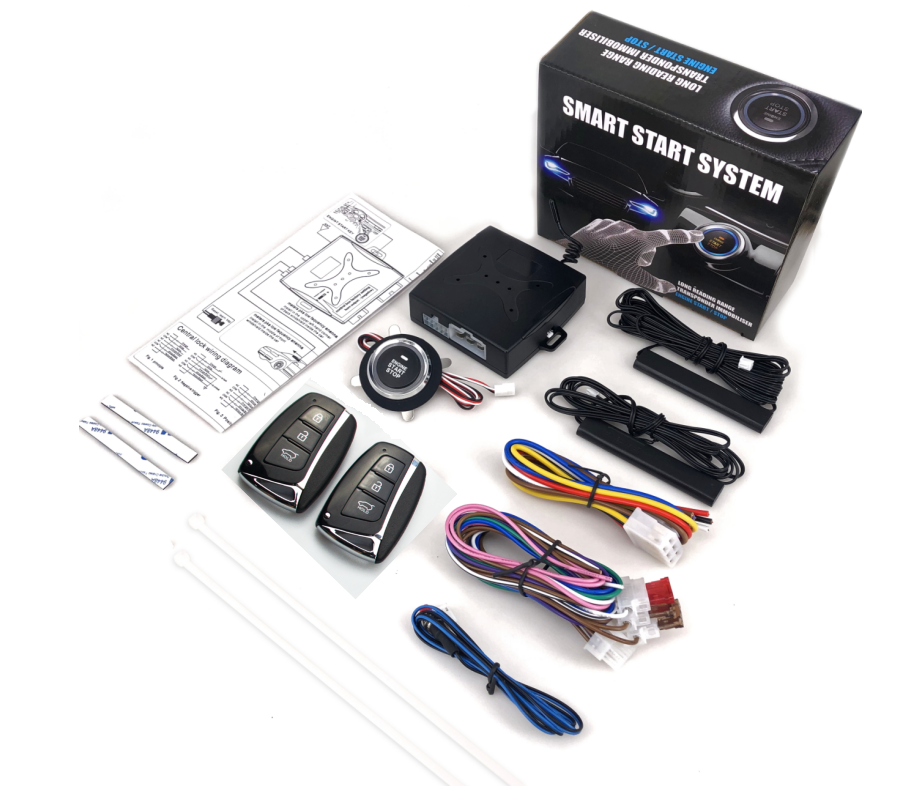

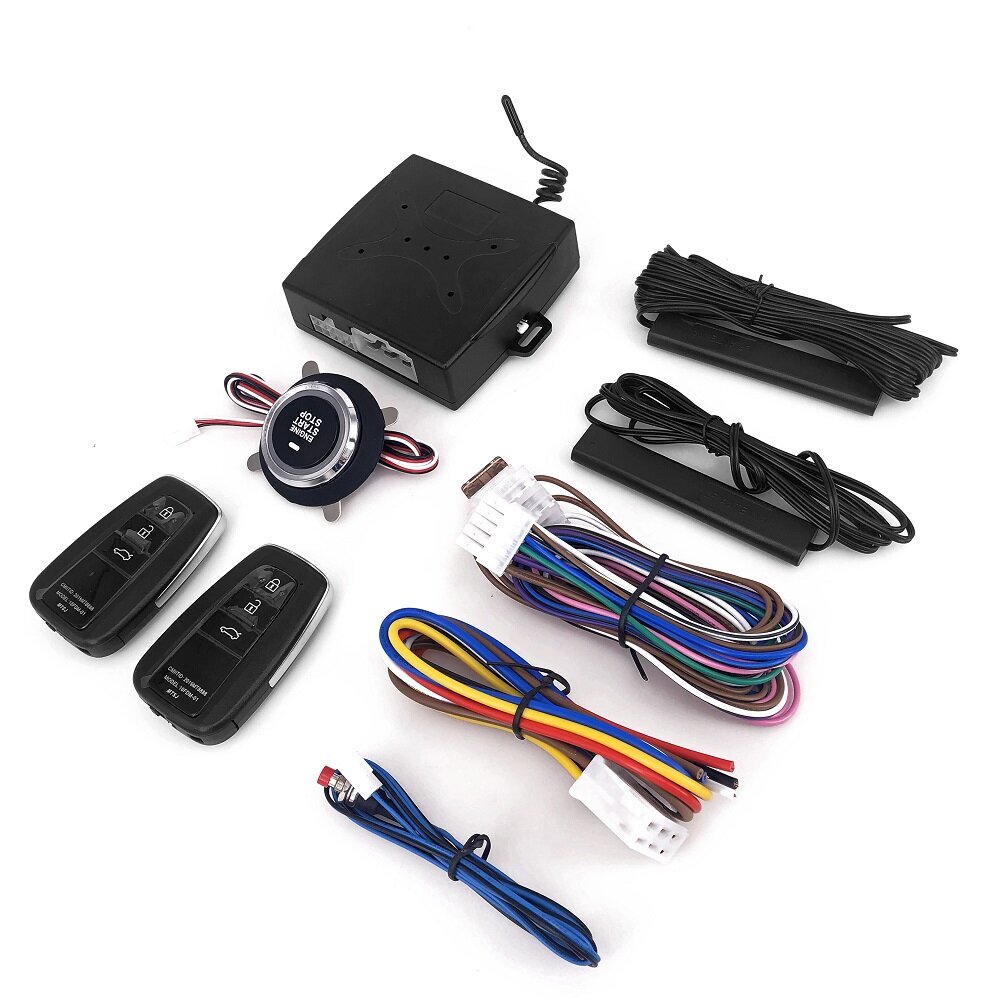

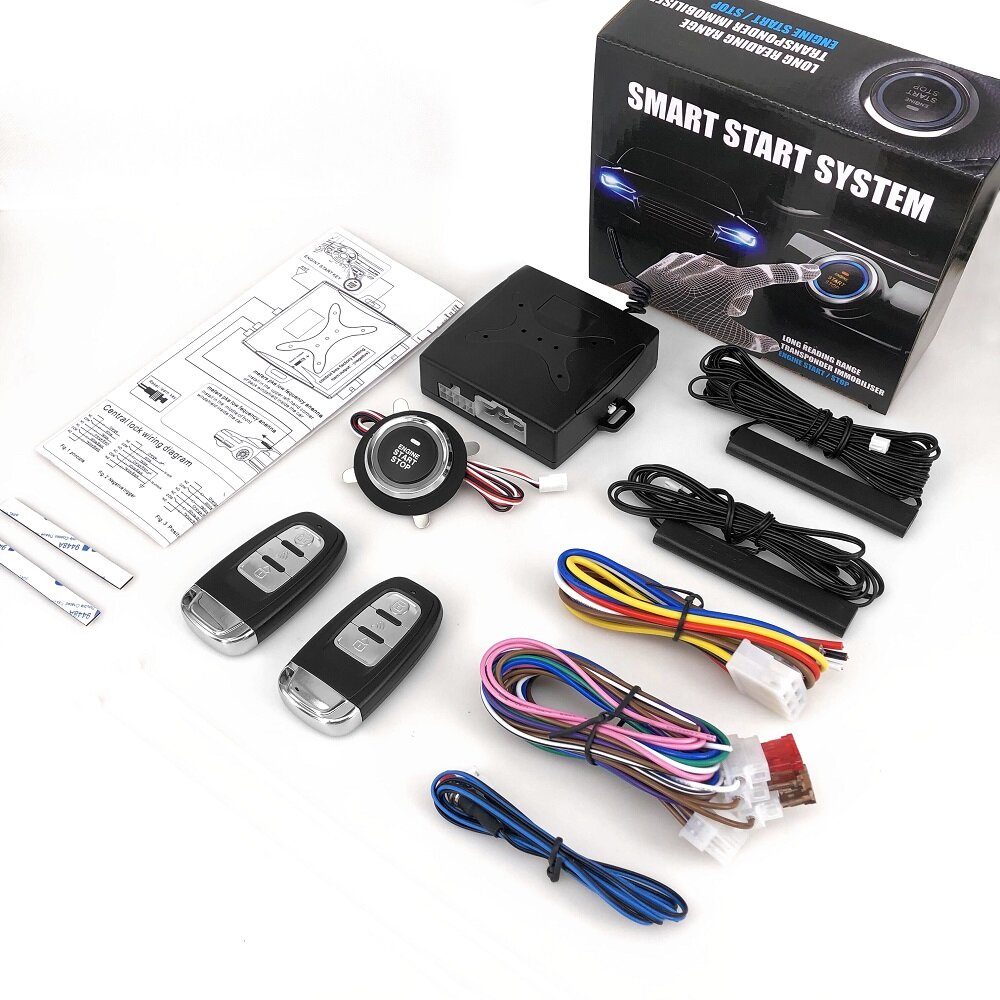

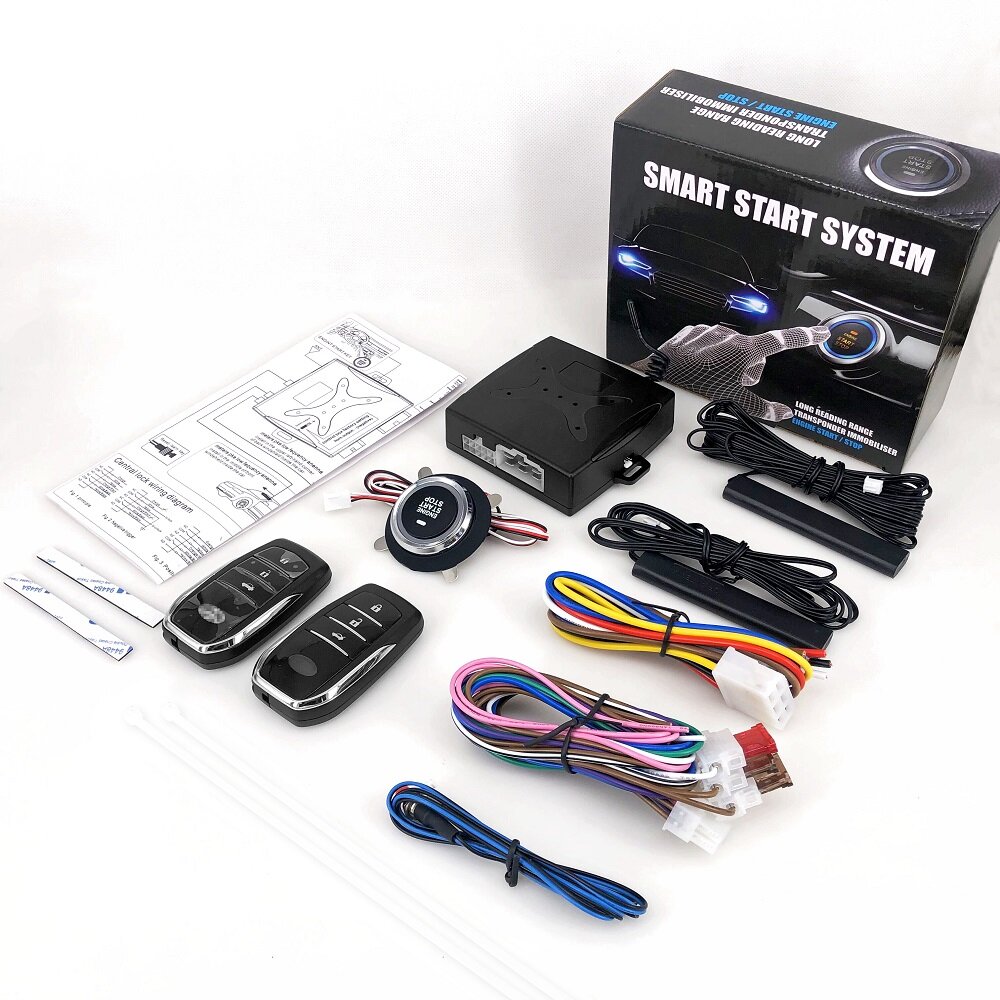

Manlubao SQ8807 Smart Carl alarm remote push start system keyless entry

Description :

1.Passive Alarm/Lock status:

When the remote is taken out of 3-5 meters, siren will

sound one time, then the system will be in alarming

status automatically and lock car door automatically

under the mute mode, siren not sounds.

2.Passive Disalarm/Unlock status:

When the remote is within 2 meters, then system will

be automatically in disalarm status and unlock, under

the mute mode, siren not sounds.

3.Mute Arm or Disarm:

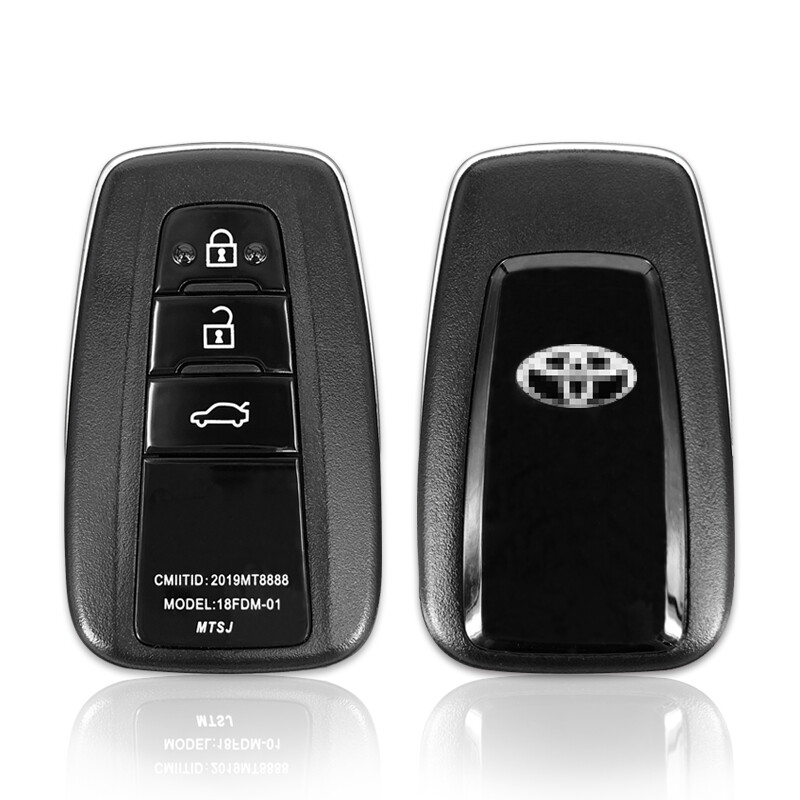

Manually press remote middle button one time,system

is in the mute arm status,if want to exit mute mode,

press remote unlock button one time,and then press

middle button onetime under the mute mode,no siren

sound when trigger alarm.

4.PKE Function Enable&Disable:

4.1)In disarm status, hold the lock button+unlock

button concurrently for 6 seconds; the siren will

sound once, it indicates that the alarm system’s PKE

function is enabled,under this mode, only remote lock

and unlock car door,however, if repeat same action

again, the siren sounds three times, PKE function

is disabled!

4.2)if not use remote more than 2days,PKE function

will be auto off, this feature is to save remote power!

5.Remote engine start Instructions:

5.1)In armed mode, pressand hold the remote lock button

morethan 5 seconds, siren sounds 1 time, engine attemps

to start. if you want to remote stop engine, please excute

above same operation.

5.2)Remote start car engine, car engine will be off

automatically within 10 minutes if you have not

unlocked the car door and step on the brake.

5.3)If engine is running ,it won’t be auto off if smart

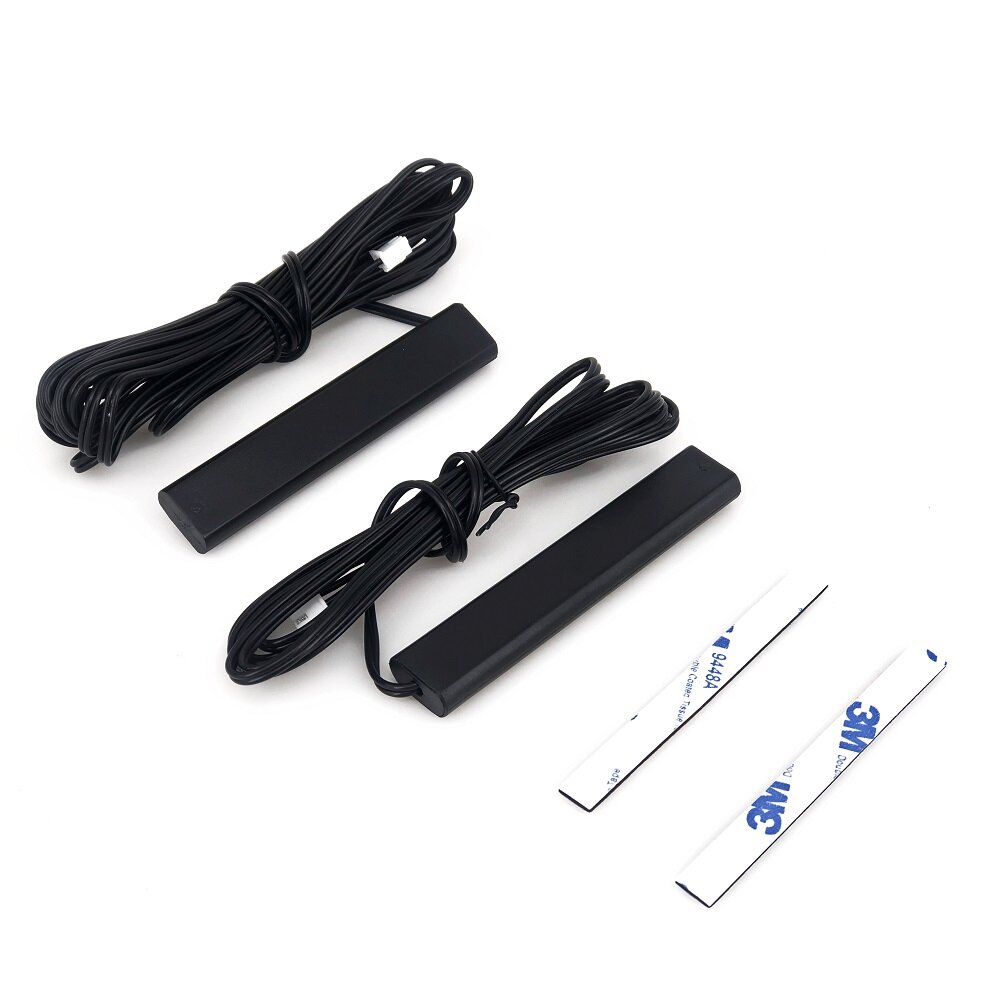

keys are out of the pke antennas induction range. this

is for safety purpose.

5.4)If engine is under the off status, smart key is out of

the pke antenna induction range, anyone could not

start and drive the car without smart key, this is smart

key identification recognized function.

5.5)Remember to keep the car gear on neutral position

if you want to remote start!

5.6)Remote to connect black oil path wire if you want

to remote start! oil path wire is positive power, it has

power only when start, but after engine is stopped, oil

path wire has not any power!

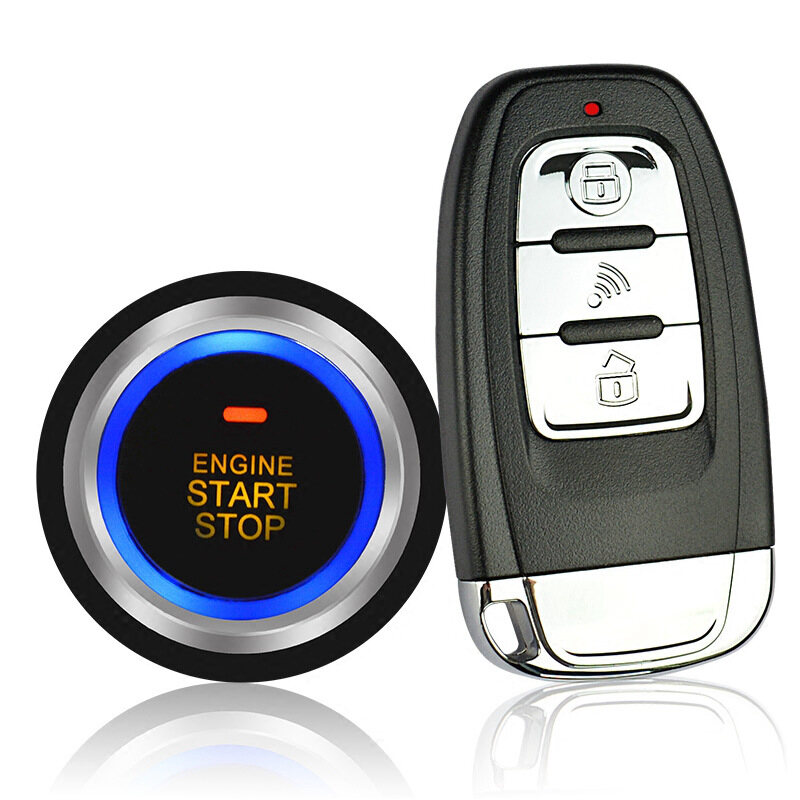

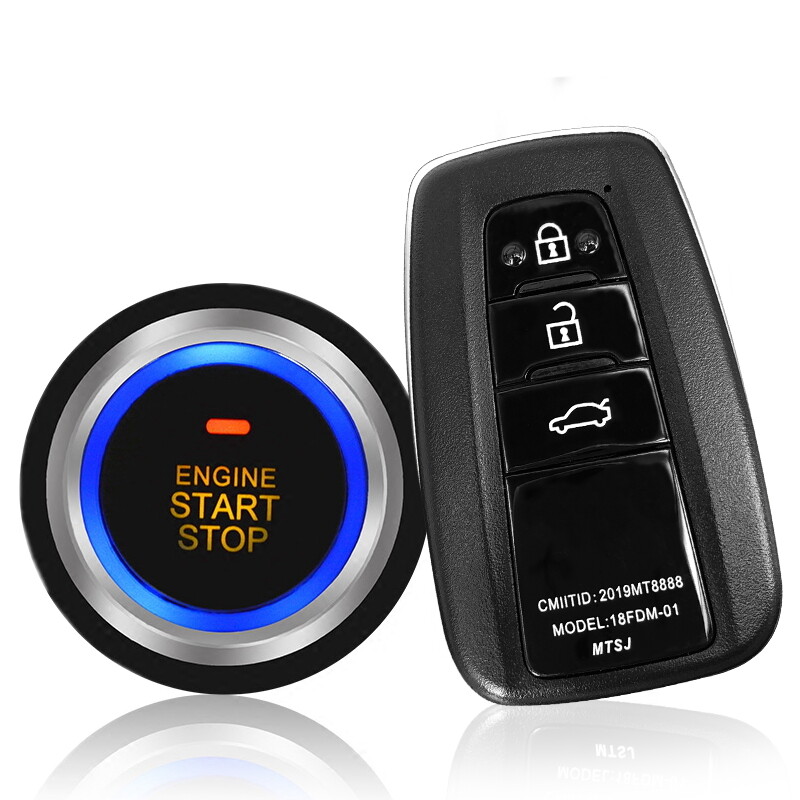

6.Push start /stop engine:

12.1)Unlock car door,tread the brake,press button once

to start or stop engine;

12.2)Unlock car door,in the winter,press the brake,

press and hold on the button to start /stop engine;

12.3)Unlock car door, without pressing the brake,

press and hold on the button to start engine!

12.4)Unlock car door, without pressing the brake,press

button each time,it will be ACC-ON-OFF as a circle!

7.Central lock Automatication:

Open the car door, tread the footbrake, start car

engine,after 15 seconds, car doors will be locked

automatically, in driving; after turning off the car

engine,car all doors will be automatically unlocked.

8.Alarm:

6.1)Without smart key nearby car, the engine will be

shut off.

6.2)Car is working,smart key is out, when the car shut

off engine and open the door,system enter into alarm

status,car won’t be started.

6.3)In alarm, illegal tread foot brake, siren will sound

25 seconds .
