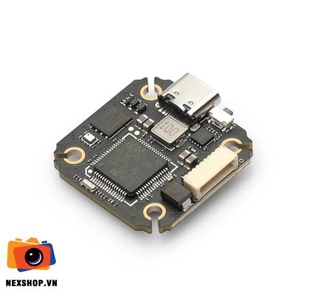

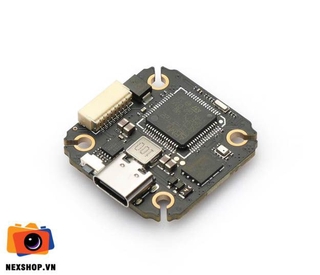

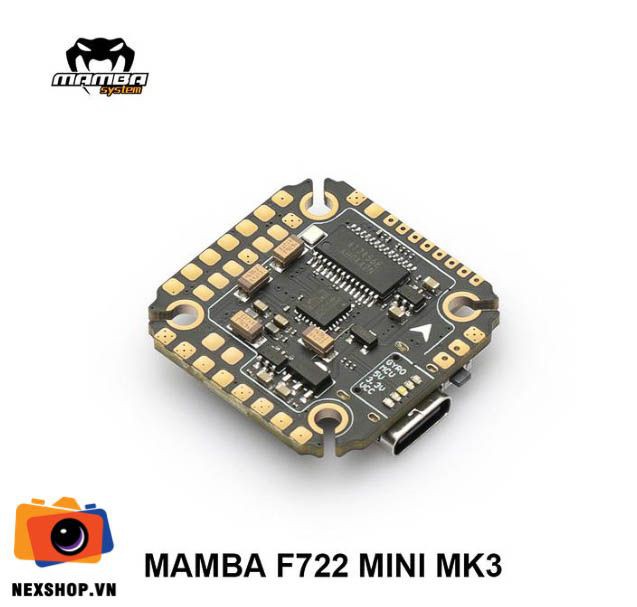

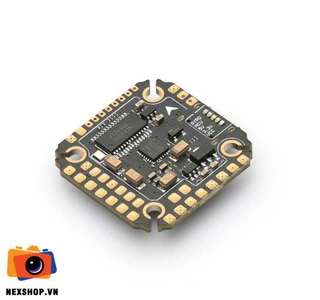

MAMBA Basic F722 Mini MK3 FC

MAMBA | Super Big Soldering Pad MAMBA Basic F722 MINI MK3 Diagram Link From Help Centre Link Fixed Add I2C function When you connect the USB, the receiver and OSD settings can be saved Increase the pad area LED signal selection （when Mamba Led sys avaiable） BEC short circuit protection TVS instant high voltage protection 30V Update Upgrade the anti-interference cable Use Typec（Most） The pad area of the Mini flight controller (20×20) increased by 140% Added Add self-recovery insurance to the receiver's 5V power supply. Increase the camera VCC power supply pad. The standard flight controller (30.5×30.5) adds a spare pad. Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference. Specification： Mamba Basic F722 MINI MK3 FC MCU: 216MHz STM32F722RET6 IMU: MPU6000 Barometer: Yes OSD: Yes Blackbox: 16M Flash Memory Uarts: 6 Set ESC Soft: Dshot300/600/1200 ESC Telemetry: Yes Power Led: Yes LED Controller:BF LED F.Port: Yes RSSI: Yes Buzz: Yes Input: 2~6S Lipo (8.4~25.2V) TVS Protection: Yes BEC:3.3V 0.5A&5V 2.5A MOUNTING: 20mm,M2
