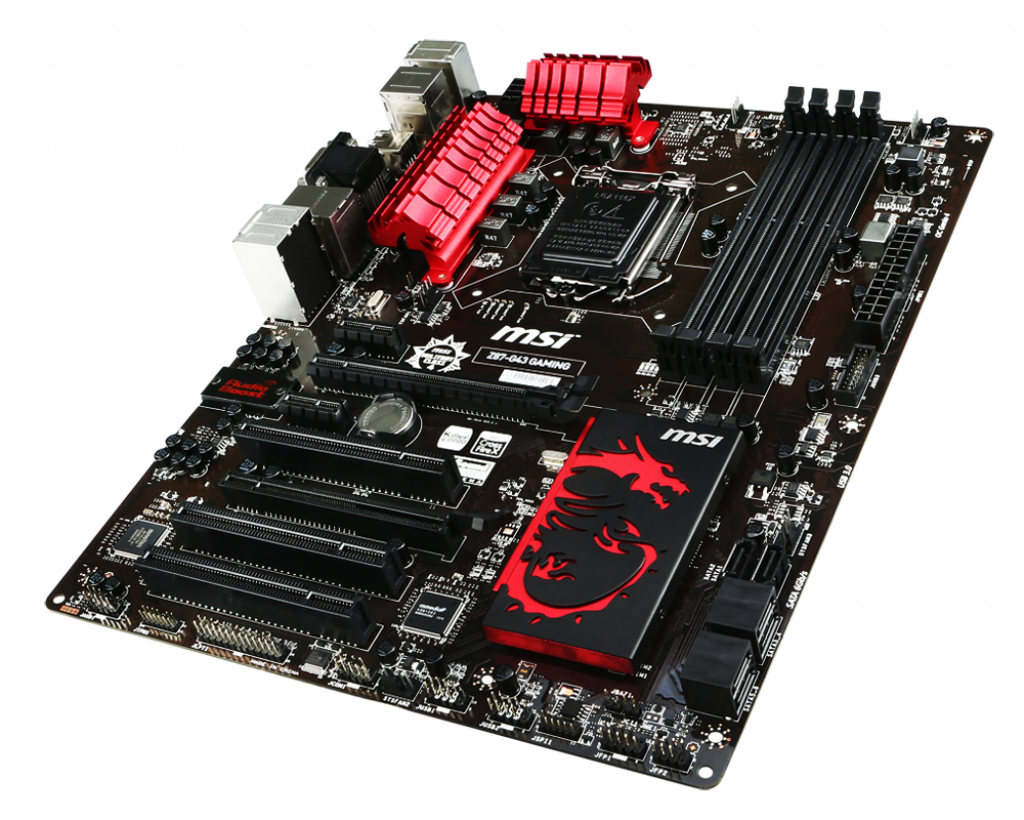

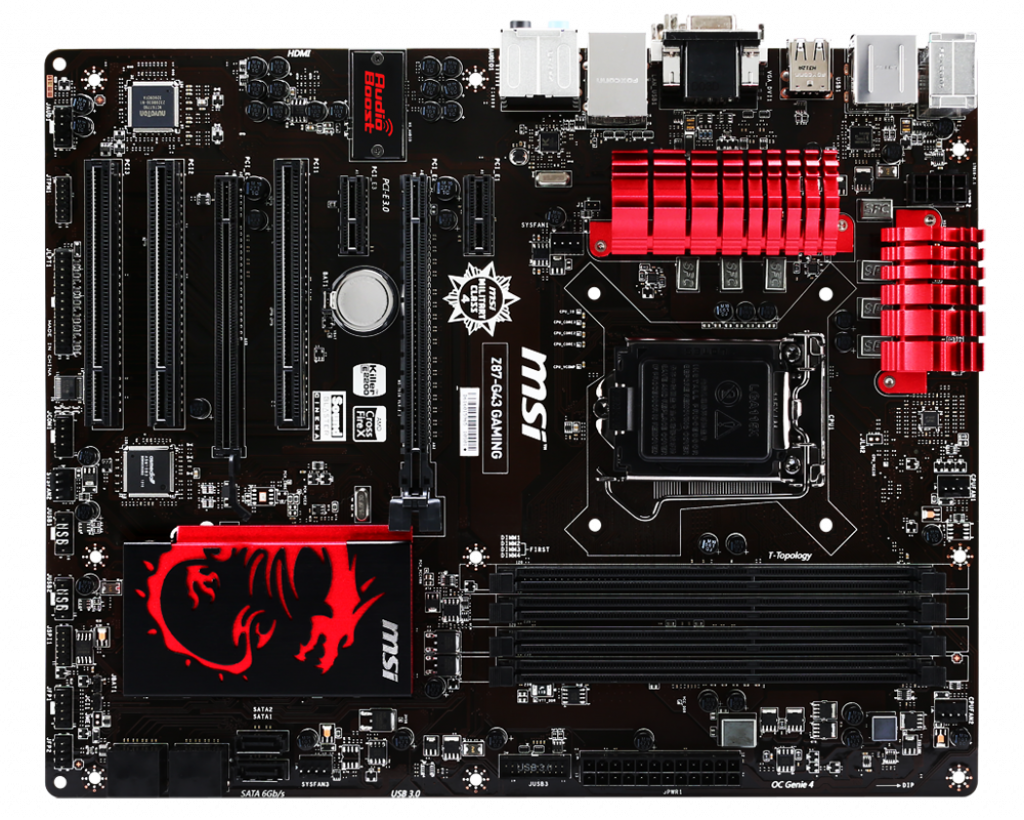

Mainboard Z87-G43 GAMING (Socket 1150, DDRAM3)

CPU

• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset

• Intel® Z87 Express Chipset Main

Memory

• Support four DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(*OC) MHz DRAM, 32GB Max - Dual channel memory architecture - Supports Intel® Extreme Memory Profile (XMP) - Supports non-ECC, un-buffered memory Slots

• 1 x PCIe 3.0 x16 slot, supports up to PCIe 3.0 x16 speed

• 1 x PCIe 2.0 x16 slot, supports up to PCIe 2.0 x4 speed • 2 x PCIe 2.0 x1 slots

• 3 x PCI slots On-Board SATA

• SATAIII controller integrated in Intel® Z87 chipset - Up to 6Gb/s transfer speed. - Supports six SATA ports (SATA1~6) by Z87

• RAID - SATA1~6 ports support Intel Rapid Storage Technology enterprise (RAID 0/1/5/10) by Intel Z87 - Supports Intel® Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology* ** Supports Intel Core processors on Windows 7 and Windows 8. USB

• 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connector) • 10 x USB 2.0 ports (6 ports on the back panel, 4 ports available through the internal USB connectors) Audio • Realtek® ALC1150 Codec - 7.1-Channel High Definition Audio LAN

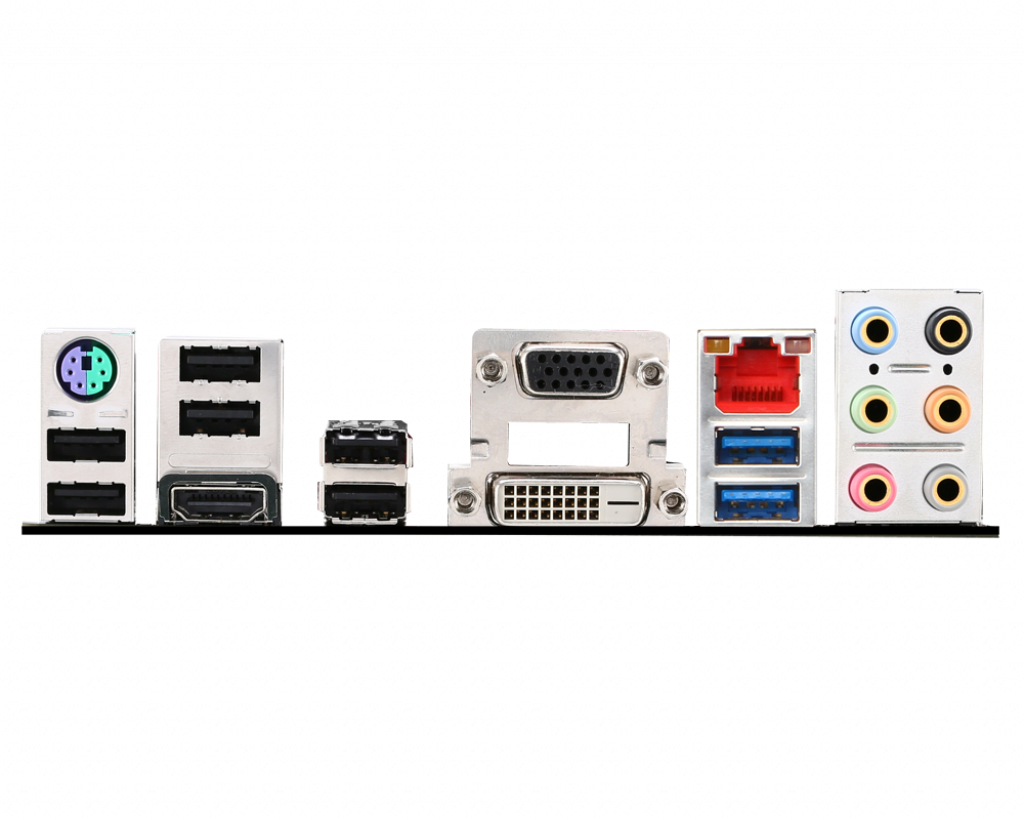

• 1x Killer E2205 Gigabit LAN controller* * The Killer Network Manager is only available for Windows 7 and Windows 8 currently. The supported drivers for other operating systems would be available on the website if provided by vendor. Multi-GPU • Supports 2-Way AMD CrossFireTM Technology* * Supports Windows 7 and Windows 8. Internal I/O Connectors - ATX 24-Pin power connector - 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports) - 2 x 4-pin CPU fan connectors - 3 x 4-pin system fan connectors - 1 x Trusted Platform Module (TPM) header - 1 x Serial port connector - 1 x Front Panel Audio connector - 2 x System panel connectors - 1 x Chassis Intrusion connector - 1 x Parallel port connector - 1 x Clear CMOS jumper Back Panel I/O Ports - 1 x PS/2 keyboard/mouse combo port - 6 x USB 2.0 ports - 2 x USB 3.0 ports - 1 x RJ45 LAN jack - 6 x OFC audio jacks - 1 x Graphics card port, supporting a maximum resolution of 1920x1200 @60Hz - 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160 @24Hz, 24bpp/ 2560x1600@60Hz, 24bpp/ 1920x1080@60Hz, 36bpp
