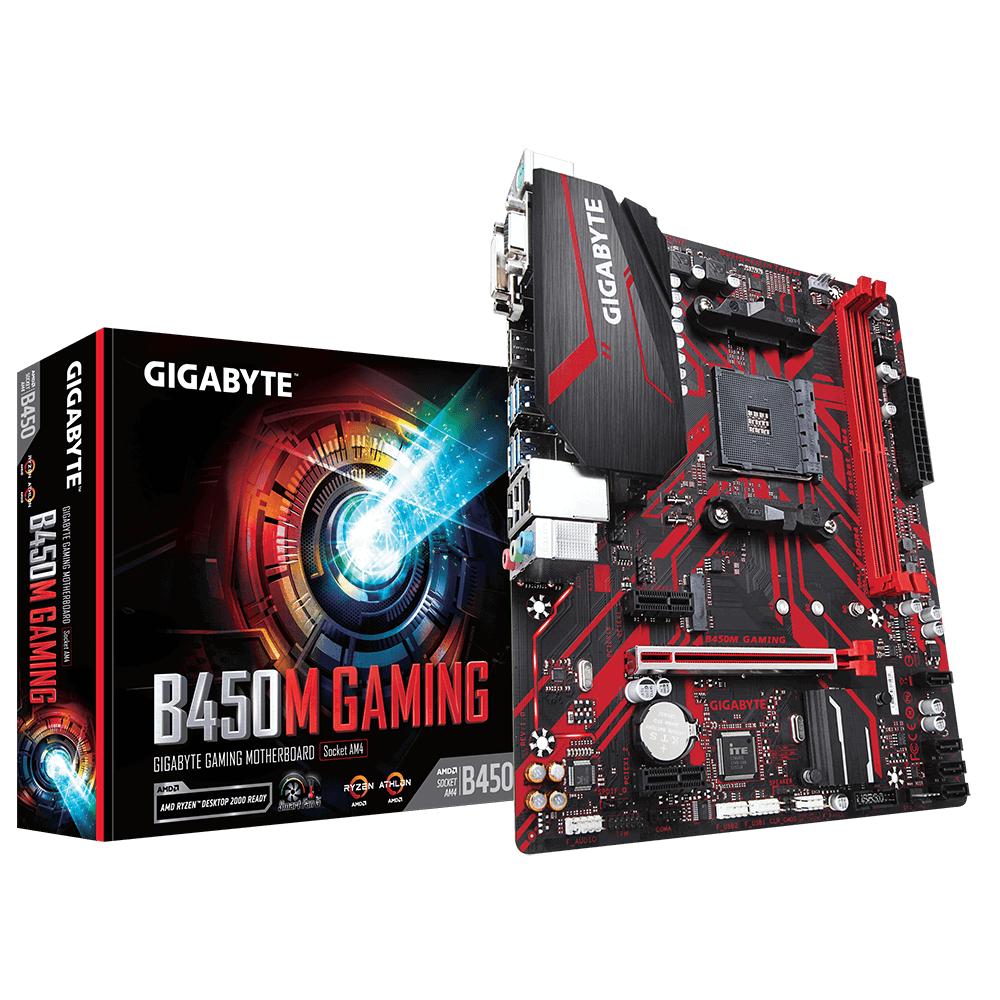

Mainboard Gigabyte B450M GAMING

- Socket: AM4 Cho CPU AMD Ryzen
- Kích thước: m-ATX
- Khe cắm RAM: 2 khe (Tối đa 32GB DDR4 2933/2667/2400/2133 MHz)
- Khe cắm mở rộng: 1 x PCI Express x16 slot, 2 x PCI Express x1 slot

• CPU
  AM4 Socket:

  1. AMD Ryzen™ 2nd Generation processors
  2. AMD Ryzen™ with Radeon™ Vega Graphics processors
  3. AMD Ryzen™ 1st Generation processors

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. AMD B450
• Bộ nhớ
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2933/2667/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợp
  Integrated Graphics Processor:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.0 version and HDCP 2.2.
     * Actual support may vary by CPU.

  Maximum shared memory of 2 GB
• Âm thanh
  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
• LAN
  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16
     (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slot
     (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
• Giao diện lưu trữ
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
     * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor.
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10
• USB
  Chipset:

  1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

  CPU:

  1. 4 x USB 3.1 Gen 1 ports on the back panel
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x CPU cooler LED strip/RGB LED strip header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
  14. 1 x speaker header
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x chassis intrusion header
• Kết nối bảng phía sau
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 1 x HDMI port
  6. 4 x USB 3.1 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks
• Điều khiển I/O
  1. iTE^® I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     Smart Survey
     System Information Viewer
     USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
• Gói phần mềm
  1. Norton^® Internet Security (OEM version)
  2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
• Hệ điều hành
  1. Support for Windows 10 64-bit
• Hệ số khuôn
  1. Micro ATX Form Factor; 24.4cm x 20.5cm
