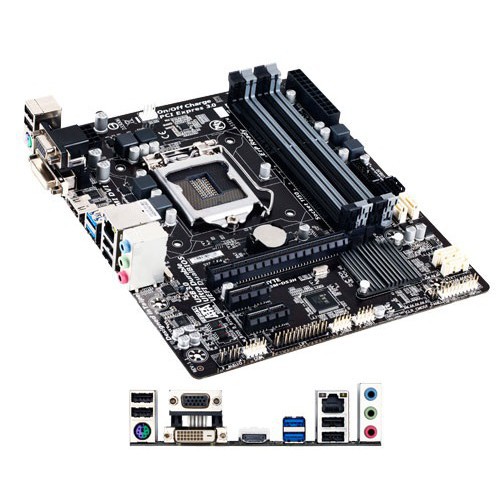

Mainboard máy tính Socket 1150 : Gigabyte B85M - D3V 4 KHE RAM Cao Cấp

CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1150 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® B85 Express Chipset Bộ nhớ 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Card đồ họa tích hợp Integrated Graphics Processor - Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x DVI-D port, supporting a maximum resolution of 1920x1200 * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version. Maximum shared memory of 1 GB Âm thanh Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) Giao diện lưu trữ Chipset: 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) 2 x SATA 3Gb/s connectors (SATA2 4/5) USB Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Kết nối I/O bên trong 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper Kết nối bảng phía sau 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) ---------------------------------------------------------------------------------------------------------------------- ╔═══════════════════════════════════════════════════════╗ Tin Học Hoàng Phát Điểm đến của sự Uy Tín - Nhiệt Tính - Chân Thành và Trách Nhiệm ╚═══════════════════════════════════════════════════════╝ HOTLINE TƯ VẤN MIỄN PHÍ: 📞 0933 608 679 MR.HOÀN 📞 0985 2000 86 MR.TÚ 🏡 Đỉa Chỉ : 169/19 Nguyễn Tư Giản, P.12, Q.Gò Vấp
