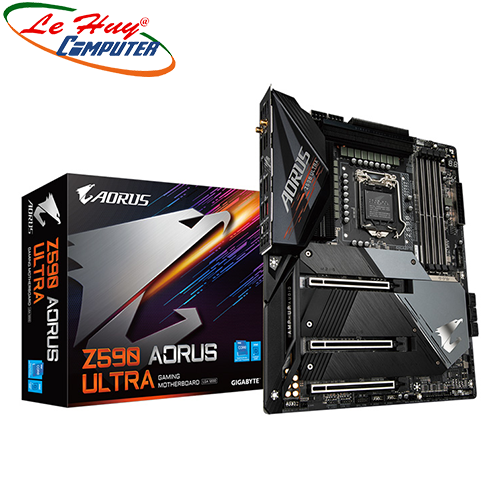

Mainboard GIGABYTE Z590 AORUS ULTRA

• Bo mạch chủ chipset Z590
• Kích thước: ATX
• 4 khe ram
• Socket LGA 1200

Thông số kỹ thuật

Model	Z590 AORUS ULTRA
CPU hỗ trợ	Intel
Chipset	Z590
RAM hỗ trợ	4 x DDR4 DIMM, Max 64GB Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
Ổ cứng hỗ trợ	CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* Chipset: 1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x Clear CMOS jumper 2 x temperature sensor headers
Cổng kết nối (Back Panel)	1 x DisplayPort 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
LAN / Wireless	LAN: Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Intel® Wi-Fi 6 AX200 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 5.1 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ	ATX Form Factor 30.5 cm x 24.4cm

Giá Mainboard GIGABYTE Z590 AORUS ULTRA mới nhất

1. Mainboard GIGABYTE Z590 AORUS ULTRA bán tại Lazada giá 8.800.000₫
2. [Mã ELMS05 giảm 5% đơn 300k]Mainboard GIGABYTE Z590 AORUS ULTRA bán tại Shopee giá 8.800.000₫
3. Mainboard Gigabyte Z590 AORUS ULTRA (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4) bán tại Phúc Anh giá 9.199.000₫
4. Mainboard Gigabyte Z590 AORUS ULTRA (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4) bán tại HanoiComputer giá 9.199.000₫
5. Gigabyte Z590 AORUS ULTRA (Rev 1.0) - Socket 1200 bán tại Tân Doanh giá 9.200.000₫
