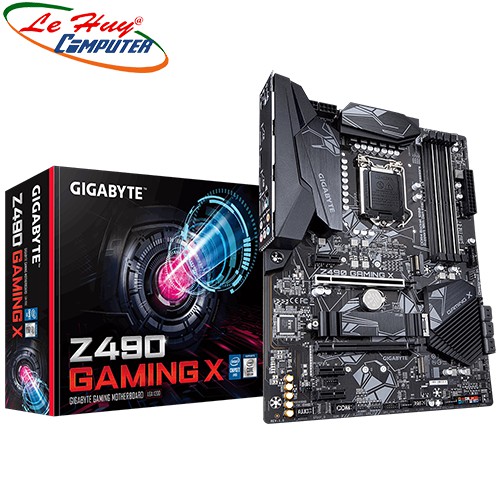

Mainboard GIGABYTE Z490 GAMING X

Sản phẩm Bo mạch chủ Tên Hãng GIGABYTE Model Z490 GAMING X CPU hỗ trợ Intel Chipset Z490 RAM hỗ trợ 4 x DDR4 DIMM sockets supporting up to 128 GB, Support for DDR4 3200/2933/2666/2400/2133 MHz memory modules Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 3 x PCI Express x1 slots Ổ cứng hỗ trợ 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Cổng kết nối (Back Panel) 1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 5 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks LAN / Wireless Intel® GbE LAN chip (1000 Mbit/100 Mbit) Kích cỡ ATX Form Factor; 30.5cm x 23.0cm
