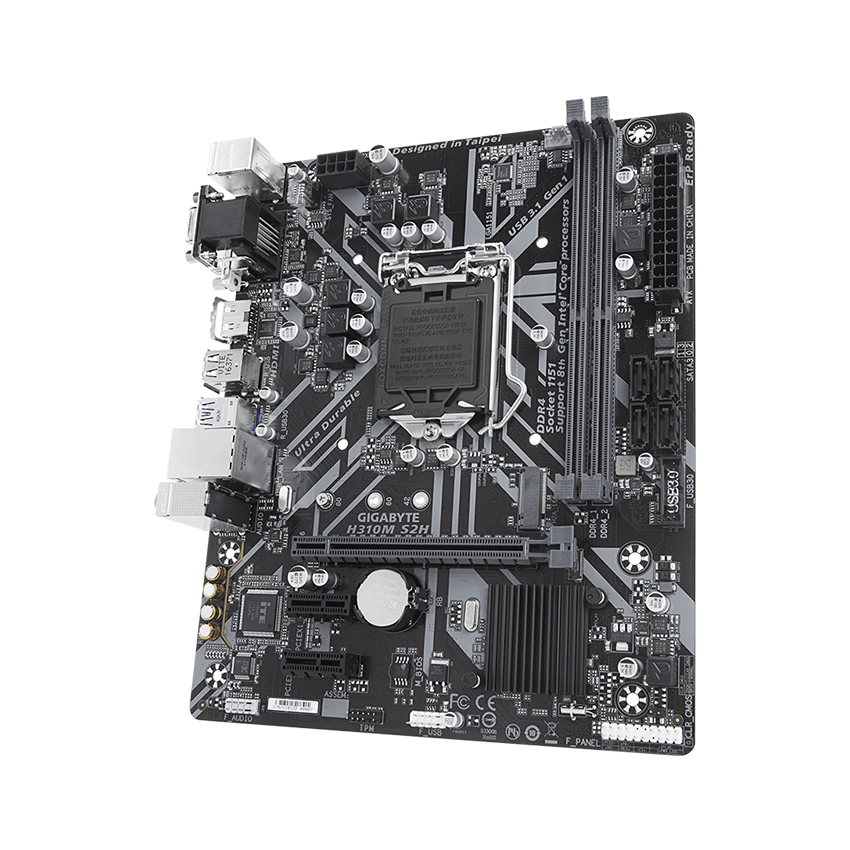

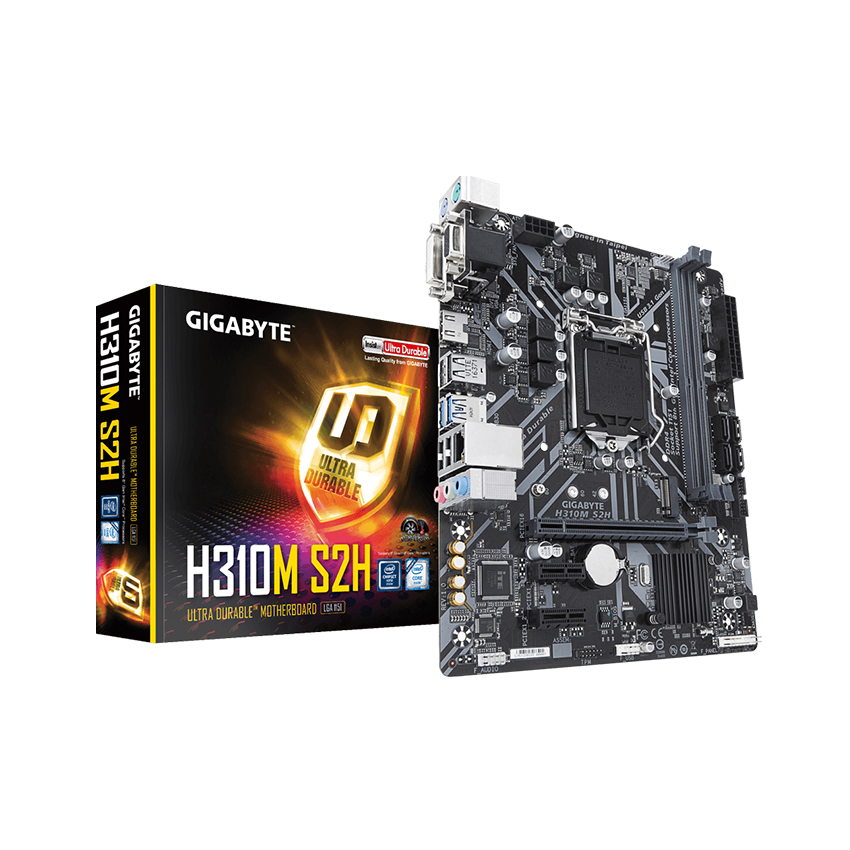

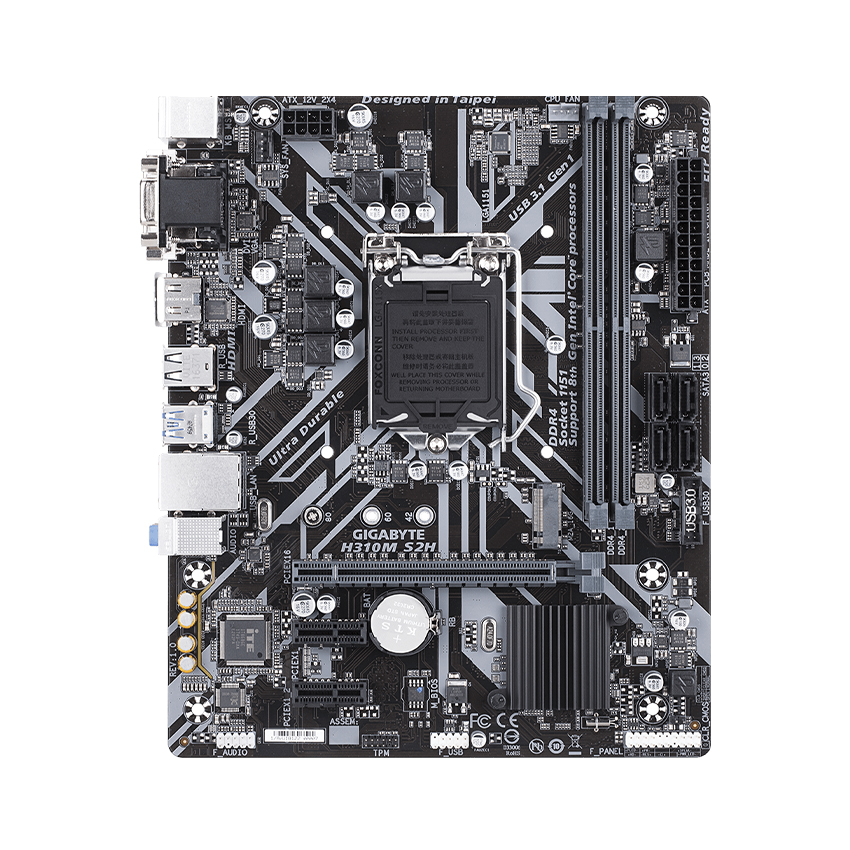

Mainboard Gigabyte H310M-S2H

THÔNG SỐ KỸ THUẬT Sản phẩm Bo mạch chủ Tên Hãng GIGABYTE Model H310M S2H CPU hỗ trợ Intel Chipset H310 RAM hỗ trợ 2 x DDR4 memory DDR4 2666/2400/2133 MHz memory modules Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) Ổ cứng hỗ trợ 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Cổng kết nối (Back Panel) 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks LAN / Wireless Realtek® GbE LAN chip (10/100/1000 Mbit) Kích cỡ 22.6cm x 18.5cm m-ATX Form Factor
