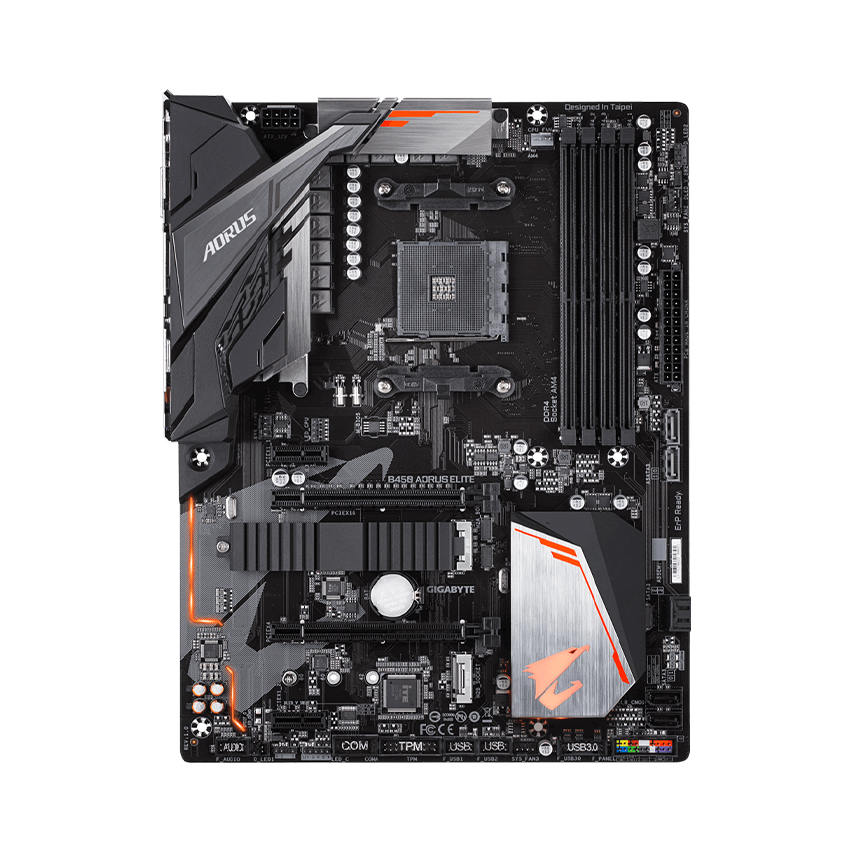

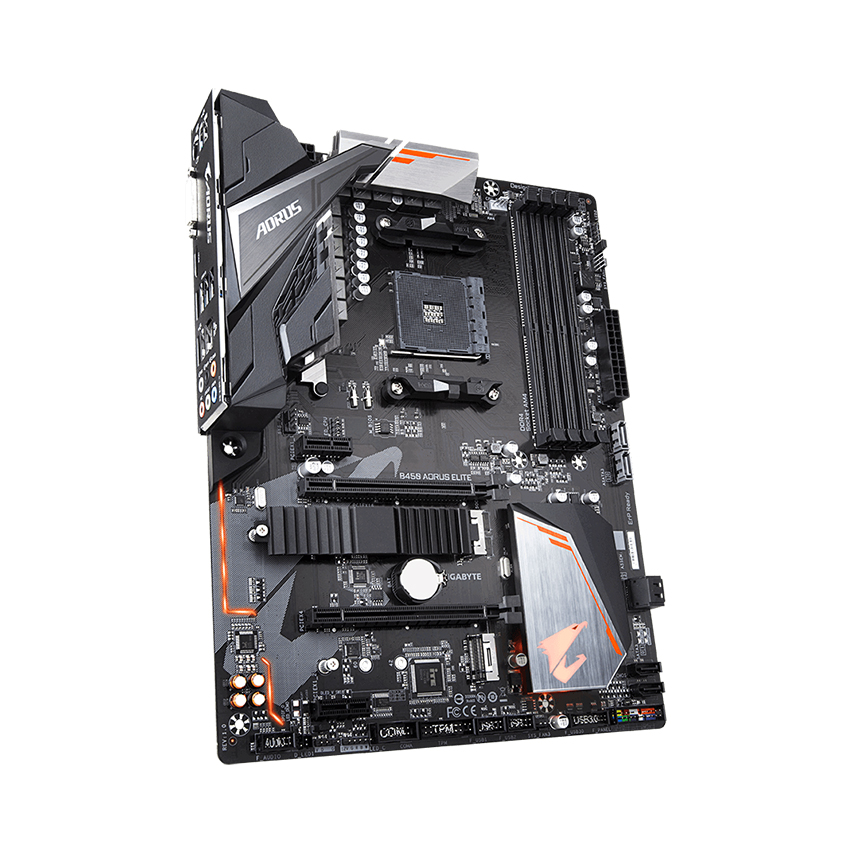

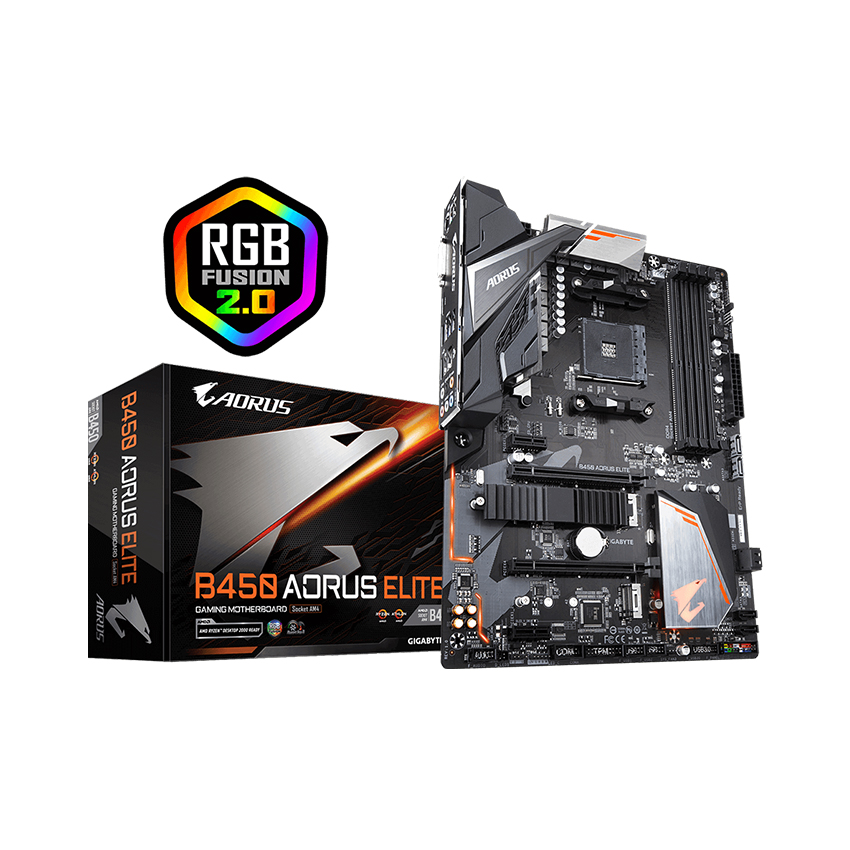

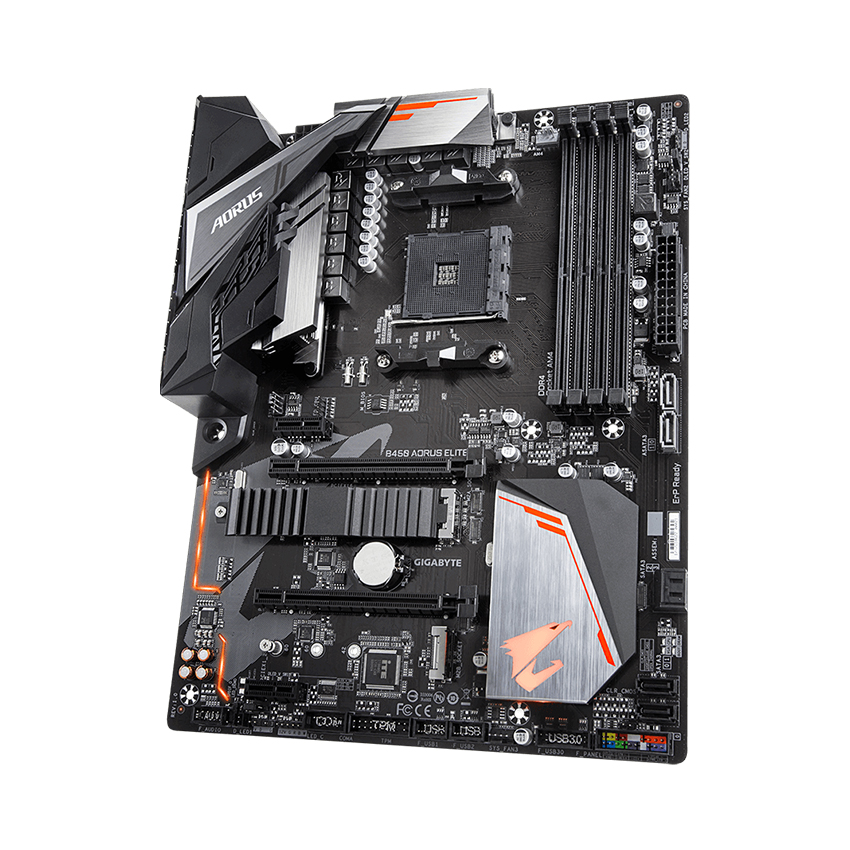

Mainboard Gigabyte B450 Aorus-Elite

Thông số kỹ thuật

Kích thước	Micro ATX
Socket	AM4
Chipset	B450
Loại Ram hỗ trợ	4 x DDR4, tối đa 64GB
Bus RAM hỗ trợ	3600(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 MHz
Giao diện lưu trữ	6 x SATA 3 6Gb/s, 2 x M.2 SATA/NVMe
Khe PCI	1 x PCI Express x16, chạy x16 1 x PCI Express x16, chạy x4 2 x PCI Express x1, chạy x4
Hỗ trợ Đa GPU	AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™
LAN	Realtek®GbE LAN chip (10/100/1000 Mbit)
Wifi và Bluetooth	Không
Âm thanh	Realtek®ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

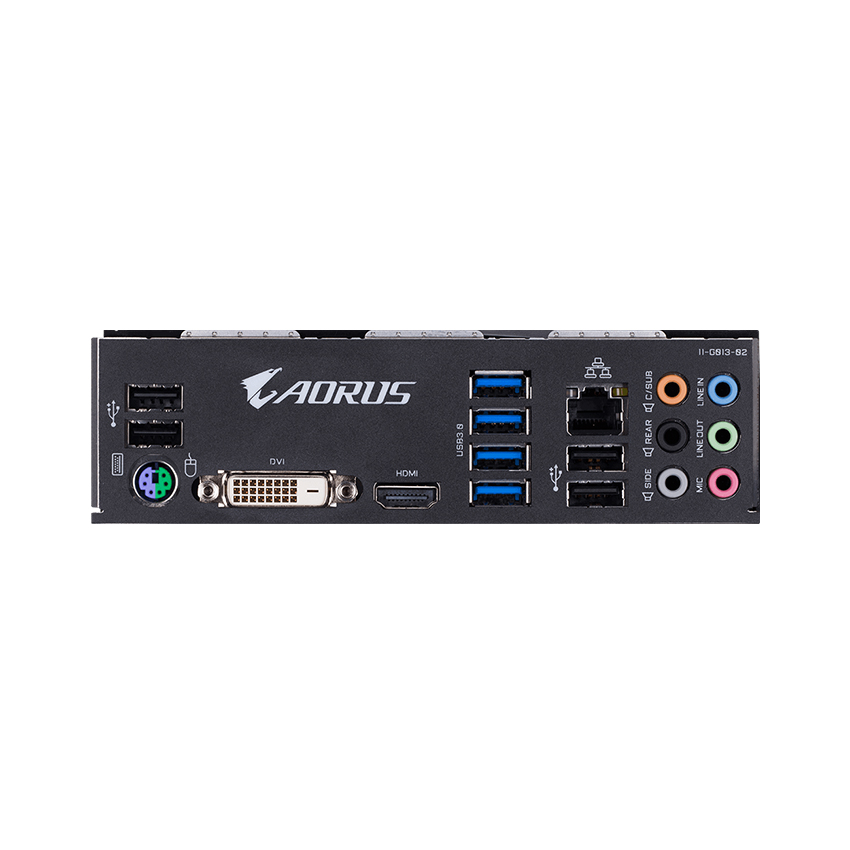

Kết nối Back Panel	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Kết nối Internal I/O	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip extension cable header 1 x RGB (RGBW) LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
