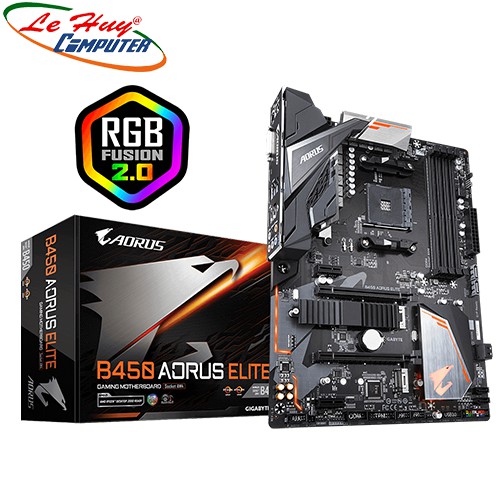

Mainboard GIGABYTE B450 Aorus Elite

Sản phẩm Bo mạch chủ Tên Hãng GIGABYTE Model B450 Aorus Elite CPU hỗ trợ AMD Chipset B450 RAM hỗ trợ 4 x DDR4 DIMM slots, support up to 64GB DDR4 2933/2667/2400/2133 MHz Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots Ổ cứng hỗ trợ 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) 6 x SATA 6Gb/s connectors Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip extension cable header 1 x RGB (RGBW) LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header1 x Clear CMOS jumper Cổng kết nối (Back Panel) 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks LAN / Wireless Realtek® GbE LAN chip (10/100/1000 Mbit) Kích cỡ ATX Form Factor; 30.5cm x 23.5cm
