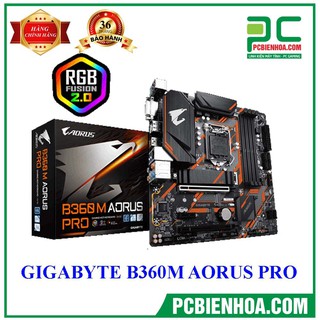

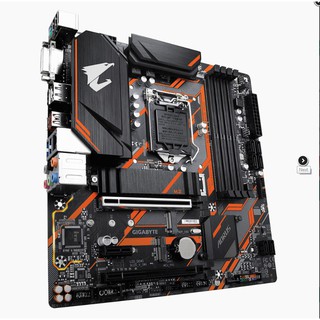

Mainboard Gigabyte B360M AORUS PRO

- Chipset: Intel B360
- Socket: LGA1151
- Kích thước: mATX

• CPU
  1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  2. L3 cache varies with CPU
• Chipset
  1. Intel^® B360 Express Chipset
• Bộ nhớ
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
     * To support 2666 MHz or XMP memory, you must install an 8th Generation (or later) Intel^® Core™ i7/i5 processor.
• Card đồ họa tích hợp
  Integrated Graphics Processor-Intel ^® HD Graphics support:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.2.

  Maximum shared memory of 1 GB
• Âm thanh
  1. Realtek^® ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Intel^® GbE LAN chip (10/100/1000 Mbit)
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  4. 1 x M.2 Socket 1 connector for an Intel^® CNVi wireless module only (CNVI)
• Giao diện lưu trữ
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
  3. 6 x SATA 6Gb/s connectors
     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  Intel ^® Optane™ Memory Ready
• Công nghệ đa card đồ họa
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• USB
  Chipset:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
  3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  4. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
     * The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 2 x addressable LED strip headers
  6. 2 x addressable LED strip power select jumpers
  7. 2 x RGB LED strip headers
  8. 6 x SATA 6Gb/s connectors
  9. 2 x M.2 Socket 3 connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x S/PDIF Out header
  13. 1 x USB 3.1 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  16. 1 x serial port header
  17. 1 x Clear CMOS jumper

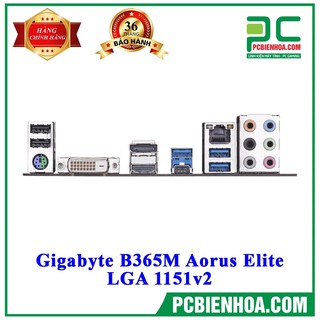

• Kết nối bảng phía sau
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  6. 1 x USB 3.1 Gen 2 Type-A port (red)
  7. 2 x USB 3.1 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 6 x audio jacks
• Điều khiển I/O
  1. iTE^® I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     RGB Fusion
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     System Information Viewer
     USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
• Gói phần mềm
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
• Hệ điều hành
  1. Support for Windows 10 64-bit
• Hệ số khuôn
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
