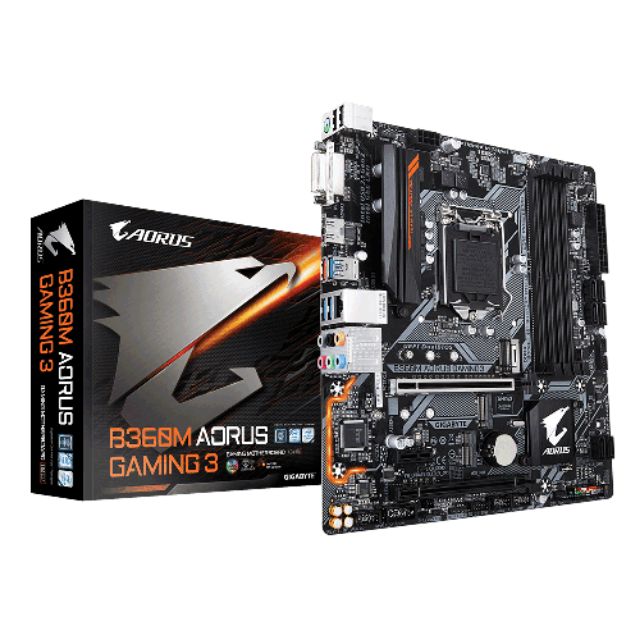

Mainboard Gigabyte B360M Aorus Gaming 3

CPU hỗ trợ Intel® Socket 1151 for 8th Generation Core™ Processors Chipset / Socket Intel® B360 Bộ nhớ (RAM) • 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory • Dual Channel Memory Architecture • Supports Intel® Extreme Memory Profile (XMP) Công nghệ đa GPU • AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Khe cắm mở rộng • 1 x PCI Express x16 slot, running at x16 (PCIEX16) • 1 x PCI Express x16 slot, running at x4 (PCIEX4) • 1 x PCI Express x1 slot • 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only LAN / Wireless • Intel® GbE LAN chip (10/100/1000 Mbit) Âm thanh • Realtek® ALC892 codec Cổng kết nối (Internal) • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 1 x CPU fan header • 3 x system fan headers • 2 x digital LED strip headers • 2 x digital LED strip power select jumpers • 2 x RGB (RGBW) LED strip headers • 6 x SATA 6Gb/s connectors • 2 x M.2 Socket 3 connectors • 1 x front panel header • 1 x front panel audio header • 1 x S/PDIF Out header • 1 x USB 3.1 Gen 1 header • 2 x USB 2.0/1.1 headers • 1 x Trusted Platform Module (TPM) header • 1 x serial port header • 1 x Clear CMOS jumper Cổng kết nối (Back Panel) • 1 x PS/2 keyboard/mouse port • 1 x DVI-D port • 1 x HDMI port • 1 x USB 3.1 Gen 2 Type-A port (red) • 3 x USB 3.1 Gen 1 ports • 2 x USB 2.0/1.1 ports • 1 x RJ-45 port • 6 x audio jacks Công nghệ độc quyền Support for APP Center • 3D OSD • @BIOS • AutoGreen • Cloud Station • EasyTune • Fast Boot • Game Boost • ON/OFF Charge • Platform Power Management • RGB Fusion • Smart Backup • Smart Keyboard • Smart TimeLock • Smart HUD • System Information Viewer • USB Blocker • V-Tuner • Support for Q-Flash • Support for Xpress
