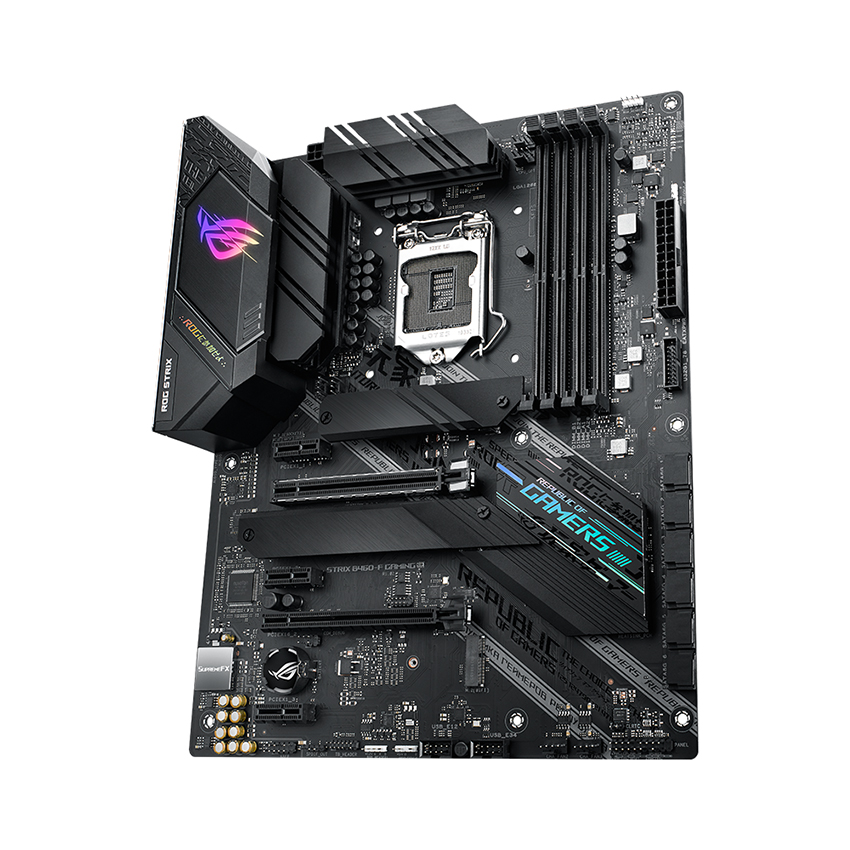

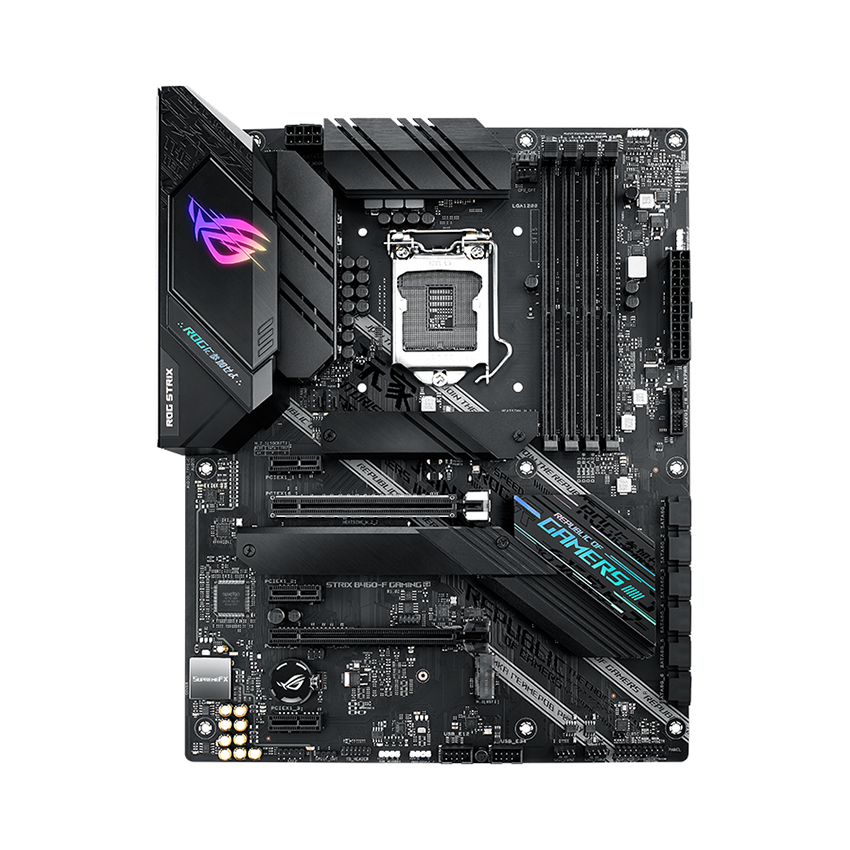

Mainboard ASUS ROG STRIX B460-F GAMING (Intel B460, Socket 1200, ATX, 4 khe Ram DDR4)

Thông số kỹ thuật chi tiết Mainboard ASUS ROG STRIX B460-F GAMING (Intel B460, Socket 1200, ATX, 4 khe Ram DDR4) Sản phẩm Bo mạch chủ Tên Hãng ASUS Model ROG STRIX B460-F GAMING CPU hỗ trợ Intel Chipset B460 RAM hỗ trợ 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Khe cắm mở rộng 1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 Ổ cứng hỗ trợ 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Cổng kết nối (Internal) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector Cổng kết nối (Back Panel) 1 x Intel® I219-V 1Gb Ethernet 1 x DisplayPort 1 x HDMI 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 6 x USB 3.2 Gen 1 1 x USB 2.0 (1 for audio USB Type-C®) 5 x Audio jack(s) 1 x USB BIOS FlashBack™ Button(s) LAN / Wireless Intel® I219-V 1Gb Ethernet ASUS LANGuard Kích cỡ ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
