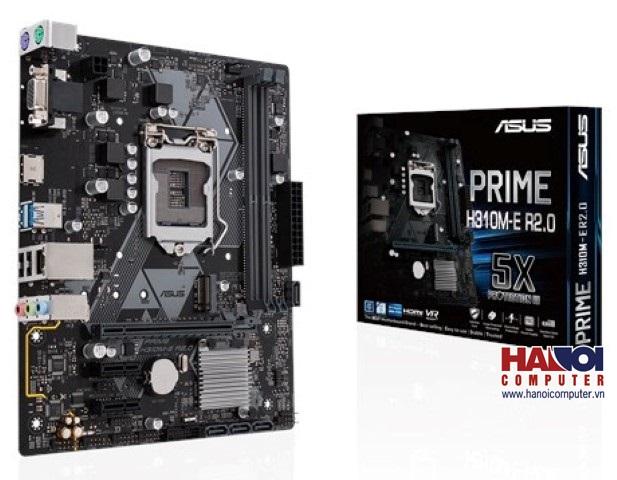

Mainboard ASUS PRIME H310M-E R2.0

Tên gọi	ASUS PRIME H310M-E R2.0
CPU hỗ trợ	Intel® Socket 1151 for 8Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset / Socket	H310
Bộ nhớ (RAM)	-2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory Architecture
Công nghệ đa GPU	- Không hỗ trợ
Khe cắm mở rộng	-1 x PCIe 3.0/2.0 x16 (x16 mode, gray)-2 x PCIe 2.0 x1
LAN	- Realtek® RTL8111H
Âm thanh	- Realtek® ALC887
Cổng kết nối (Internal)	- 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 - PCIE mode)- 1 x TPM header- 1 x COM port(s) connector(s)- 4 x SATA 6Gb/s connector(s)- 1 x CPU Fan connector(s) (1 x 4 -pin)- 1 x Chassis Fan connector(s) (1 x 4 -pin)- 1 x S/PDIF out header(s)- 1 x 24-pin EATX Power connector(s)- 1 x 4-pin ATX 12V Power connector(s)- 1 x Front panel audio connector(s) (AAFP)- 1 x Clear CMOS jumper(s)- 1 x System panel connector- 1 x Speaker connector
Cổng kết nối (Back Panel)	- 1 x PS/2 keyboard (purple)- 1 x PS/2 mouse (green)- 1 x D-Sub- 1 x HDMI- 1 x LAN (RJ45) port(s)- 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps- 2 x USB 2.0- 3 x Audio jack(s)
Công nghệ độc quyền	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 4 Phase digital power design ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features: - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)
Phụ kiện đi kèm	- Hướng dẫn sử dụng- 2 x cáp SATA 6Gb / s- I/O Shield- 1 x DVD hỗ trợ
Hệ điều hành khuyến nghị	- Microsoft Windows 10 64-bit
Chuẩn kích cỡ	Dạng thiết kế mATX9.6 inch x 9.45 inch ( 24.4 cm x 24 cm )
