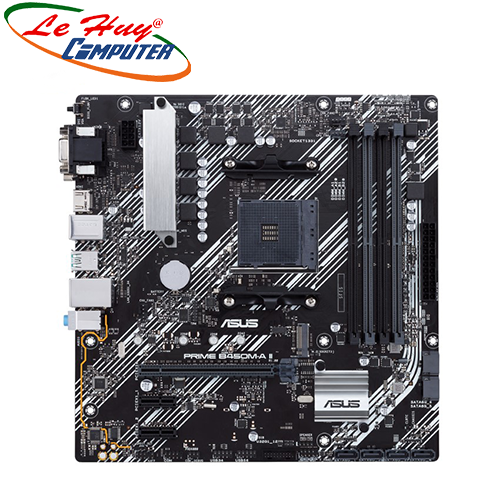

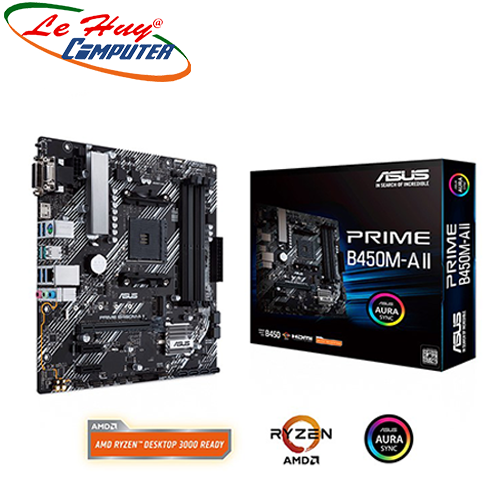

Mainboard ASUS PRIME B450M-A II

Tên gọi	ASUS PRIME B450M-A II
CPU hỗ trợ	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
Chipset / Socket	AMD B450
Bộ nhớ (RAM)	4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Công nghệ đa GPU	AMD 2-Way CrossFireX Technology
Khe cắm mở rộng	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor1 x PCIe 3.0/2.0 x16 (x8 mode) *1AMD B450 chipset2 x PCIe 2.0 x1
LAN / Wireless	Realtek® RTL8111H
Âm thanh	Realtek® ALC887 8-Channel High Definition Audio CODEC
Cổng kết nối (Internal)	1 x CPU Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x COM port header1 x Speaker connector1 x RGB Header

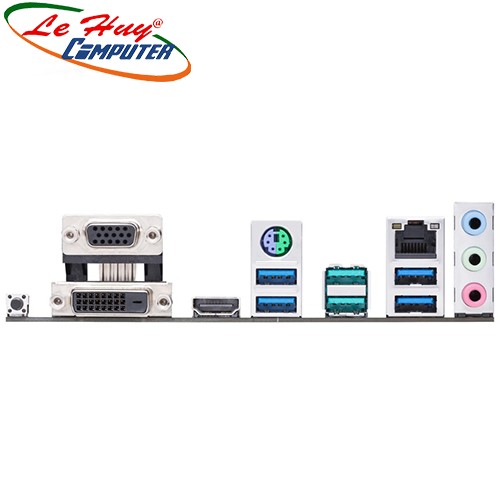

Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)4 x USB 3.2 Gen 1 (blue) Type-A3 x Audio jack(s)1 x BIOS FlashBack™ Button(s)
Công nghệ độc quyền	ASUS 5X Protection IIIASUS Exclusive FeaturesASUS Quiet Thermal SolutionASUS EZ DIYASUS Q-Design
Phụ kiện đi kèm	User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD
Hệ điều hành khuyến nghị	Windows® 10 64-bit
Chuẩn kích cỡ	mATX Form Factor
