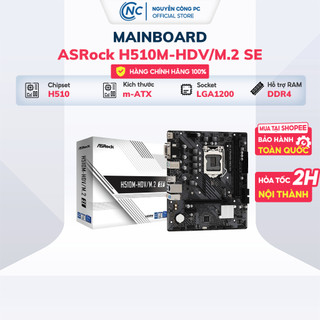

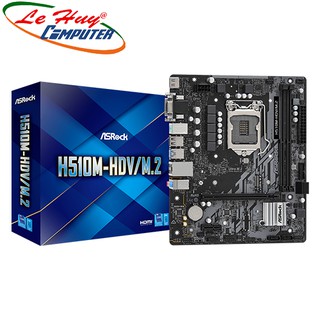

Mainboard ASROCK H510M-HDV/M.2

Socket LGA1200 Chipset Intel® H510 CPU (hỗ trợ tối đa) Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment OS hỗ trợ Microsoft® Windows® 10 64-bit Bộ Nhớ Bộ nhớ RAM tối đa 64 GB Số khe cắm 2 Kênh bộ nhớ Dual RAM Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Nguồn Kích thước nguồn hỗ trợ Micro ATX Form Factor 22.6 cm x 18.8 cm Solid Capacitor design Đồ Họa và Âm Thanh Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection Kết Nối Mạng LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Cổng Kết Nối PS/2 keyboard/ mouse combo port - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) USB 2.0 4 x USB 2.0 Ports (Supports ESD Protection) USB 3.2 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) Cổng Audio HD Audio Jacks: Line in / Front Speaker / Microphone VGA 1 x D-Sub DVI-D có HDMI 1 x HDMI 2.0 Kết Nối I/O Bên Trong SATA III 6Gb/s 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug M.2 SLOT 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) PCI-EX1 1 x PCI Express 3.0 x1 Slot PCI-EX16 11th Gen Intel® Core™ Processors - 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core™ Processors - 1 x PCI Express 3.0 x16 Slot*
