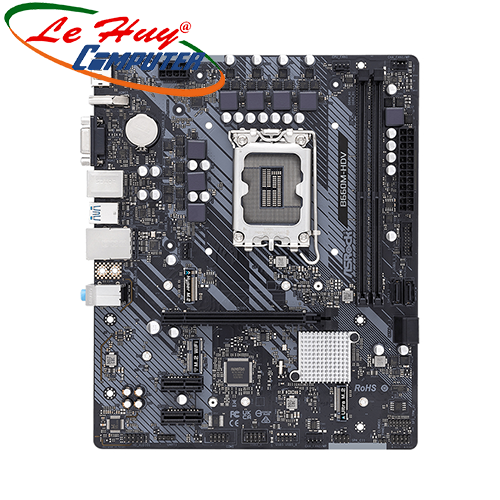

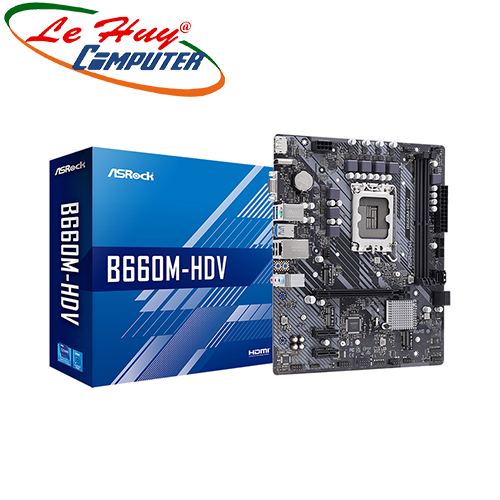

Mainboard ASROCK B660M-HDV DDR4

Sản phẩm	Bo mạch chủ
Tên Hãng	Asrock
Model	B660M-HDV DDR4
CPU hỗ trợ	Intel
Chipset	B660
RAM hỗ trợ	- Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB- Supports Intel Extreme Memory Profile (XMP) 2.0
Khe cắm mở rộng	- 1 x PCIe Gen4x16 Slot*- 2 x PCIe Gen3x1 Slots- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Ổ cứng hỗ trợ	- 4 x SATA3 6.0 Gb/s Connectors*- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
Cổng kết nối (Internal)	- 1 x COM Port Header- 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

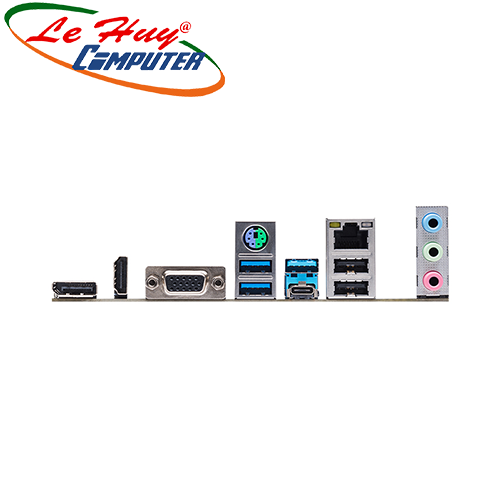

Cổng kết nối (Back Panel)	- 2 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless	- Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports UEFI PXE
Kích cỡ	- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm- Solid Capacitor design
