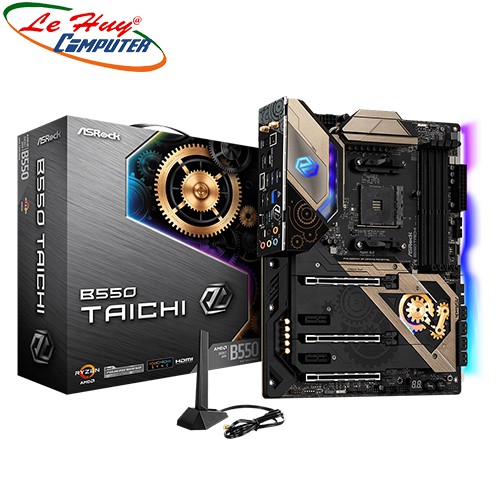

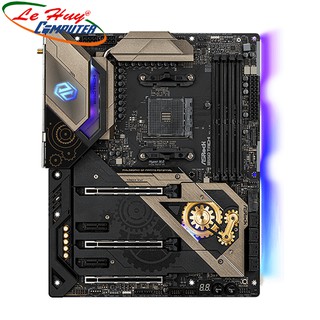

Mainboard ASROCK B550 Taichi

• - Chipset: AMD B550
• - Socket: AM4
• - Hỗ trợ CPU: "Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*6 Power Phase design
• Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G"
• - Cạc đồ họa: VGA onboard
• - Kích thước: ATX

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Asrock
Model	B550 Taichi
Socket	AM4
Hỗ trợ CPU	Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*6 Power Phase design Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G
Chipset	AMD B550
Hỗ trợ RAM	4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Next Generation Ryzen series APUs support DDR4 5200+(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB**
Cạc đồ họa	VGA onboard
Âm thanh	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Cạc mạng	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports WiFi6 802.11ax (2.4Gbps) - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.1 + High speed class II - Supports MU-MIMO
Khe cắm trong	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)* - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

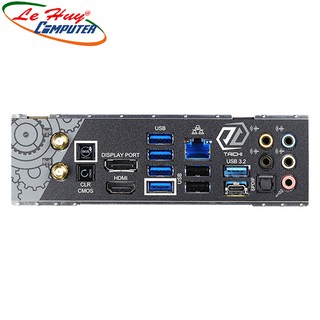

Cổng giao tiếp ngoài	2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Kích thước	ATX
Phụ kiện kèm theo	Sách, đĩa, cáp SATA, …

Giá Mainboard ASROCK B550 Taichi mới nhất

1. [Mã ELMS05 giảm 5% đơn 300k]Bo mạch chủ Mainboard Asrock B550 Taichi New 100% chính hãng bán tại Shopee giá 6.990.000₫
2. Mainboard Asrock B550 Taichi bán tại Lazada giá 8.220.000₫
3. Mainboard ASROCK B550 Taichi bán tại An Phát giá 7.599.000₫
4. Mainboard Asrock B550 Taichi bán tại Thành Nhân giá 7.890.000₫
5. Mainboard ASROCK B550 TAICHI (AMD B550, Socket AM4, ATX, 4 khe RAM DDR4) bán tại HanoiComputer giá 7.899.000₫
6. Asrock B550 Taichi (Chipset AMD B550/ Socket AM4/ VGA onboard) bán tại Phúc Anh giá 7.990.000₫
