MAIN ASROCK H110 không fe

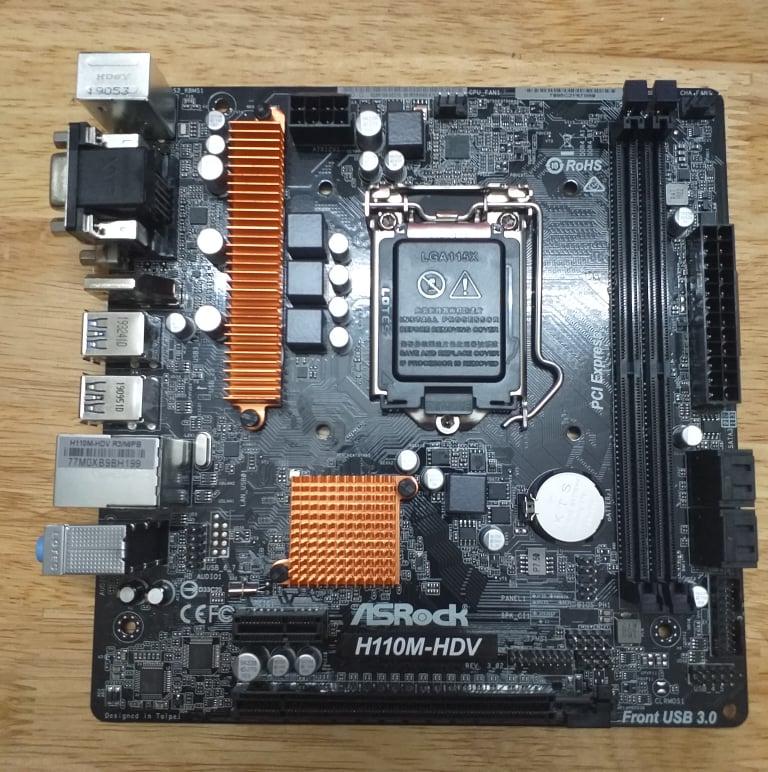

Bo Mạch Chủ Mainboard ASRock H110M-HDV/ R 3.0 hỗ trợ bộ vi xử lí Intel Core thế hệ 6 và 7 Socket 1151.

Hỗ trợ bộ nhớ DDR4 2133.

Trang bị 4 pha điện.

Trang bị 4 cổng SATA3 tốc độ 6Gb/s.

Trang bị chip âm thanh ALC 887, hỗ trợ âm thanh Gaming và Cinema 7.1. Hỗ trợ cho ALC 887 là các tụ audio ELNA chuyên dụng.

Trang bị 4 cổng USB 3.0 và 4 cổng USB 2.0

Các cổng hình ảnh gồm có: DVI-D, D-Sub, HDMI.

THÔNG SỐ KĨ THUẬT

Unique Feature

ASRock Super Alloy

- High Density Glass Fabric PCB

ASRock Full Spike Protection

ASRock Live Update & APP Shop

CPU

- Supports 7th and 6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151)

- 4 Power Phase design

- Supports CPU up to 95W

- Supports Intel Turbo Boost 2.0 Technology

Chipset

- Intel H110

Memory

- Dual Channel DDR4 Memory Technology

- 2 x DDR4 DIMM Slots

- Supports DDR4 2133 non-ECC, un-buffered memory

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. capacity of system memory: 32GB*

- Supports Intel Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 64Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 5.0 Compliant wake up events

- SMBIOS 2.7 Support

- DRAM, PCH 1.0V Voltage Multi-adjustment

Graphics

- Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, IntelHD Graphics 510/530/630

- Pixel Shader 5.0, DirectX 12

- Max. shared memory 1024MB**

- Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously

- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

- Supports Accelerated Media Codecs: HEVC, VP8, VP9

- Supports HDCP with DVI-D and HDMI Ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.

***Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit.

****Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit.

Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*

- Supports Surge Protection (ASRock Full Spike Protection)

- ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
