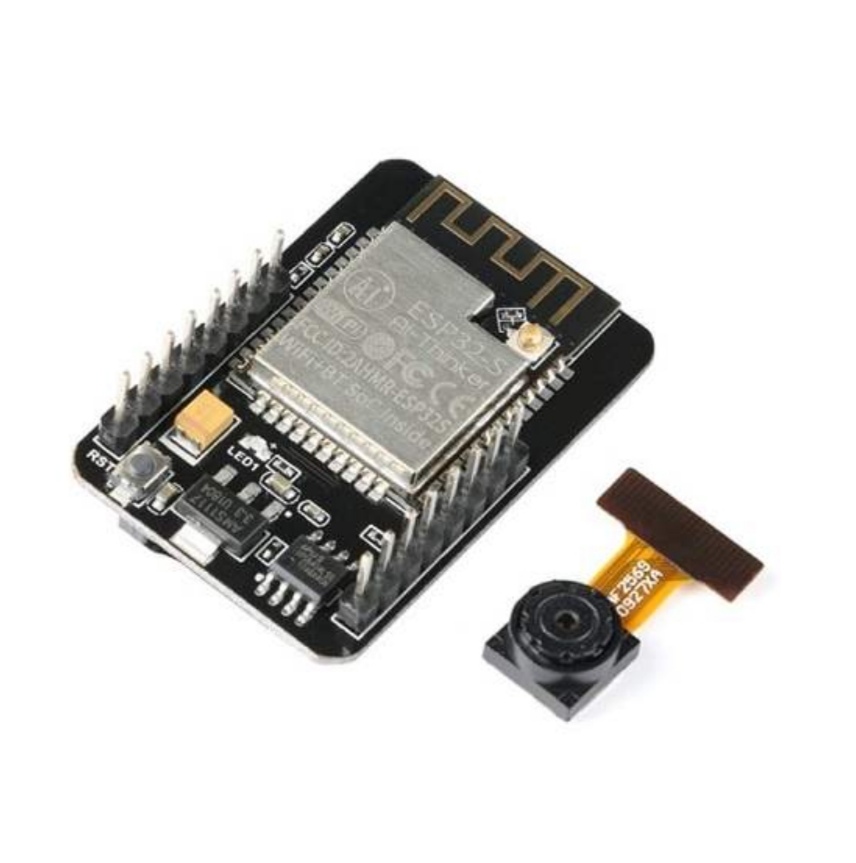

Kit RF thu phát Wifi BLE ESP32 Camera ESP32-CAM có kích thước nhỏ gọn với bộ xử lý chính là module ESP32 + Camera OV2640 được sử dụng trong các ứng dụng truyền hình ảnh, xử lý ảnh qua Wifi, Bluetooth hoặc các ứng dụng IoT, mạch có chất lượng gia công tốt, độ bền cao. Thông số kỹ thuật : Power Supply: 5VDC (nguồn từ 2A trở lên) Điện áp giao tiếp GPIO: 3.3VDC SPI Flash: Default 32Mbit RAM: 520KB SRAM +4M PSRAM Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards Wi-Fi: 802.11 b/g/n/ Support interface: UART、SPI、I2C、PWM Support TF card: Maximum support 4G IO port: 9 UART Baudrate: Default 115200 bps Image Output Format: JPEG( OV2640 support only ),BMP,GRAYSCALE Spectrum Range: 2412 ~2484MHz Antenna: Onboard PCB antenna, gain 2dBi Transmit Power: 802.11b: 17±2 dBm (@11Mbps); 802.11g: 14±2 dBm (@54Mbps); 802.11n: 13±2 dBm (@MCS7) Receiving Sensitivity: CCK, 1 Mbps : -90dBm; CCK, 11 Mbps: -85dBm; 6 Mbps (1/2 BPSK): -88dBm; 54 Mbps (3/4 64-QAM): -70dBm; MCS7 (65 Mbps, 72.2 Mbps): -67dBm Power Dissipation: Turn off the flash lamp:180mA@5VDC Turn on the flash lamp and turn on the brightness to the maximum:310mA@5VDC Deep-sleep: Minimum power consumption can be achieved 6mA@5VDC. Moderm-sleep: Minimum up to 20mA@5VDC. Light-sleep: Minimum up to 6.7mA@5VDC Security: WPA/WPA2/WPA2-Enterprise/WPS Dimensions: 40.5mm x27mm x4.5mm
