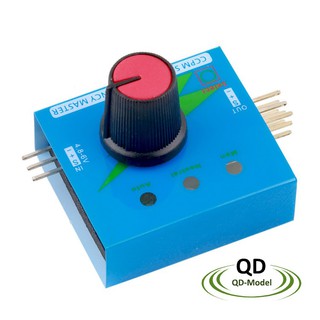

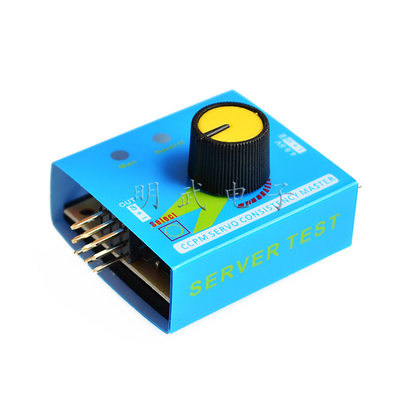

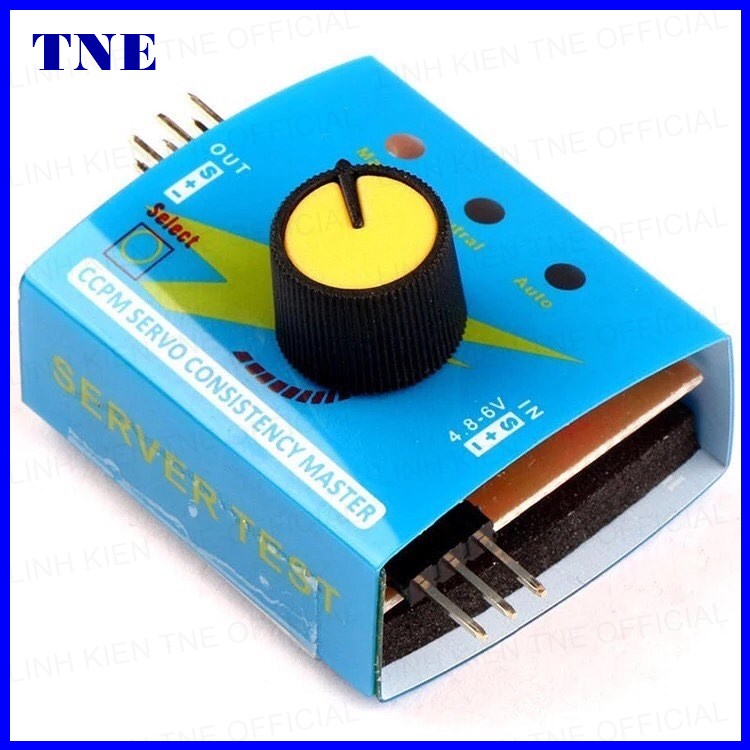

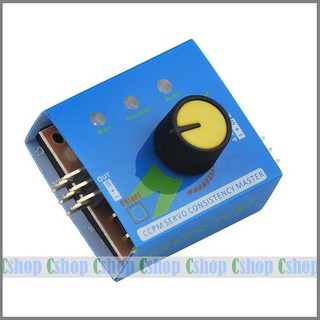

Mạch test servo, test motor brushless - server test

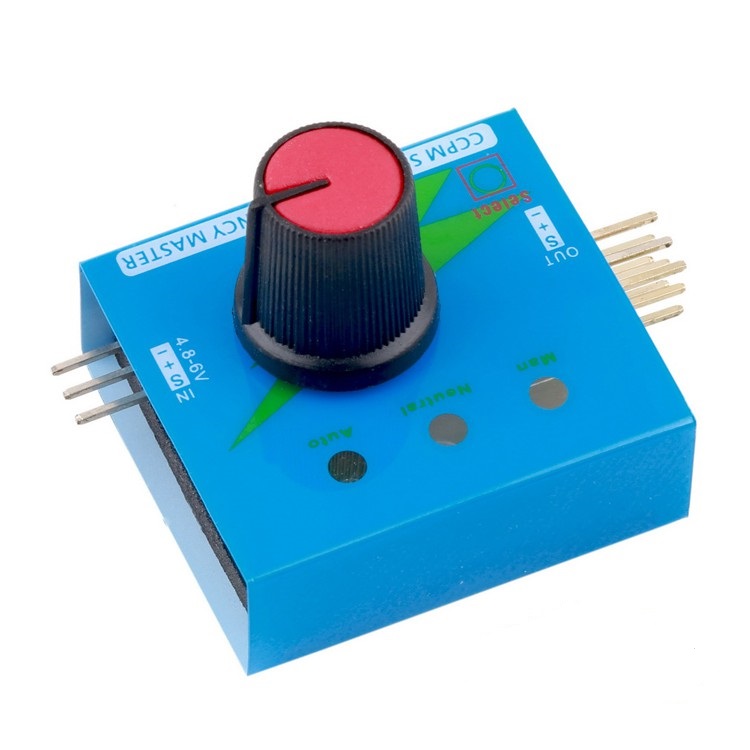

Specifications: (1) Output: ≤15mA (5.0) (2) Input: DC 4.5-6.0v (3) Output signal: 1.5ms ± 0.5ms (4) Size: 42.5 x 24.0 x 23.5mm (5) Weight: 8g (6) adjustment mode: manual, automatic, median. This product can't test the servos above 55g, please pay attention when buying. The unit can also use an electronic speed controller (ESC) as a signal generator, and then you can use a transmitter and receiver to test the motor system. There are 3 modes for checking the servo or ESC: Manual mode: Turn the knob at different speeds to check the reaction time. Neutral mode: Bring the servo back to the neutral point. Automatic "window wiper" mode: a window like the servo swings the maximum angle, wiper. It can be connected to 1-3 servos and tests at the same time, such as 1-3 servo consistency. You can also connect 1-3 ESC tests and compare their reaction times separately. It can be connected to the 3 steering gear CCPM helicopter and select the servo system. It can also be connected to the aircraft's servo mounted on the steering wheel frame to adjust the aircraft's use, such as neutral mode. Voltage consumption: DC4.8-6V Size: 48×42 x 17mm Original box: None Color: Blue Product size: 48* 42* 17mm Net weight: 7g Packing weight: 13g #mach #servo #motor #brushless #board #test
