M6 Screw Thread Probe NTC Thermistor Temperature Sensor Resistance 10k B Value 3950 Long 1M Tin Plating And XH2.54-2P Plug

NTC Thermistor

M6 Screw Thread Probe

Product Introduction

Temperature sensor is the high precision, high reliable NTC thermistor and PVC wire connection, with insulation, heat conduction, waterproof material packaging into the required shape, easy to install and remote temperature control. Adopt new technology, stable product performance, double sealing process, with good insulation sealing and mechanical impact resistance, bending resistance, high reliability, can be packaged according to the installation conditions, easy to install users.

Product Details

【Specification parameter】

Product Name：
NTC thermistor temperature sensor

The shell specifications：M6 Screw Thread Probe

Resistance tolerance：10K

Precision of resistance ：±1%

B value ：3950±1%

Temperature measurement range：-40℃- +125℃

Wire specifications：UL2651 26AWG PVC

And lines（Resistance to temperature 105℃）Resistance to pressure 300V。

Wire tail：Immersion tin 3 mm

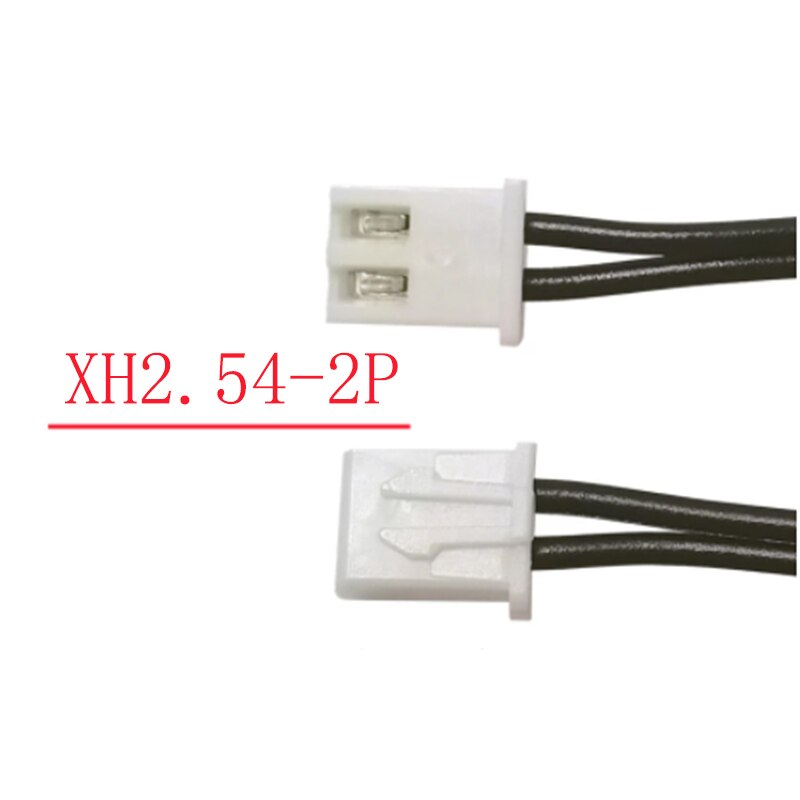

XH 2 p The plug（optional）

Wire length：    1M

The Product Application

Widely used in household air conditioning, automobile air conditioning, refrigerators, freezers, water heaters, water dispensers, warm fans, dishwashers, disinfection cabinets, washing machines, dryers and low temperature drying oven, thermostat and other occasions of temperature measurement and control.

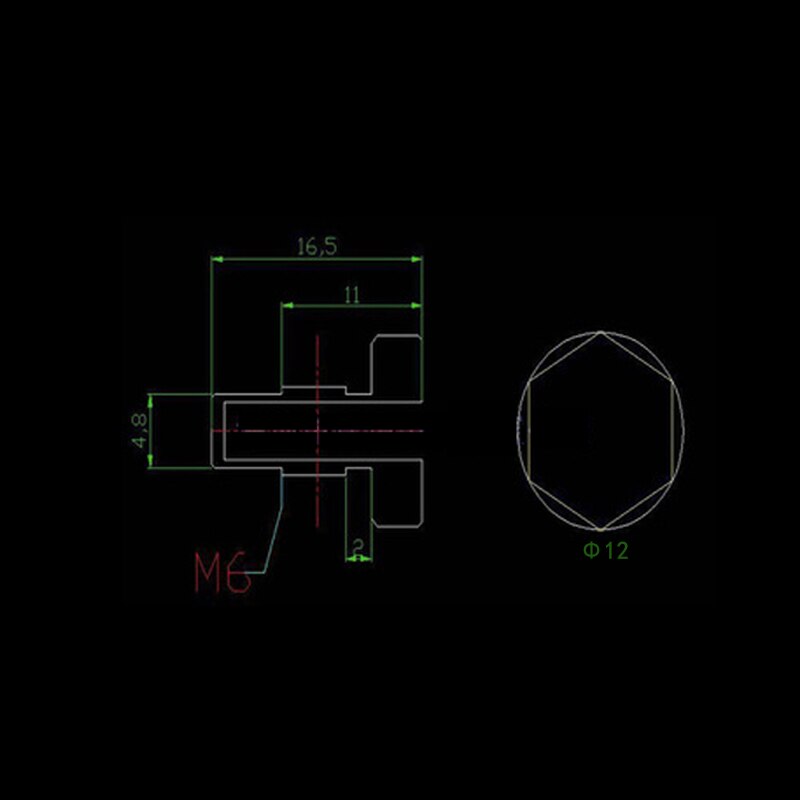

Product Drawing

Product Feature

1: The use of new technology, stable product performance, long-term work. (Annual resistance drift rate ≤1%)

2: Resistance value and B value of high precision, good consistency, interchangeable. (Accuracy of resistance value and B value can reach ±0.5% respectively)

3: High sensitivity and reaction. (Resistance temperature coefficient up to - (2~5) %/℃)

4: Double-layer sealing process, with good insulation sealing and mechanical impact resistance, bending resistance, high reliability.

5: Can be packaged according to the installation conditions, easy for users to install.

6: Can be made into high dissipation products, the test current can be much higher than the traditional structure of the sensor, simplify the test circuit.

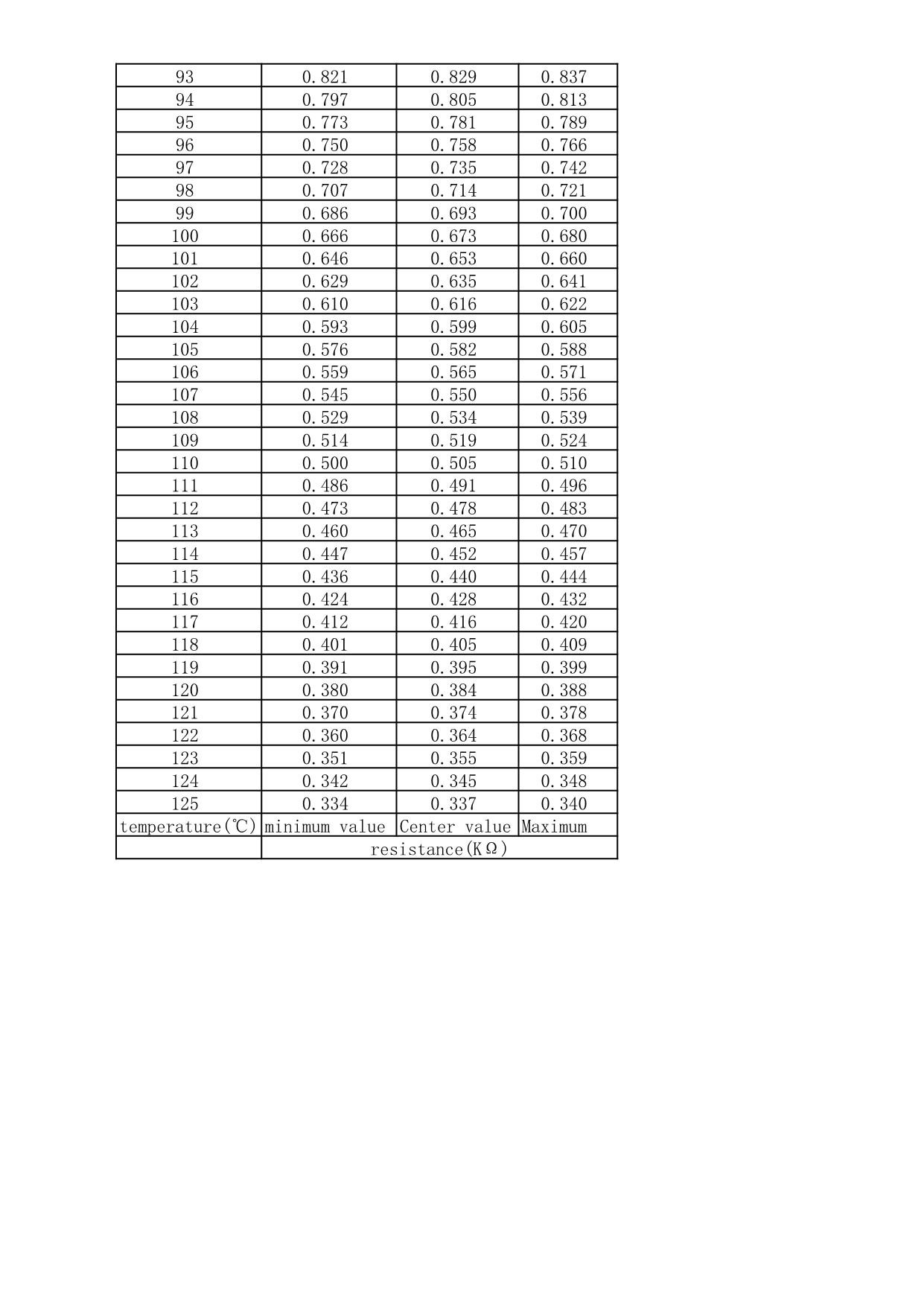

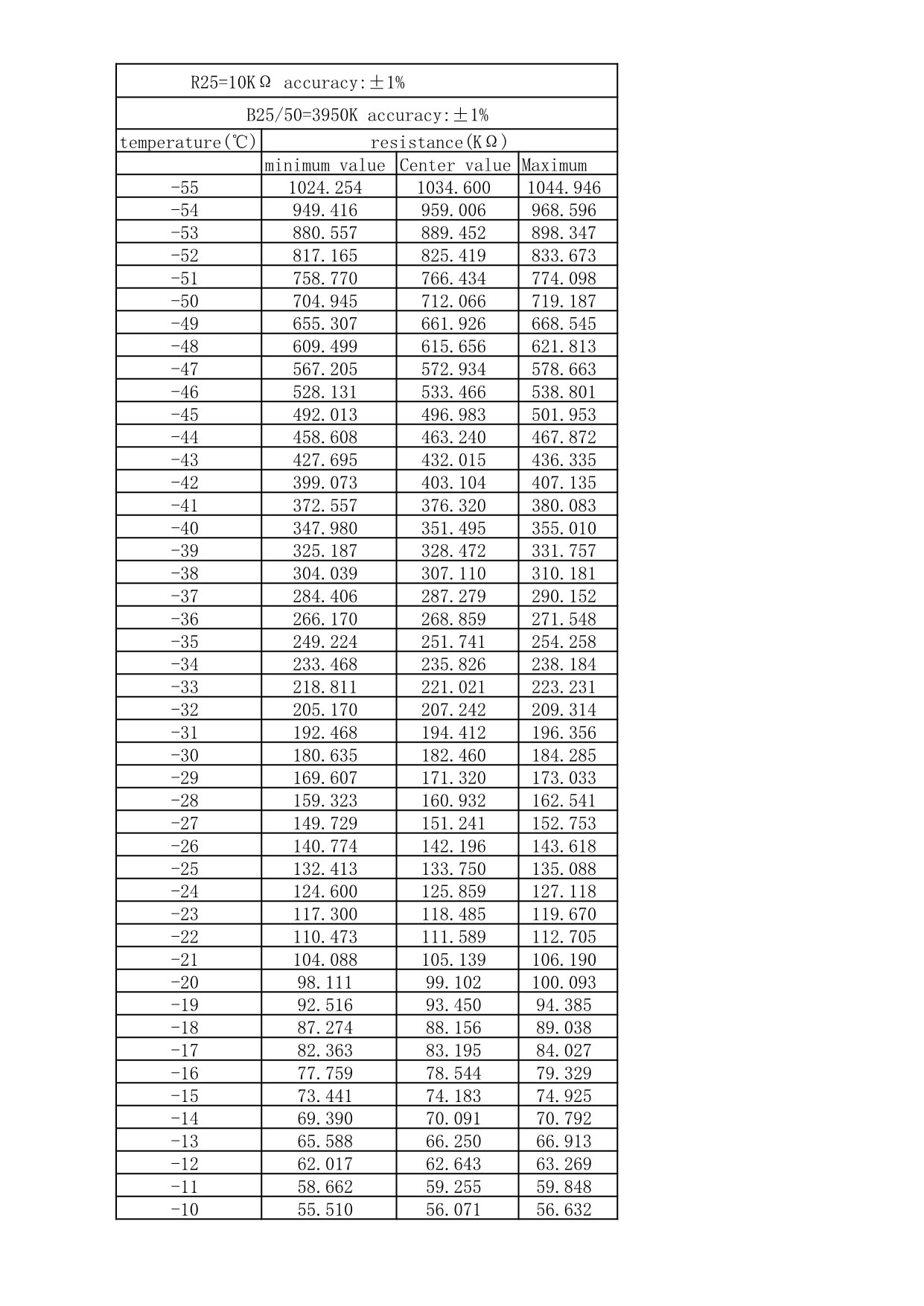

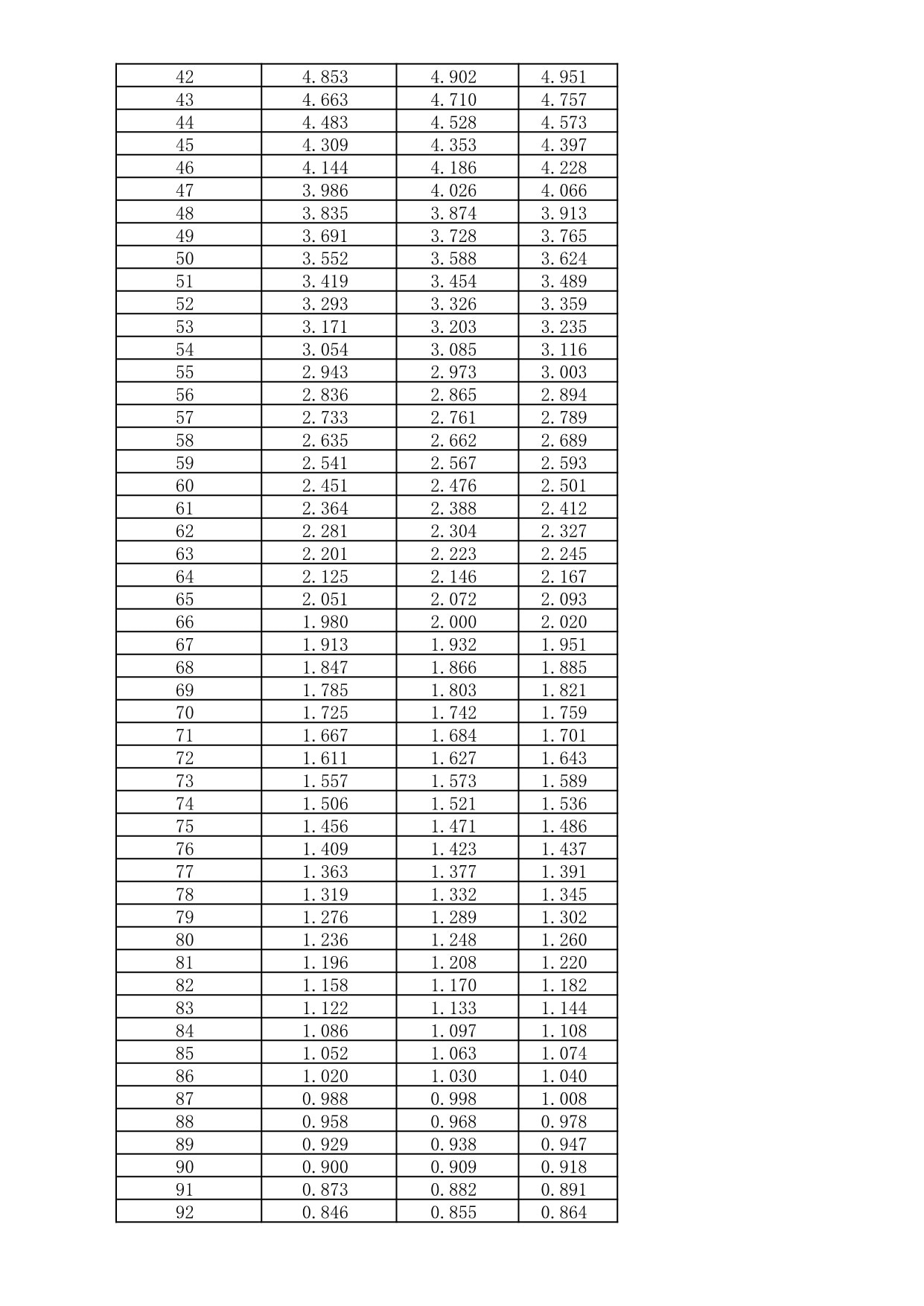

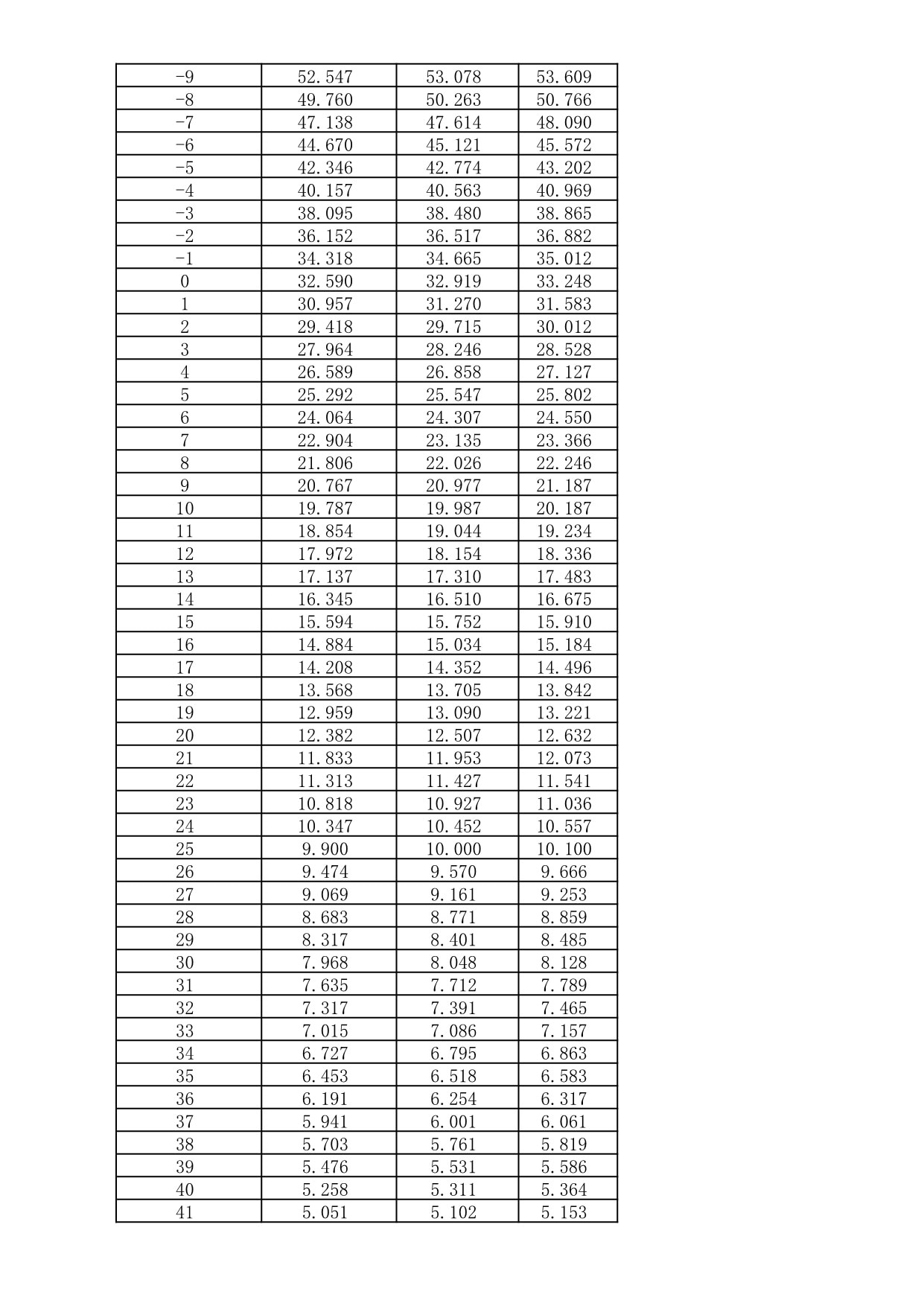

Temperature characteristic table

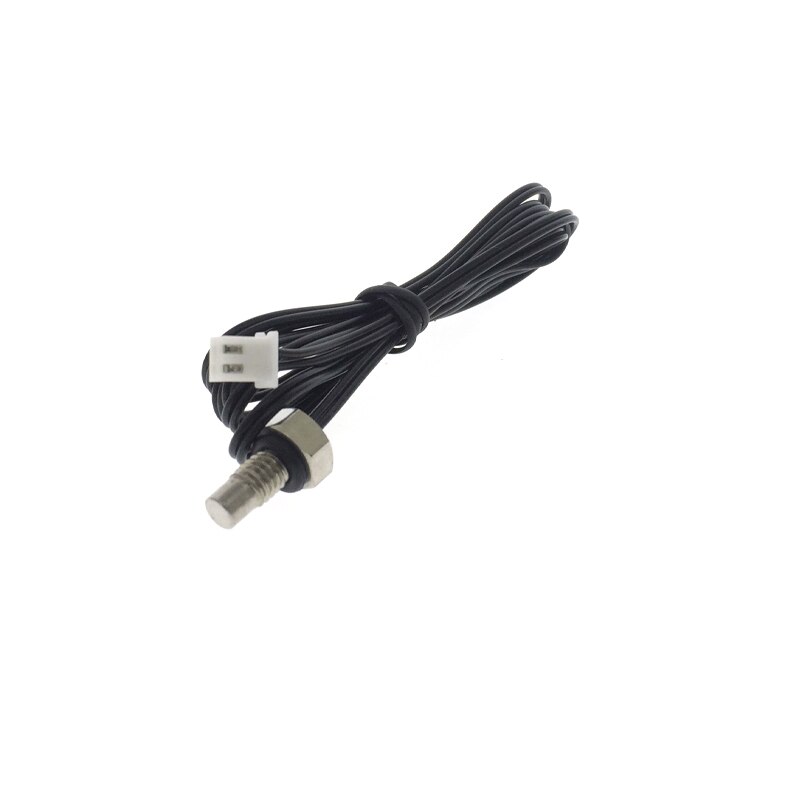

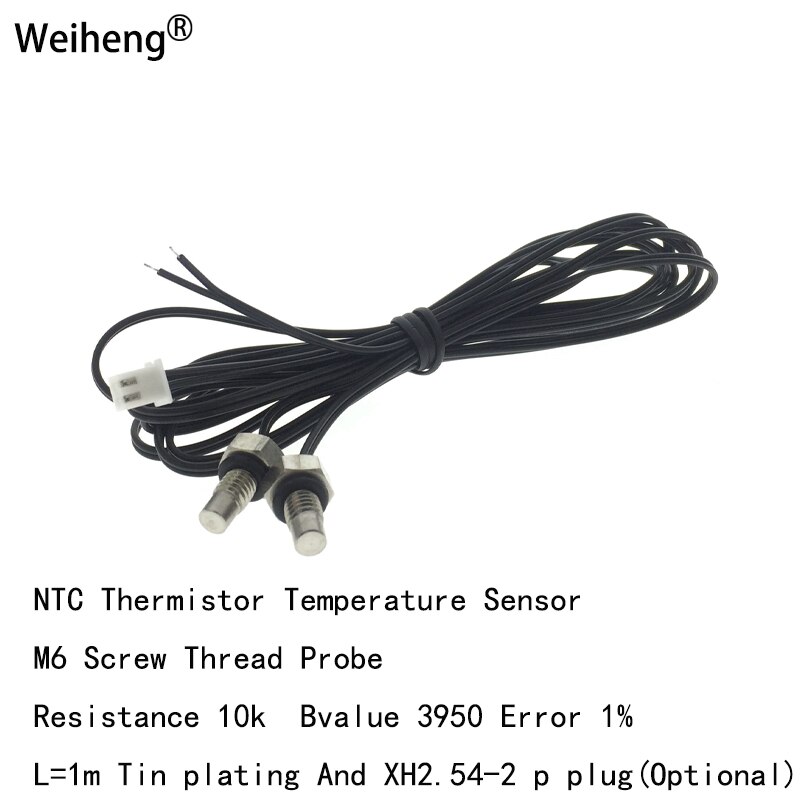

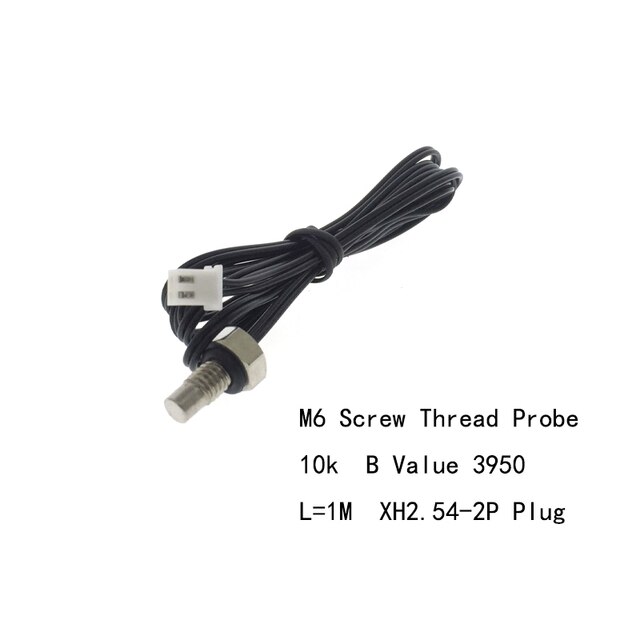

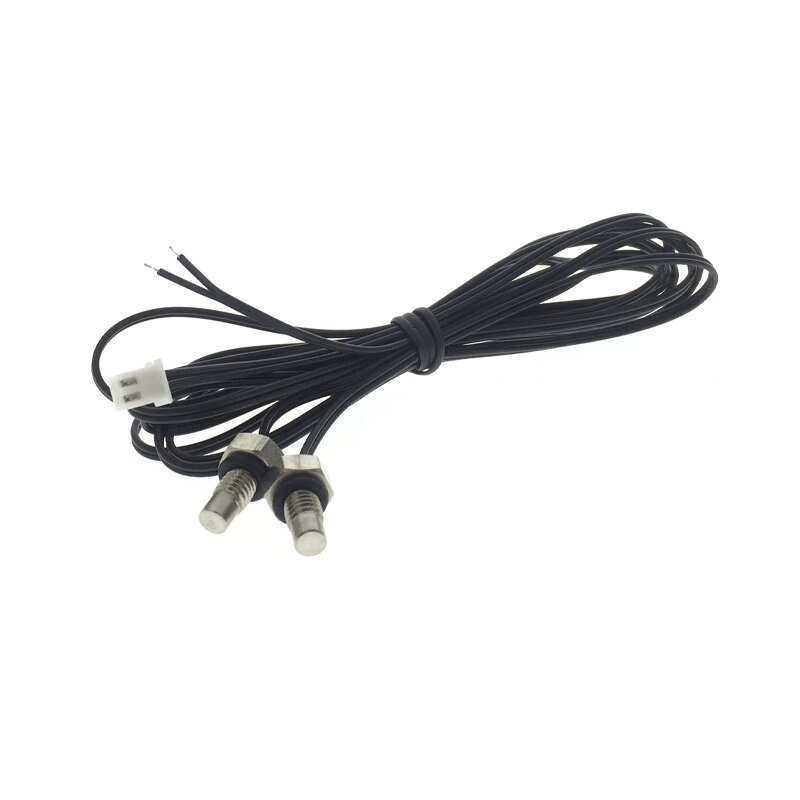

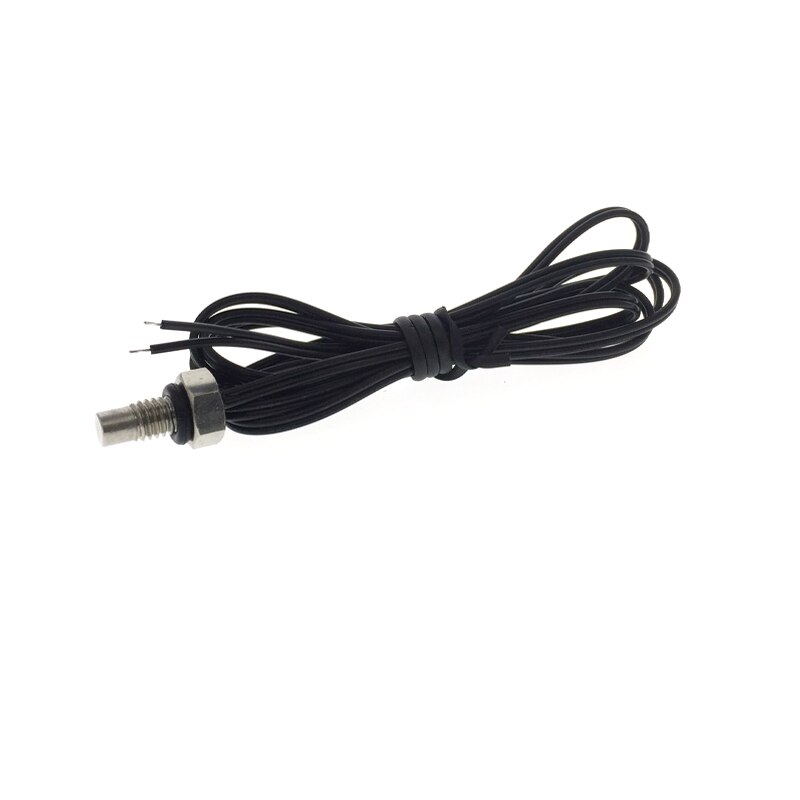

Product photograph
